Gigabyte GA-G41MT-USB3 Manual de usuario

GA-G41MT-USB3

GA-G41MT-D3V

LGA775 socket motherboard for Intel®Core™ processor family/

Intel®Pentium®processor family/Intel®Celeron®processor family

User's Manual

Rev. 1301

12ME-41MTD3V-1301R

Motherboard

Feb. 25, 2011

GA-G41MT-USB3/

GA-G41MT-D3V

Motherboard

GA-G41MT-USB3/GA-G41MT-D3V

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE with-

out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -
Table of Contents
GA-G41MT-USB3/GA-G41MT-D3V Motherboard Layout ...............................................5
Chapter 1 Hardware Installation .....................................................................................6
1-1 Installation Precautions.................................................................................... 6
1-2  Product Specications...................................................................................... 7
1-3 Installing the CPU and CPU Cooler ................................................................. 9
1-4 Installing the Memory..................................................................................... 10
1-5 Installing an Expansion Card ......................................................................... 10
1-6 Back Panel Connectors.................................................................................. 11
1-7 Internal Connectors........................................................................................ 12
Chapter 2 BIOS Setup ..................................................................................................19
2-1 Startup Screen ............................................................................................... 19
2-2 The Main Menu .............................................................................................. 19
2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 20
2-4 Standard CMOS Features.............................................................................. 26
2-5 Advanced BIOS Features .............................................................................. 27
2-6 Advanced Chipset Features........................................................................... 29
2-7 Integrated Peripherals.................................................................................... 30
2-8 Power Management Setup............................................................................. 31
2-9  PnP/PCI Congurations ................................................................................. 33
2-10 PC Health Status............................................................................................ 33
2-11 Load Fail-Safe Defaults.................................................................................. 34
2-12 Load Optimized Defaults................................................................................ 35
2-13 Set Supervisor/User Password ...................................................................... 35
2-14 Save & Exit Setup .......................................................................................... 36
2-15 Exit Without Saving........................................................................................ 36
Chapter 3 Drivers Installation........................................................................................37
3-1 Installing Chipset Drivers ............................................................................... 37

- 5 -

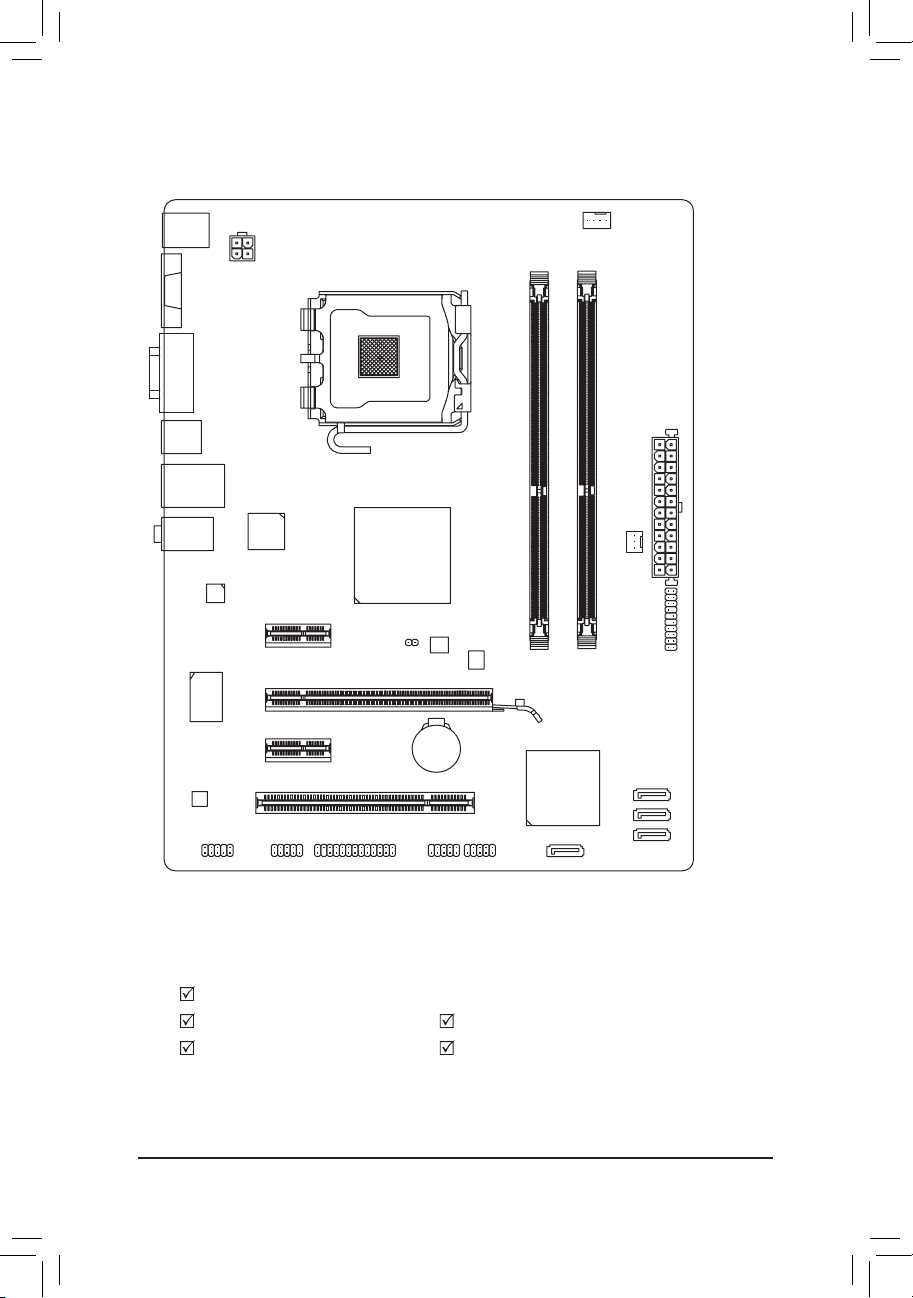

GA-G41MT-USB3/GA-G41MT-D3V Motherboard Layout

Box Contents

GA-G41MT-USB3 or GA-G41MT-D3V motherboard

Motherboard driver disk Two SATA cables

User's Manual I/O Shield

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

KB_MS CPU_FAN

LGA775

GA-G41MT-USB3/GA-G41MT-D3V

F_AUDIO

AUDIO

B_BIOS

M_BIOS

DDR3_1

DDR3_2

BATTERY

ATX_12V

Intel®G41

Intel®ICH7

PCIEX16

VGA

USB_LAN

CLR_CMOS

CODEC

SYS_FAN

F_USB1

F_USB2

F_PANEL

SATA2_0

SATA2_1

SATA2_2

SATA2_3

PCI

PCIEX1_2

PCIEX1_1

LPT

ATX

iTE

IT8718

COM

Realtek

RTL8111E

Etron

EJ168 j

USB30_20 (Note)

DVI

(Note) Only the GA-G41MT-USB3 supports USB 3.0.

jOnly for GA-G41MT-USB3.

Hardware Installation - 6 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

- 7 - Hardware Installation

1-2 ProductSpecications

CPU Support for an Intel

®Core™ 2 Extreme processor/

Intel®Core™ 2 Quad processor/Intel®Core™ 2 Duo processor/

Intel®Pentium®processor/Intel®Celeron®processor in the LGA775 package

(Go to GIGABYTE's website for the latest CPU support list.)

L2 cache varies with CPU



Front Side Bus

1333(O.C.)/1066/800 MHz FSB



Chipset North Bridge: Intel

®G41 Express Chipset

South Bridge: Intel

®ICH7

Memory 2 x 1.5V DDR3 DIMM sockets supporting up to 8 GB of system memory

* Due to Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than 4 GB.

Dual channel memory architecture



Support for DDR3 1333(O.C.)1066/800 MHz memory modules



(Go to GIGABYTE's website for the latest supported memory speeds and

memory modules.)

Onboard

Graphics

Integrated in the Chipset:

- 1 x D-Sub port

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200

* The DVI-D port does not support D-Sub connection by adapter.

Audio Realtek ALC889 codec



High Denition Audio



2/4/5.1/7.1-channel



* To congure 7.1-channel audio, you have to use an HD front panel audio module

and enable the multi-channel audio feature through the audio driver.

LAN 1 x Realtek RTL8111E chip (10/100/1000 Mbit)



Expansion Slots 1 x PCI Express x16 slot, running at x16



2 x PCI Express x1 slots



1 x PCI slot



Storage

Interface

South Bridge:



- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

USB South Bridge:

- Up to 6 USB 2.0/1.1 ports (2 on the back panel, 4 via the USB brackets

connected to the internal USB headers)j

- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets

connected to the internal USB headers)k

Etron EJ168 chips:j

- Up to 2 USB 3.0/2.0 ports on the back panelj

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 4-pin ATX 12V power connector

4 x SATA 3Gb/s connectors

jOnly for GA-G41MT-USB3.

kOnly for GA-G41MT-D3V.

Hardware Installation - 8 -

Internal

Connectors

1 x CPU fan header

1 x system fan header

1 x front panel header

1 x front panel audio header

2 x USB 2.0/1.1 headers

1 x serial port header

1 x parallel port

1 x clearing CMOS jumper

Back Panel

Connectors

1 x PS/2 keyboard port

1 x PS/2 mouse port

1 x D-Sub port

1 x DVI-D port

4 x USB 2.0/1.1 portsk

2 x USB 2.0/1.1 portsj

2 x USB 3.0/2.0 portsj

1 x RJ-45 port

3 x audio jacks (Line In/Line Out/Microphone)

I/O iTE IT8718

Hardware

Monitor

System voltage detection

CPU temperature detection

CPU/System fan speed detection

CPU overheating warning

CPU/System fan fail warning

CPU fan speed control

* Whether the CPU fan speed control function is supported will depend on the CPU

cooler you install.

BIOS 2 x 8 Mbit ash

Use of licensed AWARD BIOS

Support for DualBIOS™

PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features Support for @BIOS

Support for Q-Flash

Support for Xpress BIOS Rescue

Support for Download Center

Support for Xpress Install

Support for Xpress Recovery2

Support for EasyTune

* Available functions in EasyTune may differ by motherboard model.

Support for Easy Energy Saver

* Due to the hardware limitation, you must install the Intel®CoreTM 2 Extreme/

CoreTM 2 Quad/ CoreTM 2 Duo/Pentium Dual-Core/Celeron Dual-Core/

Celeron 400 Series CPU to enable support for Easy Energy Saver.

Support for Smart Recovery

jOnly for GA-G41MT-USB3.

kOnly for GA-G41MT-D3V.

- 9 - Hardware Installation

1-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing

the CPU to prevent hardware damage.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-

age of the CPU may occur.

• Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graph-

ics card, memory, hard drive, etc.

Notch Notch

Alignment KeyAlignment Key

LGA775 CPU

LGA775 CPU Socket

Pin One Corner of the CPU Socket

Triangle Pin One Marking on the CPU

Unique Features Support for ON/OFF Charge

Support for Q-Share

Bundled

Software Norton Internet Security (OEM version)

Operating

System Support for Microsoft®Windows 7/Vista/XP

Form Factor Micro ATX Form Factor; 24.4cm x 19.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information

without prior notice.

Installing the CPU

A. Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Hardware Installation - 10 -

DDR3_1

DDR3_2

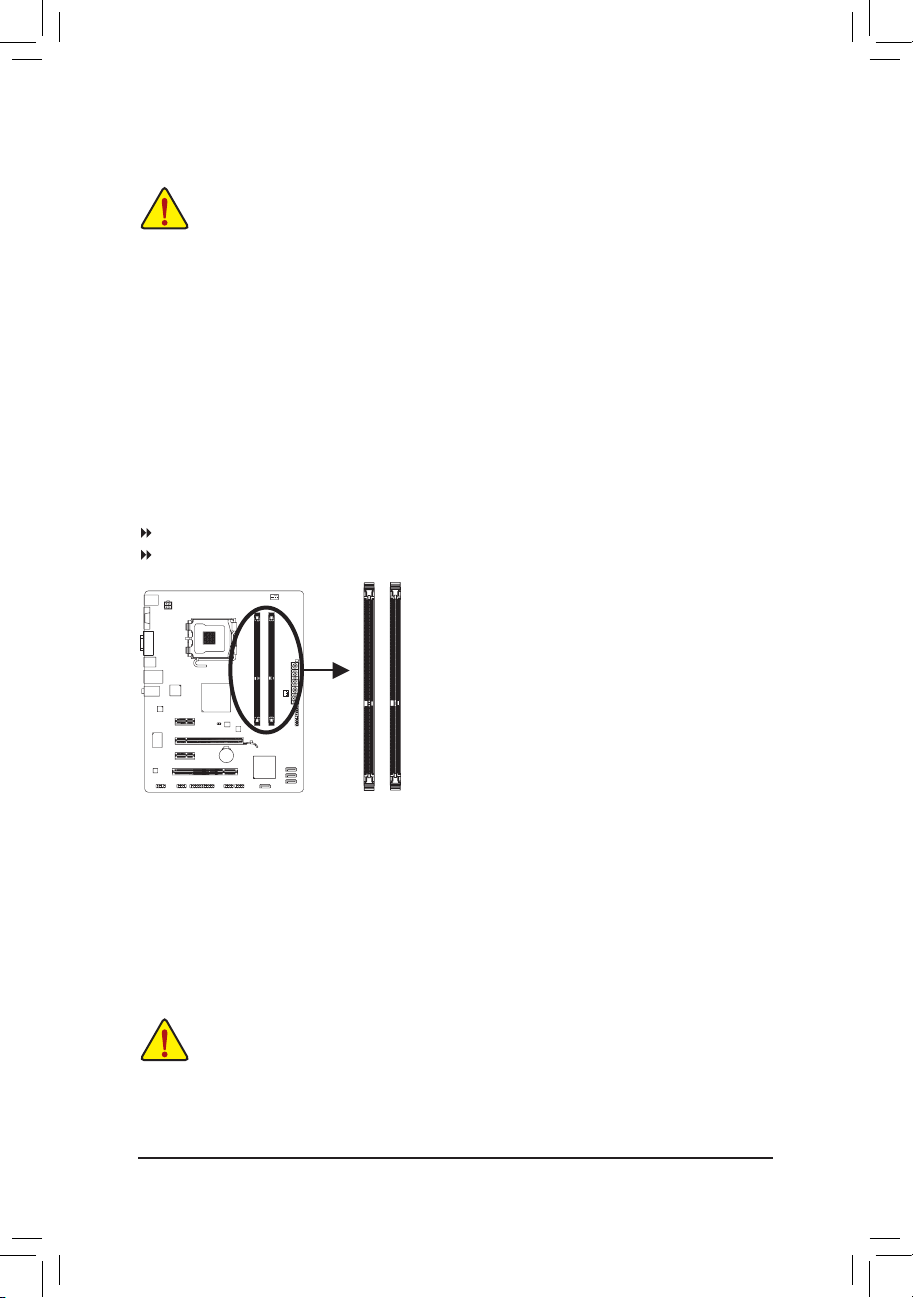

Due to chipset limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing

the memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direc-

tion. If you are unable to insert the memory, switch the direction.

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing

an expansion card to prevent hardware damage.

DualChannelMemoryConguration

This motherboard provides two DDR3 memory sockets and supports Dual Channel Technology. After the

memory is installed, the BIOS will automatically detect the specications and capacity of the memory. En-

abling Dual Channel memory mode will double the original memory bandwidth.

The two DDR3 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel 0: DDR3_1

Channel 1: DDR3_2

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte MD71-HB1 Manual de usuario

Gigabyte

Gigabyte GA-F2A88XN-WIFI Manual de usuario

Gigabyte

Gigabyte GA-X58A-OC Manual de usuario

Gigabyte

Gigabyte GA-H81M-S2VP Manual de usuario

Gigabyte

Gigabyte H510M DS2V Manual de usuario

Gigabyte

Gigabyte GA-7VRX Manual de usuario

Gigabyte

Gigabyte GA-945PL-S3G Manual de usuario

Gigabyte

Gigabyte GA-Z68XP-UD4 Manual de usuario

Gigabyte

Gigabyte GA-H97M-DS3P Manual de usuario

Gigabyte

Gigabyte GA-6VA7 Manual de usuario

Gigabyte

Gigabyte GA-8ST800 Manual de usuario

Gigabyte

Gigabyte GA-8IRX Manual de usuario

Gigabyte

Gigabyte GA-X38-DS5 Manual de usuario

Gigabyte

Gigabyte X570 AORUS ELITE WIFI Manual de usuario

Gigabyte

Gigabyte GA-B150M-D3H-GSM Manual de usuario

Gigabyte

Gigabyte GA-945G-S3 Manual de usuario

Gigabyte

Gigabyte GA-6FASV1 Manual de usuario

Gigabyte

Gigabyte GA-Z97-HD3P Manual de usuario

Gigabyte

Gigabyte GA-6OMM7E Manual de usuario

Gigabyte

Gigabyte GA-F2A85XM-HD3 Manual de usuario

Gigabyte

Gigabyte B650M GAMING X AX Manual de usuario

Gigabyte

Gigabyte B550 AORUS ELITE AX V2 Manual de usuario

Gigabyte

Gigabyte Z390 GAMING X Manual de usuario

Gigabyte

Gigabyte GA-B150N Phoenix-WIFI Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
