Gigabyte GA-G41M-Combo Manual de usuario

GA-G41M-Combo

LGA775 socket motherboard for Intel®Core™ processor family/

Intel®Pentium®processor family/Intel®Celeron®processor family

User's Manual

Rev. 1302

12ME-G41MC-1302R

Motherboard

GA-G41M-Combo

May 24, 2010

Motherboard

GA-G41M-Combo

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE with-

out prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For detailed product information, carefully read the User's Manual.

For instructions on how to use GIGABYTE's unique features, read or download the information

on/from the Support&Downloads\Motherboard\Technology Guide page on our website.

For product-related information, check on our website at:

http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

GA-G41M-Combo Motherboard Layout ..........................................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU and CPU Cooler ................................................................. 9

1-3-1 Installing the CPU.....................................................................................................9

1-4 Installing the Memory..................................................................................... 10

1-4-1 Dual Channel Memory Conguration .....................................................................10

1-5 Installing an Expansion Card ......................................................................... 10

1-6 Back Panel Connectors.................................................................................. 11

1-7 Internal Connectors........................................................................................ 12

Chapter 2 BIOS Setup ..................................................................................................21

2-1 Startup Screen ............................................................................................... 21

2-2 The Main Menu .............................................................................................. 21

2-3 MB Intelligent Tweaker(M.I.T.)........................................................................ 22

2-4 Standard CMOS Features.............................................................................. 28

2-5 Advanced BIOS Features .............................................................................. 29

2-6 Advanced Chipset Features........................................................................... 31

2-7 Integrated Peripherals.................................................................................... 32

2-8 Power Management Setup............................................................................. 34

2-9 PnP/PCI Congurations ................................................................................. 36

2-10 PC Health Status............................................................................................ 36

2-11 Load Fail-Safe Defaults.................................................................................. 37

2-12 Load Optimized Defaults................................................................................ 38

2-13 Set Supervisor/User Password ...................................................................... 38

2-14 Save & Exit Setup .......................................................................................... 39

2-15 Exit Without Saving........................................................................................ 39

Chapter 3 Drivers Installation........................................................................................40

3-1 Installing Chipset Drivers ............................................................................... 40

Regulatory Statements..................................................................................................41

- 5 -

GA-G41M-Combo Motherboard Layout

KB_MS

COMA

CPU_FAN

LGA775

GA-G41M-Combo

CD_IN

F_AUDIO

AUDIO

B_BIOS

M_BIOS

IDE

SPDIF_O

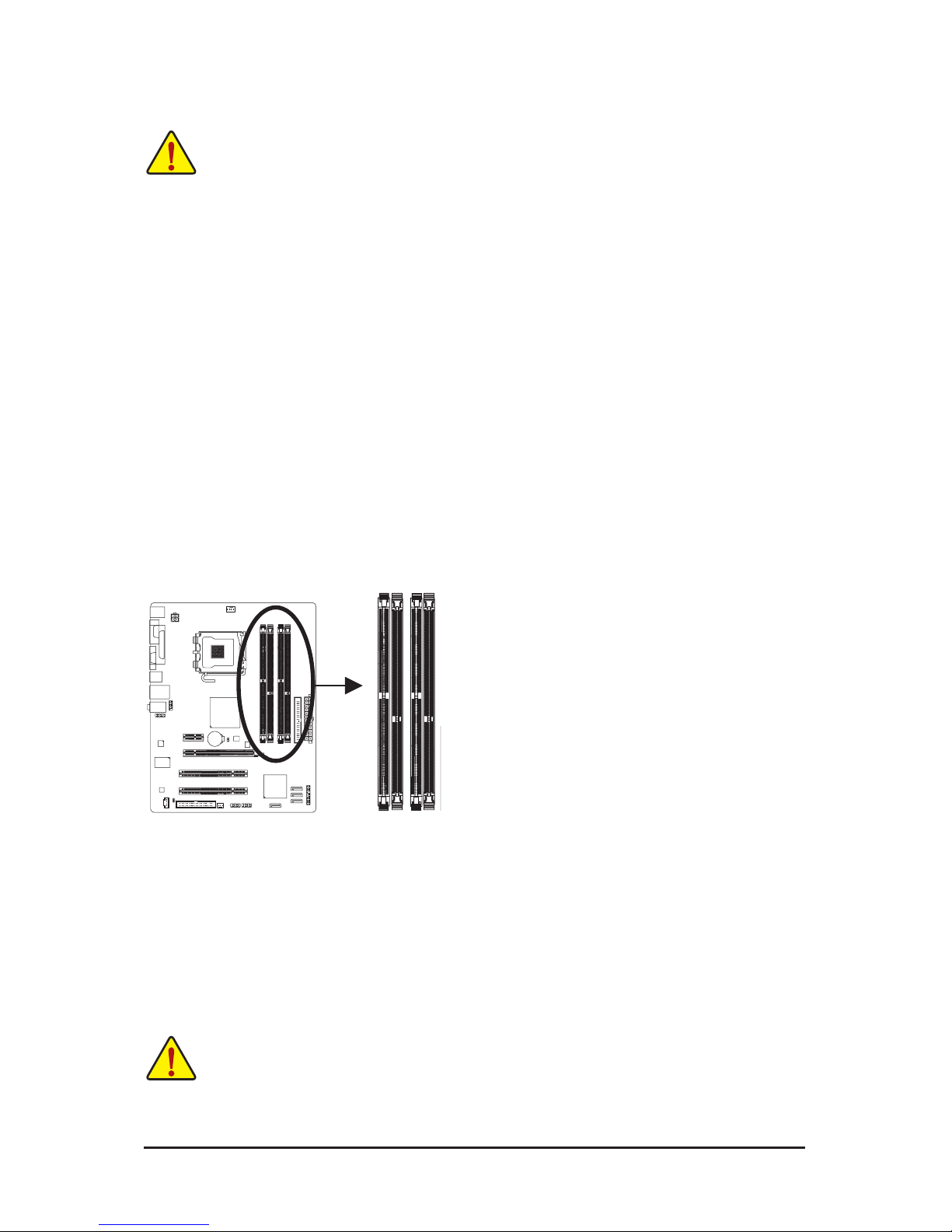

DDR3_1

DDR3_2

BAT

ATX_12V

Intel®G41

Intel®ICH7

FDD

PCIEX16

VGA

USB_LAN

CLR_CMOS

CODEC

SYS_FAN

COMB

F_USB1

F_USB2

F_PANEL

SATA2_0

SATA2_1

SATA2_2

SATA2_3

Atheros

AR8151

R_USB

PCI2

PCI1

PCIEX1

LPT

iTE

IT8718F

ATX

DDR2_1

DDR2_2

Box Contents

GA-G41M-Combo motherboard One IDE cable

Motherboard driver disk Two SATA cables

User's Manual I/O Shield

The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Hardware Installation - 6 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can

become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read

the user's manual and follow these procedures:

• Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

• Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

• When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

• When handling the motherboard, avoid touching any metal leads or connectors.

• It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•

Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

• Before unplugging the power supply cable from the motherboard, make sure the power sup-

ply has been turned off.

• Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

• Before using the product, please verify that all cables and power connectors of your hard-

ware components are connected.

• To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

• Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

• Do not place the computer system on an uneven surface

• Do not place the computer system in a high-temperature environment.

• Turning on the computer power during the installation process can lead to damage to sys-

tem components as well as physical harm to the user.

• If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

Chapter 1 Hardware Installation

- 7 - Hardware Installation

1-2 Product Specications

CPU wSupport for an Intel®Core™ 2 Extreme processor/

Intel®Core™ 2 Quad processor/Intel®Core™ 2 Duo processor/

Intel®Pentium®processor/Intel®Celeron®processor in the LGA775 package

(Go to GIGABYTE's website for the latest CPU support list.)

wL2 cache varies with CPU

Front Side Bus w1333/1066/800 MHz FSB

Chipset w

North Bridge: Intel®G41 Express Chipset

w

South Bridge: Intel®ICH7

Memory wDDR3:

- 2 x 1.5V DDR3 DIMM sockets supporting up to 4 GB of system memory

- Dual channel memory architecture

- Support for DDR3 1333(O.C.)/1066/800 MHz memory modules

wDDR2:

- 2 x 1.8V DDR2 DIMM sockets supporting up to 8 GB of system memory (Note 1)

- Dual channel memory architecture

- Support for DDR2 1066(O.C.)/800/667 MHz memory modules

(Note: Mixed mode, populating DDR2 and DDR3 memory modules simulta-

neously is not supported. Go to GIGABYTE's website for the latest supported

memory speeds and memory modules.)

Onboard Graphics wNorth Bridge:

- 1 x D-Sub port

Audio   w VIA VT1708S codec

w High Denition Audio

w 2/4/5.1-channel

    w Support for S/PDIF Out

w

Support for CD In

LAN w1 x Atheros AR8151 chip (10/100/1000 Mbit)

Expansion Slots w1 x PCI Express x16 slot, running at x16

w1 x PCI Express x1 slot

w

2 x PCI slots

Storage Interface wSouth Bridge:

- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

wiTE IT8718F chip:

- 1 x oppy disk drive connector supporting up to 1 oppy disk drive

USB wSouth Bridge:

- Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

Internal w1 x 24-pin ATX main power connector

Connectors w1 x 4-pin ATX 12V power connector

w 1 x oppy disk drive connector

w1 x IDE connector

w4 x SATA 3Gb/s connectors

Hardware Installation - 8 -

Internal w1 x CPU fan header

Connectors w1 x system fan header

w1 x front panel header

w1 x front panel audio header

w1 x CD In connector

w1 x S/PDIF Out header

w2 x USB 2.0/1.1 headers

w1 x serial port header

w1 x clearing CMOS jumper

Back Panel w1 x PS/2 keyboard port

Connectors w1 x PS/2 mouse port

w1 x parallel port

w1 x serial port

w

1 x D-Sub port

w4 x USB 2.0/1.1 ports

w1 x RJ-45 port

w3 x audio jacks (Line In/Line Out/Microphone)

I/O wiTE IT8718F

Hardware Monitor wSystem voltage detection

wCPU/System temperature detection

wCPU/System fan speed detection

wCPU overheating warning

wCPU/System fan fail warning

wCPU fan speed control (Note 2)

BIOS w 2 x 8 Mbit ash

wUse of licensed AWARD BIOS

wSupport for DualBIOS™

wPnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b

Unique Features wSupport for @BIOS

wSupport for Q-Flash

wSupport for Xpress BIOS Rescue

wSupport for Download Center

wSupport for Xpress Install

wSupport for Xpress Recovery2

wSupport for EasyTune (Note 3)

wSupport for Easy Energy Saver (Note 4)

wSupport for SMART Recovery

wSupport for Auto Green

wSupport for ON/OFF Charge

wSupport for Q-Share

Bundled Software wNorton Internet Security (OEM version)

Operating System wSupport for Microsoft®Windows®7/Vista/XP

- 9 - Hardware Installation

(Note 1) Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is

installed, the actual memory size displayed will be less than 4 GB.

(Note 2) Whether the CPU fan speed control function is supported will depend on the CPU cooler you install.

(Note 3) Available functions in EasyTune may differ by motherboard model.

(Note 4) Due to the hardware limitation, you must install the Intel

Core

2 Extreme/Core

2 Quad/Core

2 Duo/

Pentium Dual-Core/Celeron Dual-Core/Celeron 400 Series CPU to enable support for Easy Energy Saver.

Form Factor wMicro ATX Form Factor; 24.4cm x 21.0cm

1-3 Installing the CPU and CPU Cooler

Read the following guidelines before you begin to install the CPU:

• Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing

the CPU to prevent hardware damage.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and dam-

age of the CPU may occur.

• Set the CPU host frequency in accordance with the CPU specications. It is not recommended

that the system bus frequency be set beyond hardware specications since it does not meet the

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications, please do so according to your hardware specications including the CPU, graph-

ics card, memory, hard drive, etc.

1-3-1 Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Notch Notch

Alignment KeyAlignment Key

LGA775 CPU

LGA775 CPU Socket

Pin One Corner of the CPU Socket

Triangle Pin One Marking on the CPU

Hardware Installation - 10 -

DDR3_1

DDR3_2

DDR3/DDR2 Dual Channel Memory Conguration:

Due to chipset limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one DDR3/DDR2 memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the

same capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing

the memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direc-

tion. If you are unable to insert the memory, switch the direction.

•

Populating DDR2 and DDR3 memory modules simultaneously is not supported. To ensure memory

compatibility, be sure to use the memory modules on the memory support list at GIGABYTE's website.

1-4-1 Dual Channel Memory Conguration

This motherboard provides two DDR2 and two DDR3 memory sockets and supports Dual Channel Technology.

The two DDR3 memory sockets (DDR3_1, DDR3_2) are divided into two channels and each channel has one

memory socket as following:

Channel 0: DDR3_1

Channel 1: DDR3_2

The two DDR2 memory sockets (DDR2_1, DDR2_2) are divided into two channels and each channel has one

memory socket as following:

Channel 0: DDR2_1

Channel 1: DDR2_2

DDR2_1

DDR2_2

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing

an expansion card to prevent hardware damage.

Otros manuales para GA-G41M-Combo

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-VT890P Manual de usuario

Gigabyte

Gigabyte GA-K8VT890-9 Manual de usuario

Gigabyte

Gigabyte GA-H270-HD3P Manual de usuario

Gigabyte

Gigabyte GA-M68SM-S2 Manual de usuario

Gigabyte

Gigabyte GA-A320-DS3 Manual de usuario

Gigabyte

Gigabyte GA-J1800N-D2H Manual de usuario

Gigabyte

Gigabyte Z690 UD AC Manual de usuario

Gigabyte

Gigabyte GA-EG45M-DS2H Manual de usuario

Gigabyte

Gigabyte GA-6OXC Manual de usuario

Gigabyte

Gigabyte MD71-HB0 Manual de usuario

Gigabyte

Gigabyte C7V7-CSI Manual de usuario

Gigabyte

Gigabyte GA-G31M-S2L Manual de usuario

Gigabyte

Gigabyte GA-H61-S3 Manual de usuario

Gigabyte

Gigabyte GA-7VKMLS Manual de usuario

Gigabyte

Gigabyte Z690 A ELITE AX D4 V2 Manual de usuario

Gigabyte

Gigabyte B450M GAMING Manual de usuario

Gigabyte

Gigabyte GA-MA78GPM-UD2H Manual de usuario

Gigabyte

Gigabyte GA-8IPE1000 Series Manual de usuario

Gigabyte

Gigabyte GA-K8VT800M Manual de usuario

Gigabyte

Gigabyte 12ME-97AD3PX-2102R Manual de usuario

Gigabyte

Gigabyte GA-Z270-Gaming K3 Manual de usuario

Gigabyte

Gigabyte GA-MA790GPT-UD3H Manual de usuario

Gigabyte

Gigabyte GA-8SR533 Series Manual de usuario

Gigabyte

Gigabyte GA-4MXSV Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
