Gigabyte GA-G31M-S2L Manual de usuario

GA-G31M-S2L

LGA775 socket motherboard for Intel®CoreTM processor family/

Intel®Pentium®processor family/Intel®Celeron®processor family

User's Manual

Rev. 1004

12ME-G31MS2L-1004R

Aug. 31, 2007

Motherboard

GA-G31M-S2L

Motherboard

GA-G31M-S2L

Aug. 31, 2007

The trademarks mentioned in this manual are legally registered to their respective owners.

The logo is exclusively licensed to GIGABYTE UNITED INC. by GIGA-BYTE

TECHNOLOGY CO., LTD.

GIGABYTE UNITED INC. is designated by GIGA-BYTE TECHNOLOGY CO., LTD as the exclu-

sive global distributor of GIGABYTE branded motherboards.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specifications and features in this manual may be made by GIGABYTE without prior

notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classifications

In order to assist in the use of this product, GIGABYTE provides the following types of documentations:

For detailed product information, carefully read the User's Manual.

For instructions on how to use GIGABYTE's unique features, read or download the

information on/from the Support\Motherboard\Technology Guide page on our website.

For product-related information, check on our website at:

http://www.gigabyte.com.tw

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents ................................................................................................................. 6

OptionalItems................................................................................................................. 6

GA-G31M-S2L Motherboard Layout .............................................................................. 7

Block Diagram................................................................................................................ 8

Chapter 1 Hardware Installation .................................................................................... 9

1-1 Installation Precautions ..................................................................................... 9

1-2 Product Specifications .................................................................................... 10

1-3 Installing the CPU and CPU Cooler .............................................................. 13

1-3-1 Installing the CPU ................................................................................................ 13

1-3-2 Installing the CPU Cooler ................................................................................... 15

1-4 Installing the Memory ..................................................................................... 16

1-4-1 Dual Channel Memory Configuration ................................................................ 16

1-4-2 Installing a Memory ............................................................................................. 17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Back Panel Connectors ................................................................................. 19

1-7 Internal Connectors ........................................................................................ 21

Chapter 2 BIOS Setup ................................................................................................. 31

2-1 Startup Screen ................................................................................................ 32

2-2 The Main Menu .............................................................................................. 33

2-3 Standard CMOS Features ............................................................................. 35

2-4 Advanced BIOS Features .............................................................................. 37

2-5 Integrated Peripherals ..................................................................................... 40

2-6 Power Management Setup ............................................................................. 43

2-7 PnP/PCI Configurations ................................................................................. 45

2-8 PC Health Status ........................................................................................... 46

2-9 MB Intelligent Tweaker(M.I.T.) ....................................................................... 47

2-10 Load Fail-Safe Defaults ................................................................................... 50

2-11 Load Optimized Defaults ................................................................................. 50

2-12 Set Supervisor/User Password ..................................................................... 51

2-13 Save & Exit Setup ......................................................................................... 52

2-14 Exit Without Saving ....................................................................................... 52

- 5 -

Chapter 3 Drivers Installation ...................................................................................... 53

3-1 Installing Chipset Drivers ............................................................................... 53

3-2 Software Applications ..................................................................................... 54

3-3 Driver CD Information .................................................................................... 54

3-4 Hardware Information ..................................................................................... 55

3-5 Contact Us ..................................................................................................... 55

Chapter 4 Unique Features ......................................................................................... 57

4-1 Xpress Recovery2 ......................................................................................... 57

4-2 BIOS Update Utilities ..................................................................................... 62

4-2-1 Updating the BIOS with the Q-Flash Utility ...................................................... 62

4-2-2 Updating the BIOS with the @BIOS Utility ....................................................... 65

4-3 EasyTune 5 Pro ............................................................................................. 67

4-4 Windows Vista ReadyBoost ........................................................................... 68

Chapter 5 Appendix .................................................................................................... 69

5-1 ConfiguringAudio Input and Output ................................................................. 69

5-1-1 Configuring 2/4/5.1-Channel Audio ................................................................... 69

5-1-2 Installing the S/PDIFOut Cable (Optional) ......................................................... 72

5-1-3 Configuring Microphone Recording ................................................................... 74

5-1-4 Using the Sound Recorder ................................................................................. 76

5-2 Troubleshooting ............................................................................................... 77

5-2-1 Frequently Asked Questions ............................................................................. 77

5-2-2 Troubleshooting Procedure ................................................................................ 78

Regulatory Statements ................................................................................................. 80

- 6 -

Box Contents

GA-G31M-S2L motherboard

Motherboard driver disk

User's Manual

Intel®LGA775 CPU Installation Guide

One IDE cable and one floppy disk drive cable

Two SATA 3Gb/s cables

I/O Shield

Optional Items

2-port USB 2.0 bracket (Part No. 12CR1-1UB030-51R)

2-port SATA power cable (Part No. 12CF1-2SERPW-01R)

S/PDIF out cable (Part No. 12CR1-1SPOUT-02R)

•The box contents above are for reference only and the actual items shall depend on product package you obtain.

The box contents are subject to change without notice.

•The motherboard image is for reference only.

- 7 -

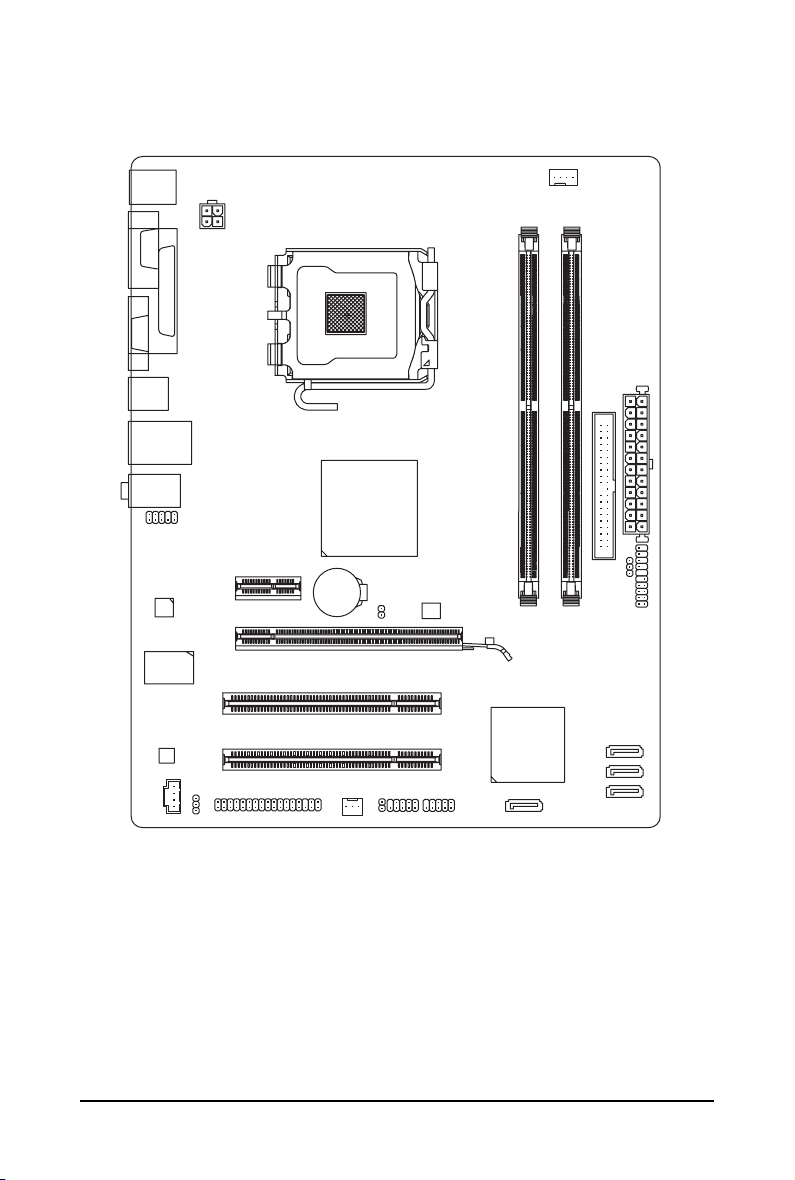

GA-G31M-S2L Motherboard Layout

KB_MS CPU_FAN

LGA775

ATX

GA-G31M-S2L

F_AUDIO

SYS_FAN

PCIE_16

IDE

BAT

IT8718

ATX_12V

Intel® G31

USB

LAN

AUDIO

LPT

R_USB

COMA

CLR_CMOS

FDD

DDRII1

DDRII2

RTL8111C

VGA

Intel®ICH7

SATAII0

F_PANEL

PWR_LED

SATAII1

CD_IN

F_USB1

CODEC

SPDIF_O

MBIOS

PCI1

PCI2

F_USB2

PCIE_1

SATAII2

SATAII3

- 8 -

Block Diagram

LGA775

Processor

Host

Interface

Intel®

G31 GMCH CLK

(333/266/200 MHz)

Intel®

ICH7

BIOS

2 PCI

PCI Bus

PCI Express Bus

Dual Channel Memory

4 SATA 3Gb/s

PCI CLK

(33 MHz)

PCIe CLK

(100 MHz)

PCI Express x16

8 USB Ports

IT8718

Floppy

PS/2 KB/Mouse

LPT Port

CPU CLK+/-

(333/266/200 MHz)

D-Sub

1 PCI Express x1

PCIe CLK

(100 MHz) x1

Line-Out(Front Speaker Out)

MIC(Center/Subwoofer Speaker Out)

Line-In(Rear Speaker Out)

SPDIF Out

CODEC

ATA-100/66/33 IDE Channel

COM Port

DDR2 800/667 MHz

RJ45

LAN

RTL8111C

Hardware Installation- 9 -

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard,

make sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and first touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before unplugging the power supply cable from the motherboard, make sure the power supply

has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface

•Do not place the computer system in a high-temperature environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certified computer technician.

Chapter 1 Hardware Installation

GA-G31M-S2L Motherboard - 10 -

1-2 Product Specifications

CPU Support for an Intel®CoreTM 2 Extreme processor/

Intel®CoreTM 2 Quad processor/Intel®CoreTM 2 Duo processor/

Intel®Pentium®processor Extreme Edition/Intel®Pentium®D processor/

Intel®Pentium®4 processor Extreme Edition/Intel®Pentium®4 processor/

Intel®Celeron®processor in the LGA 775 package

(Go to GIGABYTE's website for the latest CPU support list.)

L2 cache varies with CPU

Front Side Bus 1333/1066/800 MHz FSB

Chipset North Bridge: Intel®G31 Express Chipset

South Bridge: Intel®ICH7

Memory 2 x 1.8V DDR2 DIMM sockets supporting up to 4 GB of system memory (Note 1)

Dual channel memory architecture

Support for DDR2 800/667 MHz memory modules

(Go to GIGABYTE's website for the latest memory support list.)

Onboard Graphics Integrated in the North Bridge

Audio Realtek ALC662 codec

High Definition Audio

2/4/5.1-channel

Support for S/PDIF Out

Support for CD In

LAN RTL 8111C chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express x16 slot

1 x PCI Express x1 slot

2 x PCI slots

Storage Interface South Bridge:

- 1 x IDE connector supporting ATA-100/66/33 and up to 2 IDE devices

- 4 x SATA 3Gb/s connectors supporting up to 4 SATA 3Gb/s devices

iTE IT8718 chip:

- 1 x floppy disk drive connector supporting up to 1 floppy disk drive

USB Integrated in the South Bridge

Up to 8 USB 2.0/1.1 ports (4 on the back panel, 4 via the USB brackets

connected to the internal USB headers)

Otros manuales para GA-G31M-S2L

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte GA-K8N51GMF Manual de usuario

Gigabyte

Gigabyte GA-8VT800 Manual de usuario

Gigabyte

Gigabyte GA-VM900MC Manual de usuario

Gigabyte

Gigabyte GA-8I915G-ZFD Manual de usuario

Gigabyte

Gigabyte GA-890FXA-UD5 Manual de usuario

Gigabyte

Gigabyte GA-M68SM-S2 Manual de usuario

Gigabyte

Gigabyte GA-965G-DS4 Manual de usuario

Gigabyte

Gigabyte GA-X79-UD5 Manual de usuario

Gigabyte

Gigabyte GA-MA790X-DS4 Manual de usuario

Gigabyte

Gigabyte H310M DS2V DDR3 Manual de usuario

Gigabyte

Gigabyte GA-7VM Manual de usuario

Gigabyte

Gigabyte GA-D425TUD Manual de usuario

Gigabyte

Gigabyte Network Device GA-7N400 Manual de usuario

Gigabyte

Gigabyte GA-A55M-DS2 Manual de usuario

Gigabyte

Gigabyte Z790M AORUS ELITE Manual de usuario

Gigabyte

Gigabyte Z790 AORUS XTREME X Manual de usuario

Gigabyte

Gigabyte Z790 EAGLE AX Manual de usuario

Gigabyte

Gigabyte GA-E2500N Manual de usuario

Gigabyte

Gigabyte GA-8N-SLI Pro Manual de usuario

Gigabyte

Gigabyte GA-8IDXR-A Manual de usuario

Gigabyte

Gigabyte GA-890FXA-UD7 Manual de usuario

Gigabyte

Gigabyte GA-E350N-USB3 Manual de usuario

Gigabyte

Gigabyte GA-8VM800M-775 Manual de usuario

Gigabyte

Gigabyte GA-EX38-DS5 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
