Gigabyte GA-686BLX Manual de usuario

GA –686BLX

USER'S MANUAL

1. System power on by PS/2 Mouse: If you are using ATX

power supply, you are able to power on the system by

double clicking your PS/2 Mouse right or left button.

2. System power on by Keyboard: If your ATX power supply

supports 1 ampere 5V Stand-By function, you can choose to

power on your system by entering the password or just

press any key with the AT keyboard.

3. Modem Ring-On on COM B.

4. Wake-up on LAN supports.(on J9

)

5. Support 3 or 4 steps ACPI LED.

Pentium



II Processor MAINBOARD

REV. 1.0 Second Edition

GA-686BLX

The author assumes no responsibility for any errors or omissions which may

appear in this document nor does it make a commitment to update the

information contained herein.

Third-party brands and names are the property of their respective owners.

OCTOBER 17, 1997 Taipei, Taiwan

Quick Installation Guide

I. Quick Installation Guide :

CPU SPEED SETUP

The system's speed is fixed to 66.6MHz. The user can change the DIP

SWITCH (SW) selection to set up the CPU speed for 200 - 633MHz

processor.

The CPU speed must match with the frequency RATIO. It will cause system

hanging up if the frequency RATIO is higher than CPU's.

DIP SWITCH (SW)

1 2 3 4

FREQ.

RATIO

EXT.CLK.

MHz

INT.CLK.

MHz CPU Type

OFF ON OFF OFF 3 66 200 PentiumII 200 MHz

ON ON OFF OFF 3.5 66 233 PentiumII 233 MHz

OFF OFF ON OFF 4 66 266 PentiumII 266 MHz

ON OFF ON OFF 4.5 66 300 PentiumII 300 MHz

OFF ON ON OFF 5 66 333 PentiumII 333 MHz

ON ON ON OFF 5.5 66 366 PentiumII 366 MHz

GA-686BLX

1. PentiumII 200 MHz

82443LX

PIIX4

GA-686BLX

ON OFF

+ + + +

2. PentiumII 233 MHz

82443LX

PIIX4

GA-686BLX

ON OFF

+ + + +

Quick Installation Guide

3. PentiumII 266 MHz

82443LX

PIIX4

GA-686BLX

ON OFF

+++ +

4. PentiumII 300 MHz

82443LX

PIIX4

GA-686BLX

ON OFF

+++ +

GA-686BLX

5. PentiumII 333 MHz

82443LX

PIIX4

GA-686BLX

ON OFF

+++ +

6. PentiumII 366 MHz

82443LX

PIIX4

GA-686BLX

ON OFF

+++ +

Quick Installation Guide

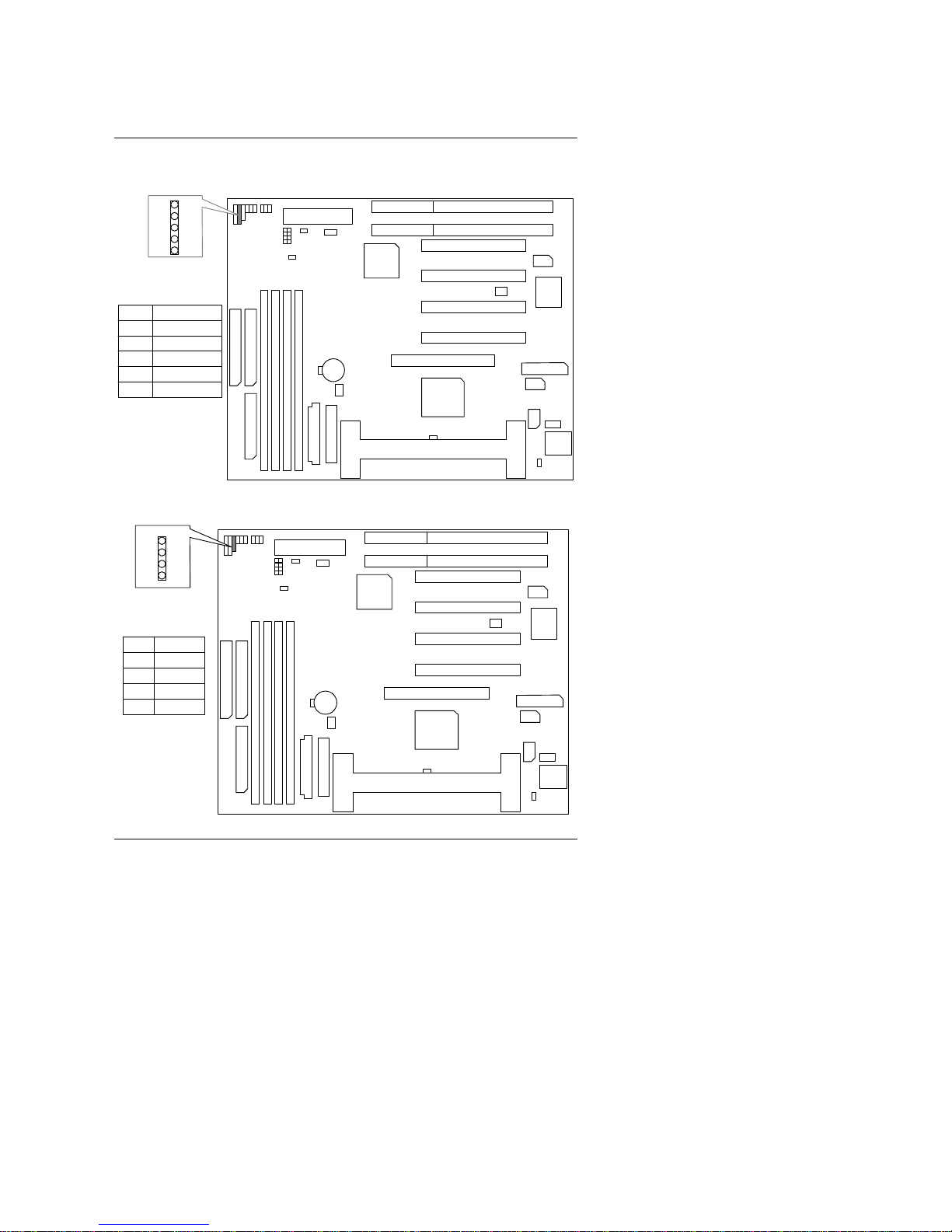

II. Jumper setting :

PWR : Power LED / Key-Lock Connector

+++ +

Pin No. Function

LED anode (+)

LED cathode (-)

Key Lock

GND 82443LX

PIIX4

GA-686BLX

SPK : Speaker Connector

Pin No. Function

VCC

3NC

4Data

82443LX

PIIX4

GA-686BLX

TD : Turbo LED Connector

+++ +

Pin No. Function

LED anode (+)

LED cathode (-)

82443LX

PIIX4

GA-686BLX

TB : Turbo Switch Connector

Function Reserved

82443LX

PIIX4

GA-686BLX

+++ +

Quick Installation Guide

RST : Reset Switch

1Open :

Normal operation.

For Hardware

Reset

System

82443LX

PIIX4

GA-686BLX

+++ +

GN : Green Function Switch

1Open :

Normal operation.

Close:

Enterning Green

Mode.

82443LX

PIIX4

GA-686BLX

+++ +
