B560 AORUS PRO AX

User's Manual

Rev. 1001

12ME-B56PROW-1001R

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: https://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

B560 AORUS PRO AX Motherboard Layout...................................................................4

B560 AORUS PRO AX Motherboard Block Diagram ......................................................5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

1-3 Installing the CPU .......................................................................................... 11

1-4 Installing the Memory..................................................................................... 11

1-5 Installing an Expansion Card ......................................................................... 12

1-6 Back Panel Connectors.................................................................................. 12

1-7 Internal Connectors........................................................................................ 15

Chapter 2 BIOS Setup ..................................................................................................26

2-1 Startup Screen ............................................................................................... 26

2-2 The Main Menu .............................................................................................. 27

2-3 Smart Fan 6 .................................................................................................. 28

2-4 Favorites (F11) ............................................................................................... 30

2-5 Tweaker.......................................................................................................... 31

2-6 Settings .......................................................................................................... 36

2-7 System Info. ................................................................................................... 41

2-8 Boot................................................................................................................ 42

2-9 Save & Exit..................................................................................................... 45

Chapter 3 Appendix ......................................................................................................46

3-1 Installing Intel®Optane™Memory and Storage Management ........................ 46

3-2 Drivers Installation.......................................................................................... 47

Regulatory Notices.................................................................................................... 48

Contact Us ................................................................................................................ 52

- 4 -

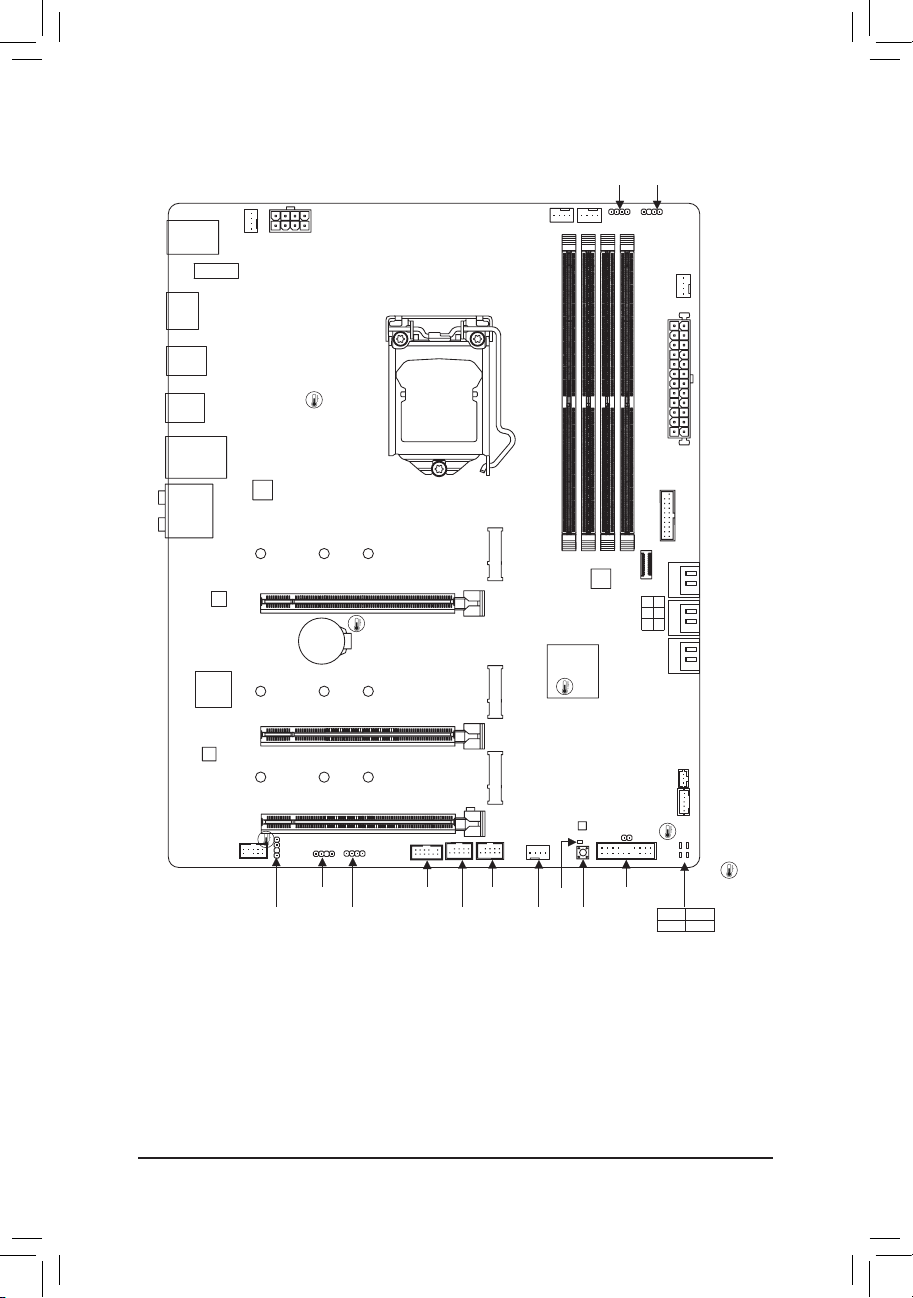

B560 AORUS PRO AX Motherboard Layout

Box Contents

5B560 AORUS PRO AX motherboard 5Two SATA cables

5User's Manual 5One antenna

5M.2 screws 5One G Connector

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Temperature

sensor

KB_MS_USB

DP_HDMI

U320G

U32_LAN

LGA1200 ATX

AUDIO

ATX_12V_2X4

Intel®B560

CLR_CMOS

PCIEX4

PCIEX16

PCIEX1

F_U32

CODEC

B560 AORUS PRO AX

F_PANELF_USB1

LED_C1

F_AUDIO

SYS_FAN2

M_BIOS

SYS_FAN1

CPU_OPT

iTE®

Super I/O

SATA3

531

420

BAT

Intel®

2.5GbE LAN

CPU DRAM

VGA BOOT

M2B_SB

DDR4_B1

DDR4_B2

DDR4_A1

DDR4_A2

D_LED2LED_C2

QFLASH_PLUS

6080110

M2P_CPU

SPI_TPM

M2_WIFI

QFLED

CPU_FAN

6080110

F_USB2

USB 2.0 Hub

SYS_FAN3

F_U32C

THB_C1

THB_C2

D_LED1

SPDIF_O

U32G2

6080110

M2A_SB

U32

USB 3.2 Gen 1 Hub

USB 3.2

Gen 1 Hub

- 5 -

B560 AORUS PRO AX Motherboard Block Diagram

(Note) Actual support may vary by CPU.

LGA1200 CPU

CPU CLK+/- (100~500 MHz)

DDR4 3200 (Note)/3000 (Note)/2933 (Note)/

2666/2400/2133 MHz

PCI Express 4.0 (Note)/3.0 Bus

DMI 3.0

LAN

RJ45

Intel®

2.5GbE LAN

SPI

Bus

2 USB 2.0/1.1

1 PCI Express x16

x16

DisplayPort

PCI Express 3.0 Bus

6 SATA 6Gb/s

eSPI Bus

1 USB Type-C®, with USB 3.2 Gen 2x2 support

1 USB Type-C®, with USB 3.2 Gen 1 support

1 USB 3.2 Gen 2 Type A

6 USB 3.2 Gen 1

4 USB 2.0/1.1

USB 2.0

Hub

Center/Subwoofer

Speaker Out

Line Out

MIC

Line In

S/PDIF Out

Rear Speaker Out

CODEC

M.2

WIFI BIOS

TPM

DDI

1 M.2 Socket 3

(M2P_CPU) (Note)

Intel®B560

iTE®

Super I/O

Switch

M.2 Socket 3

(M2B_SB)

HDMI

DDI

1 PCI Express x1

1 PCI Express x4

M.2 Socket 3

(M2A_SB)

USB 3.2

Gen 1

Hub

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU LGA1200 package:

- 11th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors

- 10th Generation Intel®Core™i9 processors/Intel®Core™i7 processors/

Intel®Core™i5 processors/Intel®Core™i3 processors/Intel®Pentium®

processors/Intel®Celeron®processors*

* Limited to processors with 4 MB Intel®Smart Cache, Intel®Celeron®G5xx5 family.

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®B560 Express Chipset

Memory 11th Generation Intel®Core™i9/i7/i5 processors:

- Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i9/i7 processors:

- Support for DDR4 2933/2666/2400/2133 MHz memory modules

10th Generation Intel®Core™i5/i3/Pentium®/Celeron®processors:

- Support for DDR4 2666/2400/2133 MHz memory modules

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel®HD Graphics support:

- 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.3.

(Graphics specications may vary depending on CPU support.)

Audio Realtek®ALC4080 codec

High Denition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN Intel®2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)

Wireless

Communication

Module

Intel®Wi-Fi 6 AX200

- Wi-Fi 802.11a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band

- BLUETOOTH 5.1

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

* Actual data rate may vary depending on environment and equipment.

Expansion Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

(The PCIEX16 slot conforms to PCI Express 4.0 standard.) (Note)

- 7 -

(Note) Supported by 11th Generation processors only.

Expansion Slots 1 x PCI Express x16 slot, running at x4 (PCIEX4)

1 x PCI Express x16 slot, running at x1 (PCIEX1)

(The PCIEX4 and PCIEX1 slots conform to PCI Express 3.0 standard.)

Multi-Graphics

Technology Support forAMD Quad-GPU CrossFire™and 2-Way AMD CrossFire™technologies

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2

SSD support) (M2P_CPU) (Note)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe

3.0 x4/x2 SSD support)(M2A_SB)

- 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 3.0 x4/x2

SSD support) (M2B_SB)

- 6 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the PCIEX4, M.2,

and SATA connectors.

Intel®Optane™Memory Ready

USB Chipset:

- 1 x USB Type-C®port on the back panel, with USB 3.2 Gen 2x2 support

- 1 x USB Type-C®port with USB 3.2 Gen 1 support, available through the

internal USB header

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 2 x USB 2.0/1.1 ports on the back panel

Chipset+2 USB 3.2 Gen 1 Hubs:

- 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Chipset+1 USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C®header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

- 8 -

(Note) Supported by 11th Generation processors only.

Internal

Connectors

1 x S/PDIF Out header

2 x Thunderbolt™add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI

2.0 module only)

1 x Clear CMOS jumper

1 x Q-Flash Plus button

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x DisplayPort

1 x HDMI port

2 x SMA antenna connectors (2T2R)

1 x USB Type-C®port, with USB 3.2 Gen 2x2 support

1 x USB 3.2 Gen 2 Type-A port (red)

4 x USB 3.2 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

6 x audio jacks

I/O Controller iTE®I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Water cooling ow rate detection

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the fan you install.

BIOS 1 x 256 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

- 9 -

Please visit GIGABYTE's website

for support lists of CPU, memory

modules, SSDs, and M.2 devices.

Please visit the Support\Utility List

page on GIGABYTE's website to

download the latest version of apps.

Bundled

Software

Norton®Internet Security (OEM version)

cFosSpeed

Operating

System Support for Windows 10 64-bit

Form Factor ATX Form Factor; 30.5cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

- 10 -

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte MZ31-AR0 Manual de usuario

Gigabyte

Gigabyte GA-H81M-Gaming 3 Manual de usuario

Gigabyte

Gigabyte 6GXU Manual de usuario

Gigabyte

Gigabyte B560M D2V Manual de usuario

Gigabyte

Gigabyte GA-AX370M-DS3H Manual de usuario

Gigabyte

Gigabyte Z590 AORUS ELITE AX Manual de usuario

Gigabyte

Gigabyte GA-Q57M-S2H Manual de usuario

Gigabyte

Gigabyte GA-MA78G-DS3HP Manual de usuario

Gigabyte

Gigabyte X299 UD4 Pro Manual de usuario

Gigabyte

Gigabyte G481-HA0 Manual de usuario

Gigabyte

Gigabyte GA-H110M-D2P Manual de usuario

Gigabyte

Gigabyte GA-945PLM-(D)S2 Manual de usuario

Gigabyte

Gigabyte GA-990FXA-UD7 Manual de usuario

Gigabyte

Gigabyte B550 AORUS MASTER Manual de usuario

Gigabyte

Gigabyte GA-7PESH1 Manual de usuario

Gigabyte

Gigabyte GA-6BA Manual de usuario

Gigabyte

Gigabyte GA-8IP900 Manual de usuario

Gigabyte

Gigabyte 12ME-Z17HD3P-1003R Manual de usuario

Gigabyte

Gigabyte GA-A320M-D2P Manual de usuario

Gigabyte

Gigabyte GA-7BESH-RH Manual de usuario

Gigabyte

Gigabyte GA-X99-UD3 Manual de usuario

Gigabyte

Gigabyte GA-8PE667 Pro Manual de usuario

Gigabyte

Gigabyte B560M H Manual de usuario

Gigabyte

Gigabyte GA-K8NS-939 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
