Gigabyte B550M AORUS ELITE AX Manual de usuario

For more product details, please visit GIGABYTE's website.

https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13?m=ma#kf

https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-rev-13?m=ma#kf

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

B550M AORUS ELITE AX

B550M AORUS ELITE

User's Manual

Rev. 1302

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_installation-guide_103.pdf?m=sw

For product-related information, check on our website at: https://www.gigabyte.com

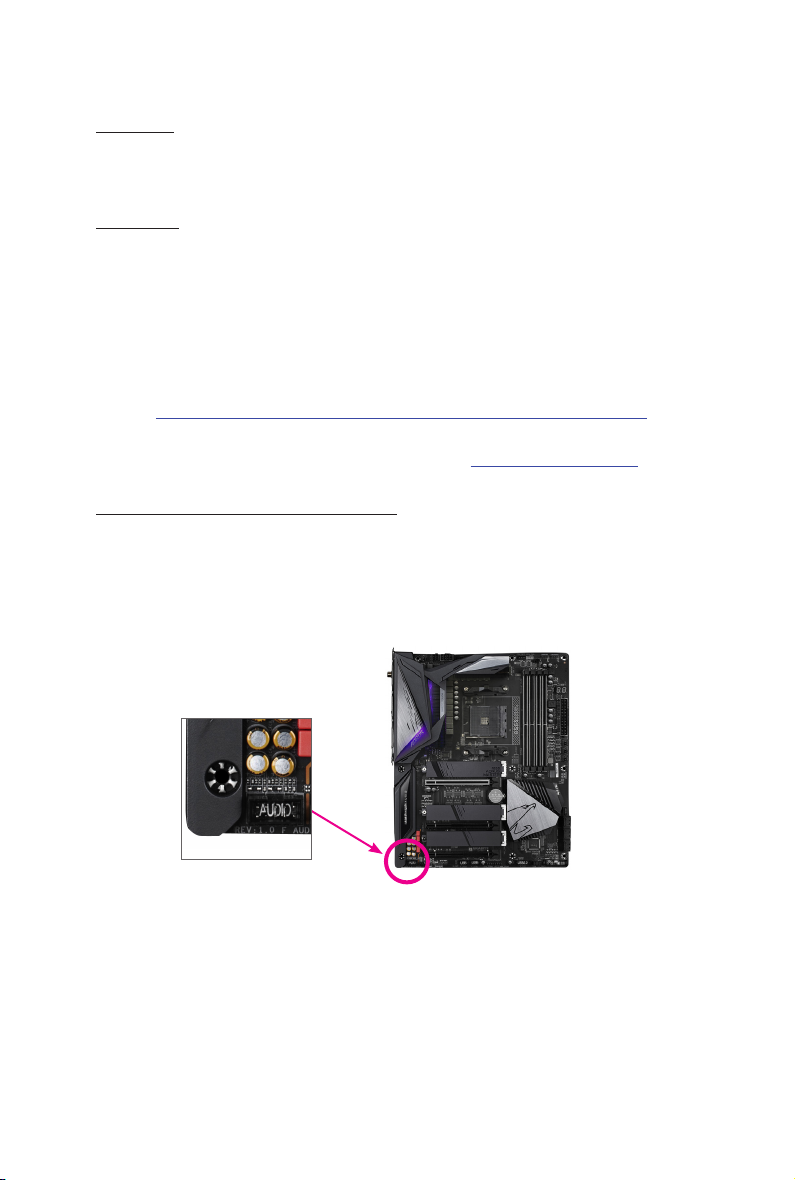

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before updating

motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

B550M AORUS ELITE AX/B550M AORUS ELITE Motherboard Layout.........................4

B550M AORUS ELITE AX/B550M AORUS ELITE Motherboard Block Diagram ............5

Chapter 1 Hardware Installation .....................................................................................6

1-1 Installation Precautions.................................................................................... 6

1-2 Product Specications...................................................................................... 7

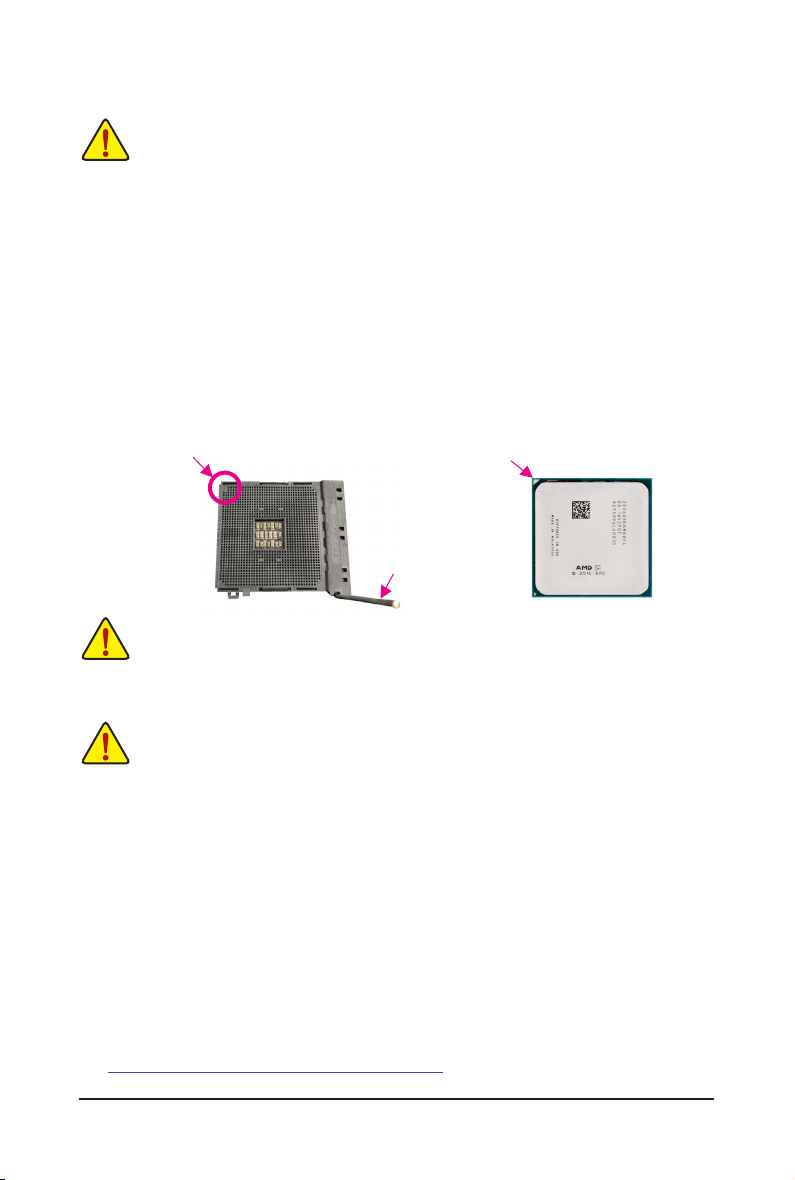

1-3 Installing the CPU .......................................................................................... 10

1-4 Installing the Memory..................................................................................... 10

1-5 Installing an Expansion Card ......................................................................... 11

1-6 Back Panel Connectors.................................................................................. 11

1-7 Internal Connectors........................................................................................ 13

Chapter 2 BIOS Setup ..................................................................................................21

2-1 Startup Screen ............................................................................................... 21

2-2 The Main Menu .............................................................................................. 22

2-3 Favorites (F11) ............................................................................................... 23

2-4 Tweaker.......................................................................................................... 24

2-5 Settings .......................................................................................................... 27

2-6 System Info. ................................................................................................... 33

2-7 Boot................................................................................................................ 34

2-8 Save & Exit..................................................................................................... 37

Chapter 3 Appendix ......................................................................................................38

3-1 Conguring a RAID Set.................................................................................. 38

3-2 Drivers Installation.......................................................................................... 40

Regulatory Notices.................................................................................................... 41

Contact Us ................................................................................................................ 44

- 4 -

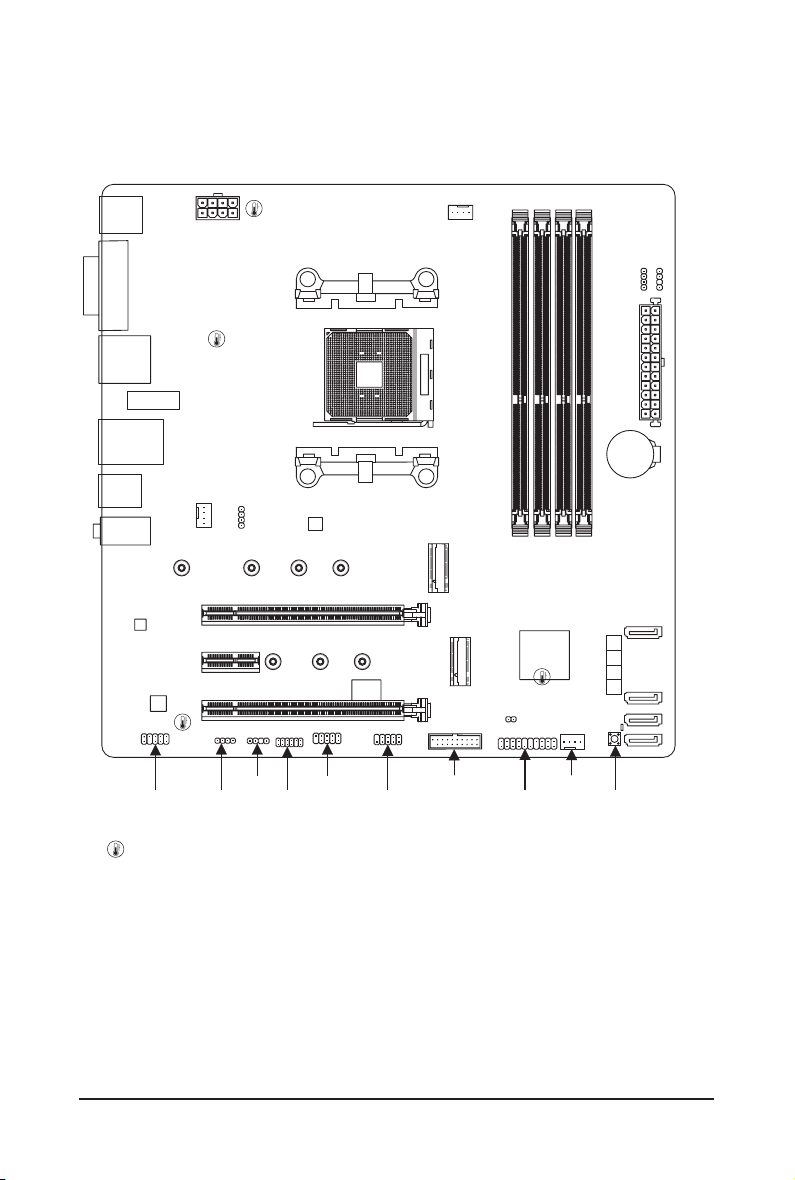

B550M AORUS ELITE AX/B550M AORUS ELITE Motherboard

Layout

KB_MS_USB

CPU_FAN

SYS_FAN1

LED_CPU

ATX

LED_C2

D_LED2

B550M AORUS ELITE (AX)

AUDIO

DDR4_A1

DDR4_B2

BAT

ATX_12V

AMD

B550

HDMI

U32_1

CODEC

M_BIOS

DVI

PCIEX16

PCIEX1

iTE®Super

I/O

Realtek®

GbE LAN

F_U32 SYS_FAN2

F_USB1 F_PANEL QFLASH_PLUS

QFLED

COM

U32_2

Socket AM4

USB_LAN

CLR_CMOS

M2A_CPU

M2B_SB

110

0123

SATA3

DDR4_A2

DDR4_B1

TPM

D_LED1

LED_C1F_AUDIO

PCIEX4

M2_WIFI j

jOnly for B550M AORUS ELITE AX.

Temperature sensor

AMD Socket

AM4 CPU

CPU CLK+/- (100~500 MHz)

PCI Express 4.0/3.0 Bus

PCIe 3.0 x4

CODEC

6 USB 2.0/1.1

4 SATA 6Gb/s

2 USB 3.2 Gen 1

4 USB 3.2 Gen 1

1 M.2 Socket 3

(M2B_SB)

AMD B550

HDMI

DVI-D

1 M.2 Socket 3

(M2A_CPU)

LPC

Bus

TPM

iTE®

Super I/O

SPI

Bus BIOS

x16

1 PCI Express x16

DDR4 3200/2933/2667/2400/2133 MT/s

LAN

RJ45

Realtek®

GbE LAN

M.2 WIFIj

PCI Express 3.0 Bus

x4 x1

1 x PCI Express x4

1 PCI Express x1

COM

PS/2 KB/Mouse

Line Out

MIC

Line In

- 5 -

B550M AORUS ELITE AX/B550M AORUS ELITE Motherboard

Block Diagram

jOnly for B550M AORUS ELITE AX.

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 6 -

1-2 ProductSpecications

CPU AMD Socket AM4, support for:

AMD Ryzen™5000 Series Processors/

AMD Ryzen™5000 G-Series Processors/

AMD Ryzen™4000 G-Series Processors/

AMD Ryzen™3000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset AMD B550

Memory 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

of system memory

Support for DDR4 3200/2933/2667/2400/2133 MT/s memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated in the AMD Ryzen™5000 G-Series/4000 G-Series Processors:

- 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz

* The DVI-D port does not support D-Sub connection by adapter.

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

Maximum shared memory of 16 GB

Audio Realtek®Audio CODEC

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To

congure 7.1-channel audio, access the audio software for audio settings.

LAN Realtek®GbE LAN chip (1 Gbps/100 Mbps)

Wireless

Communication

Module j

Realtek®Wi-Fi 6E RTL8852CE

- WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™5000 Series/3000 Series Processors support PCIe 4.0 x16

mode

- AMD Ryzen™5000 G-Series/4000 G-Series Processors support PCIe 3.0

x16 mode

* For optimum performance, if only one PCI Express graphics card is to be installed,

be sure to install it in the PCIEX16 slot.

1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:

- Supporting PCIe 3.0 x4 mode

1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:

- Supporting PCIe 3.0 x1 mode

jOnly for B550M AORUS ELITE AX.

- 7 -

Storage Interface 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key,

type 2242/2260/2280/22110 SSDs:

- AMD Ryzen™5000 Series/3000 Series Processors support SATA and PCIe 4.0

x4/x2 SSDs

- AMD Ryzen™5000 G-Series/4000 G-Series Processors support SATA and

PCIe 3.0 x4/x2 SSDs

1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3,

M key, type 2242/2260/2280 SSDs:

- Supporting SATA and PCIe 3.0 x2 SSDs

4 x SATA 6Gb/s connectors, integrated in the Chipset:

- Support for RAID 0, RAID 1, and RAID 10

USB CPU:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset:

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

2 x system fan headers

2 x addressable LED strip headers

2 x RGB LED strip headers

1 x CPU cooler LED strip/RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.2 Gen 1 header

1 x USB 2.0/1.1 header

1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x serial port header

1 x Clear CMOS jumper

1 x Q-Flash Plus button

Back Panel

Connectors

1 x PS/2 keyboard/mouse port

1 x DVI-D port

1 x HDMI port

2 x SMA antenna connectors (2T2R) j

4 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE®I/O Controller Chip

jOnly for B550M AORUS ELITE AX.

- 8 -

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you

install.

BIOS 1 x 128 Mbit ash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functions of each application may also vary depending on motherboard specications.

- @BIOS

- EasyTune

- RGB Fusion

- Smart Backup

- System Information Viewer

Support for Q-Flash Plus

Support for Q-Flash

Support for Xpress Install

Bundled

Software

Norton®Internet Security (OEM version)

LAN bandwidth management software

Operating

System

Support for Windows 11 64-bit

Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

* GIGABYTE reserves the right to make any changes to the product specications and product-related information without

prior notice.

&Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2 devices.

https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-AX-rev-13?m=dl#support-dl

https://www.gigabyte.com/Motherboard/B550M-AORUS-ELITE-rev-13?m=dl#support-dl

&Please visit the SERVICE/SUPPORT\Utility page on GIGABYTE's website to download the latest version

of apps.

https://www.gigabyte.com/Support/Utility/Motherboard?m=ut

- 9 -

1-3 Installing the CPU

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides four memory sockets and supports Dual Channel Technology. After the memory

is installed, the BIOS will automatically detect the specications and capacity of the memory. Enabling Dual

Channel memory mode will double the original memory bandwidth.

The four memory sockets are divided into two channels and each channel has two memory sockets as following:

Channel A: DDR4_A1, DDR4_A2

Channel B: DDR4_B1, DDR4_B2

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the CPU

to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly.

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage of the

CPU may occur.

•Set the CPU host frequency in accordance with the CPU specications. It is not recommended that

the system bus frequency be set beyond hardware specications since it does not meet the standard

requirements for the peripherals. If you wish to set the frequency beyond the standard specications, please

do so according to your hardware specications including the CPU, graphics card, memory, hard drive, etc.

Installing the CPU

Completely lift up the CPU socket locking lever. Locate the pin one (denoted by a small triangle) of the CPU socket

and the CPU. Once the CPU is positioned into its socket, place one nger down on the middle of the CPU, lowering

the locking lever and latching it into the fully locked position.

AM4 CPU Socket

A Small Triangle Marking

Denotes Pin One of the

Socket

AM4 CPU

A Small Triangle Marking

Denotes CPU Pin One

Completely lift up the CPU

socket locking lever

Do not force the CPU into the CPU socket before the CPU socket locking lever is lifted up, or

damage to the CPU and CPU socket may occur.

&Please visit GIGABYTE's website for details on hardware installation.

http://www.gigabyte.com/WebPage/210/quick-guide.html?m=sw

- 10 -

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de Gigabyte

Gigabyte

Gigabyte MS33-CP0 Manual de usuario

Gigabyte

Gigabyte GA-N3150M-D3P Manual de usuario

Gigabyte

Gigabyte GA-X99-UD7 WIFI Manual de usuario

Gigabyte

Gigabyte MW31-SP0 Manual de usuario

Gigabyte

Gigabyte GA-7PESLN Manual de usuario

Gigabyte

Gigabyte G1.Sniper Manual de usuario

Gigabyte

Gigabyte GA-H61N-USB3 Manual de usuario

Gigabyte

Gigabyte GA-Z270XP-SLI Manual de usuario

Gigabyte

Gigabyte GA-7VAX Manual de usuario

Gigabyte

Gigabyte GA-8IGX Manual de usuario

Gigabyte

Gigabyte X570 AORUS PRO WIFI Manual de usuario

Gigabyte

Gigabyte GA-Z170X-SOC Force Manual de usuario

Gigabyte

Gigabyte Z790I AORUS ULTRA Manual de usuario

Gigabyte

Gigabyte GA-H97TN Manual de usuario

Gigabyte

Gigabyte GA-IMB1900TN Manual de usuario

Gigabyte

Gigabyte GA-8I915G-M Manual de usuario

Gigabyte

Gigabyte GA-8I865PE-TW Manual de usuario

Gigabyte

Gigabyte 6VX7-4X Manual de usuario

Gigabyte

Gigabyte GA-M61PM-S2 Manual de usuario

Gigabyte

Gigabyte GA-7VKMLS Manual de usuario

Gigabyte

Gigabyte GA-F2A88XM-D3H Manual de usuario

Gigabyte

Gigabyte GA-B250M-Gaming 3 Manual de usuario

Gigabyte

Gigabyte GA-J1900N-D3V Manual de usuario

Gigabyte

Gigabyte GA-6PXSV1 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario

Ski-Doo

Ski-Doo Bombardier MPEM 219 700 090 Manual de usuario
