Gigabyte GD-1503BP Manual de usuario

Warning card

FCC Declarationof Conformity

CE EUDeclaration ofConformaty

Your monitor

Pedestal

AC Powercord

D-sub Signal cable

This manual

step 1 step 2 step 3

2.1 Installthe pedestal

To attachthe baseto yourmonitor,please followingthe stepsfor

installation ofthe pedestalas below:

(1) VGA Signal Cable

Note: (3) only for monitor with speaker function

Audio in

(3)

AC Power cable

(2)

2.2.1 Turn off your computer and unplug its power cable.

2.2.2 C power jack on the back of your monitoronnect the power cord to the .

2.2.4 Plug the computer and monitor power cables into a nearby outlet.

Turn your computer and monitor on, if your monitor display an image, you

have successfully installed the monitor. If the monitor does not display an

Image, check all the connections.

2.2.3

1 2 2 3 4 5

(1) VGA Signal Cable

Note: (3) only for monitor with speaker function

Audio in

(3)

AC Power cable

(2)

1 VGA Signal Cable

2 AC Power cable

3 Audio cable

4.1 SWITCHINGTHE MONITORON/OFF

This ON/OFF buttonis used forswitching the monitoron and off.

Note: TheON/OFF switch doesnot disconnect thedevice from the

mains voltage.To completelydisconnect the mainsvoltage.

Please remove thepower plug fromthe socket.

4.2 POWERINDICATOR

This indicator lightsup green orblue when themonitor operates normally.

if the monitoris in powersaving mode,this indicator changeto orange.

when monitor isturn off, this indicatorchange the colorto dark.

4.3 VOLUME

This feature adjustthe button todecrease the volumeand

button to increasethe volume.

Important information onaudio playback

To achieveoptimum sound qualityfrom the monitorspeakers,

the audio cableshould be connectedto the Line-Outsocket

(headphone socket)of the computer. If youconnect the audiocable

to the Speaker-Out socket(soundcard) of thecomputer,Please set

the volume underWindows to rangebetween 20% -40% of the

maximum value toachieve optimum soundquality.

4.4 MENUFEATURES

The following featurescan all beaccessed by usingyour monitor's on

screen menu system. Once arefinished. Makingadjustments to afeature,

selecting the exiticon to turnoff the menu.

Please follow theprocedure of selectionand adjust anitem using theOSD

system as belowsteps for mainfunctions adjustment.

Step 1: Press the button to activatethe OSD menu.

The main menuappears on thescreen with iconsfor the

setting functions.

Step 2: If necessary,use the or button to markan

other icon.

Step 3: Press the button to activatethe highlighted icon.

Step 4: Use the or button to make the desiredsetting.

Step 5: Select the EXITsymbol to exitthe OSD menu.

Step 6: Repeat step2 through 5to makefurther adjustments.

All changes arestored immediately

Color Select Menu

4.5

4.6

Mode Resolution Horizontal Vertical

1720 x 400 31.47 kHz 70 Hz

2640 x 480 31.47 kHz 60 Hz

3640 x 480 37.86 kHz 72.8 Hz

4640 x 480 37.5 kHz 75 Hz

5800 x 600 37.88 kHz 60.3 Hz

6800 x 600 48.08 kHz 72.2 Hz

7800 x 600 46.87 kHz 75 Hz

81024 x 76848.36 kHz 60 Hz

91024 x 768 56.48 kHz 70.1 Hz

10 1024 x 768 60.02 kHz 75 Hz

11 1280x1024 63.98 kHz 60.02 Hz

12 1280x1024 80.0 kHz 75 Hz

Este manual sirve para los siguientes modelos

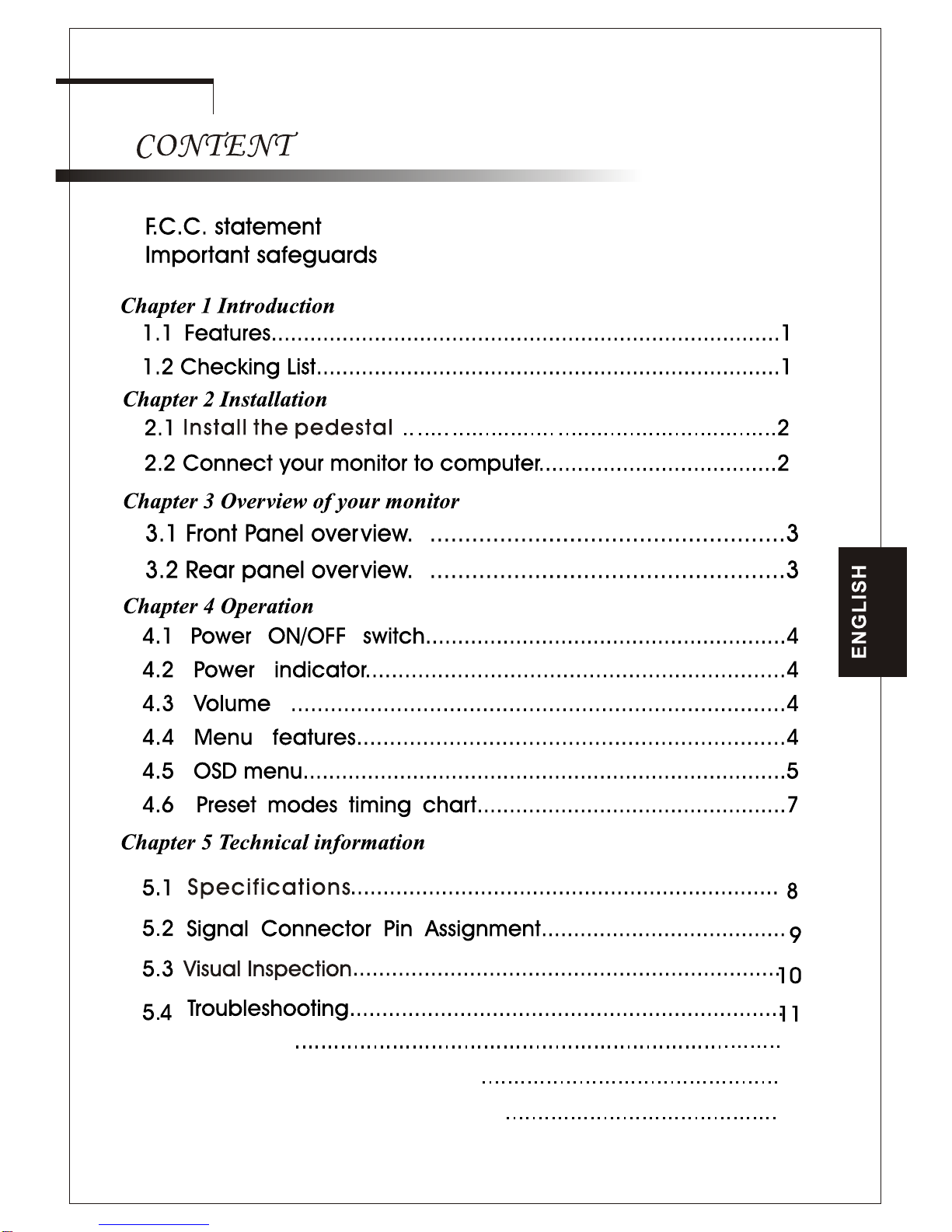

Tabla de contenidos
