Z790 AORUS PRO X

Z790 AORUS PRO X WIFI7

(Z790 A PRO X WIFI7)

User's Manual

Rev. 1203

GIGABYTE will reduce paper use in order to fulll the responsibilities of a global citizen.

Also, to reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without

prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or

published in any form or by any means without GIGABYTE's prior written permission.

For detailed product information, carefully read the User's Manual.

For quick set-up of the product, refer to the Quick Installation Guide on GIGABYTE's

website.

https://download.gigabyte.com/FileList/Manual/mb_manual_installation-guide_12QM-100xR.pdf

For product-related information, check on our website at: https://www.gigabyte.com

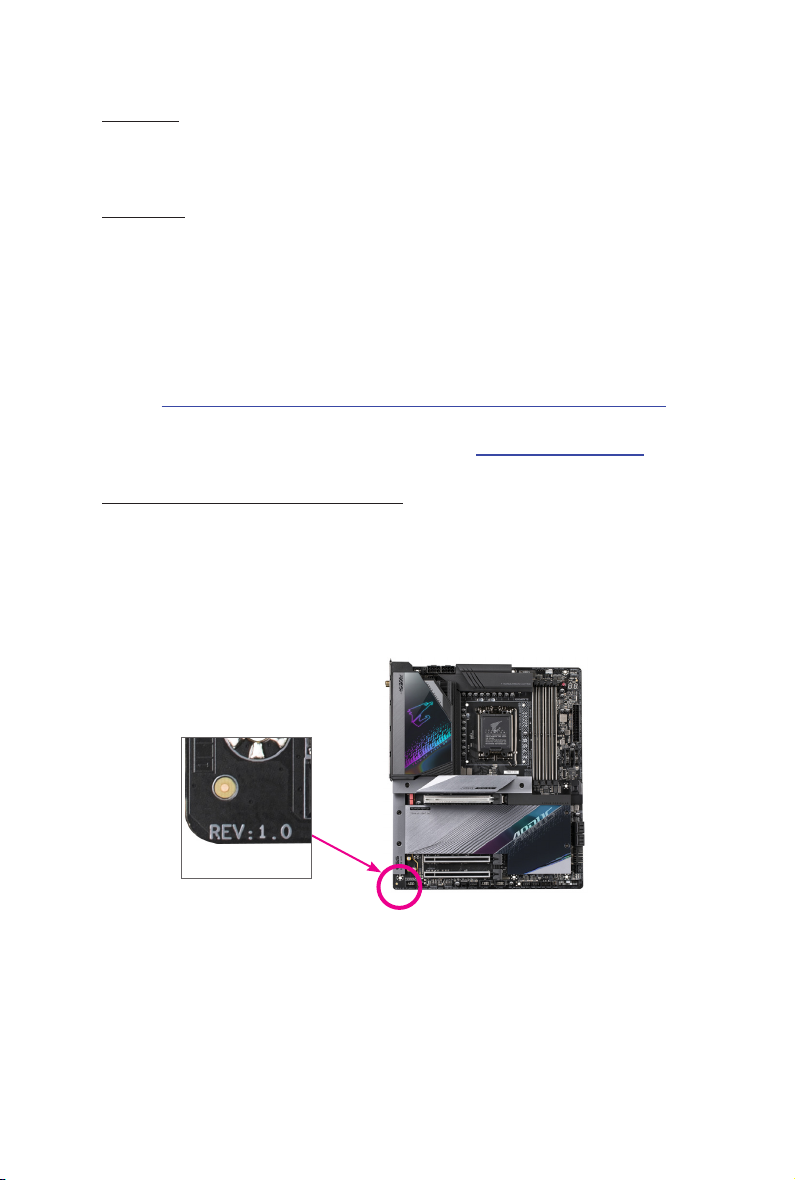

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0"

means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 3 -

Table of Contents

Chapter 1 Product Introduction.......................................................................................4

1-1 Motherboard Layout......................................................................................... 4

1-2 Motherboard Block Diagram ............................................................................ 5

1-3 Box Contents.................................................................................................... 6

Chapter 2 Hardware Installation .....................................................................................7

2-1 Installation Precautions.................................................................................... 7

2-2 Product Specications...................................................................................... 8

2-3 Installing the CPU and CPU Cooler ............................................................... 12

2-4 Installing the Memory..................................................................................... 15

2-5 Installing an Expansion Card ......................................................................... 16

2-6 Back Panel Connectors.................................................................................. 17

2-7 Onboard Buttons and LEDs ........................................................................... 20

2-8 Internal Connectors........................................................................................ 22

Chapter 3 BIOS Setup ..................................................................................................36

Chapter 4 Installing the Operating System and Drivers................................................38

4-1 Operating System Installation ........................................................................ 38

4-2 Drivers Installation.......................................................................................... 39

Chapter 5 Appendix ......................................................................................................40

5-1 Conguring a RAID Set.................................................................................. 40

Regulatory Notices.................................................................................................... 41

Contact Us ................................................................................................................ 45

- 4 -

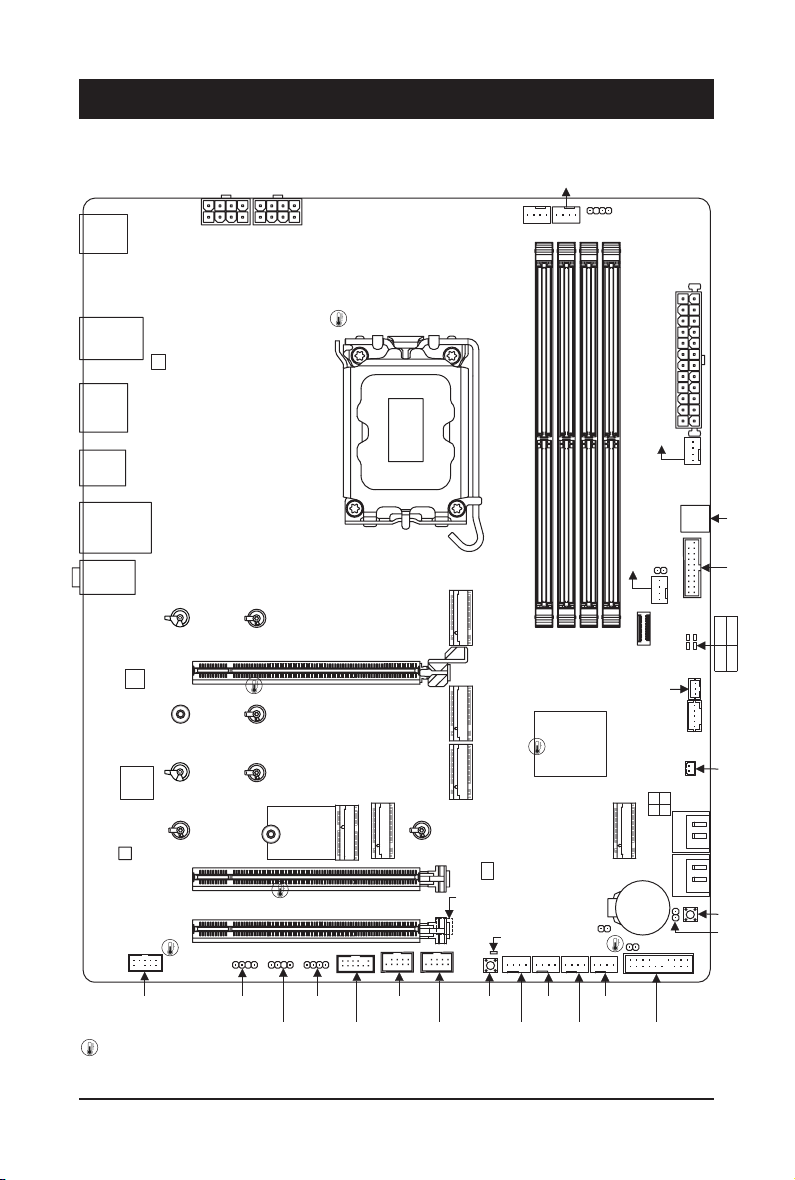

1-1 Motherboard Layout

Chapter 1 Product Introduction

Temperature sensor

DP (Note)_HDMI20

U32G2

U32_DP (Note)

U32G2_LAN

U320G

LGA1700

ATX

AUDIO

DDR5_A1

DDR5_A2

DDR5_B1

DDR5_B2

BAT

Intel®Z790

CLR_CMOS

M_BIOS

THB_C1

THB_USB4_C2

CODEC

PCIEX16

PCIEX4_1

PCIEX4_2

F_U320G

F_U32

SYS_FAN6_PUMP

SYS_FAN5_PUMP

EC_TEMP2

USBDP

EC_TEMP1

80110

M2C_CPU

80110

M2A_CPU

80110

M2Q_SB

M2_WIFI

Z790 AORUS PRO X

Z790 AORUS PRO X WIFI7

RST_SW

F_USB2

RST

ARGB_V2_3 LED_CF_AUDIO

SPI_TPM F_USB1ARGB_V2_1 SYS_FAN1 SYS_FAN3 F_PANEL

CPU_FAN

CPU_OPT

SYS_FAN2 SYS_FAN4

QFLASH_PLUS

iTE®

Super I/O

ARGB_V2_2

ATX_12V_2X4_1

ATX_12V_2X4_2

USB 2.0 Hub

QFLED

USB 3.2

Gen 1 Hub

NOISE_SENSOR

SATA3 5 7

4 6

VGA CPU

BOOT DRAM

USB20

U32

Realtek®

5GbE LAN

M2P_SB

M2M_SB

(Note) Only for Z790 AORUS PRO X.

- 5 -

LGA1700 CPU

CPU CLK+/- (80~800 MHz)

DMI 4.0

Intel®Z790

PCI Express 5.0 Bus

1-2 Motherboard Block Diagram

SPI

Bus

PCI Express Bus

2 PCI Express x4

TPM

BIOS

DDI

1 USB Type-C®, with USB 2.0

support & DisplayPort Alt mode

DisplayPort In

Switch

DDI 1 HDMI

LAN

RJ45

Realtek®

5GbE LAN

M.2 WIFI

4 SATA 6Gb/s

(SATA3 4~7)

DDR5 5600(Note 1)/5200(Note 1)/4800/4400 MT/s

PCI Express 4.0 Bus

x4 x4 x4

3 M.2 Socket 3

(M2Q_SB, M2P_SB, M2M_SB)

PCI Express 4.0 Bus

1 M.2 Socket 3

(M2A_CPU)

1 PCI Express x16

x16

1 PCI Express x8

1 M.2 Socket 3

(M2C_CPU)

x4x8

Switch

(Note 1) Actual support may vary by CPU.

(Note 2) Only for Z790 AORUS PRO X.

4 USB 2.0/1.1

4 USB 3.2 Gen 1

2 USB Type-C®,

with USB 3.2 Gen 2x2 support

2 USB 3.2 Gen 2 Type-A

2 USB 3.2 Gen 1

2 USB 2.0/1.1

USB 3.2

Gen 1 Hub

USB 2.0

Hub

eSPI

Bus

iTE®

Super I/O

1 USB Type-C®,

with USB 3.2 Gen 2 support &

DisplayPort 1.2 Alt mode (Note 2)

Line Out

Mic

S/PDIF Out

CODEC

CNVi

(Note 2)

- 6 -

1-3 Box Contents

5Z790 AORUS PRO X or Z790 AORUS PRO X WIFI7 motherboard

5User's Manual

5One antenna

5Two SATA cables

5One noise detection cable

5Two thermistor cables

5One G Connector

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

- 7 -

2-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keep your hands dry and rst touch a metal object to eliminate static electricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product, please consult a certied computer technician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

Chapter 2 Hardware Installation

- 8 -

2-2 ProductSpecications

CPU LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel®Core™,

Pentium®Gold and Celeron® Processors

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel® Z790 Express Chipset

MEMORY 14th and 13th Generation Intel®Core™ i9/i7 Pocessors:

- Support for DDR5 5600/5200/4800/4400 MT/s memory modules

 13th Generation Intel®Core™ i5/i3 and 12th Generation Intel®Core™, Pentium®

Gold and Celeron® Processors:

- Support for DDR5 4800/4400 MT/s memory modules

 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)

of system memory

Dual channel memory architecture

 Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Prole (XMP) memory modules

(The CPU and memory conguration may affect the supported memory types, data

rate (speed), and number of DRAM modules, please refer to "Memory Support

List" on GIGABYTE's website for more information.)

Onboard

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x USB Type-C® port, supporting USB 3.2 Gen 2 and DisplayPort video

outputs and a maximum resolution of 4096x2304@60 Hz (Note)

* Support for drawing tablets and 20V@3A of power delivery.

* Support for DisplayPort 1.2 version and HDR.

- 1 x USB Type-C® port, supporting USB 2.0 and DisplayPort video outputs

and a maximum resolution of 1920x1080@30 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

(Graphics specications may vary depending on CPU or graphics card support.)

Audio Realtek® ALC1220-VB CODEC

* The back panel line out jack supports DSD audio.

High Denition Audio

2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To congure

7.1-channel audio, access the audio software for audio settings.

Support for S/PDIF Out

LAN Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

Wireless

Communication

Module

Intel® Wi-Fi 7 BE200 (For PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

(Note) Only for Z790 AORUS PRO X.

- 9 -

Wireless

Communication

Module (Note)

MediaTek Wi-Fi 7 MT7927, RZ738 (For PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

Intel® Wi-Fi 7 BE200 (For PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

Qualcomm® Wi-Fi 7 QCNCM865 (For PCB rev. 1.2)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.3

- Support for 11be 320MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

Expansion Slots CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot shares bandwidth with the M2C_CPU connectors. The PCIEX16

slot operates at up to x8 mode when a device is installed in the M2C_CPU connector.

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one

graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Interface CPU:

- 1 x M.2 connector (Socket 3, M key, type 25110/2580 PCIe 5.0 x4/x2 SSD

support) (M2C_CPU)

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

support) (M2A_CPU)

Chipset:

- 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD

support) (M2Q_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)

(M2P_SB)

- 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2

SSD support) (M2M_SB)

- 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

USB Chipset:

- 2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back

panel, 1 port available through the internal USB header)

- 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support (Note 1)

- 1 x USB Type-C® port onboard, with USB 2.0 support (Note 2)

- 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

- 2 x USB 3.2 Gen 1 ports available through the internal USB header

- 2 x USB 2.0/1.1 ports on the back panel

(Note 1) Only for Z790 AORUS PRO X.

(Note 2) Only available with the Intel® HD Graphics Processors.

- 10 -

USB Chipset+USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports on the back panel

Chipset+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Internal

Connectors

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x CPU fan/water cooling pump header

4 x system fan headers

2 x system fan/water cooling pump headers

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

5 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port (DisplayPort), with USB 2.0 support (Note 2)

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x noise detection header

2 x Thunderbolt™add-in card connectors

 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/

GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset button

1 x reset jumper

2 x temperature sensor headers

1 x Clear CMOS jumper

Back Panel

Connectors

2 x USB 2.0/1.1 ports

2 x SMA antenna connectors (2T2R)

4 x USB 3.2 Gen 1 ports

1 x DisplayPort In port (Note 1)

1 x HDMI port

2 x USB 3.2 Gen 2 Type-A ports (red)

1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

1 x USB Type-C® port (DisplayPort), with USB 3.2 Gen 2 support (Note 1)

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

I/O Controller iTE® I/O Controller Chip

(Note 1) Only for Z790 AORUS PRO X.

(Note 2) Only available with the Intel® HD Graphics Processors.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Placa madre de GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270N-Gaming 5 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R181-2A0 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-S2PV DDR3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY R281-3C0 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-A320-DS3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B250M-HD3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H510M DS2V Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B660 AORUS MASTER Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B450 AORUS ELITE Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A55M-S1 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MZBSWAI Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H97M-HD3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-7PESE3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270-HD3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-E3800N Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B460 HD3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110TN-M Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H170M-DS3H Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-S2PH Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MDH11BM Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MD50-LS0 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-7PTSH Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B460M D2V Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MD30-RS0 Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
