GIGA-BYTE TECHNOLOGY GA-X99-Phoenix SLI Manual de usuario

GA-X99-Phoenix SLI

User's Manual

Rev. 1002

12ME-X99PNXS-1002R

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

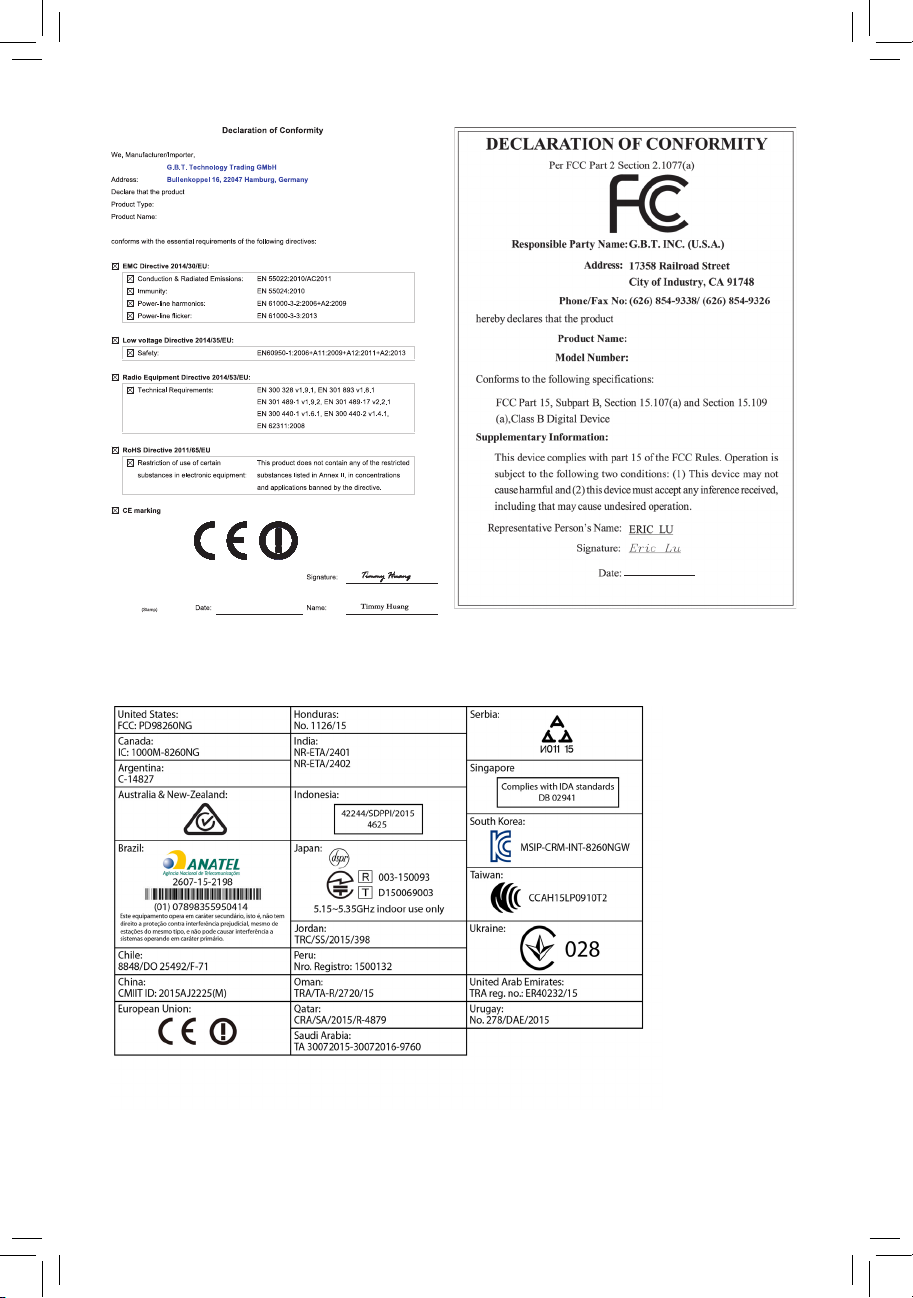

Wireless Module Country Approvals:

See the latest safety and regulatory documents at GIGABYTE's website.

Motherboard

GA-X99-Phoenix SLI

May 31, 2016

Motherboard

GA-X99-Phoenix SLI

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE

without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any

form or by any means without GIGABYTE's prior written permission.

Documentation Classications

In order to assist in the use of this product, GIGABYTE provides the following types of

documentations:

For quick set-up of the product, read the Quick Installation Guide included with the product.

For detailed product information, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV:

1.0" means the revision of the motherboard is 1.0. Check your motherboard revision before

updating motherboard BIOS, drivers, or when looking for technical information.

Example:

- 4 -

Table of Contents

Box Contents...................................................................................................................6

Optional Items .................................................................................................................6

GA-X99-Phoenix SLI Motherboard Layout......................................................................7

Chapter 1 Hardware Installation .....................................................................................9

1-1 Installation Precautions.................................................................................... 9

1-2 ProductSpecications.................................................................................... 10

1-3 Installing the CPU and CPU Cooler ............................................................... 13

1-3-1 Installing the CPU...................................................................................................13

1-3-2 Installing the CPU Cooler .......................................................................................15

1-4 Installing the Memory..................................................................................... 16

1-4-1 4ChannelMemoryConguration...........................................................................16

1-4-2 Installing a Memory ................................................................................................17

1-5 Installing an Expansion Card ......................................................................... 18

1-6 Setting up AMD CrossFire™/NVIDIA®SLI™Conguration .............................. 19

1-7 Back Panel Connectors.................................................................................. 21

1-8 Internal Connectors........................................................................................ 23

Chapter 2 BIOS Setup ..................................................................................................35

2-1 Startup Screen ............................................................................................... 36

2-2 The Main Menu .............................................................................................. 37

2-3 M.I.T. .............................................................................................................. 39

2-4 System ........................................................................................................... 51

2-5 BIOS............................................................................................................... 52

2-6 Peripherals..................................................................................................... 55

2-7 Chipset........................................................................................................... 57

2-8 Power............................................................................................................. 60

2-9 Save & Exit..................................................................................................... 62

Chapter3 ConguringaRAIDSet...............................................................................63

3-1 ConguringSATAControllers......................................................................... 63

3-2 InstallingtheSATARAID/AHCIDriverandOperatingSystem....................... 77

Chapter 4 Drivers Installation........................................................................................81

4-1 Drivers & Software ......................................................................................... 81

4-2 Application Software ...................................................................................... 82

4-3 Information ..................................................................................................... 82

- 5 -

Chapter 5 Unique Features...........................................................................................83

5-1 BIOS Update Utilities ..................................................................................... 83

5-1-1 Updating the BIOS with the Q-Flash Utility ............................................................83

5-1-2 Updating the BIOS with the @BIOS Utility .............................................................86

5-1-3 Using Q-Flash Plus ................................................................................................87

5-2 APP Center .................................................................................................... 88

5-2-1 3D OSD ..................................................................................................................89

5-2-2 Ambient LED ........................................................................................................90

5-2-3 AutoGreen ..............................................................................................................91

5-2-4 BIOS Setup.............................................................................................................92

5-2-5 Color Temperature..................................................................................................93

5-2-6 Cloud Station..........................................................................................................94

5-2-7 EasyTune................................................................................................................99

5-2-8 EasyRAID............................................................................................................100

5-2-9 Fast Boot ..............................................................................................................103

5-2-10 Platform Power Management...............................................................................104

5-2-11 Smart TimeLock....................................................................................................105

5-2-12 Smart Keyboard....................................................................................................106

5-2-13 Smart Backup.......................................................................................................107

5-2-14 System Information Viewer...................................................................................109

5-2-15 USB Blocker .........................................................................................................110

5-2-16 V-Tuner................................................................................................................. 111

5-3 Smart Switch................................................................................................ 112

Chapter 6 Appendix ....................................................................................................113

6-1 ConguringAudioInputandOutput............................................................. 113

6-1-1 Conguring2/4/5.1/7.1-ChannelAudio.................................................................113

6-1-2 ConguringS/PDIFOut........................................................................................115

6-1-3 ConguringMicrophoneRecording......................................................................116

6-1-4 UsingtheSoundRecorder ...................................................................................118

6-2 Troubleshooting............................................................................................ 119

6-2-1 Frequently Asked Questions ................................................................................119

6-2-2 Troubleshooting Procedure ..................................................................................120

RegulatoryStatements............................................................................................ 122

Contact Us .............................................................................................................. 127

- 6 -

Box Contents

5GA-X99-Phoenix SLI motherboard

5Motherboard driver disk

5Wireless module driver disk

5User's Manual

5Quick Installation Guide

5Six SATA cables

5I/O Shield

5One 2-Way SLI bridge connector

5One 3-Way SLI bridge connector (GC-3SLI-X99-1)

5Two Velcro Cable Ties

5One G Connector

5One 1 to 3 power cable (2x4-pin ATX 12V)

5One antenna

5OneRGBLEDstripextensioncable

Optional Items

2-portUSB2.0bracket(PartNo.12CR1-1UB030-6*R)

eSATAbracket(PartNo.12CF1-3SATPW-4*R)

3.5"FrontPanelwith2USB3.0/2.0ports(PartNo.12CR1-FPX582-2*R)

The box contents above are for reference only and the actual items shall depend on the product package you

obtain. The box contents are subject to change without notice.

- 7 -

GA-X99-Phoenix SLI Motherboard Layout

KB_MS_USB3

TYPEC

USB30_LAN2

CPU_FAN

LGA2011-3

ATX

AUDIO

DDR4_8_2D

DDR4_1_1A

DDR4_7_1D

DDR4_2_2A

DDR4_6_2C

DDR4_3_1B

DDR4_5_1C

DDR4_4_2B

BAT

ATX_12V_2X4

Intel®X99

CLR_CMOS

M_BIOS

B_BIOS

Intel®GbE

LAN

PCIEX1

PCIEX8_1

PCIEX16_1

PCIEX16_2

PCIEX8_2

CPU_OPT_PUMP

M2_32G

CODEC

GA-X99-Phoenix SLI

F_PANEL

F_USB30_1

F_USB30_2F_USB2

F_USB1

TPM

ATX4P

F_AUDIO

SYS_FAN3_PUMP

SPDIF_O

iTE®

Super I/O

SATA3

sSATA3 321

540

3 1

2 0

SATA_EXPRESS

426080

Intel®USB 3.1

Controller

THB_C

SYS_FAN1

USB30_LAN1

R_USB31

Renesas®

USB 3.0 Hub

110

M2_WIFI

SYS_FAN2

U2_32G

Renesas®

USB 3.0 Hub

Intel®GbE

LAN

WIFI-BRACKET

LED_C

Wi-Fi

Module

FBIOS_LED

System

Temperature

Sensor 1

System

Temperature

Sensor 2

- 8 -

- 9 -

Hardware Installation

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic com-

ponents such as a motherboard, CPU or memory. If you do not have an ESD wrist strap, keep

yourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its instal-

lation and/or grounding instructions.

- 10 -

Hardware Installation

1-2 ProductSpecications

CPU Support for Intel®Core™i7 processors in the LGA2011-3 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel®X99 Express Chipset

Memory 8 x DDR4 DIMM sockets supporting up to 128 GB of system memory

*Support for up to 256 GB of system memory when using Registered DIMMs.

*Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical

memory is installed, the actual memory size displayed will be less than the size of

the physical memory installed.

4 channel memory architecture

Support for DDR4 2400/2133 MHz memory modules

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Registered DIMM 1Rx8/2Rx8/1Rx4/2Rx4 memory modules (operate

in non-ECC mode)

Support for Extreme Memory Prole (XMP) memory modules

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Audio Realtek®ALC1150 codec

High Denition Audio

2/4/5.1/7.1-channel

Support for S/PDIF Out

LAN 2 x Intel®GbE LAN chips (10/100/1000 Mbit)

Support for Teaming

Wireless

Communication

module

Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band

Bluetooth 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

Support for 11ac wireless standard and up to 867 Mbps data rate

*Actual data rate may vary depending on environment and equipment.

Expansion Slots 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2)

*For optimum performance, if only one PCI Express graphics card is to be installed, be

sure to install it in the PCIEX16_1 slot; if you are installing two PCI Express graphics

cards, it is recommended that you install them in the PCIEX16_1 and PCIEX16_2

slots.

*When an i7-5820K or i7-6800K CPU is installed, the PCIEX16_2 slot operates at

up to x8 mode.

2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2)

* ThePCIEX8_1 slot shares bandwidth with the PCIEX16_1 slot and the PCIEX8_2

slot shares bandwidth with the PCIEX16_2 slot. When the PCIEX8_1/PCIEX8_2 slot

is populated, the PCIEX16_1/PCIEX16_2 slot operates at up to x8 mode.

*When an i7-5820K or i7-6800K CPU is installed, the PCIEX8_2 slot becomes

unavailable.

(All of the PCI Express x16 slots conform to PCI Express 3.0 standard.)

1 x PCI Express x1 slot

(The PCI Express x1 slot conforms to PCI Express 2.0 standard.)

1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)

Multi-Graphics

Technology

Support for NVIDIA®Quad-GPU SLI™and 3-Way/2-Way NVIDIA®SLI™technologies

SupportforAMDQuad-GPUCrossFireX™and 3-Way/2-WayAMD CrossFire™technologies

Tabla de contenidos

Otros manuales de Placa madre de GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B550 GAMING X V2 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MD70-HB0 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-B250M-DS3H Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY A520M S2H Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A58M-DS2H Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B460M D2V Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-IMB310N Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H262-P60 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-D3H Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z690 AERO G Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H310M S2P 2.0 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY B760M DS3H AX Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY H410M DS2V V2 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-Z270-HD3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-7PTSH Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110M-S2PV DDR3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-F2A78M-DASH Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H110-D3 Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY MDH11BM Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY Z490 GAMING X AX Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H270-HD3P Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H81M-S2PT Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY GA-H170M-DS3H Manual de usuario

GIGA-BYTE TECHNOLOGY

GIGA-BYTE TECHNOLOGY A520M H Manual de usuario

Manuales populares de Placa madre de otras marcas

DFI

DFI SD170 Manual de usuario

ASROCK

ASROCK ROMED8-2T Manual de usuario

Asus

Asus P2L97A Manual de usuario

Winmate

Winmate IC70 Manual de usuario

Asus

Asus MES-B Manual de usuario

Grantech

Grantech SYS8F377VGGA-3OMN Manual de usuario

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manual de usuario

Gigabyte

Gigabyte GA-9IVDT Manual de usuario

Texas Instruments

Texas Instruments ADS8372EVM Manual de usuario

Commell

Commell MS-C73 Manual de usuario

IBT Technologies

IBT Technologies MB860 Manual de usuario

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manual de usuario

Biostar

Biostar M7VIT Bravo Instrucciones de funcionamiento e instalación

Intel

Intel D33217CK Manual de usuario

Asus

Asus F1A55-M LX PLUS R2.0 Manual de usuario

EPC

EPC EPC9147C Manual de usuario

Asus

Asus EX-B760M-V5 D4 Manual de usuario

EPOX

EPOX MU-8KHA0010 Manual de usuario
