GFA ST 60.15-50,00 Manual de usuario

Installation Instructions

ELEKTROMAT

ST 60.15-50,00

Model: 10003340 00005

-en-

Status: 25.11.2021

GfA ELEKTROMATEN GmbH & Co. KG

Wiesenstraße 81

D-40549 Düsseldorf

www.gfa-elektromaten.de

[email protected]

Table of contents

1General safety information .............................................................................................. 4

2Technical data ................................................................................................................ 6

3Mechanical installation .................................................................................................... 8

4Electrical installation ..................................................................................................... 12

5Motor connection .......................................................................................................... 13

6Limit switch connection ................................................................................................. 13

7Completing commissioning / inspection ......................................................................... 14

8Disposal ........................................................................................................................ 16

9Declaration of incorporation / Declaration of conformity ................................................. 17



Symbols

Warning - Potential injury or danger to life!

Warning - Danger to life from electric current!

Note - Important information!

▶ Requirement - Required action!

Schematic representations are based on product examples. Deviations from delivered

products are possible.

1General safety information

Specified normal use

The drive unit is intended for horizontally operating sliding doors.

The drive unit must be protected against moisture and aggressive environmental

conditions (such as corrosive substances). The drive units are only suitable for indoor use.

Appropriate protective measures must be taken for outdoor installation. The drive unit is

not intended for hazardous areas. The values specified in the technical data of the drive

unit must not be exceeded. The safe operation can only be ensured if used as specified.

Target audience of these installation instructions

These installation instructions are geared towards qualified persons trained in the handling

of door systems. Expert knowledge, relevant skills and practical experience are what set

apart qualified persons. They are capable of safely carrying out the tasks involving

installation, maintenance and modernisation according to the instructions.

Safe operation

The safe operation of the product can only be ensured if it is used as specified. Follow the

installation instructions. Observe all specifications, especially warnings, when installing the

product in the overall system. GfA is not liable for damage resulting from non-observance

of the installation instructions. The resulting overall system must be reassessed for its

safety in accordance with applicable standards and directives (e.g. CE marking). These

installation instructions refer only to a part of the overall system and are not sufficient as

the sole instructions for the overall system. The installer of the system must prepare the

instructions for the overall system. We recommend entering the danger area of the system

only when the drive unit is at a standstill.

Warning - Failure to follow these installation instructions may result in severe injury or death.

Please read these instructions before using the product.

Keep these instructions handy.

Include these instructions when passing on the product to third parties.

Warning - Danger from improper use of the product!

Do not let children operate the product unsupervised or use as a toy.

Warning - Danger to life from incorrect installation!

Work carried out improperly may result in death or severe injury from electrical

current or falling parts.

Allow only competent people to carry out the work.

Disconnect all cables from the power supply.

Observe valid regulations and standards.

Use suitable tools.

Warning! Danger to life from falling objects if the drive unit is subjected to

impermissible forces.

Inadmissible forces (examples: collision with a forklift, dropping the drive unit, tearing

or pulling on the motor) lead to damage to the drive unit. There is a risk of severe

injury or death from falling objects.

Prevent impermissible forces from acting on the drive unit,

Check the drive unit for damage if impermissible forces have acted on it. Look

even for minor damage. Lock the door during the inspection.

Contact the service department if you have difficulty assessing the damage.

2Technical data

Designation Unit

Output speed 15 rpm

Output torque 600 (500) 1) Nm

Output / hollow shaft 50,00 mm

Series SG 115R -

Limit switch range

(maximum revolutions of the output / hollow shaft)

20 -

Supply voltage 3N~ 400 V

Operating current 4,20 A

Operating frequency 50 Hz

Power factor cos φ 0,59 -

Safety circuit 24 V

Degree of protection IP 54 -

Temperature range -20 / +40 (+60) 2) °C

Operating sound pressure level < 70 dB(A)

Maximum output speed OPEN / CLOSE

for frequency inverter operation

26 / 26 min-1

Cycles per hour 9 (3,0)1) h-1

Max. load 60000 N

Braking torque 130 Nm

Braking voltage 103 V DC

Rectifier type B1 230/103 -

1) Specification in ( ) according to EN 60335-2-103.

2) When using a temperature range of +40°...+60°C use half of maximum cycles per hour.

Temperature Extension!

If the magnetic brake will be continuously supplied the drive can be fitted into areas

down to a -20°C ambient temperature.

3Mechanical installation

Requirements

The permissible loads on walls, mountings, connection and transmission elements must not

be exceeded even for maximum holding or locking torque (▶ observe technical data).

Connection elements

▶ Use self-locking

connection elements with

a minimum strength of

800 N/mm2 (8.8).

▶ Use a screw that

precisely fits the hole.

▶ Use adequately

dimensioned washers for

elongated holes.

BAGAB00002_Z002 BAGAB 00003_Z002

3 : 1

Permissible mounting positions

BAGAC04301_Z002

Mounting

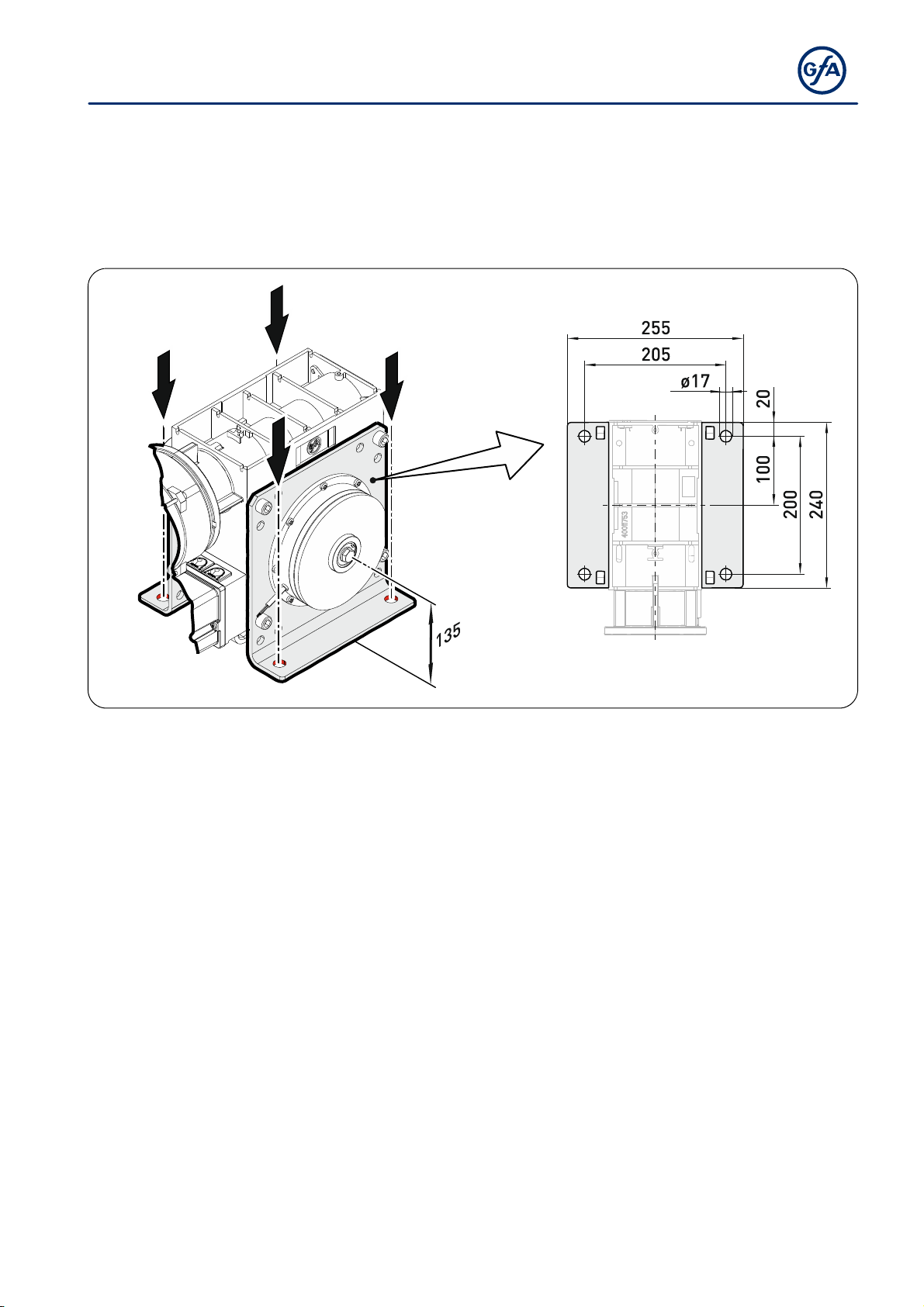

4 boreholes are provided for mounting.

BAGAD04301_Z002

Installation

The following descriptions refer to a door which is not further defined. The door

manufacturer's specifications must also be observed.

Warning – Injury or danger to life possible!

Use a lifting device with sufficient load-carrying capacity for installation tasks.

Adequate space around the adjusting screw must be ensured for the safe

activation of the slipping clutch.

▶ The output-shaft must not be shortened.

BAGAE03301_Z001

▶ Tighten all connection elements (M16) with

a torque of 175 Nm. Install all further

connection elements according to the

specifications of the door manufacturer.

BAGAE004302_Z002

175 Nm
