Getac K120 Manual de usuario

Getac K120

Self-Maintenance Manual

2 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Content

SSD Canister (P/N 581114200006)

Smart Card Door (P/N 340142000012)

Option Door(P/N 340142000010)

DC Door (P/N 340142000009)

Audio Door (P/N 340142000068)

KB Dock LAN Door (P/N 340142000025)

KB Dock USB X2 Door (P/N 340142000026)

KB Dock ONLY RS232 Door (P/N 340142000027)

KB Dock HDMI&DP Door (P/N 340144600007)

KB Dock DC Jack Holder and Door (P/N 581114010011&344857100028)

KB Dock Keyboard (P/N 531014200S01)

KB Dock Front Corner (P/N 344142000058 & 344142000059)

KB Dock Rear Corner (P/N 344142000060 & 344142000061)

KB Dock Handle (P/N 451142000K03)

K120 Tablet

4 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Smart Card Door (P/N 340142000012)

1. Unlock the two screws, and then open the door, and remove the smart card door

5 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Audio Door (P/N 340142000068)

1. Unlock the two screws, and then open the door, and remove the audio door

6 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

Option Door(P/N 340142000010)

1. Unlock the two screws, and then open the door, and remove the audio door

7 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

DC Door(P/N 340142000010)

1. Unlock the one screw, and then open the door, and remove the option door

8 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

SSD Canister (P/N 581114200006)

1. Remove the two screws (371102010432) and one screw (371102610025) lock the SSD cover.

9 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

SSD Canister (P/N 581114200006)

2. Remove the SSD cover and lever..

10 Copyright © 2018 Getac Technology Corporation and/or any of its affiliates. All Rights Reserved.

｜

SSD Canister (P/N 581114200006)

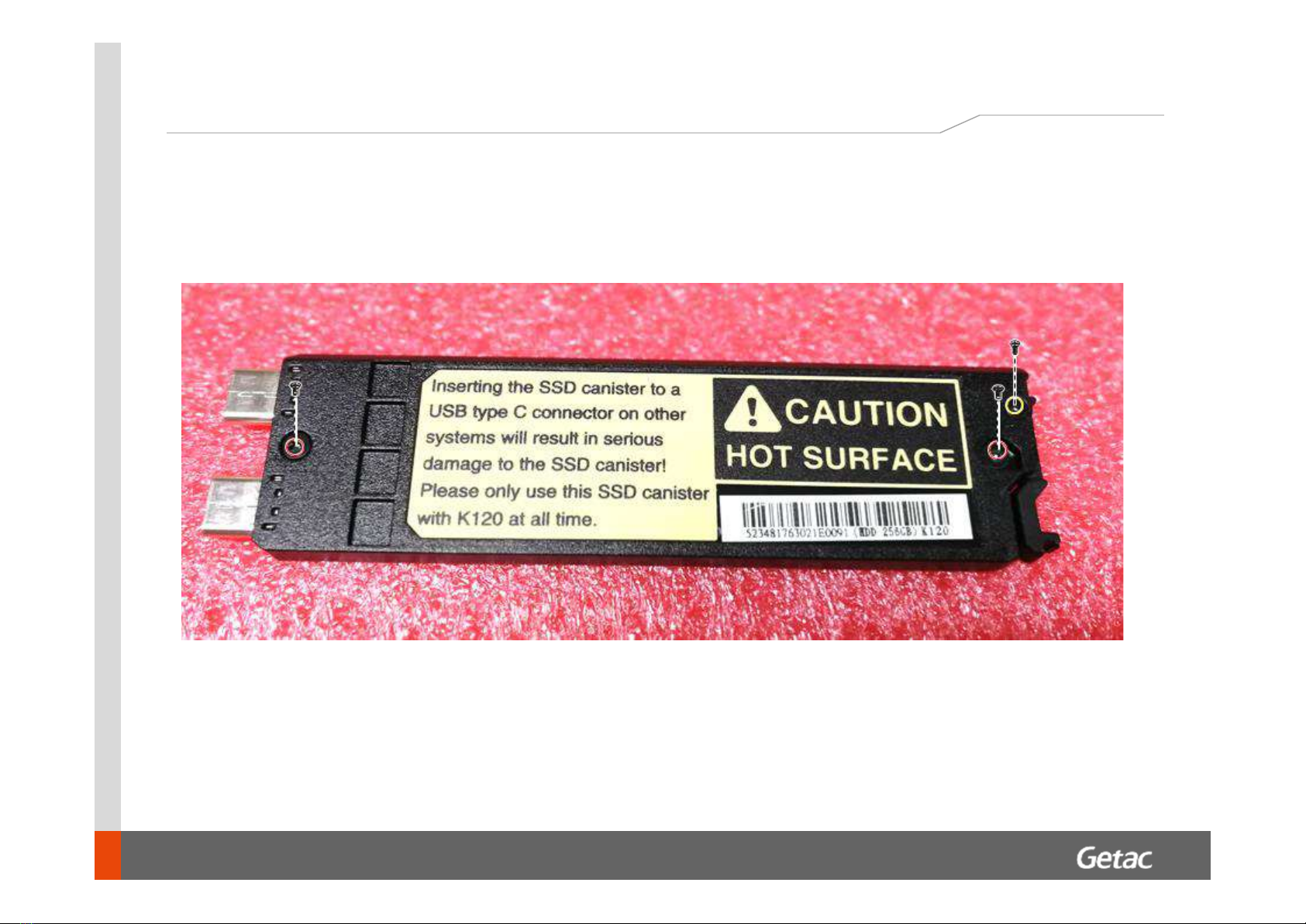

3. Remove the SSD and connect board.
