GeoVision VS04H Manual de usuario

Quick Start Guide

GV-Video Server

Thank you for purchasing GV-Video Server. This guide is designed to assist the new user

in getting immediate results from the GV-Video Server. For advanced information on how to

use the GV-Video Server, please refer to GV-Video Server User's Manual on Software

DVD.

2016/11

English

VS2420-2400-QG-B

1Introduction

Welcome to the GV-Video Server Quick Start Guide. In the following

sections, you will learn about the basic installations and configurations of the

GV-Video Server (VS04H / VS11 / VS12 / VS14 / VS2420 / VS2400).

For a detailed user’s manual, see GV-Video Server User’s Manual on the

GV-Video Server software CD/DVD.

Packing List

● DC Male-to-Male Cable x 1

● Power Adaptor x 1

● Wall Hook x 1

GV-VS04H / GV-VS14

● 3.5 mm Stereo to RCA Cable x 2

● AC Power Cord x 1

● Conical Anchor x 4

● Screw x 4

● GV-Video Server Software CD/DVD x 1

● GV-NVR Software CD/DVD x 1

Note: The DC Male-to-Male Cable is

used to power on the camera through

the GV-Video Server. You can also

optionally purchase three more DC

Male-to-Male Cables and one DC

1-Male to 4-Female Cable to power on

four cameras through the GV-Video

Server. DC 1-Male to

4-Female Cable

DC Male-to-Male

Cable

● GV-VS04H / GV-VS14

GV-VS11

GV-VS12

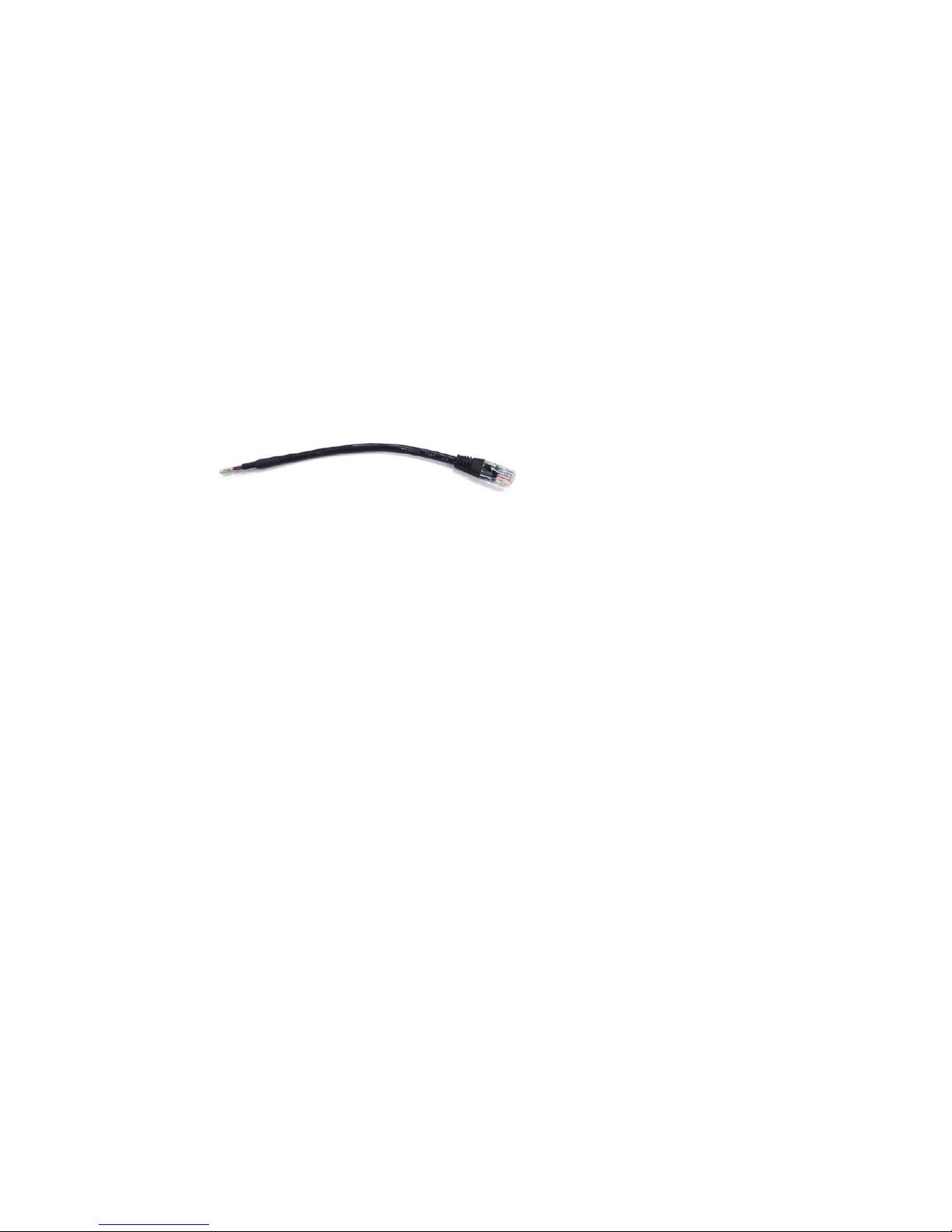

● I/O Cable with RJ-45 Connector x 1

● Sticker (for positioning conical anchors) x 1

● AC Power Cord x 1

● Power Adaptor x 1

● Wall Hook x 1

● Screw x 4

● Conical Anchor x 4

● GV-Video Server Software CD/DVD x 1

● GV-NVR Software CD/DVD x 1

● Power Adaptor x 1

● GV-Video Server Software CD/DVD x 1

● GV- NVR Software CD/DVD x 1

GV-VS2420 / 2400

● AC Power Cord x 1

● Power Adaptor x 1

● GV-Video Server Software CD/DVD x 1

● GV-NVR Software CD/DVD x 1

● Warranty Card

● GV-VS11

● GV-VS12

● GV-VS2420/2400

The GV-GPS Receiver is a Global Position

System receiver. With the GV-GPS Receiver,

you can perform GPS tracking and location

verification of the GV-Video Server. Two types

of interfaces are available: UART (for

GV-VS04H / GV-VS14) and RS-232 (for

GV-VS12).

Note: The GV-GPS Receiver is not supported

by GV-VS11 and GV-VS2420 / 2400.

Working with the GV-Relay V2, the GV-Video

Server is capable of driving the loads of relay

outputs over 5 volts.

The WiFi USB Adaptor is designed to connect

the GV IP devices, such as GV-Video Server or

GV-Compact DVR, to the wireless network.

The GV-PA191 is designed to provide power to

the IP device through a single Ethernet cable.

The GV-PA191 is only supported by GV-VS04H,

and GV-VS12.

With the GV-VR605A, you can install GV-Video

Server in the car. The GV-Video Server will

supply and maintain a 12V voltage to the

GV-Video Server and its connected cameras.

Note: The GV-VR605A is not supported by

GV-VS2420 / 2400.

GV-GPS Receiver

GV-Relay V2

GV-WiFi USB Adaptor

GV-PA191 PoE Adaptor

GV-VR605A DC Voltage

Regulator

Options

GV-Reader includes transmit-receive antenna

and electronics. Featured with both Wiegand

and RS-485 outputs, the unit is compatible with

any standard access control panel.

The GV-R1352 is a card reader designed to

recognize identification cards. Featured with the

Wiegand and RS-485 outputs, the unit can be

connected to any standard access control panel.

The GV-R1352 comes with a weather sealed

and IP66 compliant housing for outdoor use.

Only supported by GV-VS2420 / 2400, the DC

Male-to-Male Cable is used to power on the

camera through the GV-Video Server.

For instance, you can purchase four DC

Male-to-Male Cables and one DC 1-Male to

4-Female Cable to power on four cameras

through the GV-Video Server.

Only supported by GV-VS2420 / 2400, the 3.5

mm Stereo to RCA Cable is served as an audio

adapter for microphones with RCA connectors.

Only supported by GV-VS2420 / 2400, the Wall

Hook is used to mount the device to the wall.

Only supported by GV-VS2420 / 2400, the

Din-rail Hook is used to mount the device to a

35-mm (1.38-in) DIN rail.

Only supported by GV-VS2420 / 2400, the Rack

Mount is used to mount up to 3 video servers to

a 19-inch (482.6-mm) rack.

GV-Reader

GV-R1352 Card Reader

Access Control Series

The GV-Video Server can work with the Wiegand-interface card reader to

send cardholder data to the central monitoring stations Center V2 and

VSM, as well as GV-System (GV-DVR / NVR). The following devices are

only supported by GV-VS04H and GV-VS14.

DC Male-to-Male Cable/

DC 1-Male to 4-Female

Cable

3.5 mm Stereo to

RCA Cable

Wall Hook

Din-rail Hook

Rack Mount

2Overview

GV-VS04H / GV-VS14

Rear View

10 11 12 13

Front View

1 2 3 4 5 6 7 8

Function

4 plugs for video inputs.

A plug for the speaker device.

Each plug is for 2 audio inputs.

It resets all configurations to their factory

settings. See 7 Restoring to Default Settings in

the Quick Start Guide.

This LED is on, indicating the hard drive is full

or faulty.

This LED is on, indicating the GV-Video Server

is ready for connection.

This LED is on, indicating the power is

supplied.

It reboots the GV-Video Server, and keeps all

current configurations.

2 USB ports for installing portable storage

devices.

The connectors for digital input, relay output,

PTZ camera, Wiegand device and GPS module

control.

A plug for a 10/100 Ethernet or PoE.

Note: GV-VS14 does not support PoE function.

A plug to power on the camera, by using a DC

Male-to-Male Cable, directly through the

GV-Video Server.

Note: When PoE is applied, you cannot power

on the camera through the GV-Video Server.

A plug to power on the GV-Video Server.

Name

Video Input

Speaker Output

Audio Input

Default Button

Disk Full/Fault LED

Ready LED

Power LED

Reset

USB Port

Terminal Block

Ethernet Port

Power Out

Power In

No.

Function

1 plug for video input.

It resets all configurations to their factory

settings. See 7 Restoring to Default Settings in

the Quick Start Guide.

1 plug for audio input.

This LED is on, indicating the GV-Video Server

is ready for connection.

This LED is on, indicating the power is

supplied.

1 USB port for installing portable storage

device.

A plug for inserting an Ethernet cable to build

the network connection.

The connectors for digital input, digital output

and PTZ camera control.

A plug to power on the GV-Video Server.

Name

Video Input

Default Button

Audio Input

Ready LED

Power LED

USB Port

Ethernet Port

Terminal Block

Power In

No.

GV-VS11

Rear ViewFront View

1 2 3 4 6 7 8 95

GV-VS12

Front View

Rear View

1 3

5 6

10 11 12

7 8 9

2 4

Function

1 USB port for installing the portable storage

device.

A plug for the speaker device.

2 plugs for audio inputs.

2 plugs for video inputs.

A plug to power on the GV-Video Server.

A plug for inserting an Ethernet cable to build

the network connection.

1 USB port for installing the portable storage

device.

A port for digital input, relay output and PTZ

camera control. Insert the I/O Cable with RJ-45

Connector to this port.

The connectors for GPS module control.

It resets all configurations to their factory

settings. See 7 Restoring to Default Settings in

the Quick Start Guide.

This LED is on, indicating the GV-Video Server

is ready for connection.

This LED is on, indicating the power is

supplied.

Name

USB Port

Speaker Output

Audio Input

Video Input

Power In

Ethernet Port

USB Port

I/O / PTZ Port

RS-232

Terminal Block

Default Button

Ready LED

Power LED

No.
