Quick Start Guide

1Introduction

Welcome to the GV-Compact DVR V3 Quick Start Guide. In the following sections,

you will learn about the basic installations and configurations of the GV-Compact

DVR V3. For a detailed user’s manual, see GV-Compact DVR V3 User’s Manual on

the GV-Compact DVR V3 software DVD.

All GeoVision Products are manufactured in Taiwan.

2011/10

English

CDVRV3-QG-B

The 4-Channel Unit

GV-Compact DVR V3

Thank you for purchasing GV-Compact DVR. This guide is designed to assist the new user in getting

immediate results from the GV-Compact DVR. For advanced information on how to use the GV-Compact

DVR, please refer to GV-Compact DVR User's Manual on Software DVD.

Models

Description

Equipped with 2 USB ports and 1 hard drive

bay.

Equipped with 2 USB ports and 2 hard drive

bays.

Equipped with 2 USB ports, 1 hard drive

bay and 1 DVD-RW drive.

Equipped with vibration absorbers, 2 USB

ports and 1 hard drive bay.

Model No.

GV-LX4C3D1

GV- LX4C3D2

GV- LX4C3D2W

GV-LX4C3V

Model

Standard

Anti-Vibration

ACC

The 8-Channel Unit

Description

Equipped with 4 USB ports and 1 hard drive

bay.

Equipped with 4 USB ports and 2 hard drive

bays.

Equipped with 4 USB ports, 1 hard drive

bay and 1 DVD-RW drive.

Equipped with vibration absorbers, 4 USB

ports and 1 hard drive bay.

Equipped with vibration absorbers, 4 USB

ports and 2 hard drive bays.

Model No.

GV-LX8CD1

GV-LX8CD2

GV-LX8CD2W

GV-LX8CV1

GV-LX8CV2

Model

Standard

Anti-Vibration

ACC

Anti-Vibration

ACC

Note: For the Anti-vibration ACC models (GV-LX4C3V, GV-LX8CV1 and

GV-LX8CV2), it is necessary to use the hard drive for notebook, vehicle or

surveillance applications to prevent vibration and shock hazard.

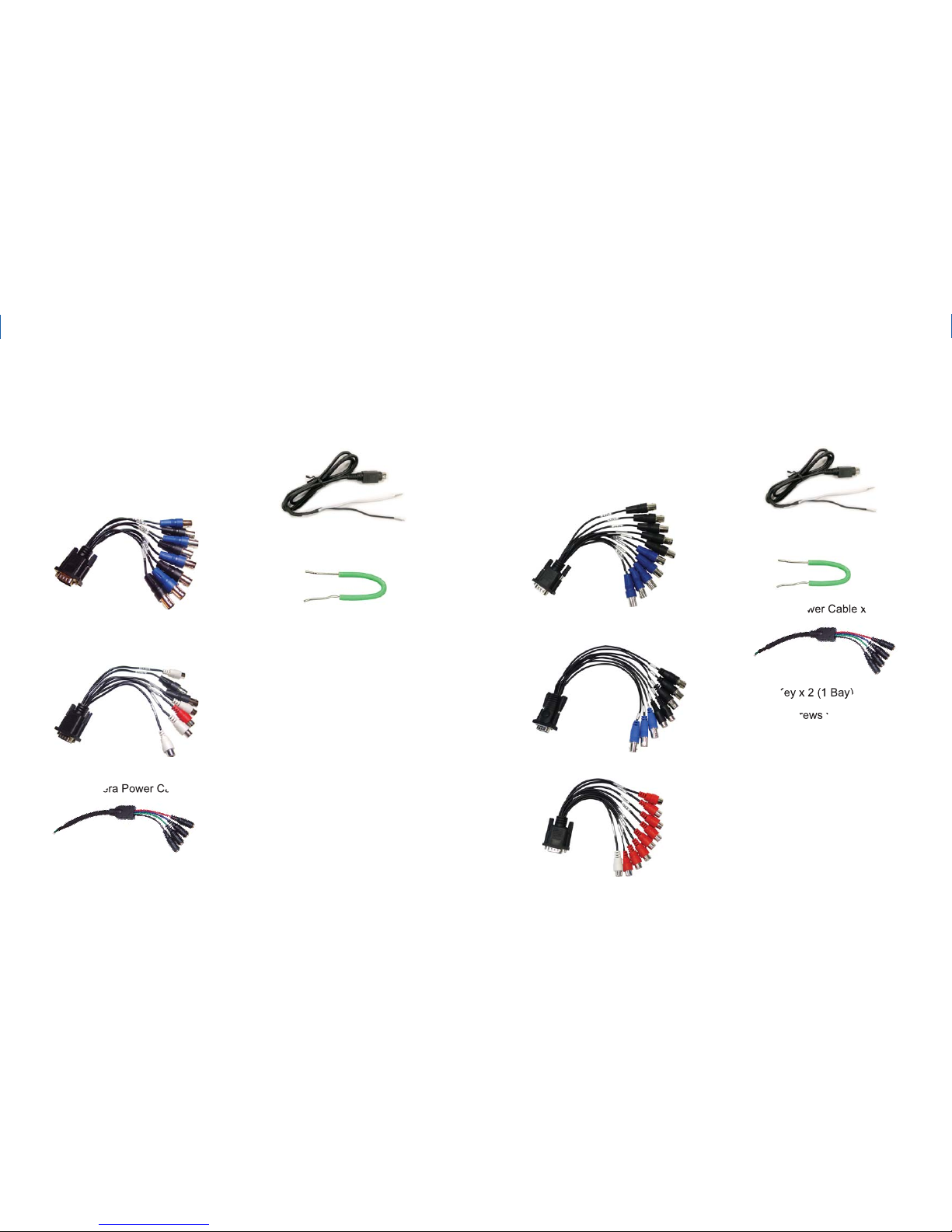

Packing List

The 4-Channel Unit

●Power Cable x 1

(Anti-Vibration Model)

●Shorting Cable x 1

(Anti-Vibration Model)

●Lock Key x 2 (1 Bay), x 4 (2 Bays)

●Round Screws x 6 (1 Bay),

x 12 (2 Bays)

●T-Cap Screw x 4 (1 Bay),

x 8 (2 Bays)

●Remote Control x 1

●GV-Compact DVR Quick Start Guide

x 1

●GV-Compact DVR Software DVD x 1

●GV-NVR Quick Start Guide x 1

●GV-NVR Software DVD x 1

●Power Adaptor 12V, 5.0A x 1

(Standard Model)

●AC Power Cord x 1

(Standard Model)

●D-Type Video Cable x 1

●D-Type Audio/TV/Spot Monitor

Cable x 1

●1 to 4 Camera Power Cable x 1

The 8-Channel Unit

●Power Cable x 1

(Anti-Vibration Model)

●Shorting Cable x 1

(Anti-Vibration Model)

●Camera Power Cable x 2

●Lock Key x 2 (1 Bay), x 4 (2 Bays)

●Round Screws x 6 (1 Bay),

x 12 (2 Bays)

●T-Cap Screw x 4 (1 Bay),

x 8 (2 Bays)

●Remote Control x 1

●GV-Compact DVR Quick Start Guide

x 1

●GV-Compact DVR Software DVD x 1

●GV-NVR Quick Start Guide x 1

●GV-NVR Software DVD x 1

●Power Adaptor 12V, 5.0A x 1

(Standard Model)

●AC Power Cord x 1

(Standard Model)

●1 to 5 D-Type Video Cable x 1

●6 to 8 D-Type Video/TV/Spot Monitor

Cable x 1

●D-Type Audio Cable x 1

2Overview

Optional devices can expand your GV-Compact DVR V3’s capabilities and versatility.

Contact your dealer for more information.

External IR Receiver

GV-GPS 232

Receiver with PS/2

Connector

2.5” to 3.5” HDD

Converter

GV-Relay V2

WiFi USB Adaptor

Power Adaptor of DC

12V, 5A

The external IR receiver, with a 5-meter cable (16.4 feet),

allows long-distance remote control of GV-Compact DVR

V3.

GV-GPS 232 Receiver is a Global Position System

receiver. It can be applied to vehicle tracking and location

verification. The device is designed for Anti-Vibration

ACC models only.

The HDD converter allows you to install a 2.5’’ SATA HDD

into GV-Compact DVR V3.

Working with this module, GV-Compact DVR V3 can

expand the voltage load up to 10A 250V AC / 10A 125V

AC / 5A 100V DC.

The WiFi USB Adaptor is designed to connect the GV IP

devices to the wireless network. It complies with IEEE

802.11 b/g/n (Draft 3.0) standards for wireless networking.

The power adaptor is used to power on the Anti-Vibration

ACC model to test the connection. The device is designed

for Anti-Vibration ACC models only.

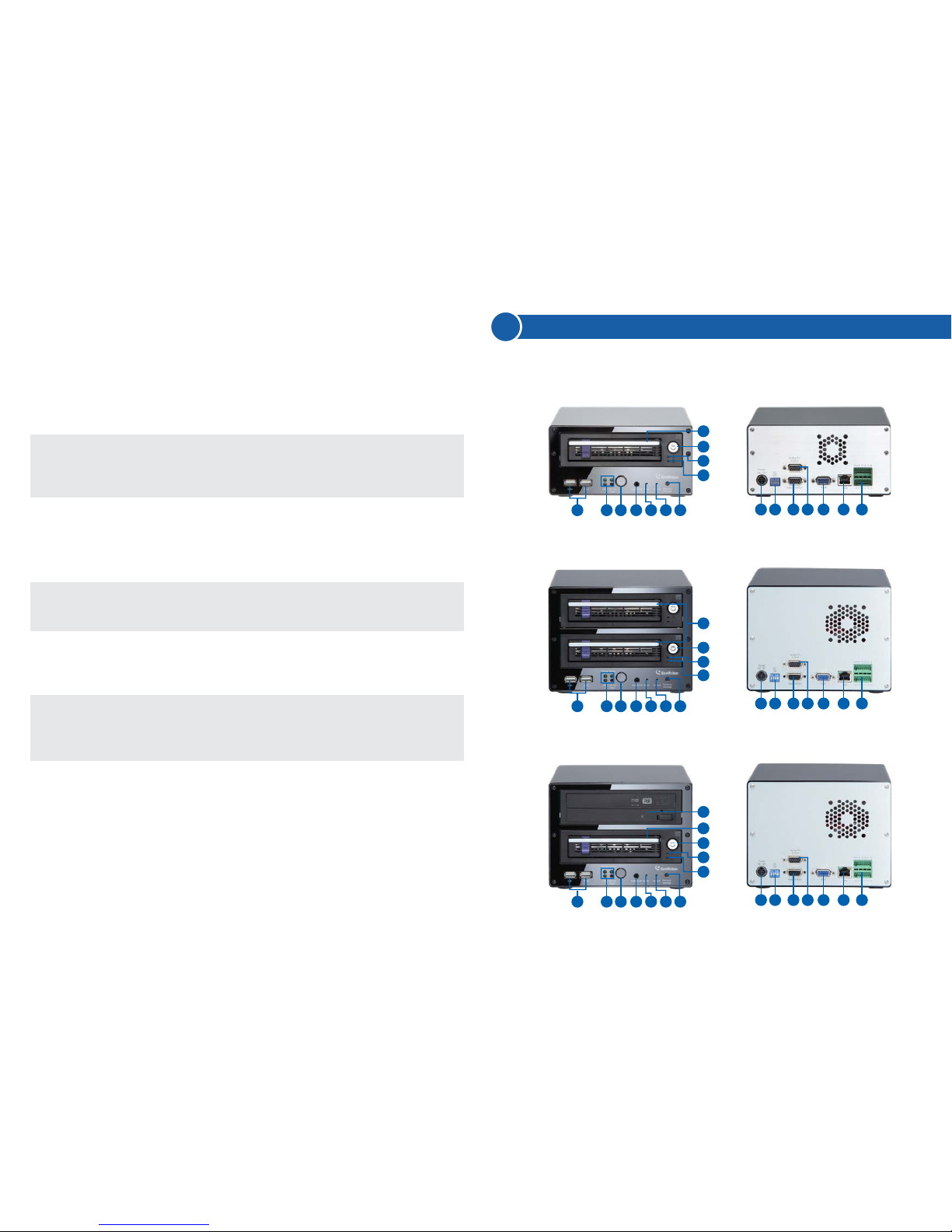

Options Standard Model

GV-LX4C3D1

GV-LX4C3D2

GV-LX4C3D2W

The 4-Channel Unit

13 14 15 16 17 18 19

7654321

13 14 15 16 17 18 19

7654321

13 14 15 16 17 18 19

7654321

Name

USB Port

System LED

IR Receiver

External IR

Reset Button

Default Button

Storage Removal Button

HDD Activity LED

HDD Power LED

Key Lock

HDD Drive Bay

DVD-RW Drive

DC Power Input (12V)

Description

Connects the USB storage device, Wireless LAN

adaptor and/or mobile Internet device.

• Power LED: Turns on when the power is supplied.

• Ready LED: Turns on when the unit is ready for use.

• HDD LED: Turns on when the HDD is reading or

writing data.

• Disk Full/ Fault LED: Turns on when the HDD is full

or read/write error occurs.

Receives data from the infrared remote control.

Connects to an optional External IR receiver.

Restarts the unit, and keeps all current configurations.

Sets all configurations to factory settings.

Stops recording and dataches the HDD from the system.

Blinks when the HDD is reading or writing data.

Turns on when the power is supplied.

Locks and unlocks the HDD drive bay.

Installs the SATA hard drive for recording.

Writes the DVD disc for data backup.

Connects to power supply.

75 Ω

Video In/Out

Audio/TV In/Out

VGA Monitor Port

LAN Port

I/O Terminal Block

External IR

GPS Port

When using the Loop function, turn the switches to OFF

positions. The switch number is corresponding to the

channel number. The default setting is ON.

• Inputs (4 Blue Connectors/CH1-4): Connects to

cameras.

• Outputs (4 Black Connectors/CH1-4): Loops out

each camera input to monitors.

• TV Output (1 Black Connector/QUAD): Connects

to a TV monitor.

• Spot Monitor Output (1 Black Connector/MUX):

Connects to a spot monitor to display video

sequentially from each video input.

• Audio Inputs (4 White Connectors / CH1-4):

Connects to microphones.

• Audio Output for playback (1 Red Connector/

AUD-OUT): Connects to speakers. Note the audio

output only works during playback or when receiving

callback audio.

Connects to a PC monitor.

Connects to the network.

Connects to input and output devices, PTZ cameras,

and etc.

Connects to an optional External IR receiver.

Connects to a GPS 232 receiver.

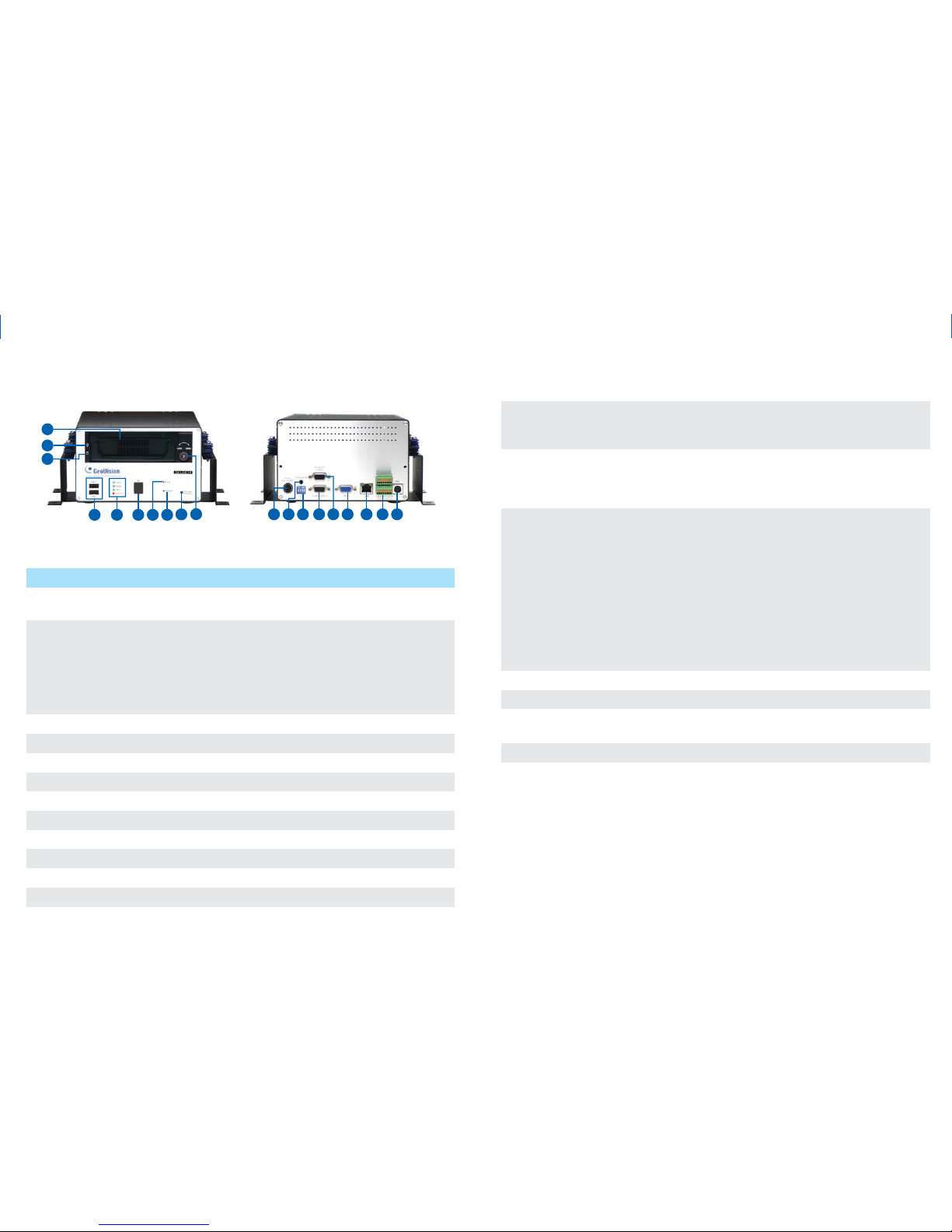

Anti-Vibration ACC Model

GV-LX4C3V

167

10 20 14 15 16 17 18 19 21

Name

USB Port

System LED

Description

Connects the USB storage device, Wireless LAN

adaptor and/or mobile Internet device.

• Power LED: Turns on when the power is supplied.

• Ready LED: Turns on when the unit is ready for use.

• HDD LED: Turns on when the HDD is reading or

writing data.

• Disk Full/ Fault LED: Turns on when the HDD is full

or read/write error occurs.

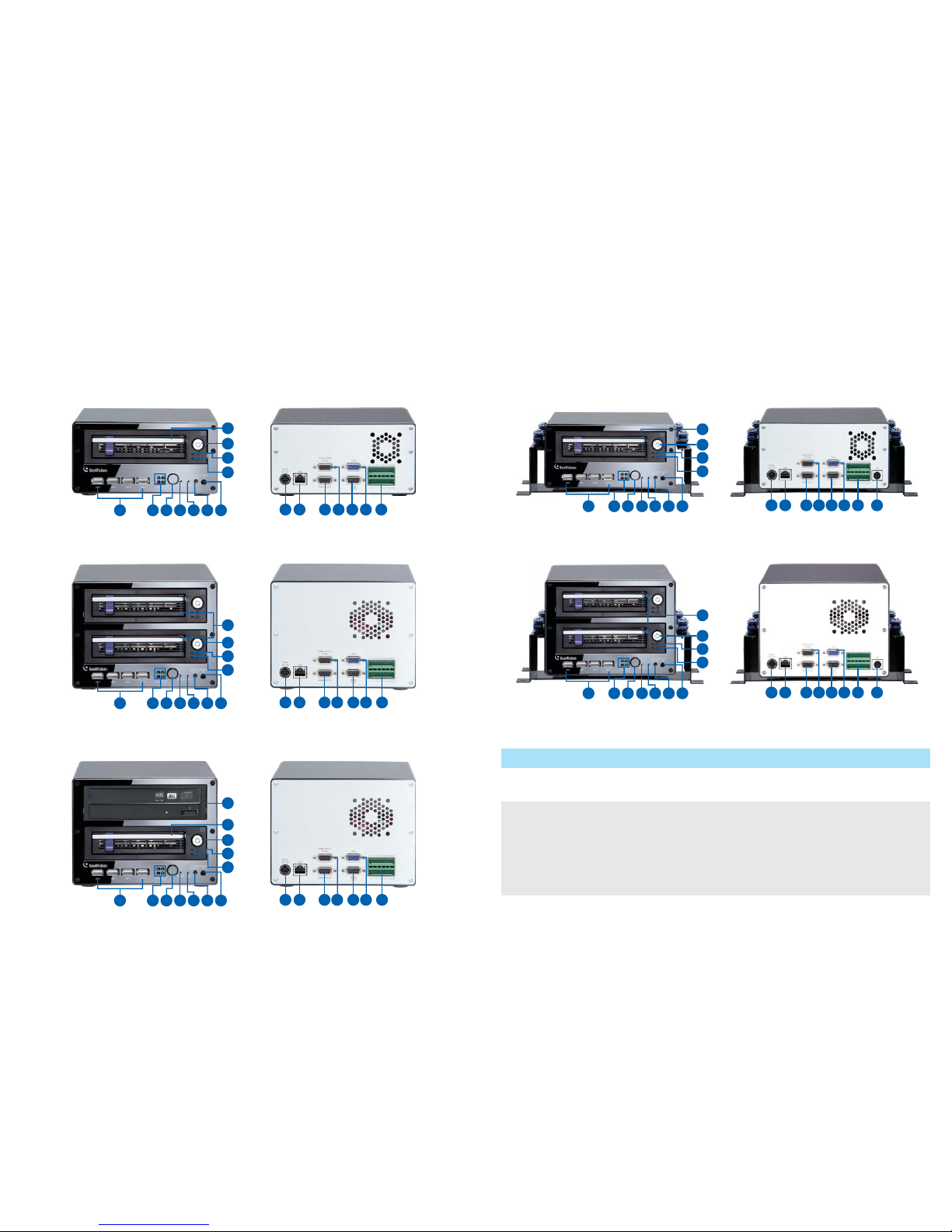

Standard Model

GV-LX8CD1

GV-LX8CD2

GV-LX8CD2W

The 8-Channel Unit

13 14 15 16 17 19

7654321

13 14 15 16 17 19

7654321

18 20

Anti-Vibration ACC Model

GV-LX8CV1

13 14 15 16 17 19

7654321

18 20

GV-LX8CV2

13 14 15 16 19

7654321

17 18

13 14 15 16 19

7654321

17 18

IR Receiver

Default Button

Reset Button

Storage Removal Button

External IR

HDD Activity LED

HDD Power LED

Key Lock

HDD Drive Bay

DVD-RW Drive

DC Power Input (12V)

LAN Port

Video In/Out

Video In/Out & TV-Out

Audio In/Out

Receives data from the infrared remote control.

Sets all configurations to factory settings.

Restarts the unit, and keeps all current configurations.

Stops recording and dataches the HDD from the system.

Connects to an optional External IR Receiver.

Blinks when the HDD is reading or writing data.

Turns on when the power is supplied.

Locks and unlocks the HDD drive bay.

Installs the SATA hard drive for recording.

Writes the DVD disc for data backup.

Connects to power supply.

Connects to the network.

• Inputs (5 Blue Connectors/CH1-5): Connects to

cameras.

• Outputs (5 Black Connectors/CH1-5): Loops out

each camera input to monitors.

• Inputs (3 Blue Connectors/CH6-8): Connects to

cameras.

• Outputs (3 Black Connectors/CH6-8): Loops out

each camera input to monitors.

• TV Output (1 Black Connector/QUAD): Connects to

a TV monitor

• Spot Monitor Output (1 Black Connector/MUX):

Connects to a spot monitor to display video

sequentially from each video input.

• Audio Inputs (8 Red Connectors/CH1-8): Connects

to microphones.

• Audio Output for playback (1 White Connector/

AUD-OUT): Connects to speakers. Note the audio

output only works during playback or when receiving

callback audio..

VGA Monitor Port

I/O Terminal Block

GPS Port

Connects to a PC monitor.

Connects to input and output devices, PTZ cameras,

and etc.

Connects to a GPS 232 receiver.

Continued on the reverse

For details on looping video out on monitors and displaying each video sequentially

on a spot monitor, see Connecting Optional Video Output Devices, Chapter 3 in the

Compact DVR V3 User’s Manual on the software DVD.

For details on installing the hard drive, see Installing Hard Drive, Chapter 3 in the

Compact DVR V3 User’s Manual on the software DVD.

Note: The GV-Compact DVR V3 cannot work with the microphone requiring

power from the unit. Use the microphone that has external power supply.

●4-Ch: Using the blue connectors of the supplied D-Type Video Cable, connect

to cameras.

●8-Ch: Using the blue connectors of the supplied 1 to 5 D-Type Video Cable,

connect to cameras 1 to 5. Using the blue connectors of the supplied 6 to 8

D-Type Video/TV/Spot Monitor Cable, connect to cameras 6 to 8.

1. Connect to power by using the supplied power adaptor.

2. Connect to cameras.

●4-Ch: Using the supplied D-Type Audio/TV/Spot Monitor Cable, connect

microphones to the four white connectors and a speaker to the red connector.

●8-Ch: Using the supplied D-Type Audio Cable, connect microphones to the

eight red connectors and a speaker to the white connector.

B. Using the VGA cable supplied by the monitor manufacturer, connect to a VGA

monitor (as illustrated in the figure).

3. Connect to microphones and a speaker.

A. 4-Ch: Using the black connector (QUAD) of the supplied D-Type

Audio/TV/Spot Monitor Cable, connect to a TV monitor.

8-Ch: Using the black connector (QUAD) of the supplied 6 to 8 D-Type

Video/TV/Spot Monitor Cable, connect to a TV monitor.

4. Connect video output. There are two options:

5. Connect to the network by using the standard RJ-45 cable.

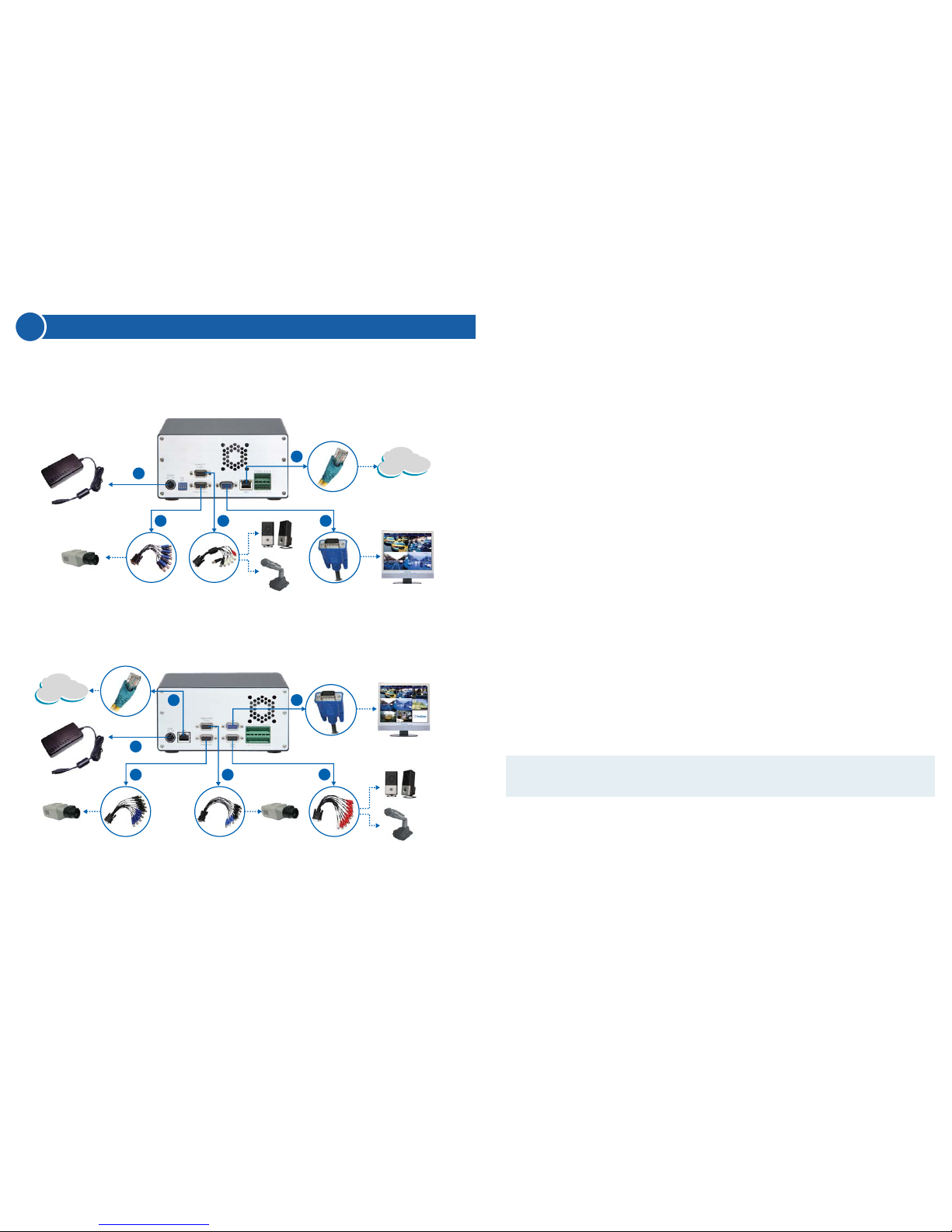

3Connecting the GV-Compact DVR V3

Basic Connection for Standard Models

Internet

The 4-Channel Unit

The 8-Channel Unit

2 3

Internet

2 2

Cameras

6-8

Cameras

1-5

162 4 6 8 10 12 14

15135791113

Shorting

Cable Shorting

Cable

Terminal Block of 4-Ch Terminal Block of 8-Ch

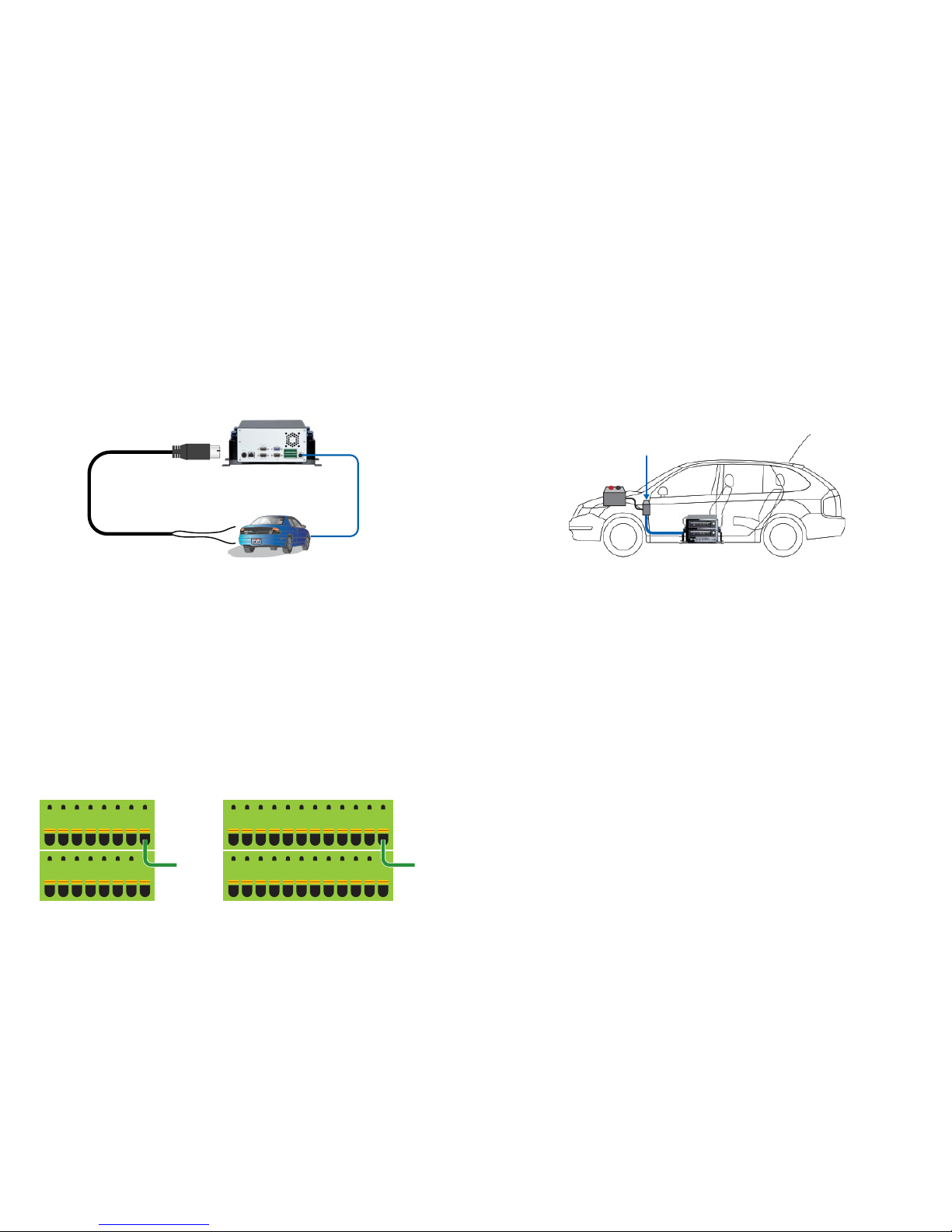

1. Connect the ACC wire from the vehicle to Pin 16 (4-Ch) or Pin 24 (8-Ch) on the

terminal block. For details see Connecting Anti-Vibration ACC Models to the

Vehicle later in the Quick Start Guide.

2. Connect the Power Cable to the unit and to the vehicle.

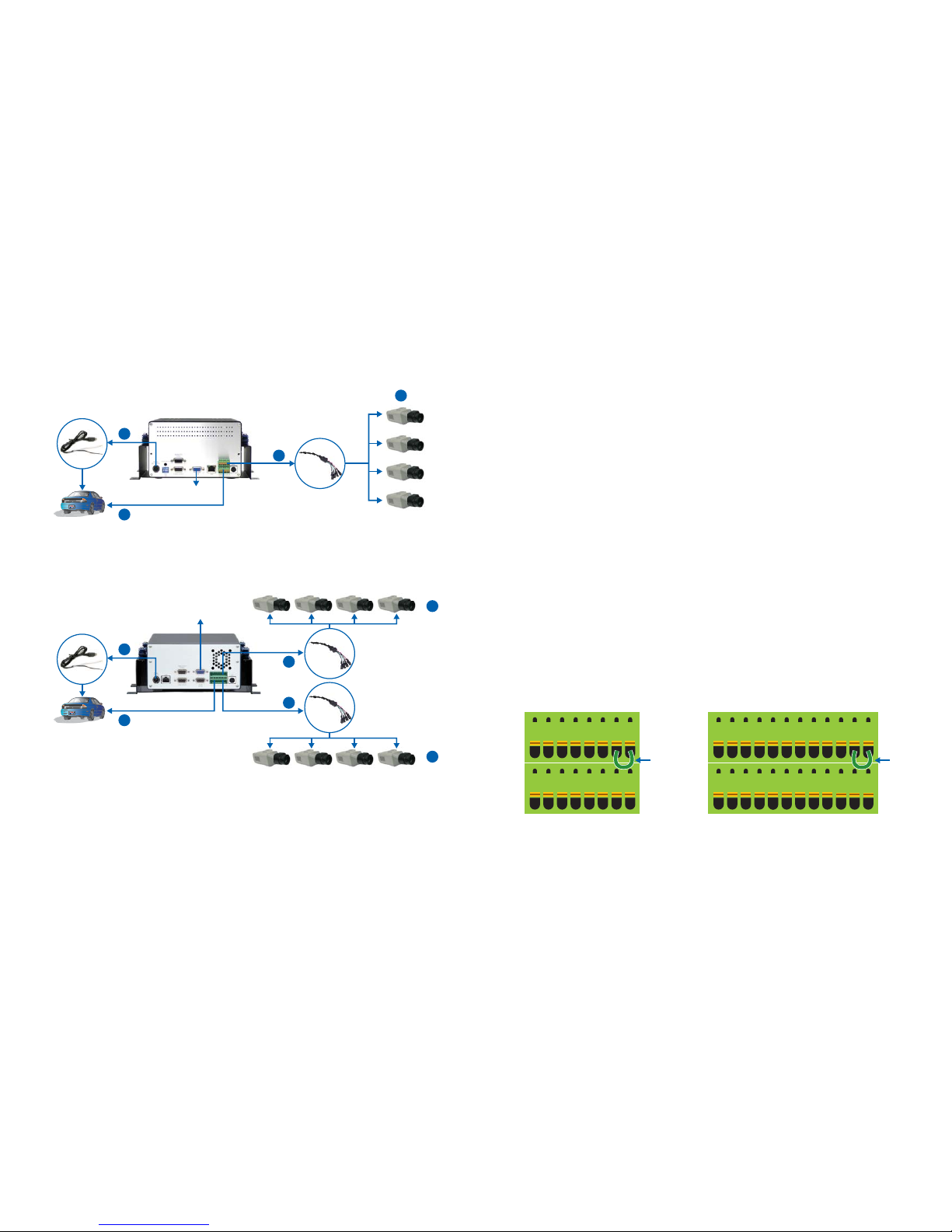

Basic Connection for Anti-Vibration ACC Models

Testing Anti-Vibration ACC Models

The 4-Channel Unit

The 8-Channel Unit

To power on Anti-Vibration ACC Models:

3. 4-Ch: Connect the black wire of the Camera Power Cable to Pin 10 and red wire

to Pin 11 on the terminal block.

8-Ch: Connect the black wires of the Camera Power Cables to Pin 18 or Pin 20,

and the red wires of the Camera Power Cables to Pin 17 or Pin 19 on the terminal

block.

4. Connect the Camera Power Cable to cameras.

●Supplied Shorting Cable

●Additional power adaptor (DC 12V, 5A), which can be purchased from GeoVision.

1. Connect the Shorting Cable to Pins 14 and 16 (4-Ch) or Pins 22 and 24 (8-Ch) on

the terminal block.

2. Power on the unit by using a power adaptor. The unit automatically starts after

powering up for 5 seconds.

3. Set up the settings of the unit, such as storage, images, recording and etc through

its OSD or Web interface.

4. Remove the power adaptor. The unit turns off immediately after powering off.

To power on cameras through the vehicle power supply:

When the Anti-Vibration ACC model is connected to the vehicle power supply, the unit

will automatically start after you turn on the vehicle ignition. Power is supplied to the

unit as long as the vehicle ignition is on.

Before connecting the ACC model to a vehicle, you can power on the unit at other

places for testing and setup.

Items required:

Cameras

Camera

Power Cable

Vehicle

VGA Monitor

Power Cable

ACC Wire

Cameras

Camera

Power Cable

Camera

Power Cable

Vehicle

VGA Monitor

Power Cable

ACC Wire

3162468101214

15 17135791113

18 20 22

2319 21

+/-

Fuse Box

For details, see 3.3.2 Connecting to a Vehicle, Chapter 3 in GV-Compact DVR V3

User’s Manual on the software DVD.

Connect to Pin 16 (4-Ch) or

Pin 24 (8-Ch) of the

Terminal Block on the

GV-Compact DVR V3

Connect the white wire to the

Vehicle’s Power Cable

(10 ~ 28 VDC, 5A)

Connect the black wire to the

Vehicle’s Ground Cable

The Supplied

Power Cable

ACC wire from

the Vehicle

GV-Compact DVR V3

Vehicle

1. Connect the white power wire of the unit to the positive-voltage power cable

from the fuse box.

2. Remove the car door scuff plate and wire the power cable along the driver’s door

toward the back seat.

3. Use one of the two methods below to connect the black ground wire of the unit.

4. Turn on the car ignition and the unit should start automatically within 5 seconds.

Turn off the car ignition and the unit should shut down 30 seconds after the car

ignition is off.

●Method 1: Connect the black ground wire to the negative-voltage power

cable from the fuse box.

●Method 2: Connect the black ground wire to the vehicle’s chassis so that the

wire contacts the bare metal.

When the black ground wire is connected correctly, the unit will automatically

shut down 30 seconds after the car’s power is off. If the unit does not shut

down, try to connect the black ground wire using the other method.

Connecting the ACC Wire

Connecting the Power Wire

1. Locate and open the fuse box, which is usually located below the dashboard and

to the left of the steering wheel.

2. Look for “cigarette lighter” fuse location, which is indicated in the fuse

specification diagram on the fuse box or in the owner’s manual.

3. Connect the ACC wire from the cigarette lighter fuse to Pin 16 (4-Ch) or Pin 24

(8-Ch) on the terminal block.

Connecting Anti-Vibration ACC Models to a Vehicle

You need to connect the ACC model to ACC wire and power wire on the vehicle.

The following instructions are based on installation on a Toyota Zace Surf. Since

each vehicle differs in design, refer to the owner’s manual of your vehicle for details

or have the installation done by a properly trained technician.

Using the fuse specification diagram, locate the power cables from the fuse box. You

may need to use a voltmeter to determine positive-voltage and negative-voltage

cables.

162468101214

15135791113

ACC wire of

the Vehicle

Terminal Block of 4-Ch Terminal Block of 8-Ch

162468101214

15 17135791113

2418 20 22

2319 21

ACC wire of

the Vehicle

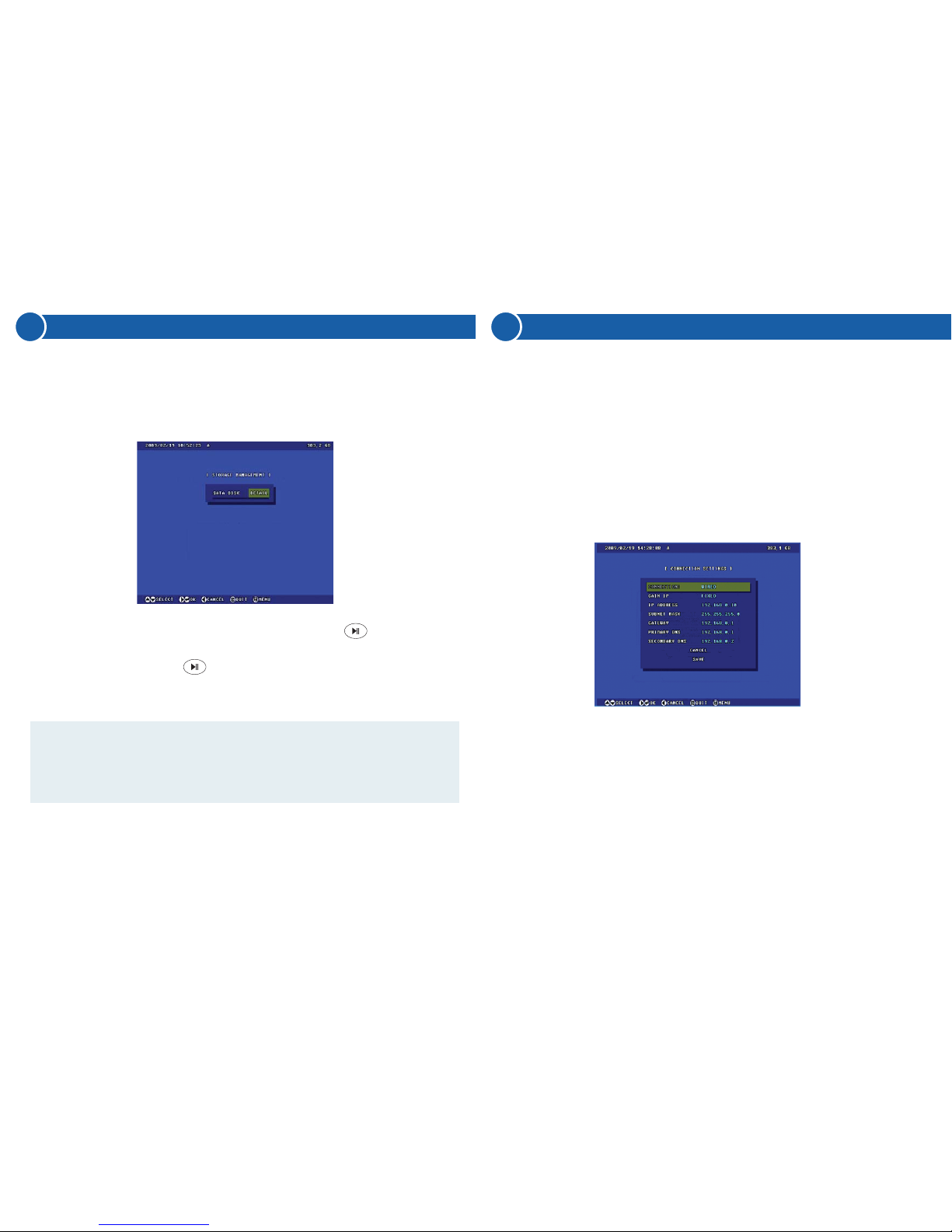

Follow the steps below to format the hard drive before recording.

1. Press the Menu button on the Remote Control.

2. Select ADVANCED, select STORAGE SETTINGS, and select STORAGE

MANAGEMENT. The model name of the connected hard drive appears.

3. Move the focus to DETAIL, select FORMAT and press the button. You will

be prompted to confirm the action.

4. Select YES and press the button to start formatting. The format progress will

appear in the top right of the screen, e.g. “PART 1: 94/100”. When the format is

complete, the amount of free disk space will be displayed.

Note:

1. The maximum space of one partition is 200 GB.

2. The connected USB mass storage device must also be formatted according

to above instructions before use.

4Formatting the Hard Drive

Designed for use on the network, the GV-Compact DVR V3 must be assigned an IP

address to make it accessible. There are two ways to assign an IP address: Using

OSD Menu and Using Web Interface.

For detail on assigning an IP address using the Web interface of the GV-Compact

DVR V3, see Connecting with a PC, Chapter 5 in GV-Compact DVR V3 User’s

Manual on the software DVD.

To use the OSD menu to assign a static IP:

1. Press the Menu button, select NETWORK and then select CONNECTION

SETTINGS. Set a static IP, subnet mask, gateway, primary DNS and secondary

DNS (optional), which are provided by your Internet Service Provider (ISP).

2. Using the network cable, connect one end to the LAN port on the rear panel of the

unit, and the other end to the network. The GV-Compact DVR V3 is now

accessible by entering the assigned IP on the browser.

3. To enable the updating of images in Microsoft Internet Explorer, you must set your

browser to allow ActiveX Controls and perform a one-time installation of

GeoVision’s ActiveX component onto your computer.

5Assigning an IP Address

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de DVR de GeoVision

GeoVision

GeoVision GV-LX4C3D1 Manual de usuario

GeoVision

GeoVision GV-Tower Manual de usuario

GeoVision

GeoVision GV-Compact Manual de usuario

GeoVision

GeoVision GV-NVR System Lite Manual de usuario

GeoVision

GeoVision GV-Tower System V2 Manual de usuario

GeoVision

GeoVision GV-Mini Manual de usuario

GeoVision

GeoVision GV-Compact DVR V2 Manual de usuario

GeoVision

GeoVision GV-Hot Swap DVR System Manual de usuario

GeoVision

GeoVision GV-Compact V3 Manual de usuario

GeoVision

GeoVision GV-2016H V2 Manual de usuario

GeoVision

GeoVision GV-SNVR Manual de usuario

GeoVision

GeoVision GV-Hot Swap DVR System V4 Manual de usuario

GeoVision

GeoVision GV-HOT SWAP Manual de usuario

GeoVision

GeoVision GV-Tower Manual de usuario

GeoVision

GeoVision GV-Hot Swap DVR System Manual de usuario

GeoVision

GeoVision GV-NVR Manual de usuario

GeoVision

GeoVision GV-2016S Manual de usuario

GeoVision

GeoVision GV-LX4C3D1 Manual de usuario

GeoVision

GeoVision 88-SNVR411-1TB Manual de usuario

GeoVision

GeoVision GV-NVR Manual de usuario

GeoVision

GeoVision UA-XVL810 Manual de usuario

GeoVision

GeoVision GV-Compact DVR V2 Manual de usuario

GeoVision

GeoVision 89-SNVR004-B10U Manual de usuario

GeoVision

GeoVision GV-5016H V5 Manual de usuario

Manuales populares de DVR de otras marcas

FLIR

FLIR M3100E Series Manual de usuario

VTRACKPRO

VTRACKPRO FPRO300 Manual de usuario

Swann

Swann NVR-7085 models Manual de usuario

XtendLan

XtendLan DVR-1670C Manual de usuario

urmet domus

urmet domus 1093/004AHD Manual de usuario

Holux

Holux M1 Manual de usuario

CMOS DOTCOM

CMOS DOTCOM ANX-1670 Manual de usuario

Whistler

Whistler D16VRS Manual de usuario

Defender Security

Defender Security 82-20235 Manual de usuario

MISUMI

MISUMI MP-WF100M Manual de usuario

Speco

Speco D8HU Manual de usuario

UST

UST DDR-E04AA Instrucciones de uso

Consolidated

Consolidated Digital Video Recorder Manual de usuario

Mace

Mace DVR0404RW Guía de inicio rápido

RCA

RCA RTD315W Manual de usuario

FSM

FSM Colibri Grande PRO Manual de usuario

Hauppauge

Hauppauge HD PVR 2 Manual de usuario

Identivision

Identivision ICR-PH161i PIONEER Manual de usuario
