Generalscan R1000BT Series Manual de usuario

R1000BT Series Bluetooth

Barcode Scanner Quick Start

Guide

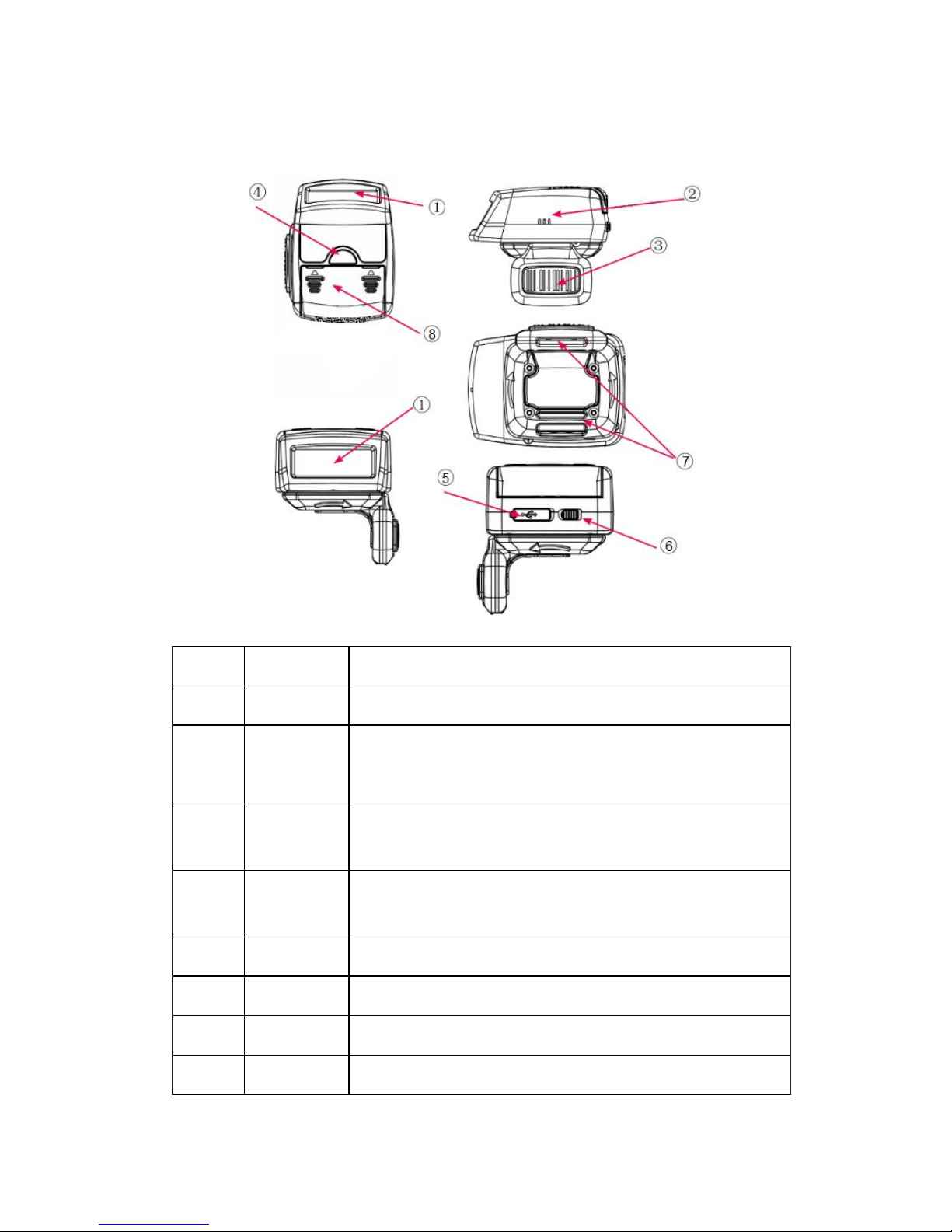

1.Product Outlook

Item Name Description

Scanning

Window

Reading barcode ,Red light or Laser will beam out from this

window

2 Buzzer Hole

The buzzer will sound when good decoded：

（1）Connect USB cable，buzzer will beep “b....b.b.”；

（2）Good decoed：Flashing green light and buzzer one time.

3Trigger

Button

Press the trigger button to scan the barcode one time,double

click to hide and display soft keyboard in iOS device like

iphone or iPad.

4LEDs

Indicator

LED has three color (Red,Green,Blue) which indicate with

different scenario. Please reference the following table for

detail description

5 MicroUSB

Charge with bluetooth barcode scanner with Micro-USB or

connect PC with USB port.

6 Power Switch

Swith to left or right to power on the scanner of turn off the

scanner.Please turn off the power to save power.

Magic Strap

Hole

Take the yellow magic strap through the hole to wear it on

the finger

8 battery cover Take off the battery cover to change the battery

2.LED Indicator

Item Status Description

Green LED light flashing

(with buzzer sound)

Decode success

Green LED light flashes

continuously

Low battery alarm

Red LED light constant

light Charging

Red LED light turn off Charging is complete

Red LED light flashes

continuously

Built-in battery

abnormal

Blue LED continuously

flashing

Enter the Bluetooth

pairing mode

Blue LED turn off Bluetooth Pairing

successful

3.Bluetooth Connecting

3.1 Bluetooth Connecting

Bluetooth HID Mode

3.1.1 Turn on the scanner (press the trigger button for a while),Click

the trigger button, Scan configure barcode “Bluetooth HID

Mode”, Toggle scanner mode to HID mode, at this time the

scanner's blue light flashing fast.

3.1.2 Open the Smart Device Bluetooth Setting, turn on Bluetooth,

search around the connected devices, in the list of connected

devices (Available devices) to discover our scanner "GS-

BarcodeScanner BT4.0", Click the "GS-BarcodeScanner BT4.0",

then, click the "PAIR".

3.1.3 Connection is successful, the scanner Blue light is extinguished.

3.1.4 You can input data anywhere with the cursor.

3.2 SPP mode(GS Keyboard input APP）

Bluetooth HID Mode

3.2.1 Turn on the scanner (power switch), press the trigger key

(Trigger button), scanning the barcode "Bluetooth SPP Mode",

switch scanner mode to the SPP Mode, at this time the scanner's

blue light is flashing slowly

3.2.2 Click the icon , turn on the Generalscan Keyboard, Click

the “Choose”, switch to system setting, Active “Generalscan

Keyboard”

3.2.3 Return to “Generalscan Keyboard”, Click the “Open”, switch to

Bluetooth setting, Turn on the Bluetooth, search around the

connected devices, in the list of connected devices (Available

devices) to discover our scanner " GS-BarcodeScanner BT4.0",

click Connect, the PN Number is “1234”, Bluetooth paired is

successful.

3.2.4 Return to ”Generalscan Keyboard”, Click the ”Select”, Select the

scanner

3.2.5 Click the “Change”, Select the “Generalscan Keyboard”

3.2.6 Click the “Test”, You can input data anywhere with the cursor.

Generalscan Ring Barcode Scanner Series Using Introduction：

https://www.youtube.com/watch?v=byjziUmtxJY

4.Configure barcode

4.1 Connecting to a PC Host via USB

USB HID MODE(*)

USB HID MODE

USB VCP MODE

4.2 Output Interface

Bluetooth Output Mode(*)

Bluetooth output Mode

USB HID Output Mode

USB HID Out Mode

USB VCP Output Mode

4.3 Bluetooth Mode Configuration

Bluetooth HID Mode(*)

Bluetooth HID Mode

Bluetooth SPP Slave Mode

Bluetooth SPP Master

Mode

Bluetooth SPP Master Mode
