Genaray SSL-836B Manual de usuario
USER MANUAL
SSL-836B
8 × 36 IN. SOFT STRIP BI-COLOR LED
2SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
SSL-836B
INTRODUCTION
THANK YOU FOR CHOOSING GENARAY
The Genaray SSL-836B bi-color strip LED boasts a unique form
factor that provides even illumination along its entire 36-inch
length. It’s double the width of Genaray’s SSL-36B and SSL-50
lights, and its broad 8-inch array casts a wraparound beam
that envelopes subjects with a controlled color temperature
range of 3000 to 5600 K. It’s perfect for full-length portraits and
excels as a hair or accent light for group shots. The 1024-bulb
LED array has an integrated diffuser for a soft single-shadow
beam. For precise control over light and shadow on subjects
or backgrounds, the SSL-836B is constructed with full-length
barndoors that can cut the beam to a very narrow strip.
The SSL-836B delivers excellent color accuracy with its 98 TLCI
rating. Its power output ranges from 0% to 100% brightness for
a full six f-stop range.
3
SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
PRECAUTIONS
·Please read and follow these
instructions, and keep this manual in a
safe place.
·Keep this unit away from water and any
flammable gases or liquids.
·Make sure the unit is powered off when
plugging it into a power source.
·Use only the correct, recommended
voltage.
·Do not attempt to disassemble or repair
the equipment—doing so will void
the warranty, and Genaray will not be
responsible for any damage.
·Handle the unit with care.
·Do not stare directly at the lights when
they are powered on.
·Clean the unit with only a soft, dry cloth.
·Keep this unit away from children.
·Use only parts provided by the
manufacturer.
·Make sure the item is intact and that
there are no missing parts.
·All images are for illustrative purposes
only.
PRECAUTIONS
4SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
PRODUCT
OVERVIEW
FRONT BACK
AC adapter
Two-way 5/8 in.
receiver
Lollipop
mount
Ratchet handle
Locking knob
Mounting
pins
Power input cableMounting plate BarndoorsDiffuser
Carry case
V-mount strap
AC power
cable
4-pin
XLR cable
5
SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
PRODUCT OVERVIEW
V-mount
battery slot
Battery
release button
Battery
contacts
Power output
cable 4-pin XLR input
Hanger
loop
Antenna
port
Control box
D-tap power
socket
Brightness up/down controls
Battery power indicatorChannel selector
Color temperature
indicator
Brightness indicator
Channel indicator
Antenna
3-way power
switch
Color temperature up/down
6SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTIONS
ALSO INCLUDED MOUNTING THE
SSL-836B
·Light fixture
·Lollipop mount
·Control box with V-mount
·Antenna
·AC adapter
·V-mount strap
·AC power cable
·Carry case
Attaching the Lollipop Mount
1. Close the barndoors, and place the light
facedown on a flat surface.
2. Align the lollipop mount with the
mounting plate, and insert the pins into
the mounting plate holes.
3. Make sure the lollipop mount is flush with
the mounting plate, and rotate the lollipop
mount a quarter-turn clockwise until it
clicks into place.
32
7
SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTOONS
Attaching the Lollipop Mount
(continued)
To remove the lollipop mount, press up on
the release button, turn the lollipop mount a
quarter turn counterclockwise, and lift it off
the mounting plate.
Mounting the SSL-836B to a Light Stand
1. Make sure the ratchet handle is tightened
before mounting the SSL-836B.
2. Loosen the locking knob, and place the
5/8-inch receiver on a light stand.
3. Tighten the locking knob until secure.
4. Loosen the ratchet handle to adjust the
light’s tilt and swivel. Once the light is aimed,
retighten the ratchet handle, and make sure
the fixture is secure.
Pro Tip: To prevent the light stand from tipping
over, place a counterweight like a sandbag over
one or two legs of your light stand.
43
8SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTIONS
To Secure the AC Adapter to the Control Box:
1. Wrap the touch-connect strap securely
around the AC adapter.
2. Insert the V-mount adapter into the
V-mount slot of the control box until it
clicks into place.
3. Once the AC adapter is secured to the
control box, use the hanger loop to hang
the control box on a hook or on your light
stand.
POWERING THE
SSL-836B
Using the SSL-836B with AC power

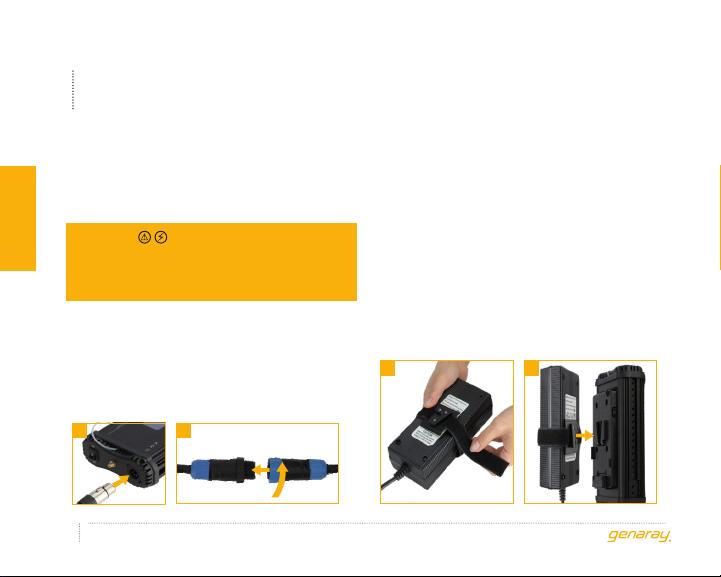

1. Connect the AC power adapter to the control
box with the locking 4-pin XLR connector,
and plug the power cable into an outlet.
Important!
The connectors should easily attach. Don’t
use force to connect the control box to the
light fixture.
2. Align the notches of the power input cable
and power output cable’s two connectors,
and press them together. Then tighten the
locking collar until secure.
3. Push the 3-way power switch to the AC
position.
1 2
2
1
9
SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
INSTRUCTOONS
POWERING THE SSL-836B
(CONTINUED)
ADJUSTING THE
LIGHT
Brightness

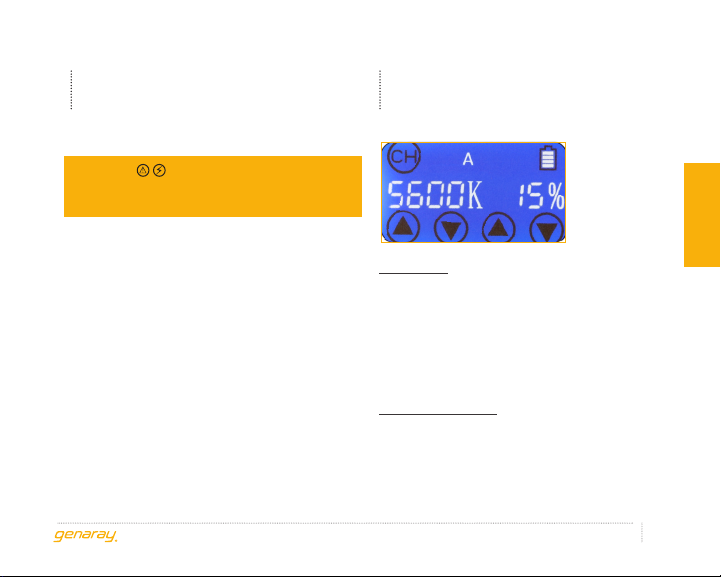

The brightness control on the control box can
adjust the output from 0% to 100% in. 1%
increments.
Tap the up and down buttons to adjust the
brightness in 1% increments. Touch and hold
the buttons to rapidly adjust.
Color Temperature
The SSL-836B has a color temperature range
of 3000 to 5600 K. Tap the color temperature
up and down buttons to change the color
temperature in 50 K increments. Touch and
hold the buttons to rapidly adjust.
Using the SSL-836B with Battery Power
Important!
Make sure to use batteries
rated for 120 W or greater.
1. When attaching a V-mount battery,
make sure the power switch is in
the off position, and disconnect the
AC adapter so the control box is not
plugged into a wall outlet.
2. Align the battery terminals with the
contacts in the battery mount.
3. Place the battery into the mount, and
push the battery toward the contacts
until it clicks into place.
4. Push the 3-way power switch to the DC
position.
To connect gold-mount batteries to the control
box, use a D-tap power cable (not included).
10 SSL-836B 8 × 36 in. Soft Strip Bi-color LED - USER MANUAL
Barndoors
Adjust the barndoor to aim or shape the beam
and contain light spill.
Important! Do not operate the light
while the barndoors are closed.
INSTRUCTIONS
The SSL-836B’s control box has an integrated
transmitter and receiver with four channels.
The Genaray SSL-RC remote (sold separately)
can control multiple SSL-series lights. Refer
to the Genaray SSL-RC user manual for setup
and operation instructions.
To remotely control Genaray SSL series
digitally controlled lights from the SSL-836B’s
control box, follow these steps:
1. Screw the antenna into the antenna port
on each control box.
2. Select the channel for each light by
repeatedly tapping the channel button.
ADJUSTING THE LIGHT
(CONTINUED)
WIRELESS OPERATION
12
