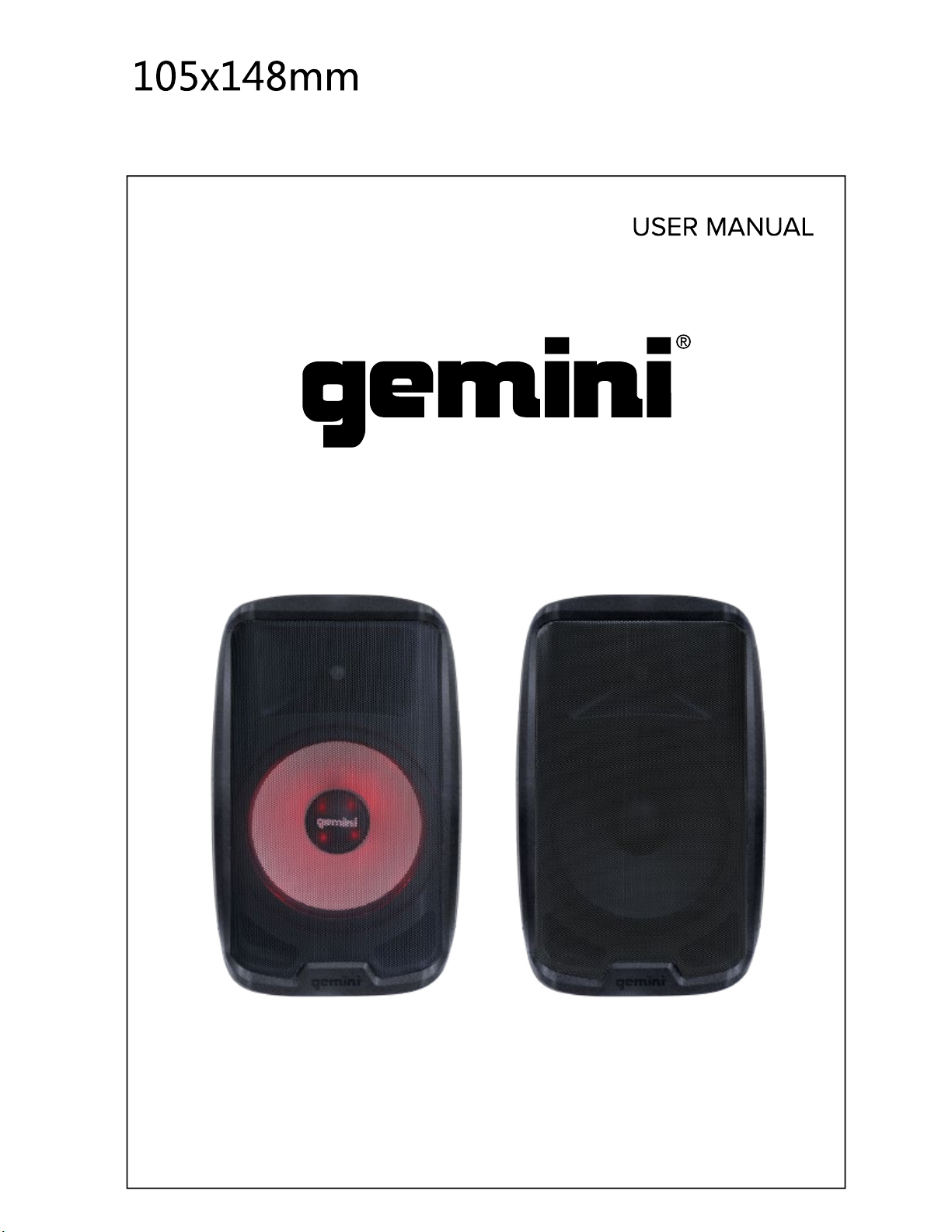

Gemini AS SERIES Manual de usuario
AS Series
2020-12-21
AS Series
AS Series
CONTENTS
Product Introduction .......................................................................4
Precautions.........................................................................................5
AS-2108(10/12/15)P features & back panel ......................................6
AS-2108(10/12/15)BT-LT features & back panel .............................8
Warranty information ...................................................................... 9
Legality and Safety........................................................................... 10
Declaration of Conformity............................................................. 11
Spanish Manual.............................................................................. 12
AS-2108(10/12/15)BT features & back panel .....................................7
AS Series
AS Series
AS Series
4
AS Series
Speaker
Stand( For PK)
Microphone( For PK)
GEMINI
make text to match others
BOLD
GEMINI
GEMINI
AS Series 5
AS Series
AS-2108P / AS-2110P
AS-2112P / AS-2115P
1. Channel 1 volume : Adjusts the loudness of the source
connected to CH1
2. Clip LED: Indicates audio clipping.
3. AUX input（TRS): Connect a digital media player,
etc. to this 1/8" stereo input.
4/9. Mic/Line input switch: Allows user to choose
the MIC or Line signal input.
5/10. Mic/Line input: Connect a microphone or line
signal to this 1/4" TRS input
6/11: Mic/Line input: Connect a microphone or line
signal to this XLR input
7: Channel 2 volume : Adjusts the loudness of the
source connected to CH2
8: AUX Input (RCA) : Connect a CD player, mixer, or
other media source to this line level RCA input.
12: Master volume : Adjust the loudness of the whole
system.
13: Bass EQ: Controls the bass(low) frequencies of
speaker at a range between -12dB to + 12dB.
14: Treble EQ: Controls the treble(high) frequencies of
speaker at a range between -12dB to + 12dB.
15: Mix Out: Use this XLR output to create a wired
connection to another powered speaker, etc.
16: Power ON/OFF Switch: Turns unit on or off.
17: Voltage Switch : Allows user to change the AC
voltage input.
18：AC Power Input: Mains power supply(supplied
with speaker) plugs in here.
6
AS Series
AS-2108BT / AS-2110BT
AS-2112BT / AS-2115BT
1.Channel 1 volume : Adjusts the loudness of the source
connected to CH1
2. LCD: : Displays info for USB/SD/BT/FM radio playback
3. Channel 2 volume : Adjusts the loudness of the source
connected to CH2
4. Clip LED: Indicates audio clipping.
5. AUX input（TRS): Connect a digital media player,
etc. to this 1/8" stereo input.
6/11. Mic/Line input switch: Allows user to choose
the MIC or Line signal input.
7/12. Mic/Line input: Connect a microphone or line
signal to this 1/4" TRS input
8/13: Mic/Line input: Connect a microphone or line
signal to this XLR input
9:
Channel 3 volume : Adjusts the loudness of the
source connected to CH3
10: AUX Input (RCA): Connect a CD player, mixer, or
other media source to this line level RCA input.
14: Master volume : Adjust the loudness of the whole
system.
15: Bass EQ: Controls the bass(low) frequencies of
speaker at a range between -12dB to + 12dB.
16: Treble EQ: Controls the treble(high) frequencies of
speaker at a range between -12dB to + 12dB.
17: Mix Out: Use this XLR output to create a wired
connection to another powered speaker, etc.
18: Power ON/OFF Switch: Turns unit on or off.
19: Voltage Switch : Allows user to change the AC
voltage input.
20：
AC Power Input : Mains power supply(supplied
with speaker) plugs in here.
21. MODE : Press to switch Media Playback between
USB/SD/BT/FM Radio. Hold to turn player on/off.
22. Link: Use to create a wireless pair with another AS
Series Bluetooth™ Speaker.
23. Transport: Control media player playback.
Play/Pause, Repeat, Skip Forward, Skip Back.
24.USB port: Insert USB stick for MP3/WAV playback
25.SD port: Insert SD Card for MP3/WAV playback
AS Series
8
AS-2108BT-LT / AS-2110BT-LT
AS-2112BT-LT / AS-2115BT-LT
1.Channel 1 volume : Adjusts the loudness of the source
connected to CH1
2. LCD: Displays info for USB/SD/BT/FM radio playback
3. Channel 2 volume : Adjusts the loudness of the source
connected to CH2
4. Clip LED: Indicates audio clipping.
5. AUX input（TRS): Connect a digital media player,
etc. to this 1/8" stereo input.
6/11. Mic/Line input switch: Allows user to choose
the MIC or Line signal input.
7/12. Mic/Line input: Connect a microphone or line
signal to this 1/4" TRS input
8/13: Mic/Line input: Connect a microphone or line
signal to this XLR input
9:
Channel 3 volume : Adjusts the loudness of the
source connected to CH3
10: AUX Input (RCA): Connect a CD player, mixer, or
other media source to this line level RCA input.
14: Master volume : Adjust the loudness of the whole
system.
15: Bass EQ: Controls the bass(low) frequencies of
speaker at a range between -12dB to + 12dB.
16: Treble EQ: Controls the treble(high) frequencies of
speaker at a range between -12dB to + 12dB.
17: Mix Out: Use this XLR output to create a wired
connection to another powered speaker, etc.
18: Power ON/OFF Switch: Turns unit on or off.
19: Voltage Switch : Allows user to change the AC
voltage input.
20：AC Power Input: Mains power supply(supplied
with speaker) plugs in here.
21. MODE : Press to switch Media Playback between
USB/SD/BT/FM Radio. Hold to turn player on/off.
22. Link: Use to create a wireless pair with another AS
Series Bluetooth™ Speaker.
23. Transport: Control media player playback.
Play/Pause, Repeat, Skip Forward, Skip Back.
24.USB port: Insert USB stick for MP3/WAV playback
25.SD port: Insert SD Card for MP3/WAV playback
26: Light Mode: Changes the lighting modes for
the front mounted speaker lighting.
27: Light Color: Cycles the color of the front
mounted speaker lighting.
AS Series
21
s
AS Series
MODE Pressing this button enters the speaker into BT
AS Series
AS Series
Gemini AS Series
AS Series
AS Series
MODEAS Series
AS Series
AS Series
AS Series
AS Series
AS Series
The Mode button (26) allows ou to ccle
through the following 3 lighting modes.
This pattern animates the woofer
light flashes the speaker at 80 beats per minute.
It is a sound reactive mode that
pulses the lighting brightness along with the music.
Flashing
Pulsating
Solid
AS Series 9
The AS-2108(10/12/15)BT-LT has a spectacular, built-in
light show on the front of the speaker, capable of dancing in
time to the music with muli-clored paterns and fashes, tuning
the lights on the AS-2108(10/12/15)BT-LT through all the
plus a random" mode that lights the ring and speaker in different
colors.
GEMINI
INNOVATIVE CONCEPTS AND DESIGN LLC.
GEMINI
with the use or performance of the product or other
GEMINI
AS Series
10
Exceptions: Laser assemblies on CD
Players, batteries, cartridges, and crossfaders are covered for
90 days.
