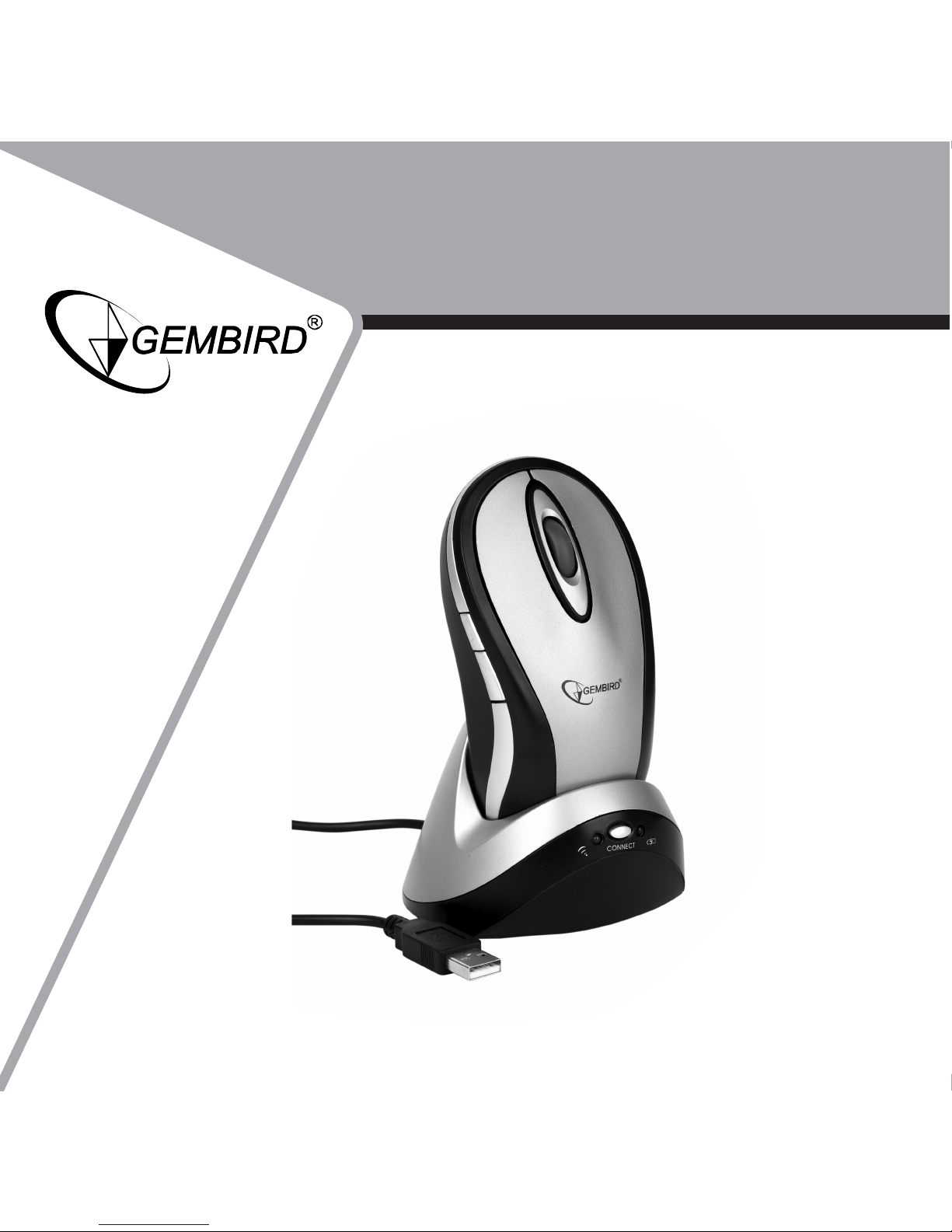

Gembird MUSWL2 Manual de usuario
MUSWL2 Wireless laser mouse
USER MANUAL
MUSWL2 Wireless laser mouse
USER MANUAL
Disclaimer
We spared no efforts to make sure that the information in this manual is
correct and complete. However no liability is accepted for any errors or
omissions. Gembird Electronics reserves the right to change the
specifications of the hardware and software described in this manual without
prior notice.
No part of this manual may be reproduced, transmitted or translated in
any language in any form, by any means, without the prior written permission
of Gembird Electronics Ltd.
Gembird Electronics makes no warranties for damages resulting from
corrupted or lost data due to a mistaken operation or malfunction of the
product, the software, personal computers or peripheral devices.
Gembird® is a registered trademark of Gembird Europe bv.
Other names or products not mentioned above may be registered
trademarks or trademarks of their respective owners.
Copyright © 2009 Gembird Electronics Ltd. All rights reserved
2
GEMBIRD EUROPE B.V. htt
p://www.gembird.eu
MUSWL2 Wireless laser mouse
USER MANUAL
Features
Wireless laser 5 button wheel mouse
Enhanced precision with high-resolution optical sensor up to
1600 DPI
Radio frequency 27 MHz (1 channel, 256 IDs)
Up to 55 hours of non-stop working on 600 mAH batteries
USB receiver recharges the batteries
Specifications
Operating frequency: 27 MHz
Input power: 3 V (2 pcs x AAA Ni-MH rechargeable batteries)
Optical resolution: 800 or 1600 DPI
Working distance: up to 2 m
Two extra buttons for Back and Forward functions
USB RF receiver and charger
Dimensions: 132 x 68 x 36mm
Net weight: 192 g
3
GEMBIRD EUROPE B.V. htt
p://www.gembird.eu
MUSWL2 Wireless laser mouse
USER MANUAL
Installing the Batteries
This wireless optical mouse uses two AAA NI-mH rechargeable
batteries.
To install the batteries please follow the steps below:
Step1. Open the battery compartment.
Step2. Insert the batteries inside the battery compartment paying attention
to polarity.
Step3. Close the cover.
4
GEMBIRD EUROPE B.V. htt
p://www.gembird.eu
5
GEMBIRD EUROPE B.V. htt
MUSWL2 Wireless laser mouse
USER MANUAL
Connecting the Receiver
The receiver is connected to your computer via USB cable. Turn the
PC off and plug this cable into your computer USB port.
p://www.gembird.eu
MUSWL2 Wireless laser mouse
USER MANUAL
Indicators on the receiver
There are two indicators on the receiver (see the picture below)
6
GEMBIRD EUROPE B.V. htt
p://www.gembird.eu
MUSWL2 Wireless laser mouse
USER MANUAL
1st LED – “Connect” - will flash when you press the Connect button to link
the mouse with the receiver (see below). When the receiver changes the lD
successfully the indicator will flash fast several times.
2nd LED - “Charge” - will light up during charging the mouse battery. This
indicator will be turned off when the battery is full.
Linking the mouse with the receiver (changing the security ID)
Whenever you get undesired interference from another mouse
placed nearly you can change the security ID to solve this problem. You will
also need to perform this linking again whenever you replace the batteries.
To do that, please, follow the steps below:
1. Press the Connect button at the bottom of the mouse.
2. Press the Connect button on the receiver.
7
GEMBIRD EUROPE B.V. htt
p://www.gembird.eu
MUSWL2 Wireless laser mouse
USER MANUAL
The “Connect” LED will then light up to confirm that the link has been
successful.
Charging the mouse battery
Your mouse uses two AAA-size Ni-MH rechargeable batteries. To
charge the batteries simply place the mouse on the receiver stand. Please
make sure that the “Charge” indicator is ON when you charge the mouse.
Whenever you feel your wireless mouse is not working smoothly, that means
that the batteries have to be recharged. Normally it will take 8 hours to get
the batteries fully charged.
IMPORTANT NOTE: Before you use the mouse for the first time,
you should install the batteries and charge them for at least 10 hours. This is
very important to prolong the battery life.
CAUTION:Some computers turn the USB ports off in sleep mode. In
this case the battery inside the mouse will not be charged. For such
computers make sure they are always on to be able to charge the mouse.
