1

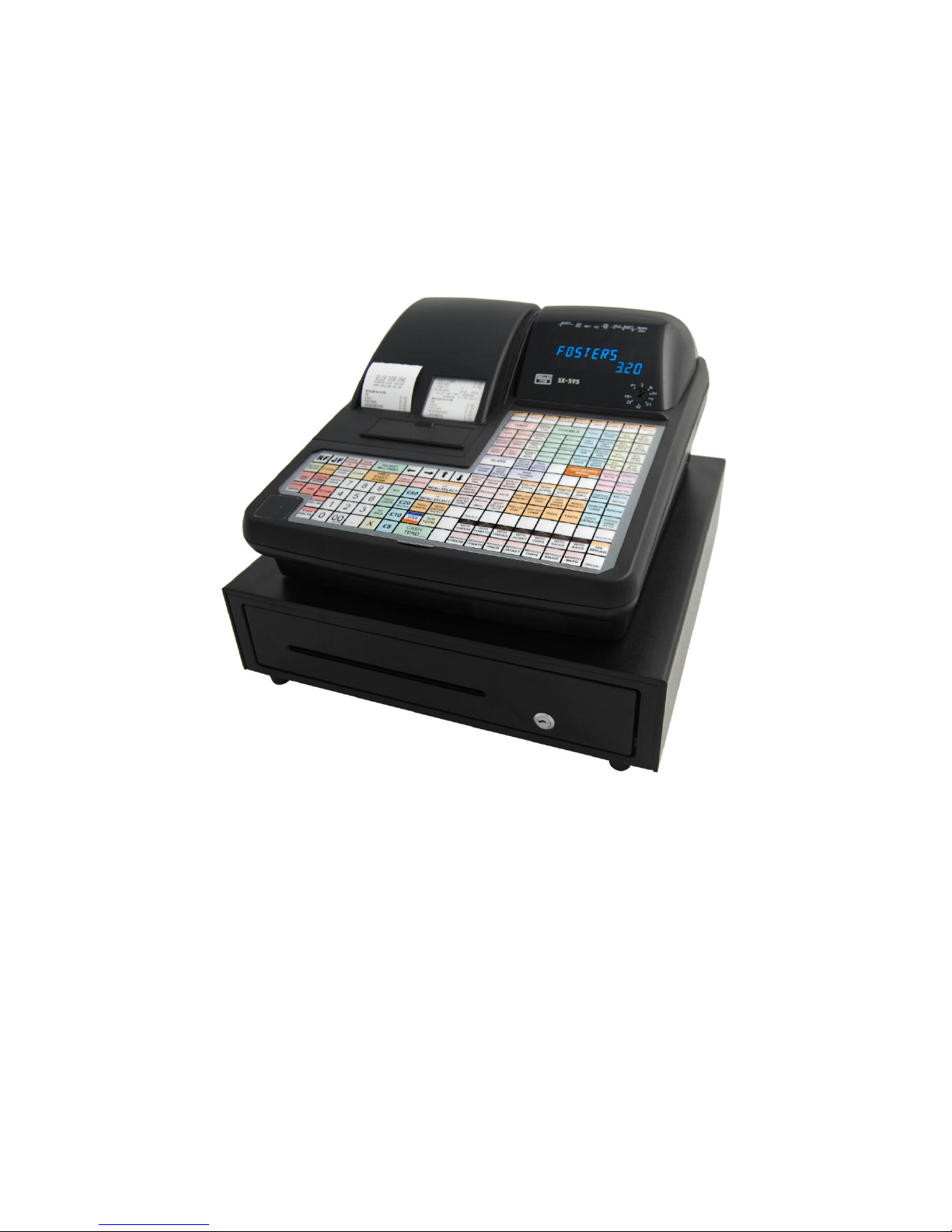

SX-695
End User Guide
Retail
2
SX-695
Feature Guide
299 departments
18500 PLU‟s (standard) 35600 PLU‟s (extra memory)
58mm thermal receipt & journal printers
99 clerk interrupt holds with auto store after pre set time limit
PC link for easy programming and advanced sales reporting
Scanning with easy programming, price check, PLU delete and
re-ordering features
Optional Pre-loaded Retail File
Shelf Edge Labels
Mix and Match
Stock Control & Advanced Reports –Best Sellers / Non Movers
Programmable keyboard layout
Drawer alarm with programmable timer
Advanced Training mode
Management control
Age Verification
Supports Newspapers and Magazines
IRC Networking
Dallas Key
Kitchen & Wide Receipt Printer Link
3
Please Note: By amending program details using this user guide you automatically accept full responsibility
for any changes you make to your system as a result of using the information contained in the guide. Please
ensure that any changes made to your system are carried out by a suitably qualified person who
understands the implications of those changes. It is always preferable that you talk to the reseller who
supplied you as your terminal may have been configured specially for your needs. Changes made by you
may conflict with settings originally made by your supplier. Specifications are subject to change without
notice and whilst all efforts have been made to ensure the validity of these documents, we accept no
responsibility for any omissions or errors contained in them.
4
INDEX
Power Switch 5
Rear Display 6
Cash Drawer 7
Control Lock 8
Paper Rolls 9 –10
Scanner 11
Programming Layout 12
Date & Time 13
Retail Preloaded/Newspapers 14 - 15
Basic Sale/Split Payment 16 –17
Multiple Sale/Quick Tender Keys/Price Check 18
Receipt On-Off/Cancel 19
Return/Void 20
Last Item Void/No Sale 21
Discount 22 –24
Clerk Hold 25
Easy Price & Name Change 26 –27
PLU Delete 28
Stock 29 –30
Re-Ordering 31
Age Verification 32 –33
Shelf Edge Labels 34
Mix & Match/Cashback 35
X/Z Report/Housekeeping 36 - 38
Error Messages 39 –40
F.A.Q 41
Glossary 42 –45
5
GETTING STARTED
The Main Power Switch
The main power switch is located on the right-hand side of the SX-695.
The switch must be in the ON position before the ECR is operational.
6
GETTING STARTED
The Display
The customer display screen can be lifted and rotated for the best viewing angle.
By programmable option, the control lock position can be temporarily displayed and
a warning tone sounded each time the key position is changed.
7
GETTING STARTED
The Cash Drawer
Adelay can be set so that if the drawer is left open for more than a
designated number of seconds, an alarm will sound.
It is possible to program the ECR so that it cannot be used for transactions
when the drawer is open.
Whenever the ECR is not in use (i.e. at night), the control lock should be
turned to the „L‟ position and the cash drawer emptied & left open to avoid
damage in the event of a break in.
8
CONTROL LOCK
The control lock allows you to change between the various functions on the till. The
till is equipped with nine positions. To change the position use the owner‟s key
(marked with [OW]), manager‟s key (marked with [MA]) and the operator‟s key
(marked with [OP])
OP : Key for Operator can access "L" and "R" positions
MA: Key for Manager can access "P1", "L", "R", " X1", "V" and "Z1" positions.
OW: Key for Owner can access all key positions
The following table shows the modes the cash register is equipped with.
Mode
Functions
P1 - Program 1
mode
Used to program "Date", Department, PLU, Tax etc.
L - Lock mode
Used to lock the cash register. This position disables all
operations.
R - Register mode
Used to process sales transaction
Read mode X1
(T)
Used to read and print the Sales Reports．
Used for training the operator.
V - Void mode
Used to void the registration.
Z1 - Reset mode
Used to reset and print the Sales Reports
X2 - Periodical read
mode
Used to print periodicals information report.
Z2 - Periodical reset
mode
Used to read and reset the periodical sales information.
P2 - Program 2
mode
Used to program "SYSTEM FLAG", "KEY LAYOUT",
"TRANSACTION NAME" etc. System mode is
accessible from the P2 mode.
9
PAPER ROLLS
Installing the Paper Rolls into your SX-695
Your cash register comes fitted with 2 thermal printers which use 58mm
paper rolls.
Receipt Roll
1. Lift up the printer cover from the back
2. Press the Receipt Release Button located under the protective flap above the
keyboard
3. Remove the old till roll & drop the new till roll into the holder with the paper
feeding from underneath
4. Push the set plate down securing the paper in place
5. To feed the paper press the RF button on the keyboard
10
Journal Roll
1. Press the Journal Release Button located under the protective flap above the
keyboard
2. After removing the previous Journal drop the new till roll into the holder with
the paper feeding from underneath
3. Feed enough paper in order to connect to the printer spool
4. Insert the end of the roll into the slit and wind the paper around the spool a
couple of times
5. Push the set plate down securing the paper in place
6. Place the audit spool back into the cradle
7. To tighten the slack on the paper press the JF Key on the keyboard
8. Replace the printer cover
Note
As thermal paper is used you can only print on one side. If you install it the
wrong way round (the heat sensitive side away from the print head) it will not
print.
Once the till is installed whenever the paper rolls require changing, please
press the Release Key to enable the till.
RLS
