GEIGER GEIGER-Solid Line Manual de usuario

Operating instructions

Tubular motor: GEIGER-Solid Line

Motor control: GEIGER-Easy (GU45..E01)

for rolling shutters and screens

Bedienungsanleitung

Operating Instructions

Manuel d’utilisation

Manual de instrucciones

Istruzioni per l’uso

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E1

E2 GEIGER Antriebstechnik GmbH | 100W0518 en 1110

Index

1.Generalinformation.........................E3

2.Guarantee.................................E3

3.Safetyinformation ..........................E4

4.Intendeduse...............................E5

5. Installation instructions . . . . . . . . . . . . . . . . . . . . . . E6

6. Adjustment of the end positions . . . . . . . . . . . . . . E8

7. Obstacle recognition . . . . . . . . . . . . . . . . . . . . . . . . E9

8.Technicaldata.............................E10

9. Information for the specialist electrician. . . . . . . E11

10.Whattodoif.............................E12

STOP

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E2

1. General information

Dear customer,

By purchasing a GEIGER tubular motor you have decided on a quality product from

GEIGER.

Thank you very much for your decision and the confidence placed in us.

Before you put this drive into operation please observe the following safety informa-

tion. It serves for the prevention of danger and for the avoidance of personal injury

and damage to property.

Please retain this information for future reference.

Suitable for all rolling shutter systems and screens

Suitable for all folding arm awnings

Installation without stops possible

Drives are switchable in parallel

2. Guarantee

In the case of incorrect installation contrary to the operating instructions and/or con-

structional modification, the legal and contractual guarantee for property damage

and product liability lapses.

www.geiger-antriebstechnik.de E3

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E3

E4 GEIGER Antriebstechnik GmbH | 100W0518 en 1110

3. Safety information

ATTE TIO : Important safety information. For personal safety, it is

important to follow these instructions. The instructions

should be kept.

This appliance is not to be used by persons (including children) whose phy-

sical, sensorial or mental capacities are impaired, or who have no expe-

rience or know-how, unless they have been supervised or been given

instructions on the use of the appliance by someone who is responsible for

their safety.

Children must be supervised to make sure they do not play with the

appliance.

The installation is to be checked regularly for defective balance, wear and

damage.

Damaged connecting leads must be replaced by the GEIGER connecting

lead of the same wire type.

During operation observe the danger zone.

If people or objects are in the danger zone, do not use the installation.

Urgently shut down damaged installations until repair.

Unconditionally shut down the unit during maintenance and cleaning opera-

tions.

Pinching and shearing sites are to be avoided and to be safeguarded

against.

When operating the manual actuator with the open sun protection system,

exercise caution as it can fall down quickly if springs expand or are broken.

Do not operate the device if operations such as, for example, window

cleaning are to be carried out in the vicinity.

Disconnect the device from the mains power supply if operations such as,

for example, window cleaning are being carried out in the vicinity.

ATTE TIO : Important safety information. Follow all installation

instructions, as incorrect installation can lead to serious

injuries.

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E4

Connection must be carried out by a skilled electrician according to the

regulations in force locally.

The mains plug of the tubular motor must be accessible after installation.

On the installation of the tubular motor without mechanical protection of the

driven parts, the tubular motor must be installed at a height of at least 2.5 m

above the ground or of another level which provides access to the drive.

Before the tubular motor is installed, all leads which are not needed are to

be removed and all equipment which is not needed for actuation is to be put

out of operation.

If the tubular motor is controlled by a switch or pushbutton, the switch or

pushbutton must be mounted within eyeshot of the tubular motor. The

switch or pushbutton must not be located in the vicinity of moving parts.

The height of installation must be at least 1.5 m above the floor.

If the apparatus is equipped without a pin and a socket connector (STAS3K)

in the connecting lead, or other means for disconnecting from the mains

with at least a 3 mm contact opening on each pole, a disconnecting device

of this type must be incorporated into the permanently installed electrical

installation according to the wiring rules.

Permanently installed control devices must be attached visibly.

The correct dimensioning of the drive is to be observed.

4. Intended use

The tubular motors of the model range Solid Line (GU45..E01) with the Easy

system are designed exclusively for the operation of rolling shutters, awnings and

screens.

If the tubular motors are used for other applications and/or modifications are per-

formed to the tubular motors, which have not been discussed with GEIGER

Antriebstechnik, then the manufacturer is not liable for personal injury and/or

damage to property and for consequential damage.

www.geiger-antriebstechnik.de E5

STOP

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E5

E6 GEIGER Antriebstechnik GmbH | 100W0518 en 1110

5. Installation instructions

Before fixing, the strength of the masonry or of the subsurface is to be checked.

CAUTIO : Before the tubular motor is installed in the shaft, the mea-

surement from the roller end up to the centre of the carrier

is to be measured and marked on the roller.

When drilling the winding shaft never drill into the area of the tubular motor!

DWhen inserting into the shaft, the tubular motor must not be struck and must not

be allowed to fall into the shaft.

Installation into the rolling shutter:

Fix motor support to available stud bolts or in the

side frame.

Insert motor into the shaft with a suitable adapter

up to the stop of the shaft adapter.

Insert roller capsule on the opposite side.

Put shaft with motor on motor support or on pivo-

ting engine bearer. On the opposite side pull out

roller capsule until bolt fits into ball bearing.

Screw together roller capsule with shaft.

Screw together shaft with tubular carrier.

Fix rolling shutter casing to shaft.

Alternative: use fixation plates for external alumi-

nium shuters in order to fix the motor. The bearer

locks into place. For removal, turn spring ring.

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E6

www.geiger-antriebstechnik.de E7

Installation into the awning:

Insert motor with a suitable adapter into the shaft up

to the stop of the shaft adapter.

Fix the motor support on the awning. Fix the motor

together with the shaft on the motor support. The

bearer locks into place. For removal, turn spring ring.

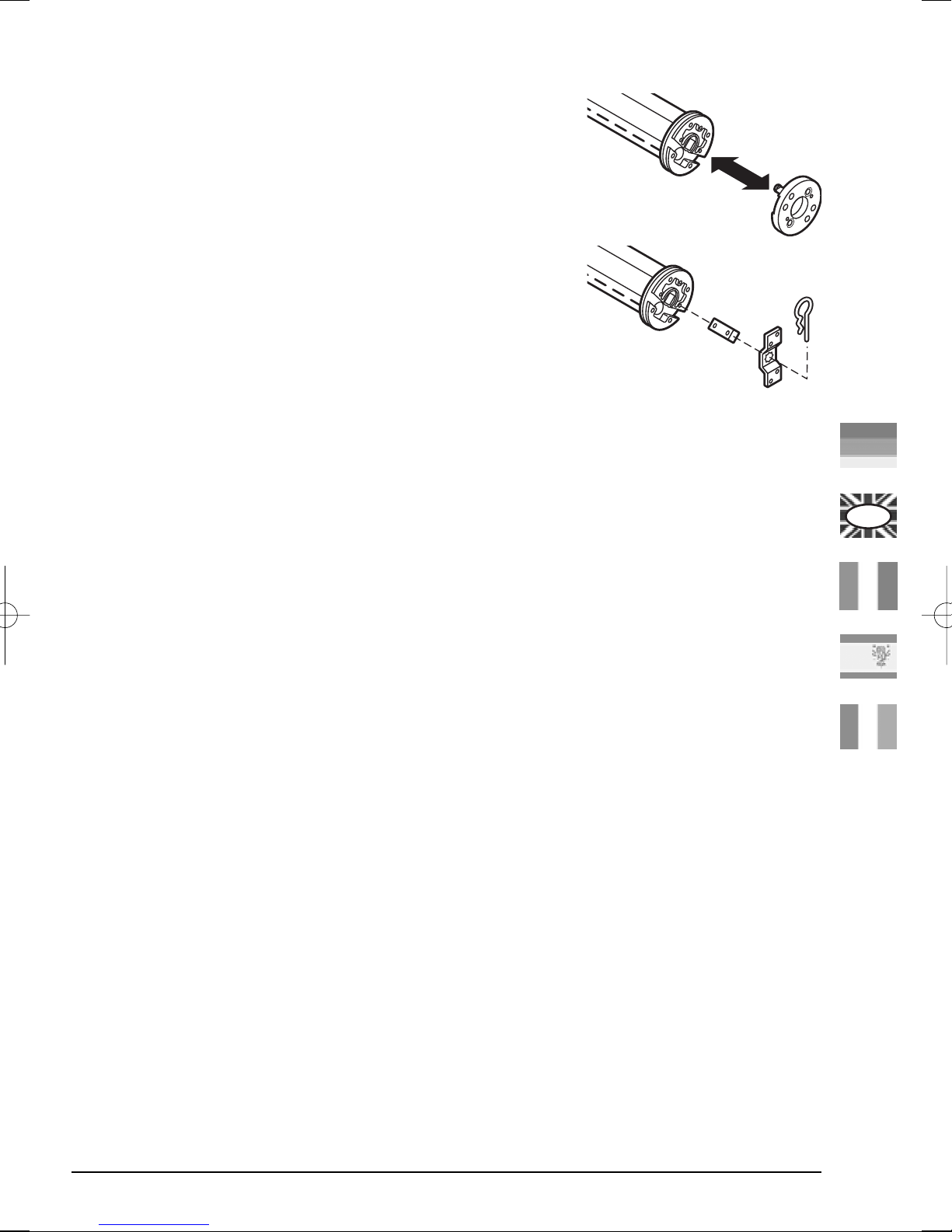

Alternative:

- Fix motor with the suitable screws (M6 or M8),

depending on the size of the divided circle, to the

awning support

- Put motor into awning support using a square

box wrench and secure with split pin.

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E7

E8 GEIGER Antriebstechnik GmbH | 100W0518 en 1110

6. Adjustment of the end positions

1. Install drive as described.

2. Connect adjusting cable to the connecting leader of the Solid Line Easy; always

connect cores of identical colour here. The assignment of the direction keys 1

and 2 to the direction of rotation is dependent on the installation situation of the

drive. Then connect the adjusting cable to the 230V mains.

3. Adjustment of the upper end position:

Press programming key until the LED blinks, (1 x blink, pause, 1 x blink,

pause,...), then release the programming key. Run Solid Line Easy with the direc-

tion keys to the desired upper end position. Press programming key until the LED

blinks, (2 x blinks, pause, 2 x blinks, pause,...), then release the programming key.

The upper end position is now adjusted and the programming mode for the lower

end position is active.

4. Adjustment of the lower end position:

Run Solid Line Easy with the direction keys to the desired lower end position.

Then press the programming key until the LED lights permanently, then release

the programming key.

The lower end position is adjusted here und the adjustment process is finished.

5. The drive can now be connected to the 230V mains.

Mains:

230V~ Setting cable

M56 144

Service

terminals

Connecting cable

to limit stop1 2

Programming

key

LED

Hirschmann coupling

Adaption cable

M56B265

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E8

7. Obstacle recognition

When, after the teaching of the first complete, uninterrupted travel from one end

position to the other end position is carried out, the torque needed is learnt.

In any following complete, uninterrupted travel from end position to end position,

the torque needed is automatically readjusted. Slow changes in the installation due

to ageing, soiling, cold or heat are thus automatically taken into consideration.

This process takes place for both running directions independently of one another.

If a travel movement in up direction is blocked by an obstacle, the motor switches off.

The running direction in which the obstacle was recognized is blocked.

The block is removed if the motor has been operated in the opposite direction for

a certain time. An obstacle must thus first be released before the motor can be

operated again in the direction of the obstacle.

www.geiger-antriebstechnik.de E9

STOP

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E9

E10 GEIGER Antriebstechnik GmbH | 100W0518 en 1110

8. Technical data

Technical data of short motor Solid Line (GU45..)

GU4510 GU4520 GU4530 GU4540

Voltage 230V~/50Hz 230V~/50Hz 230V~/50Hz 230V~/50Hz

Current 0,47 A 0,63 A 0,8 A 1,0 A

Cos Phi (cosϕϕ)>0,95 >0,95 >0,95 >0,95

Inrush current (factor) x 1,2 x 1,2 x 1,2 x 1,2

Power 105 W 140 W 180 W 220 W

Torque 10 Nm 20 Nm 30 Nm 40 Nm

Speed of rotation 16 1/min 16 1/min 16 1/min 16 1/min

Protection type IP44 IP44 IP44 IP44

Total length 514,5 mm 544,5 mm 564,5 mm 584,5 mm

Operating type S2 4 min S2 5 min S2 4 min S2 4 min

Diameter 45 mm 45 mm 45 mm 45 mm

Weight 1,920 kg 2,200 kg 2,410 kg 2,750 kg

Subject to technical modifications

Declaration of conformity

This product complies with the essential requirements of the directives 2006/95/EC

and 2004/108/EC. It is authorised for use in all EC member states and in Switzerland

without any need of prior registration. The Declaration of Conformity concerning this

product is available on our website: www.geiger-antriebstechnik.de.

geprüfte

Sicherheit

GEIGER_BA_GU45_E01_Easy_100W0518_EN.qxd:Layout 1 29.11.2010 15:16 Uhr Se te E10

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Motor de GEIGER

GEIGER

GEIGER SOLIDline GJ56 Series Manual de funcionamiento

GEIGER

GEIGER SOLIDline GU45 Series Manual de usuario

GEIGER

GEIGER GEIGER-SoftZero-55 Manual de usuario

GEIGER

GEIGER GEIGER-MODULARline Manual de usuario

GEIGER

GEIGER GB45R Series Manual de usuario

GEIGER

GEIGER SOLIDline-MOR GU4510 Manual de usuario

GEIGER

GEIGER GEIGER-SOLIDline Series Manual de usuario

GEIGER

GEIGER PRO.TECline Spindle GB45 Series Manual de usuario

GEIGER

GEIGER SOLIDline GU4510 Manual de usuario

GEIGER

GEIGER GJ5610v1 Manual de usuario

GEIGER

GEIGER SOLIDline GU4506 Manual de usuario

GEIGER

GEIGER GEIGER-SOLIDline Series Manual de usuario

GEIGER

GEIGER GJ56 E06 Series Manual de usuario

GEIGER

GEIGER SOLIDline GJ56 Series Manual de usuario

GEIGER

GEIGER SOLIDline Manual de usuario

GEIGER

GEIGER INline System GSI56 r Series Manual de usuario

GEIGER

GEIGER GEIGER-SOLIDline x/55 Series Manual de usuario

GEIGER

GEIGER GJ5606k F03 Manual de usuario

GEIGER

GEIGER GB45MR Series Manual de usuario

GEIGER

GEIGER SOLIDline SoftPlus-Qi GU45-E09 Series Manual de usuario

GEIGER

GEIGER SOLIDline GU45 Series Manual de usuario

GEIGER

GEIGER PRO.TECline GB45 M01 Series Manual de usuario

GEIGER

GEIGER SOLIDline ZIP-Perfection GU45 E11 Series Manual de usuario

GEIGER

GEIGER SOLIDline Manual de usuario

Manuales populares de Motor de otras marcas

Rotax

Rotax 125 senior MAX evo Manual de usuario

Kohler

Kohler K361 Manual de usuario

MTD

MTD OHV Series Manual de usuario

Kohler

Kohler COMMAND CH18-745 Manual de usuario

Mercury

Mercury D4.2L D-Tronic Manual de usuario

Selve

Selve SE Plus-RC Series Manual de usuario

Perkins

Perkins 1206E-E66TA Manual de usuario

Skov

Skov DA 174 Manual

Rossi

Rossi TX11 Series Manual de usuario

Siemens

Siemens SIMOTICS T-1FW3 Hoja de instrucciones

AL-KO

AL-KO PRO 350 Manual de usuario

MTU

MTU 12 V 4000 Lx4 Manual de usuario

Nanni

Nanni N3.30 Manual de instrucciones

Nanni

Nanni N5.160 CR2 Manual de usuario

KSB

KSB SuPreme Series Instrucciones de instalación

Hiwin

Hiwin EM1 Series Manual de usuario

Rotax

Rotax 912 i series Instrucciones de funcionamiento

Siemens

Siemens SIMOTICS XP 1MB1 Manual de usuario
