Gefen DVI-2-HDSDIPRO Manual de usuario
DVI to HD-SDI
Scaler Pro
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday through Friday PST
Write To:
Gefen Inc.
C/O Customer Service
20600 Nordhoff Street
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
The DVI to HDSDI PRO is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
Operation Notes
Panel Descriptions
Menu Functions
Supported Input/Output Resolutions
RMT-8HDS-IR Installation
RS-232 Control and Firmware Update Procedure
Specifications
Warranty
1
2
3
4
6
7
8
9
10
INTRODUCTION
The Gefen DVI to HDSDI Pro Scaler combines two of our DVI to HDSDI Scaler
Plus units into one rack-mountable unit. It still incorporates full single-link DVI-D
conversion scaled to your choice of SD/HDSDI Single- or Dual-link modes, but now
simplifies your rack. Resolutions of up to 1080p are supported over the HDSDI link
for those that want true “High Definition.” Performance has been greatly enhanced
due to Gennum’s VXP Scaler circuitry onboard, allowing for new features such as
Genlock, Color & Gamma Correction, Noise Reduction, Detail Enhancement, Aspect
Ratio Selection, Pattern Generator Mode, and Multiple Language Menu Support.
Bottom Line? More performance, less cost.
DVI devices are connected to the DVI inputs and SDI devices are connected to the
SDI outputs. When the source, display and the Scaler are powered and connected,
video signals are converted to the proper format. There are two separate menu
systems for each integrated DVI to HDSDI box. Input 1 is labeled as the Master
device in the menu system while Input 2 is labeled as the Slave device. Please refer
to page 2 on how to access each separate menu system
CONTENTS
The DVI to HD-SDI Pro consists of:
(1) DVI to HDSDI PRO
(2) 6 foot DVI Cable (m-m)
(1) RMT-8HDS-IR Remote Control
(1) 5V 6A Universal DC Power Supply
(1) User's Manual
1
HOW IT WORKS
OPERATION NOTES
2
On power up, the DVI to HD-SDI Pro will automatically detect the format of the input
signal. The unit is controlled using the included remote or through the RS-232 port.
The following are the buttons for the RMT-8HDS-IR:
- UP (Navigates cursor up)
- LEFT (Navigates cursor left)
- Enter (Accept Operation / Return to Menu)
- RIGHT (Navigates cursor right)
- DOWN (Navigates cursor down)
- MENU (Show / Hide On screen Display)
- OUTPUT (Change Output Format)
- SOURCE (Non operational)
To bring up the on screen menu for the master device, press the MENU button once.
To bring up the menu for the slave device, press the MENU button again. Pressing
the MENU button once more will exit the menu system. Navigation is done using
Buttons up, left, right, and down; Push the Enter button to accept the cursor focus.
Pressing the Output button cycles through the following output modes:
480i - 576i - 720p - 1080i
Other functions and output modes can be accessed through the on screen menu.
To Restore I/O settings, simply recycle power on the Scaler
*Note: Both dip switches under the remote battery cover must initially be in the OFF
position to communicate with the Scaler.

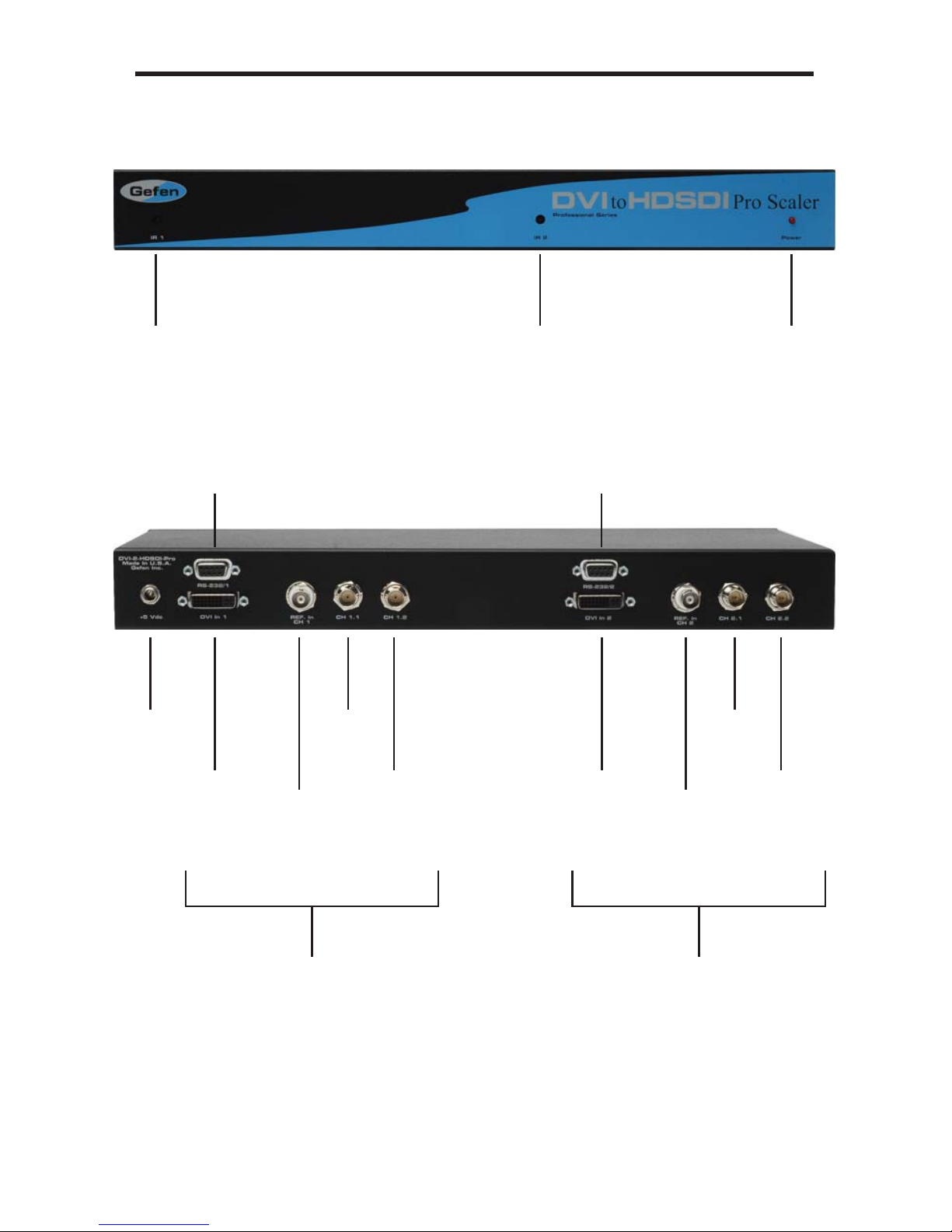

PANEL DESCRIPTIONS
Front
Back
3
Power LED
Indicator
IR Receiver 2IR Receiver 1
5V
Power Input
DVI
Input 1 DVI
Input 2
RS-232
Port 1 RS-232
Port 2
GenLock
Reference
Input 1
DVI to HDSDI Unit 1 DVI to HDSDI Unit 2
GenLock
Reference
Input 2
HD-SDI
Output 1 HD-SDI
Output 1
HD-SDI
Output 2 HD-SDI
Output 2
Menu Functions
Aspect:
-Full Screen: Stretches input to fill the Monitor.
-Letter / Pillar Box: Sets the aspect ratio to fit a letter or pillar box format.
-Panoramic: Panoramic Zoom feature
-Extract: Feature to magnify the signal.
-Extract Size: Adjusts signal magnification.
-Horizontal / Vertical Position: Moves the magnified signal
Horizontally and Vertically
-Through: Feature to crop the signal.
-Horizontal / Vertical Size: Horizontally and Vertically contracts
or expands the cropping viewport.
-Horizontal / Vertical Position: Move the signal Horizontally or
Vertically inside the cropping viewport.
Layout:
-Size and Position:
-Horizontal / Vertical Size: Adjust Horizontal or Vertical
resolution.
-Horizontal / Vertical Position: Move image Horizontally or
Vertically.
Picture:
-Image Color:
-Contrast: Individually adjust the contrast for red, green and blue
-Brightness: Individually adjust the brightness for red, green and
blue
-Black level: Adjust black levels between 0 (default) and 100
-Detail Enhancement:
-Detail Enhancement: Digitally enhance signal
-Noise Threshold:Adjusts noise allowed in detail enhancement
-Noise Reduction: Digitally reduce signal noise
-Motion Threshold
4
Menu Functions (continued...)
Input:
-Input Video Format: Auto Detect by default. Signal can be forced to a specific
High-definition resolution. (Please see Supported Input/Output Resolutions for
more information).
-Input Graphic Format: Auto Detect by default. Signal can be forced to a
specific computer resolution. (Please see Supported Input/Output Resolutions
for more information).
-Clean Aperture:
-Horizontal and Vertical Size: Stretch image Horizontally or Vertically
-Horizontal and Vertical Position: Move image in view port Horizontally
or Vertically
-Non-standard sync
-Remote Channel: Changes the IR code of the DVI to HDSDI Scaler to one of 4
different settings between 0 and 3. When the remote channel is changed, dip
switches in the remote must be changed to the corresponding code in
order to continue operating the DVI to HDSDI Scaler.
(Please see RMT-8HDS-IR Installation page for more information.)
Output:
-Output Format: Select the desired output resolution. (Please see Supported
Input/Output Resolutions for more information).
-Link Configuration
-Genlock Reference: Locks input clock in sync with output clock. 2 locking
methods by either the DVI input or the Reference input.
(Note: feature only works if input and output frequencies are multiples of each
other)
-Language: Set menu to display English or French text.
-Gamma Correction:
-Default: Set for Default Gamma settings.
-sRGB
-Custom: Enables Gamma Coefficient menu item as the current
Gamma coefficient.
-Gamma Coefficient: (0.3 - 3.0); Default set at 1.0.
Patterns:
-Color Bars: Display color bar video pattern.
-Cross Hatch: Display cross hatch video pattern.
General:
-Save configuration
-Restore default configuration
5
SUPPORTED INPUT/OUTPUT RESOLUTIONS
6
Input Video Formats Supported:
480i 10305i/59.94 1080p/50M
480p 1035i/60 1080p/59.94
576i 1080i/50 1080p/60
576p 1080i/50M 1080sf/23.98
720p/23.98 1080i/59.94 1080sf/24
720p/24 1080i/60 1080sf/25
720p/25 1080p/23.98 1080sf/29.97
720p/29.97 1080p/24 1080sf/30
720p/30 1080p/25 2K-p/23.98
720p/50 1080p/29.97 2K-p/24
720p/59.94 1080p/30 2K-sf/23.98
720p/60 1080p/50 2K-sf/24
Input Graphic Format Supported:
640x350/85 1024x768/85 1366x768/60
640x400/85 1280x854 1366x923/50
640x480/60 1152x864/75 1440x900/60
640x480/75 1280x768/60 1440x1080/60
640x480/85 1280x960/60 1440x1080/60
800x600/60 1280x960/85 1600x1024
800x600/75 1280x1024/60 1600x1200/60
800x600/85 1280x1024/75 1680x1050/60
1024x768/60 1280x1024/85 1920x1200/60
1024x768/75 1360x768/60 2048x1080
Output video formats supported:
480i 10305i/59.94 1080p/50M
480p 1035i/60 1080p/59.94
576i 1080i/50 1080p/60
576p 1080i/50M 1080sf/23.98
720p/23.98 1080i/59.94 1080sf/24
720p/24 1080i/60 1080sf/25
720p/25 1080p/23.98 1080sf/29.97
720p/29.97 1080p/24 1080sf/30
720p/30 1080p/25 2K-p/23.98
720p/50 1080p/29.97 2K-p/24
720p/59.94 1080p/30 2K-sf/23.98
720p/60 1080p/50 2K-sf/24
7
RMT-8HDS-IR Installation
1. Remove battery cover from the back of the RMT-8HDS-IR remote.
2. Verify that dip switches 1 & 2 are in the down (OFF) position.
3. Insert the battery, hold the battery so that you can see the positive side facing up.
The side that is not marked must be facing down.
4. Test the RMT-8HDS-IR remote by pressing ONLY one button at a time. The indi-
cator light on the remote will flash once each time you press a button. WARNING:
Do not press multiple buttons simultaneously and do NOT press buttons rapidly.
These actions will cause the remote to reset and steps 1-4 will have to be repeated.
Note: The RMT-8HDS-IR ships with two batteries. One battery is required for opera-
tion, the second battery is complimentary.
The following are the dip switch combinations that correspond to the Remote Code
menu option on the DVI to HDSDI Scaler (Please see Menu Functions section for
more information):
12
Remote Channel 0:
12
Remote Channel 1:
12
Remote Channel 2:
12
Remote Channel 3:
