Gefen EXT-HDMI1.3-142D Manual de usuario
®
1:2 Splitter for
HDMI® 1.3
with Digital Audio
EXT-HDMI1.3-142D
User Manual
www.gefen.com
ASKING FOR ASSISTANCE
Rev B2
2.1M
Technical Support:
Telephone (818) 772-9100
(800) 545-6900
Fax (818) 772-9120
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday PST
Write To:
Gefen, LLC.
c/o Customer Service
20600 Nordhoff St
Chatsworth, CA 91311
www.gefen.com
Notice
Gefen, LLC reserves the right to make changes in the hardware, packaging and
any accompanying documentation without prior written notice.
1:2 Splitter For HDMI 1.3 with Digital Audio is a trademark of Gefen, LLC
HDMI, the logo, and High-Definition Multimedia Interface are
trademarks or registered trademarks of HDMI Licensing in the United States and
other countries.
© 2010 Gefen, LLC, All Rights Reserved
All trademarks are the property of their respective owners
CONTENTS
1 Introduction
2 Operation Notes
3 Features
4 Panel Descriptions
5 Panel Descriptions
6 Connecting and Operating The 1:2 Splitter For HDMI 1.3 with DigitalAudio
7 EDID Management
9 Specifications
10 Warranty
1
Congratulations on your purchase of the 1:2 Splitter For HDMI 1.3. Your complete
satisfaction is very important to us.
Gefen
Gefen delivers innovative, progressive computer and electronics add-on solutions
that harness integration, extension, distribution and conversion technologies.
Gefen’s reliable, plug-and-play products supplement cross-platform computer
systems, professional audio/video environments and HDTV systems of all sizes
with hard-working solutions that are easy to implement and simple to operate.
The Gefen 1:2 Splitter For HDMI 1.3
The 1:2 Splitter for HDMI 1.3 with Digital Audio allows set-top boxes, DVD
players, DVRs and other HDMI sources with an HDMI output to be connected
to two HDMI-compliant displays while also supplying digital audio to an external
amplifier or receiver. ATOSLINK output on the 1:2 Splitter allows connection
of an external amplifier or receiver for greater installation flexibility. 3D content
can be displayed when connecting a 3DTV and 3D source. A greater number of
displays can be split by daisy-chaining multiple 1:2 Splitters together to create a
larger distribution.
How It Works
An HDMI source connects to the HDMI input connector on the Gefen 1:2 Splitter
for HDMI 1.3 with Digital Audio. Two HDMI outputs from the 1:2 Splitter connect
to two HDMI-compliant Displays. Vibrant, sharp HDMI video with embedded
multichannel digital audio will now be observed on the HDMI Displays. TOSLINK
digital audio output on the rear of the unit allows connection of an external
amplifier or receiver.
INTRODUCTION
2
READ THESE NOTES BEFORE INSTALLING OR
OPERATING THE 1:2 SPLITTER FOR HDMI 1.3 WITH DIGITAL AUDIO
• By default, display information from the display connected to HDMI output port
1 is sent back to the source. Therefore, the other display connected to the 1:2
Splitter for HDMI 1.3 with DigitalAudio must be capable of accepting the timings,
resolutions and audio formats of the display that is connected to HDMI output
port 1. It is recommended that the display with the lowest native resolution
be connected to HDMI output port 1. This is to ensure that a compatible video
signal will be able to be displayed on all connected monitors. There is a generic
EDID programmed into the 1:2 Splitter for HDMI 1.3 with DigitalAudio that can
be used instead. Please see page 7 for more details.
• The digital TOSLINK output only supports the transmission of the following
audio formats:
- LPCM 2-channel (32 ~ 192 Khz sampling rate)
- Dolby AC3 2-channel and 5.1-channel
- Dolby Digital Plus 5.1-channel
- DTS 2-channel and 5.1-channel
• LPCM of more than 2 channels, Dolby Digital Plus of 7.1 channels, DTS-HD
and Dolby TrueHD are supported through the HDMI output only (not on the
TOSLink output).
*When used with a HDMI to DVI adapter
OPERATION NOTES
3
HDMI 1.3 Features
• 225 MHz (up to 12 bit YUV 444 supported @ 1080p)
• Deep Color
• Dolby TrueHD and DTS-HD Master Audio
• Lip-Sync
• CEC Pass-Through
Features
• Simultaneously displays a single Hi-Def source on up to two (2) HDTV
displays without signal loss
• Maintains sharp HDTV resolutions up to 1080p Full HD and 2K
• 3DTV Pass-Through
• Color Space Conversion
• EDID Management for rapid integration of sources and display devices.
• Mono-LOK™ Locking HDMI Connectors
• Built-in TOSLINK audio output connector
• Supports the use of DVI sources and DVI displays with an HDMI-to-DVI
converter cable or adapter
• HDMI and HDCP compliant
Package Includes
(1) Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio
(1) 6 ft HDMI cable (M-M)
(1) 5V DC Power Supply
(1) User Manual
FEATURES
4
Front Panel
Back Panel
1
65
2
7
3
8
4
91011
PANEL LAYOUT
5
PANEL DESCRIPTIONS
1 Power LED
This LED will activate once a valid power source is applied.
2 Internal EDID LED
This LED will activate only when the pre-programmed internal EDID is being
used. Please see page 7 for more details on the internal EDID.
3 External EDID LED (default EDID routing)
This LED will activate only when the external EDID is being used. Please
see page 7 for more details on the external EDID.
4 Link LED
This LED activates when a valid link between source and splitter is detected.
5 Optical Digital Audio Output
This optical output will supply supported audio formats for output to an
external audio decoder or device such as an amplifier or receiver. See the
Operation Notes on page 2 for more information about supported audio
formats on this output.
6 EDID Button
This button will activate the onboard EDID. Press this button (the Int. EDID
should turn on and the Ext. LED should turn off) and reset the unit using the
Reset button (below) to initialize this EDID mode. To use an external EDID,
press the EDID button again (the Int. LED should turn off and the Ext. LED
should turn on) and press the Reset button to initialize this EDID mode.
Please see page 7 for more information.
7 Reset Button
This button will reset the unit and initialize whichever EDID mode is currently
selected.
8 HDMI Input
This is the input for the HDMI source device. When a valid source is
detected by the splitter, the Link LED will activate.
9 HDMI Out 1
This is the first HDMI output port. Connect a valid HDMI display to this port.
When the External EDID mode is active, the EDID form the display
connected to this port will be used to send to the source.
10 HDMI Out 2
This is the second HDMI output port. Connect a valid HDMI display to this
port.
11 5V DC Power Input
This port is for the included 5V DC power supply. When a valid 5V power
supply is attached, the Power LED will activate.
6
How to Connect the 1:2 Splitter for HDMI 1.3 with Digital Audio
1. Connect the supplied cable from the HDMI source into the Splitter’s input.
2. Connect the cables from your displays (monitor or projector) into the HDMI
outs of the 1:2 Splitter for HDMI 1.3 with Digital Audio. Up to 2 displays are
supported.
3. If using the TOSLINK optical audio output, connect a TOSLINK optical audio
cable between the 1:2 Splitter for HDMI 1.3 with Digital Audio and an A/V
Receiver.
4. Plug the 5V DC power supply into the 1:2 Splitter for HDMI 1.3 with Digital
Audio.
Apply power to the sources and displays. The source signal will now be seen on
two (2) displays at the same time.

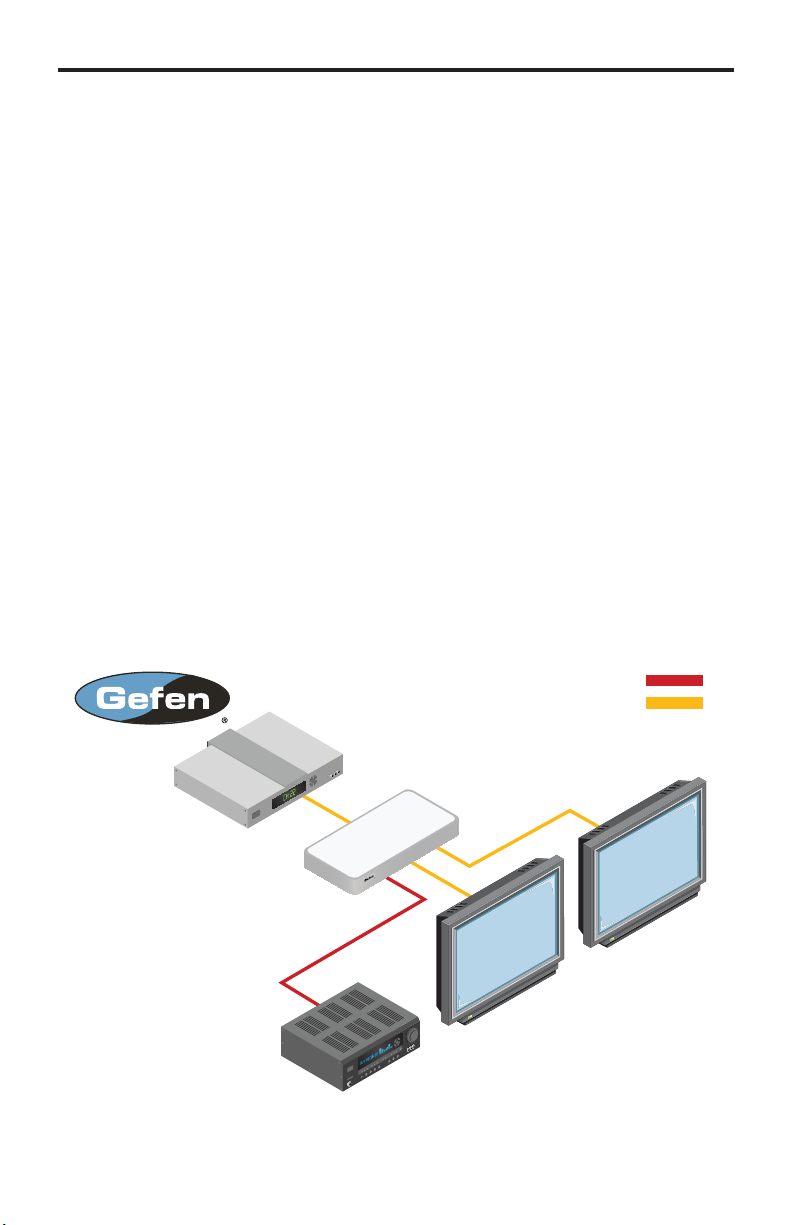

Wiring Diagram for the Gefen 1:2 Splitter for HDMI 1.3 with Digital Audio
CONNECTING AND OPERATING
THE 1:2 SPLITTER FOR HDMI 1.3 WITH DIGITAL AUDIO
EXT-HDMI1.3-142D
HDMI Display
HDMI Display
Audio Receiver
HDMI Source
HDMI Splitter
DIGITAL AUDIO (TOSLINK) CABLE
HDMI CABLE
7
EDID MANAGEMENT
EDID Mode Selection
1. EXTERNAL MODE:
See page 8 for details on using the External EDID.
2. INTERNAL MODE:
To use this mode, press the EDID button on the rear panel until the front-
panel LED marked “Int” turns bright green. This mode will use a preset
EDID, from the factory, that is stored in the Gefen 1:2 Splitter for HDMI 1.3
with Digital Audio. This pre-programmed standard EDID data structure is
compatible with most A/V display devices. All resolutions and audio formats
specified in this EDID will be passed to the source device. See the tables
below for a complete listing of the resolutions and audio formats listed in this
EDID.
NOTE: All other HDMI devices/displays connected to the output ports MUST
be compatible with at least one resolution/audio format specified in this
EDID. It is recommended to set, on the source device, a common resolution
and audio format shared by all attached devices/displays. This is to ensure a
compatible signal is output to all connected devices/displays.
Internal EDID Video Timings
Timing Refresh Rate Timing Refresh Rate
1280 x 720p 50 Hz 720 x 576p 50 Hz
1280 x 720p 59.94 / 60 Hz 1920 x 1080p 50 Hz
1920 x 1080i 50 Hz 1920 x 1080p 59.94 / 60 Hz
1920 x 1080i* 59.94 / 60 Hz 1440 x 480p 59.94 / 60 Hz
720 x 480p 59.94 / 60 Hz 1440 x 576p 50 Hz
* Native Resolution
Internal EDID Audio Formats
Audio Format Supported Channels
LPCM 2CH
AC-3 2CH / 5.1CH
DTS 2CH / 5.1CH
