Gefen DVI Detective Manual de usuario
DVI Detective
USER MANUAL
www.gefen.com
Technical Support:
Telephone (818) 884-6294
(800) 545-6900
Fax (818) 884-3108
Technical Support Hours:
8:00 AM to 5:00 PM Monday thru Friday.
Write To:
Gefen Inc.
C/O Customer Service
6265 Variel Ave.
Woodland Hills, CA91367-9897
Notice
Gefen Inc. reserves the right to make changes in the hardware, packaging and any
accompanying documentation without prior written notice.
DVI Detective is a trademark of Gefen Inc.
© 2007 Gefen Inc., All Rights Reserved
ASKING FOR ASSISTANCE
TABLE OF CONTENTS
Introduction
Features
Panel Descriptions
Connecting and Operating the DVI Detective
Specifications
Warranty
1
2
3
4
5
6
Congratulations on your purchase of the DVI Detective. Your complete satisfaction is
very important to us. Gefen’s line of KVM (Keyboard Video & Mouse), DVI, ADC, USB,
switches, extenders, converters and hubs is designed to make computer use more
comfortable, more productive and less expensive. KVM switches allow access to mul-
tiple computers from a single keyboard, while the extenders give the user control over
a computer up to 330 feet away from the work area. Gefen products offer solutions for
noise, space and security concerns, data center control, information distribution, confer-
ence room presentation, and school and corporate training environments.
Our Commitment
Gefen will always offer the finest quality product at the best possible price. Included in
that price is a lifetime of free support from a team of outstanding engineers.
Introduction
The DVI Detective reads and remembers the EDID of your display. The DVI Detective
allows you to use Gefen’s DVI Switchers orADC Switchers without having to be se-
lected to the computer that is booting up. It also allows you to use Gefen's DVI/HDMI
extenders without the need for the DDC CAT5 when your source is non HDCP.
How it Works
Connect your DVI or ADC monitor to the DVI Detective and then power the DVI Detec-
tive. The DVI Detective then reads the EDID of your display, and once the LED stops
blinking the DVI Detective has remembered the EDID of your display.
You can now connect your DVI Detective to your computer with a short DVI cable, and
then connect it to your DVI or ADC Switcher or ADC Switcher or DVI or ADC extender.
INTRODUCTION
1
FEATURES
Features
• No power required after initial programming
• Maintains DVI video resolution
• Supports Apple Flat Panel Displays
• Supports DDWG standard for DVI compliant monitors
• No need to be selected to the computer that is booting up with the DVI Switcher or
ADC Switcher
• Installs in seconds
*Note - DVI pins are pass thru
Includes:
1' DVI cable (m-m)
5VDC Power Supply
DVI Detective
User's Manual
2
PANEL DESCRIPTIONS
3

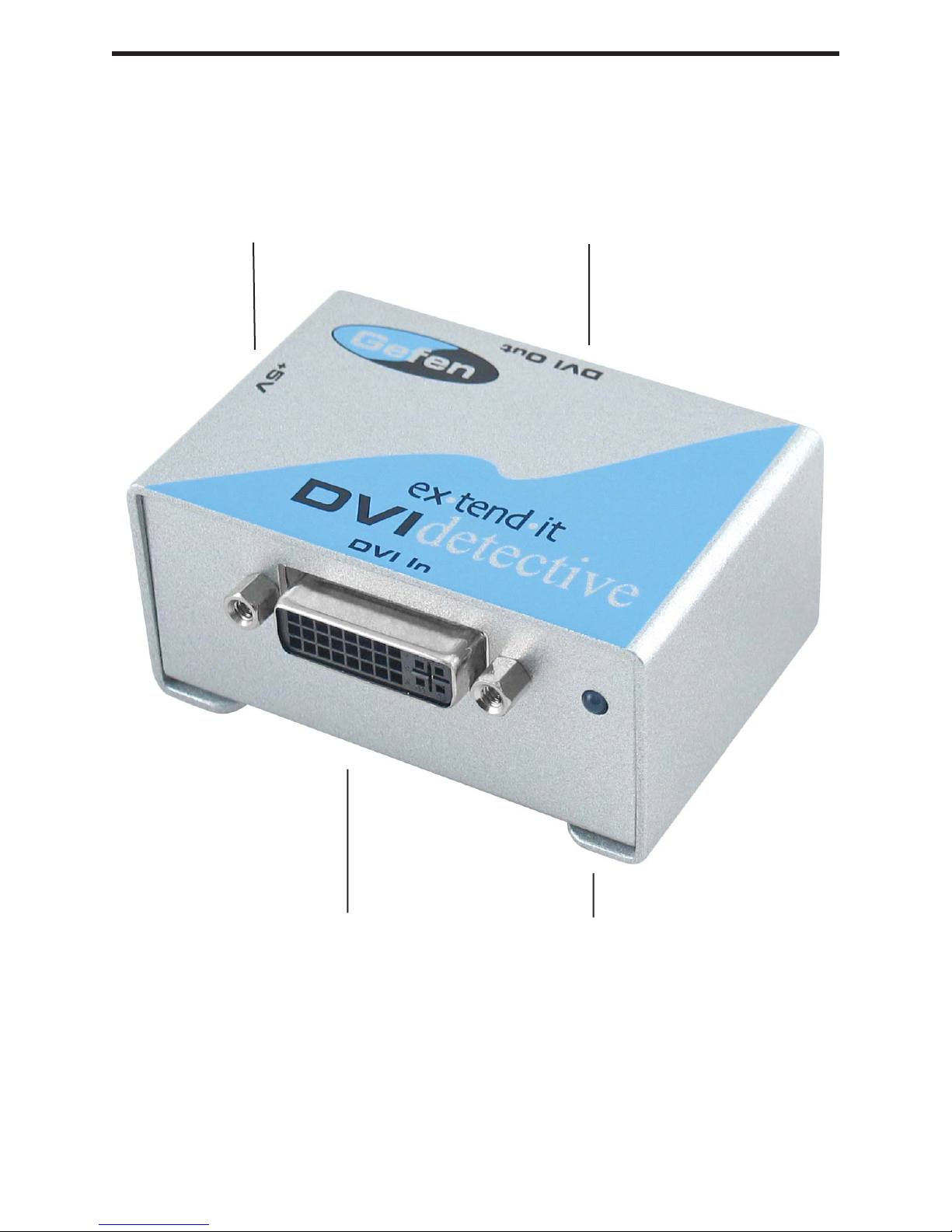

DVI Input Power/Status Indicator light
DVI Input5V Power Supply Input
CONNECTING AND OPERATING DVI DETECTIVE
How to Connect the DVI Detective
1- Power on your display, and connect your display to the DVI Out on the DVI Detective.
2- Plug the 5v power supply into the DVI Detective, once the LED stops blinking the DVI
Detective has finished reading the EDID of the display. After programming you will not
need to use the power supply again.
3- You can connect the DVI In into your computer with DVI cable, and connect your DVI
or ADC Switcher to the DVI Detective DVI Out.
4- Restart your computer only after you’ve made all the connections.
* If the LED does not stop blinking after 8 seconds of having the power supply
connected, try recording with the monitor on with a picture.
4
SPECIFICATIONS
5
Video Amplifier Bandwidth ................................................................................. 1.65 GHz
Input Video Signal ......................................................................................... 1.2 volts p-p
Input DDC Signal .................................................................................... 5 volts p-p (TTL)
Maximum Single Link Range ............................................................. 1920 x 1200 x 60hz
DVI Input/Output Connector Type ............................................................................ DVI-I
Power Consumption .................................................................................. 5 Watts (max.)
Power Supply .......................................................................................................... 5VDC
Dimensions ..................................................................................... 2”W x 1.7”H x 1.75”D
Shipping Weight ....................................................................................................... 2 Lbs
Gefen Inc. warrants the equipment it manufactures to be free from defects in material
and workmanship.
If equipment fails because of such defects and Gefen Inc. is notified within two
(2) year from the date of shipment, Gefen Inc. will, at its option, repair or replace
the equipment, provided that the equipment has not been subjected to mechanical,
electrical, or other abuse or modifications.
Equipment that fails under conditions other than those covered will be repaired at the
current price of parts and labor in effect at the time of repair. Such repairs are warranted
for ninety (90) days from the day of reshipment to the Buyer.
This warranty is in lieu of all other warranties expressed or implied, including without
limitation, any implied warranty or merchantability or fitness for any particular purpose,
all of which are expressly disclaimed.
1. Proof of sale may be required in order to claim warranty.
2. Customers outside the US are responsible for shipping charges to and from Gefen.
3. Copper cables are limited to a 30 day warranty and cable must be free from any
scratches, markings, and neatly coiled.
The information in this manual has been carefully checked and is believed to be
accurate. However, Gefen Inc. assumes no responsibility for any inaccuracies that may
be contained in this manual. In no event will Gefen Inc., be liable for direct, indirect,
special, incidental, or consequential damages resulting from any defect or omission
in this manual, even if advised of the possibility of such damages. The technical
information contained herein regarding DVI Detective features and specifications is
subject to change without notice.
WARRANTY
6
