GEARSTONE CS-WP7 Manual de usuario
MODE:CS-WP7
User manual
HOUSEHOLDELECTRIC
TREADMILL
V2021.0.1
EN
Content
Content 01
Safety Precautions, Warning Instructions
Product Introduction
Installation Steps
How to Replace the Fuse
Folding Handle Adjustment
Exercise Advice and Needles
Instructions
Frequent Faults and Solutions
Product Maintenance
Pledge
02
04
06
07
07
08
10
13
14
15
(1) People who are suffering from back pain or who have suffered injuries to their legs,
waist, and neck in the past, and those who have had their legs, waist, neck, and hands
(with herniated disc, spondylolisthesis
Patients with chronic diseases such as falling syndrome, cervical spine herniation).
(2) Those with deformed arthritis, dampness, and pain.
(3) Those who have abnormalities such as pore size.
(4) Those who have circulatory system disorders (visceral diseases, management
disorders, hypertension, etc.).
(5) Those who have respiratory organ disorders.
(6) Those who are using a human discipline regulator who have implanted in-body
medical electronic devices.
(7) Those with malignant tumors.
(8) Those who have symptoms such as hyperthrombus or severe lipoma, acute lipoma
and other fluid circulation disorders or various skin infections.
(9) Those who have perceptual impairment caused by high-level peripheral circulatory
disorders caused by diabetes.
(10) People with trauma to their skin.
(1 1) Those who have a fever due to illness, etc. (38℃ or above).
(12) Those with abnormal or curved back.
(13) Those who are pregnant or may be pregnant or are menstrual.
(14) People who feel abnormal body and need to rest.
(15) Those who are obviously in poor physical condition.
(16) Users who want rehabilitation.
(17) People who feel abnormalities in their bodies other than those mentioned above.
——It may cause accidents or poor physical condition.
◆ Feeling back pain, legs and feet, dizziness, jumping and other different pains or
coordination feelings or abnormalities in the body during exercise.
Always stop using it immediately and consult a doctor.
◆ Do not let children use this product, and do not let children play around the
product.
——If you do not comply, there may be danger of injury.
◆ The protector of children should be careful not to let children play with this product.
——If you do not comply, there will be a risk of injury.
◆ Be sure to check the surroundings (rear, lower, front of the product) during use,
when loading and taking out the product, and when sliding it
There are no people or pets.
Do not decompose!
◆ It is absolutely forbidden to disassemble, repair and reselect. ——There is a danger
of mechanical failure and injury.
Avoid contact with water!
◆ Do not expose the main body or operating part to water or other conductive liquids.
——It may cause electric shock or fire.
Forbidden!
◆ People who do not usually exercise should not suddenly do vigorous exercises.
-May cause damage to health.
02 Safety Precautions,Warning Instructions
◆ Do not use it after drinking or when you are tired, just after exercise or when your
physical state is abnormal.
——There is a risk of injury.
◆ This product is suitable for home use and is not used by a large number of
unspecified users such as schools and gymnasiums.
◆ Do not use while drinking or doing other activities.
◆ Do not use it after drinking alcohol until the feeling becomes dull.
——An accident or injury may occur.
◆ Do not use with hard objects in the pants pockets.
——It may cause an accident or injury.
◆ Do not allow needles, trash or water to adhere to the power plug.
——It may cause electric shock or short circuit or fire.
◆ During use, do not pull out the power plug or switch the power switch to "off".
-May cause injury.
Do not use wet hands!
◆ Do not unplug or plug in the power plug with wet hands.
——It may cause electric shock and injury.
Pull out the power plug!
◆ When not in use, unplug the power plug from the socket.
——Dust and humidity will deteriorate the insulation and cause electric leakage
disasters.
◆ During maintenance, be sure to unplug the power plug from the socket.
——If not observed, it may cause electric shock or injury.
◆ When it does not start or feels abnormal, stop using it, unplug the power plug
immediately and request inspection and repair.
——If not observed, it may cause electric shock or injury.
◆ In the event of a power failure, pull out the power plug immediately.
——Otherwise, accidents or injuries may occur when the power is restored.
◆ When unplugging the power plug, do not hold the wire part, but pull it out with the
power plug.
——Otherwise, it may cause short circuit, electric shock or fire.
Grounding instructions
◆ The product must be grounded. If the machine malfunctions, grounding will provide
the smallest path for the current to reduce the risk of electric shock.
◆ This product is equipped with a wire with equipment grounding conductor and
grounding plug. The plug must be inserted into a suitable outlet that has been properly
installed and grounded in full accordance with local regulations or statutes.
Danger
◆ Improper connection of the equipment grounding conductor may cause electric
shock hazard. If you have questions about the correct grounding of this product,
Please entrust a professional phone for inspection. Even if the plug that comes with
the product does not match the socket, it cannot be modified.
Please entrust a professional electrician to install a suitable socket.
◆ This product has a grounding plug. Make sure that the product is connected to a
socket with the same shape.
This product cannot use an adapter socket.
Safety Precautions,Warning Instructions 03

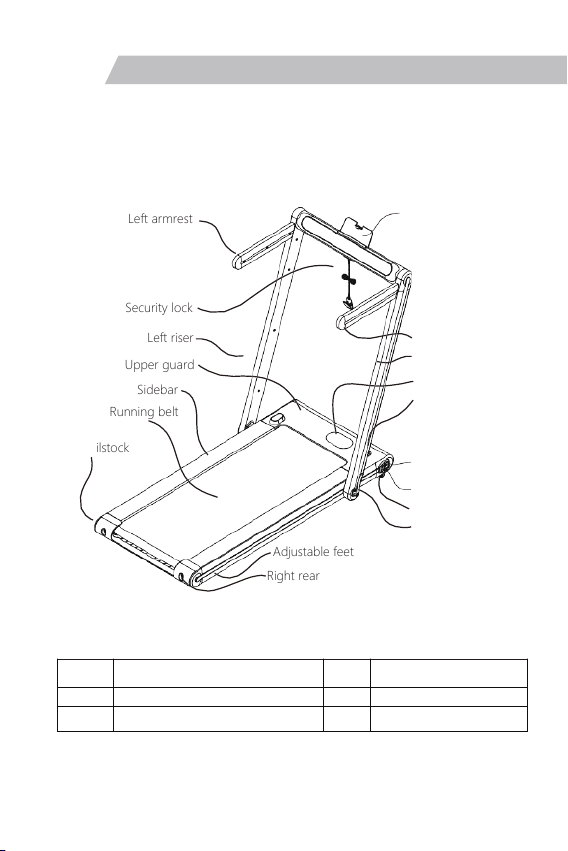

Left armrest Phone holder
Right armrest
Right riser
Display window
Speaker
Power socket
Switch
Mobile casters
Folding handle
Adjustable feet
Right rear
Packing List
Serial
number
11
1
2
Name
Treadmill
Kits See Schedule
Qty Remarks
Security lock
Left riser
Upper guard
Sidebar
Running belt
Rear left tailstock
04 Product Introduction
Technical Parameters
Attached table (list of accessories box):
Name
ST4.2*22 cross recessed countersunk
head tapping screws
M8*45 Hex half-thread bolts
5mm Hexagon wrench
6mm Hexagon wrench
13-15 Open end wrench
15mm socket wrench
Power cord
Security lock
Methyl silicone oil
Mobile phone holder
Remoter
Left and right armrests 1 each
Manual, warranty card, certificate of
conformity
Folding handle force
adjustment
Left and right armrests
fixed
Other
Adjust the running belt
Other
Mobile phone holder
fixing
Quantity Note
Serial
number
AC-220V 50Hz
Dimensions folded: 1484*689*131mm
Expand: 1323*689*1104mm
11 00*400mm
120 Kg
Working voltage:
Maximum load：
Boundary dimension
Running area:
Motor peak power:
Speed:
Control mode:
Weight:
Computer control，Remoter control
36 Kg
2.0HP
1－15Km/h
Product Description 05
1 2
2 4
3 1
4 1
5 1
6 1
7 1
8 1
9 1
10
1
11
12
13
1
1
1. Take the host out of the packing box and lay it flat on the carpet or cushion as shown
in the figure. As shown in step ① in the above left figure, open the "folding handle" in
the direction shown in the figure, and the lower end of the stand pipe will naturally face
Expand both sides; as shown in step ② in the upper left figure, lift the riser up to the
upper limit position; as shown in step ③ in the upper left figure, press down the
"folding handle" to lock the riser.
2. As shown in step ④ in the upper right picture, fix the "mobile phone holder" to the
riser beam with 2 "ST4.2X22 cross recessed countersunk head tapping screws"; as
shown in step ⑤ in the upper right picture, cut out 4 "Square rubber plug"; as shown in
step ⑥ in the above right figure, insert the left and right armrests into the
corresponding positions, and respectively pass 2 "M8X45 hexagon socket pan head
screws" through the standpipe and lock them in the corresponding screw holes of the
armrests, Then put the 2 "square rubber plugs" back into the square hole before, and
keep the remaining 2 "square rubber plugs" by yourself; as shown in step ⑦ on the
right figure above, suck the " safety lock" under the riser beam Corresponding position;
as shown in step ⑧ in the upper right figure, insert the power cord into the power
switch socket, and the installation is complete.
Note: After the machine is assembled, please check again whether all bolts have
been locked.
Installation steps
06 Installation Steps
4
5
56
7
5
5
2
6
3
18
Slotted screwdriver
insertion position
◆As shown in step ① in the left figure above: unplug the power plug from the power
socket;
◆As shown in step ② in the left figure above: Use a small, small-head screw for
household use to lift the fuse out of the power socket;
◆As shown in step ③ in the above right figure: Take out the fuse fuse tube according
to the direction of the figure, and insert it after replacement.
Note: The specification of the fuse fuse of this machine is 250V/10A, Φ5*20mm
When this machine is shipped, the part has
been adjusted to a slightly suitable tension.
However, due to the size of the wrist, the user
can appropriately adjust the folding handle
according to their preferences. Do not adjust
it too loosely. Too loose will result in shaking
due to the excessive gap between the folding
part of the tube and the main unit. As shown
in step ① in the above figure, pull out the
silicone round plug at the lower end of the
left tube; combine the equipped inner six
wrench and sleeve wrench into a saving lever,
as shown in step ② in the above figure, The
end of the hex head of the barrel wrench is
inserted into the lower end hole of the left
tube and fits with the hex screw. Rotate
clockwise to clamp, otherwise it is slightly
loose.
How to Replace the Fuse 07
How to replace the fuse
Adjusting the degree of folding handle
3
2
3
21
1
