Gearhead MS-148OR Manual de usuario

PID #: 111383/4/5/6/111603-109289

Rev. 140220

2.4 GHz Wireless Optical

Tilt-Wheel Mouse

MS-148OR

User Manual

All brand name and trademarks are the property of their respective companies

Mac and Mac OS X are registered trademarks of Apple Inc.

Windows, Windows XP, Windows Vista and Windows 7 are registered trademarks of

Microsoft Corporation in the United States and/or other countries.

USER RECORD

To provide quality customer service and technical support, it is suggested that you keep

the following information as well as your store receipt and this user manual.

Date of Purchase: ________________________________

Model Number: ________________________________

Product Rev Number (located below the UPC on the package): ____________________

FCC RADIATION NORM

FCC

This equipment has been tested and found to comply with limits for Class B digital device

pursuant to Part 15 of Federal Communications Commission (FCC) rules.

FCC Compliance Statement

These limits are designed to provide reasonable protection against frequency interference

in residential installation. This equipment generates, uses, and can radiate radio frequency

energy, and if not installed or used in accordance with the instructions, may cause harmful

interference to radio communication. However, there is no guarantee that interference will

not occur in television reception, which can be determined by turning the equipment off

and on. The user is encouraged to try and correct the interference by one or more of the

following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and the receiver.

Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION

The Federal Communications Commission warns the user that changes or modifications to

the unit not expressly approved by the party responsible for compliance could void the

user’s authority to operate the equipment.

PACKAGE CONTENTS

Your new mouse will ship with the following items:

- 2.4GHz Wireless Optical Tilt-Wheel Mouse

- Nano Receiver

- 2 AAA Batteries

- User Manual

- Warranty Information

SYSTEM REQUIREMENTS

Please be sure that you meet all of the system requirements below to avoid difficulties

during installation

Compatible with: PCs, Mac®

Works with:

computers, and Chromebook™ notebook computers

- Windows®XP, Windows®Vista , and Windows®

- Mac

7 operating systems

OS X®

- An available USB port

10.3 and above (Tilt-Wheel function is compatible with PCs only)

SPECIFICATIONS

Your new mouse complies with the following specifications:

- USB Interface

Note: In order for the tilt-wheel function to work on your mouse you MUST download the

setup software from the Gear Head website.

INSTALLING BATTERIES

To properly install batteries into your mouse, please follow the instructions below:

1. Remove the battery compartment cover from your mouse.

2. Install two AAA batteries into the battery compartment following the orientation

guide in the battery bay.

3. Replace the battery compartment cover back onto your mouse until it locks securely.

INSTALLATION

For All Operating Systems

1. Make sure you have successfully installed the batteries into your mouse. Refer to the

Installing Batteries section in this manual if necessary.

2. Pull out the Nano Receiver stowed in the bottom of your mouse.

3. Turn on your computer and plug the Nano Receiver into an available USB port on

your computer. (If you are not able to find a USB port on your computer, please refer

to the user manual of your computer for more detail.) Your wireless optical mouse is

now ready!

DOWNLOADING TILT-WHEEL SETUP SOFTWARE

In order for the tilt-wheel function to work on your mouse you MUST download the setup

software from the Gear Head website.

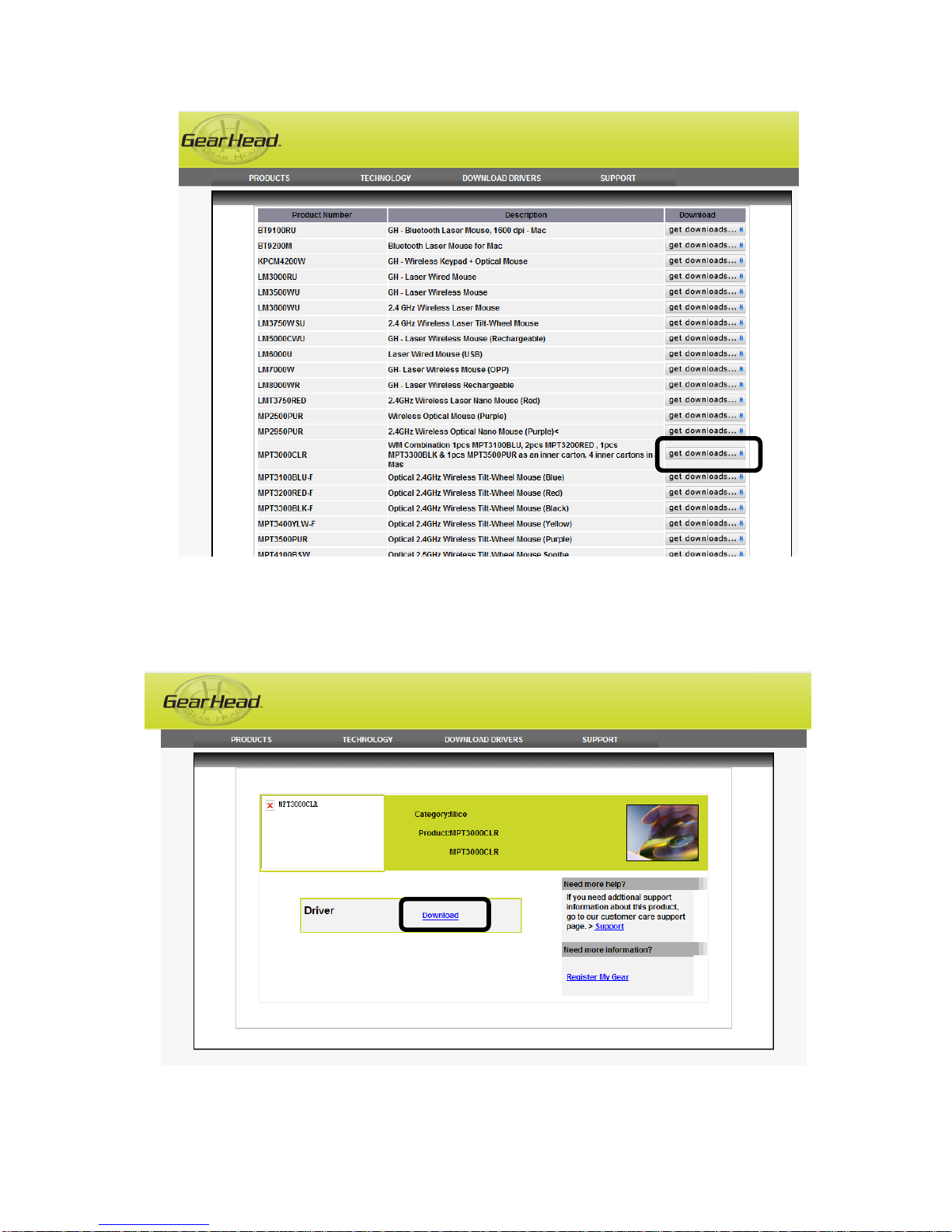

1. Go to the Support page (http://pcgearhead.com/support.php) on the Gear Head

website and click the DOWNLOAD: DRIVERS, MANUALS, OR SOFTWARE button.

2. Find Desktop Mice and click Select Category.

3. Find your model and click get downloads….

4. A pop-up window will appear to initiate the download; click Download to start

downloading.

5. Follow the onscreen instructions to download the setup software (MPT3000CLR).

INSTALLING THE SETUP SOFTWARE

1. Decompress the downloaded software and click the Set Up icon to begin

installation.

2. The USB Optical Mouse - InstallShield Wizard will appear on the desktop. Choose

your installation language on the following screen and click Next to continue.

3. Follow the onscreen instructions to finish the software installation. Please restart

your computer after the installation is finished.

USING THE SOFTWARE

Button Assignment

You can assign a

function to any button of

your mouse by selecting

from the functions

stored in the drop-down

menu of each button.

These are the 12

options:

- Click

- Menu,

- Universal

Scrolling,

- Double-click

- Advanced

Functions (see

right for details)

- Button 4

- Button 5

- Switch Profile

- Cycle of Switch

Profile

Advanced Functions

Single/Macr

You can assign any key

function or key

combination to a single

button on your mouse.

Basic

Commands

The drop-down menu

provides 9 basic word

document software

operations.

Additional

Commands

The drop-down menu

provides 7 basic system

operations.

Media

Functions

The drop-down menu

provides 7 basic media

operation modes.

Tip: Press and hold the

DPI button on your

mouse for 5 seconds and

then it can be used to

play/pause your media,

while the horizontal tilt-

wheel function can be

used as volume up/down.

To return to the normal

mode, press the DPI

button for 5 seconds

Pan Left

- Pan Right

- Button Off

again.

Switch

Profile

You can set the functions of your

mouse buttons to go to a specified

mouse configuration profile, every time

that mouse button is clicked.

Cycle of Switch

Profile

You can rotate between the 5 profiles

you have set by clicking the assigned

mouse button. The 5 configurations can

be set and stored using the software.

Advanced Mousewheel

Options

You can assign a function to the vertical (up or down) operation

of your tilt-wheel by selecting from the functions stored in the

drop-down menu: Click, Menu, Double-click, Advanced

Functions, Scroll Up, and Scroll Down are available.

Config Save/Load

Settings

Click Save/Load

Settings to enter the

following screen and

perform one of four

functions.

Load Config

Retrieve a configuration

previously saved to your

computer.

Save Config

After assigning custom

functions to your mouse

buttons, you can save up to 5

different configurations.

Reset to Default Configuration

Revert all settings back to the

default configuration.

Reset Current Profile

Change the current settings

shown on the software screen

back to the default settings.

You can store up to 5 different configurations with this

software. Select a number then change the configuration in the

Button Assignment and Advanced Mousewheel Options menu.

Next click Ok under the Advance Config Options menu to save

your settings to that profile.
