GE Profile PSW23PSWSS Manual de usuario

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Specification Revised 6/07 210263

Overall

Dimensions

Height to top of hinge (in.) A70-3/4*

Height to top of case (in.) B68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†26-3/4

Case depth with door handle (in.) E†29-3/16

Depth with fresh food door open 90° (in.) F†45-9/16

Width (in.) G35-3/4

Width with door open 90° less door handle (in.) H38-3/16

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1/2

PSW23PSW

GE Profile™Counter-Depth ENERGY STAR® 23.2 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator

*When cap is removed: 69 1/4"

†Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on freezer

side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

"94 SxS Refer

Front View

Top View

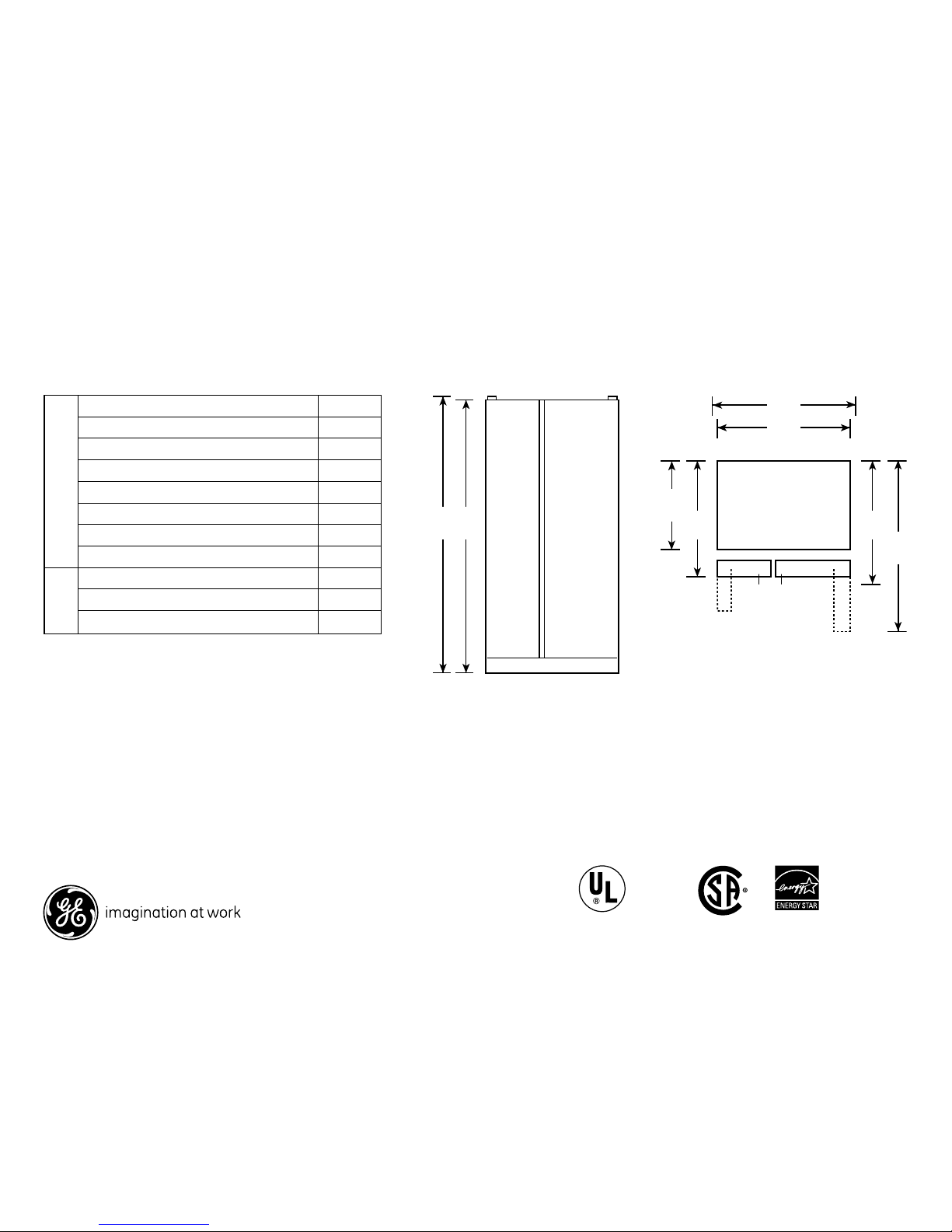

Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

Specification Revised 6/07 210263

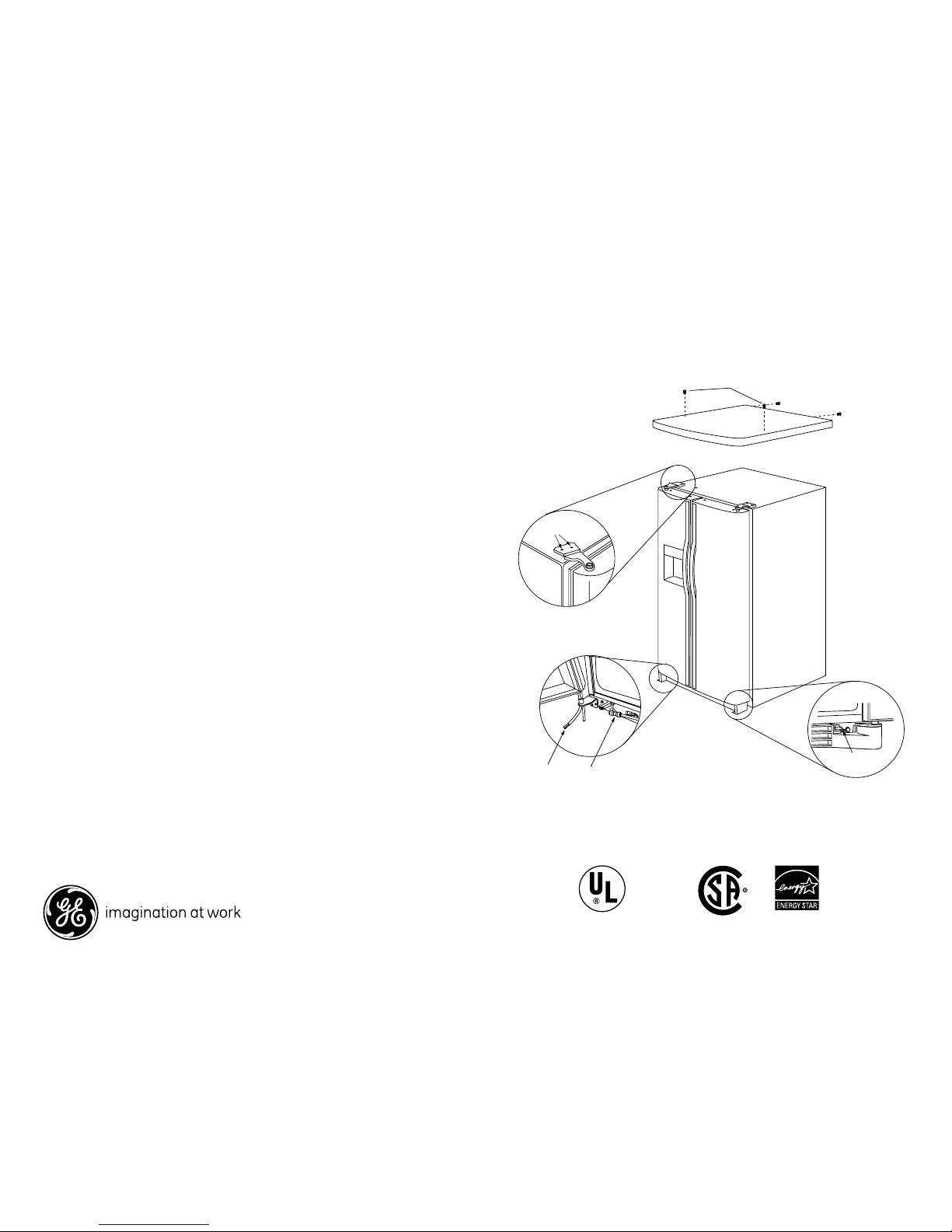

To Remove Top Caps and Doors on PSW23PSW

Step 1: the refrigerator. Remove two screws, one on each side at the rear of the top

cap. Lift off and remove top cap.

Step 2: Open both doors. Remove one screw on each side of the toekick. Pull forward

to remove toekick.

Step 3: On the freezer door, disconnect water line coupler by pushing against the collar

on the left side. Disconnect wire harness.

Step 4: Use a Torx T-20 screwdriver to remove 2 screws holding the top hinge. Carefully

remove hinge while supporting door. Lift door up and off bottom hinge. Remove fresh

food door in the same manner. Note: Do not remove bottom hinges! Door alignment

will be difficult if bottom hinges are removed.

Step 5: Place refrigerator onto a hand truck, upright and against one side.

Move refrigerator to the installation location.

Step 6: Carefully lower doors onto bottom hinges. Be sure to route the tubing and

electrical connector through the bottom hinge. Reinstall top hinges.

Step 7: Place cap over the top of the refrigerator. Reinstall the original screws in the top

and back of the cap.

Step 8: Reconnect the wiring harness and waterline.

Water Line Coupler

366-15A

Hinge Screws

Wire Harness

Toekick Screw

PSW23PSW

GE Profile™Counter-Depth ENERGY STAR® 23.2 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator

As an ENERGY STAR®

partner, GE has determined

that this product meets the

ENERGY STAR guidelines

for energy efficiency.

PSH25PSWSS

HOME

HELP

WATER

CRUSHED

LOCK CUBED

Hold3for Seconds

SELECTAMOUNT

BACK ENTER

NEWSETTING

SELECTTYPE

2CUPS

Specification Revised 6/07 210263

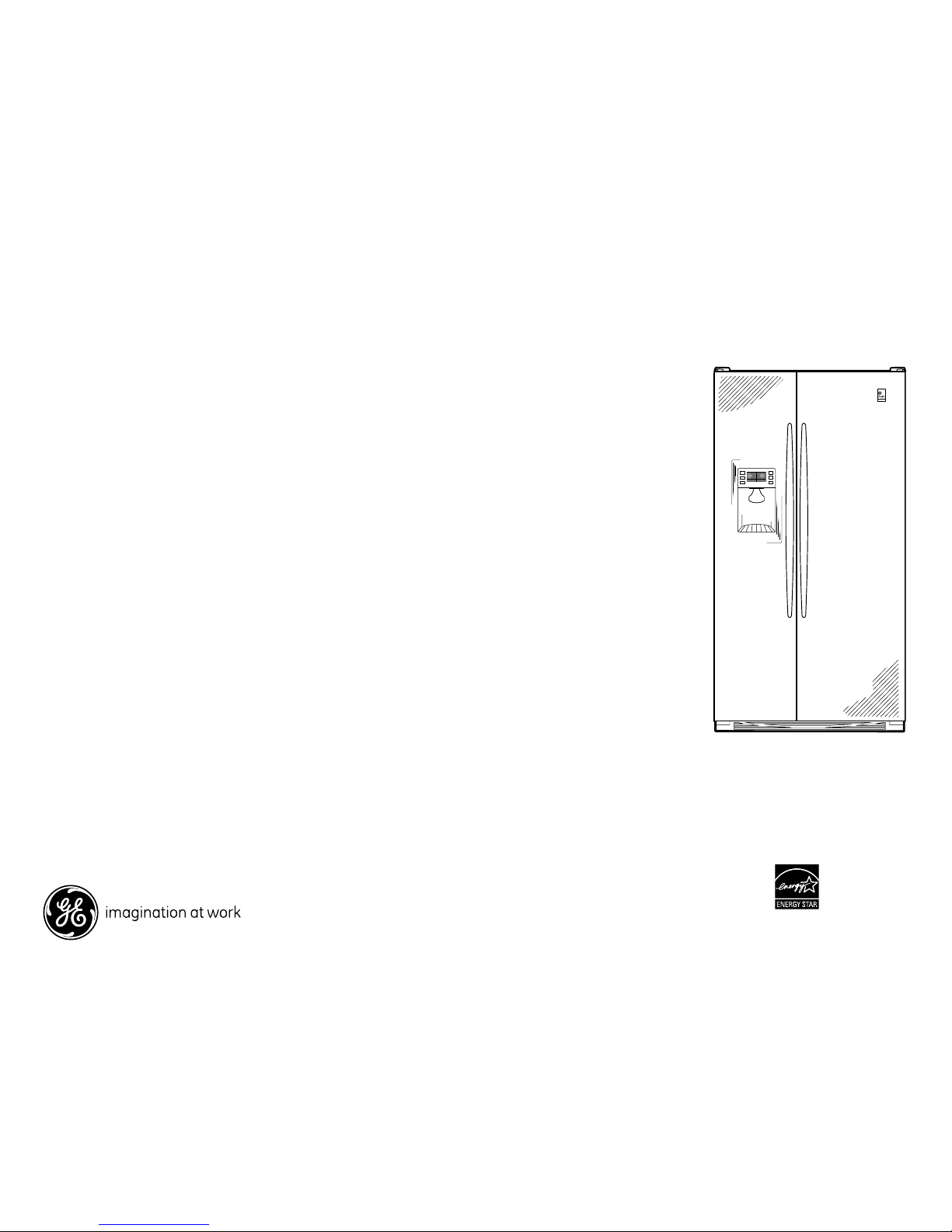

Features and Benefits

• Counter-Depth Configuration - Offers a built-in look by fitting almost completely flush with surrounding

cabinetry and blending in with décor

• Stainless-Wrapped - Provides stainless steel doors, side panels and top for a truly dramatic look

• ClimateKeeper2™System - Keeps food garden fresh longer, while protecting ice from odor transfer, with

its unique dual-evaporator system

• Color LCD Controls with Touch Screen - Makes it easy to control all the functions of the refrigerator with

just a touch

• QuickFreeze Setting - Provides faster, fresher freezing to maintain the flavor and quality of meats

• Integrated Dispenser with LED Lighting, PreciseFill & UltraFlow100 - Illuminates the dispenser and pours

water in accurate increments or up to 100 ounces per minute

• Electronic Beverage Center - Keeps beverages and treats icy cold and easily accessible

• CustomCool™Technology - Chills in minutes, thaws in hours and keeps foods fresher, longer

• Slide 'n Store™Freezer Basket - Offers easy access and flexible storage

• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™Setting - "Revs up" the refrigerator, cooling it quickly after frequent door openings

• Integrated Ice™System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice

• Tilt-Out Freezer Door Bins - Move forward for convenient access

• Integrated Shelf Support System - Provides strong, yet flexible support

• Adjustable ClearLook™Door Bins - Hold gallon-size containers with style and ease

• Adjustable Slide-Out, Spillproof Glass Shelves - Shelves slide out, spills stay put

• Model PSW23PSWSS - Stainless steel

PSW23PSW

GE Profile™Counter-Depth ENERGY STAR® 23.2 Cu. Ft. Stainless-Wrapped Side-by-Side Refrigerator
