GE Profile PSIC3RGX Manual de usuario

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

Overall

Dimensions

Height to top of hinge (in.) A 70-3/8*

Height to top of case (in.) B68-3/4

Case depth without door (in.) C†23-7/8

Case depth less door handle (in.) D†27-1/8

Case depth with door handle (in.) E†29-5/8

Depth with fresh food door open 90° (in.) F†46

Width (in.) G 35-3/4

Width with door open 90° inc. door handle (in.) H 41-3/8

Air

Clearances

Each side (in.) 1/8

Top (in.) 1

Back (in.) 1

*Height to top of door trim (in.): 70-1/4

†Water hook-up fits in back air clearance when calculating

installation depth.

If installed against a wall, allow clearance of 13-15/16" on

freezer side to remove bin.

Clearance required to remove fresh food full-size pan without

disassembling is 18-5/8".

Allow additional space for any necessary leveling adjustments.

Specification Revised 5/08

Dimensions and Installation Information (in inches)

210225

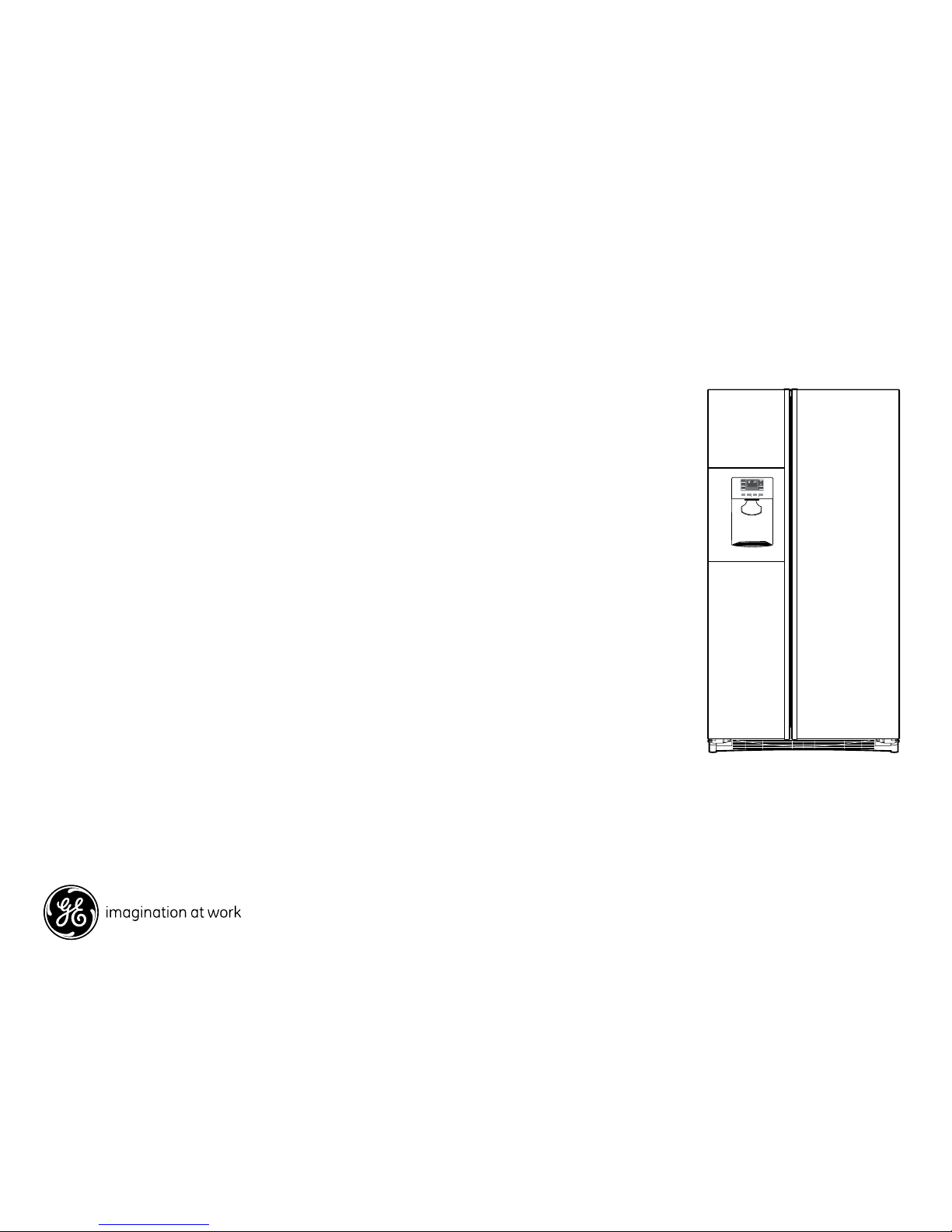

Front View

Top View

PSIC3RGX

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

Rough-In Dimensions and Installation Information (in inches)

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

36-1/8"

24-1/2"

Collar Trim In. w/ceiling

70"*†

23 cu. ft. models

72-1/2"*

25 cu. ft. models

*The rough-in dimensions of 70" for 23 cu. ft. models and 72-1/2" for 25 cu. ft.

models are minimum and measured from the finished floor to top of opening

(or the underside of the overhead cabinets). For Models with Trim Kit:

If frameless style cabinets are planned for above the refridgerator, you may

need to consider adding a maximum of 1/4" (70-1/4") to height of opening

for 23 cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow additional

clearance between cabinet doors and top of refridgerator trim when cabinet

doors are in open position.

†Model PSDW3YGX is 71-3/4".

Listed by

Underwriters

Laboratories

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

ElectricalWater

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

25"

Counter

Top

Electrical Water

Trim

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

FOR 21 CUBIC FOOT MODELS

FOR 24 CUBIC FOOT MODELS

Fig 2A eps

Installation Tips to Maximize the Built-In Look

• All wall/floor molding should be removed prior to installation.

• Water recess on rear wall recommended to prevent water

line damage. 48" minimum length, 1/4" diameter water

line tubing recommended.

• When possible, recess both copper water line and electrical

outlet. (See local codes)

• Front and rear leveling legs are adjustable for the built-in look.

(See owner’s manual)

• If optional collar trim kit is to be used or anticipated, see collar

trim installation for different rough-in dimensions

*The rough-in dimensions of 70" for 23 cu. ft. models and 72-

1/2" for 25 cu. ft. models are minimum and measured from the

finished floor to top of opening (or the underside of the overhead

cabinets). For Models with Trim Kit: If frameless style cabinets

are planned for above the refrigerator, you may need to consider

adding a maximum of 1/4" (70-1/4") to height of opening for 23

cu. ft. models and 1/8" (72-5/8") for 25 cu. ft. models to allow for

additional clearance between the cabinet doors and the top of

refrigerator trim when the cabinet doors are in open position.

†Model PSDW3YGX is 71-3/4"

210225

Specification Revised 5/08

PSIC3RGX

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

210225

Collar Trim Installation

An enclosure is required to match up to the

trim, see Typical Installation. To obtain the

most integrated look, the cabinet or soffit

above the refrigerator should extend out

to the same depth as the side panels. The

refrigerator opening must have minimum

dimensions of 70" high x 36-1/8" wide x

24-1/2" deep as shown at right. If there is

an overhead cabinet, allow 1" for cabinet

door clearance with the top trim piece so

the cabinet doors can be opened without

hitting the top trim. If 1/2" side panels are

used, then side trim and panel will be even.

If 3/4" side panels are used, then some of

the side panel will extend beyond the trim

and must be finished.

IMPORTANT: Before finalizing specifications

for your GE Profile Counter-Depth

Refrigerator, please NOTE:

• A minimum of 36-1/8" is required for

refrigerator installation with collar

• Be sure to allow for 1/2" or 3/4" side

panels in addition to the 36-1/8"

minimum.

Typical Installation

Shaded areas represent front surfaces of side panels and

overhead cabinet or soffit that contacts trim.

Refer collar trim install

70"*

36-1/8"

24-1/2"*

1/2" minimum

*The rough-in dimension of 70" is minimum and is measured from the

finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/4") to

height of opening to allow additional clearance between cabinet doors and

top of refrigerator trim when cabinet doors are in open position.

Rough-In Dimensions and Installation Information (in inches)

Magnetic

Tape

3/4" Cabinet

Side Panel

1/2" Cabinet

Side Panel

Side trim must be installed

flush with the gasket contact

surface on the case.

Refrigerator

Case

Side TrimDoor Gasket

Overhead

Cabinet

Door

Top Trim

Case

Specification Revised 5/08

PSIC3RGX

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

ge.com or call GE Answer Center®service,

800.626.2000.

Listed by

Underwriters

Laboratories

Order your own custom wood panels to match cabinetry

or other decor.

Panels up to 1/4" thick will fit door frame with no special

preparation. Add filler behind material thinner than 1/4"

for proper fit.

Weight Limits: Total weight of panels (i.e., both freezer

panels)—Fresh Food = 38 lbs., Freezer = 28 lbs.

NOTE: Panels up to 3/4” will require special routing area

around handles. Dimensions may vary depending on

depth of panel.

IMPORTANT: Before finalizing specifications for your

GE Profile Counter-Depth Refrigerator, please NOTE:

• A minimum of 36-1/8" is required for refrigerator

installation with collar

• Be sure to allow for 1/2" or 3/4" side panels in addition

to the 36-1/8" minimum.

210225

Door Panel Dimensions and Installation Information (in inches)

Installation of Water Outlets

Freezer Panel

without Dispenser

Freezer Panel

with Dispenser

Fresh Food

Panel

(Fresh Food panel shown)

Notch required at top

corner as noted.

Detail C

Freezer Panel

Without Dispenser

Freezer Panel

With Dispenser

Fresh Food

Panel

Cut

out

1/8 1/8

14-15/32 14-15/32

14-15/32

33-5/8

17-7/8

19-15/32

5/16

Cut

out

Cut

out 1/8

5/16 5/16

FRONT

67-9/32 67-9/32

FRONT FRONT

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

Alternate

water

line location

through floor

1/2"

Water hook-up

on the refrigerator

Recommended water line

location using recess

in rear wall

Recommended

single loop of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Alternate

water

line location

through floor

1/2"

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

Top View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

In.of water & Electric Ot. Art

5/16"

1/8"

Dr. Panel Dim. Detail C

1/4" Max.

Panels 1/4" thick

or less

Dr. Panel Dim. Panel 1/4 Thic

Specification Revised 5/08

PSIC3RGX

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

PSIC5RGXWV/BV/CV

PSIC3RGXWV/BV/CV

Lock

Controls

FreezerTemp

FridgeTemp

On/Off

Set

Features

0°FisRecommended for Freezer

37°FisRecommended for Fridge

Water

FREEZER

REFRIGERATOR

DoorAlarmOn

TurboCoolOn

ReplaceWaterFilter

Crushed Cubed Light

210225

Features and Benefits

• Counter-Depth Design - Offers a built-in look without the built-in expense

• ClimateKeeper™Temperature Management System - Best Temperature Management System You

Can Buy

• Quick Ice™Option - Makes ice up to 50% faster than normal settings-ideal for entertaining

• TurboCool™Setting - Cools the refrigerator quickly after frequent door openings

• Integrated Ice™System - Frees up valuable freezer space; It tilts down, providing easy access to bulk ice

• Integrated Shelf Support System - Provides strong, yet flexible support

• Adjustable ClearLook™Door Bins - Hold gallon-size containers with style and ease

• Adjustable Slide-Out, Spillproof Glass Shelves - Raised edges help contain spills and slide-out shelves

make clean up quick and easy

• GE Water Plus Filtration System - Delivers clean, great-tasting water and ice through the LightTouch!

Dispenser with indicator light

• FrostGuard™Technology - Protects frozen items from freezer burn by monitoring freezer door

openings and defrosting only when needed

• Premium Quiet Design - GE's most advanced sound control system

• Model PSIC3RGXWV - White on white

• Model PSIC3RGXCV - Bisque on bisque

• Model PSIC3RGXBV - Black on black

Specification Revised 5/08

PSIC3RGX

GE Profile™Counter-Depth23.3 Cu. Ft. Side-By-Side Refrigerator

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Refrigerador de GE

GE Profile GSHF6KGZ Manual

GE Profile PSW26PSTSS Manual

GE GTZ18GCESS Manual de usuario

GE TOP-FREEZER 16 Instrucciones de funcionamiento

GE PSHF6RGXCC - Profile 26' Dispenser... Manual

GE Profile Arctica PSH23NGP Instrucciones de uso

GE GSH25ISX Manual

GE GTS18IBRCC - G.E. 18.0 cu. ft. Top-Freezer... Instrucciones de montaje

GE ENERGY STAR GTH18HCBCC Manual

GE SIDE-BY-SIDE REFRIRATOR 22 Instrucciones originales

GE GSH25KGR Instrucciones de uso

GE ENERGY STAR GTH18HBB Manual

GE TURBOCOOL 23 Guía de seguridad

GE GTS22KHP Manual de usuario

GE GTH18FBC2RWW and Instrucciones de funcionamiento

GE TDX9 Manual de usuario

GE TB11S Manual de usuario

GE 25 and 27 Manual de usuario

GE Profile ENERGY STAR PFCF1NFW Manual

GE GSL25JFXLB - 25" CF Refrigerator CLNSTEEL BLK... Manual de usuario

GE GTS22JBPARCC and Instrucciones de funcionamiento

GE 21 Instrucciones de funcionamiento

GE Monogram ZFSB25D SS Manual de usuario

GE CYE22UELDDS Instrucciones originales

Manuales populares de Refrigerador de otras marcas

Bonnet Neve

Bonnet Neve SKYVIEW PLUS Manual de usuario

Zanussi Electrolux

Zanussi Electrolux ZERB 8441 Manual de usuario

Sharp

Sharp SJ-BA31IEXW2-EU Manual de usuario

CORBERO

CORBERO CC2300MCW Manual de usuario

KitchenAid

KitchenAid 2205264 Manual de usuario

Stengel

Stengel KU 1101 A++ Manual de usuario

NEFF

NEFF KI181 Series Manual de usuario

Hoshizaki

Hoshizaki Reach-In Manual de usuario

Amana

Amana ASD2524VES00 Manual de usuario

BOMANN

BOMANN KGC 213 Manual de usuario

Danby

Danby DAR044A1SLDD Instrucciones de montaje

Samsung

Samsung RF323TE Manual de usuario

Beko

Beko CSA31022 Manual de usuario

IKEA

IKEA FROSTIG C 185 E Manual de usuario

Electrolux

Electrolux ER 6821 D Manual de usuario

True

True TS-28 Manual de usuario

Frigidaire

Frigidaire FSC23R5DW9 Manual de usuario

Beko

Beko LSP4579W Manual de usuario
