PSI23MGP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

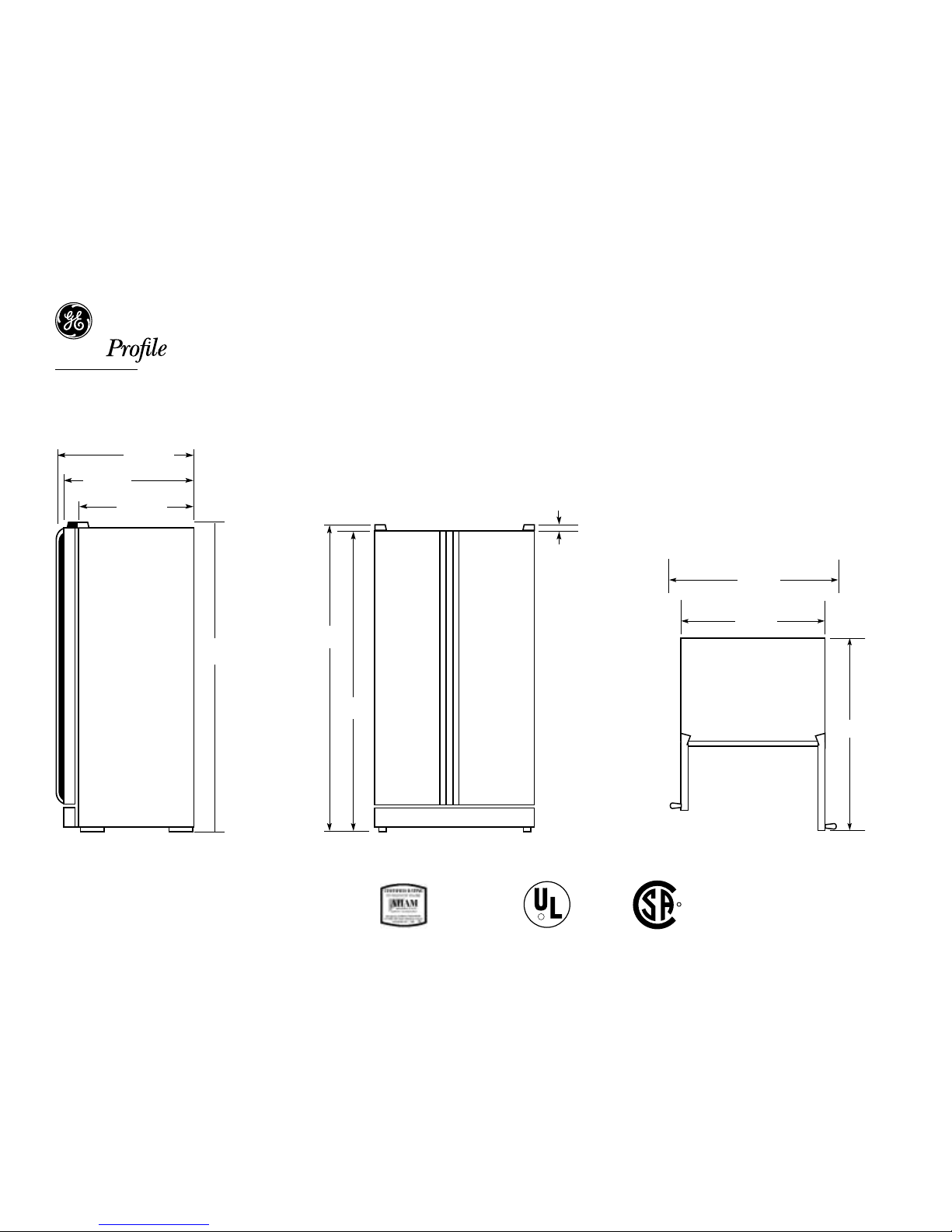

Case Dimensions (in inches/cm.)

1''

(2.54 cm.)

Side View Front View

69-1/4

68-3/4

26-3/4

23-7/8

69-1/4

Top View

45-9/16

37-5/16

Specification Created 2/03

Total volume and shelf

area are calculated by the

Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

35-3/4

28-5/16

PSI23MGP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

Standard, New Construction

and Replacement Installation

Installation Tips to

Maximize the Built-In Look

• All wall/floor molding should

be removed prior to installation.

• Water recess on rear wall

recommended to prevent water

line damage. 48" minimum length,

1/4" diameter water line tubing

recommended.

• When possible, recess both copper

water line and electrical outlet.

(See local codes)

• Front and rear leveling legs are

adjustable for the built-in look.

(See owner’s manual)

• If optional collar trim kit is to be

used or anticipated, see collar trim

installation on next page for

different rough-in dimensions.

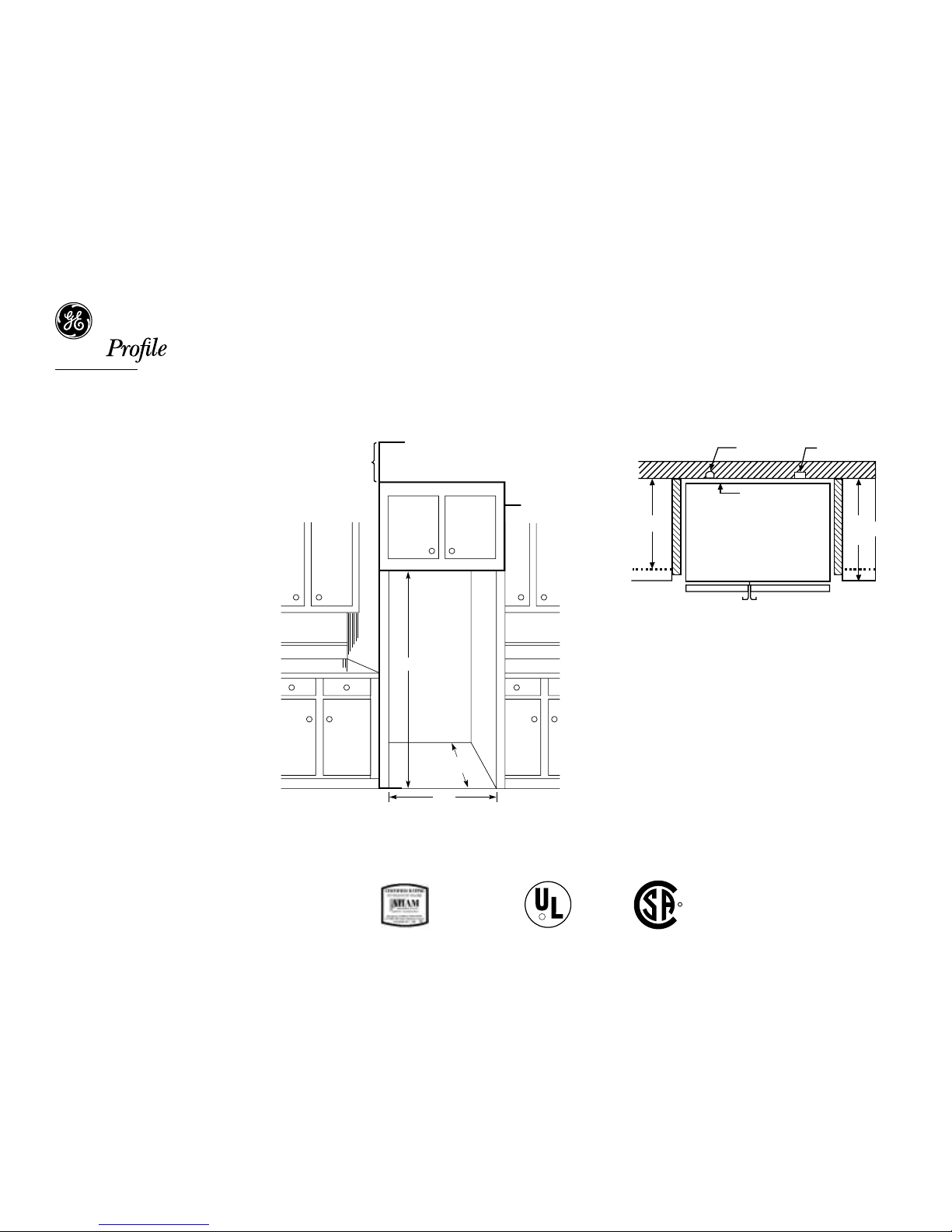

Rough-In Dimensions

8' Ceiling

13" to 14"

Cabinet

12"

Soffit

70-1/4"*

36"

24"

*The rough-in dimension of 70-1/4" is minimum and is measured from the

finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening to allow additional clearance between cabinet doors and

top of refrigerator trim when cabinet doors are in open position.

25"

Counter

Top

ElectricalWater

3/4" Airspace

(1/2" Gap + 1/4"

Wall Plates)

24"

Cabinet

Specification Created 2/03

Total volume and shelf

area are calculated by the

Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

PSI23MGP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

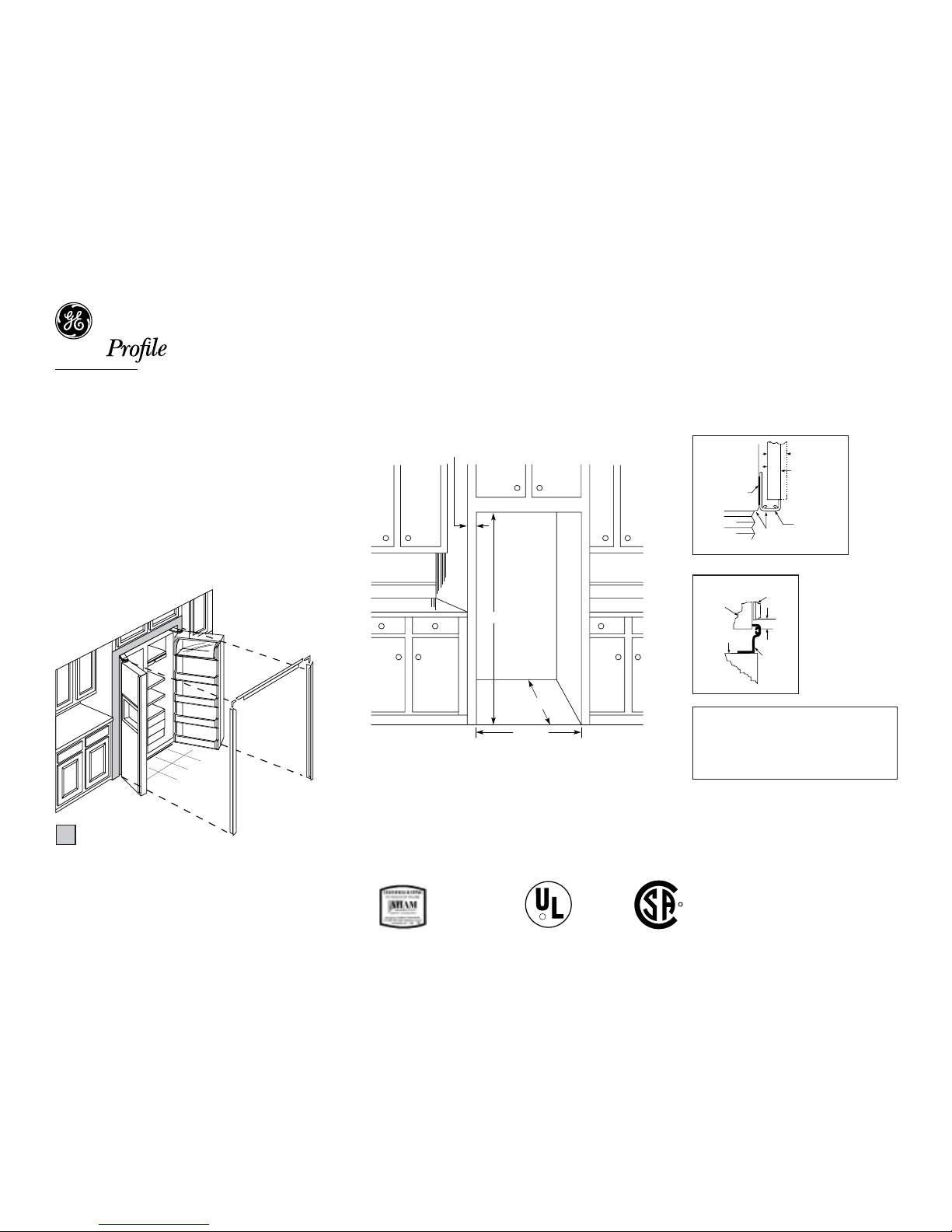

An enclosure is required to match up to the trim, see Typical

Installation. To obtain the most integrated look, the cabinet or soffit

above the refrigerator should extend out to the same depth as the

side panels. The refrigerator opening must have minimum dimensions

of 70-1/4" high x 36-1/8" wide x 24-1/2" deep as shown at right. If

there is an overhead cabinet, allow 1" for cabinet door clearance

with the top trim piece so the cabinet doors can be opened without

hitting the top trim. If 1/2" side panels are used, then side trim and

panel will be even. If 3/4" side panels are used, then some of the

side panel will extend beyond the trim and must be finished.

Collar Trim Installation

Typical Installation

Shaded areas represent front surfaces of

side panels and overhead cabinet or soffit that contacts trim.

Overhead

Cabinet

Door

Top Trim

Case

Magnetic

Tape

3/4" Cabinet

Side Panel

1/2" Cabinet

Side Panel

Side trim must be installed

flush with the gasket contact

surface on the case.

Refrigerator

Case

Side TrimDoor Gasket

IMPORTANT: Before finalizing specifications for your

GE Profile CustomStyle Refrigerator, please NOTE:

• A minimum of 36-1/8" is required for refrigerator

installation with collar

• Be sure to allow for 1/2" or 3/4" side panels in

addition to the 36-1/8" minimum

70-1/4"*

36-1/8"

24-1/2"*

1/2" minimum

*The rough-in dimension of 70-1/4" is minimum and is measured from the

finished floor to top of opening (or the underside of the overhead cabinets).

For Models with Trim Kit: If frameless style cabinets are planned for above the

refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to

height of opening to allow additional clearance between cabinet doors and

top of refrigerator trim when cabinet doors are in open position.

Specification Created 2/03

Total volume and shelf

area are calculated by the

Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

PSI23MGP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

Order your own custom wood panels to match cabinetry or other decor.

Panels up to 1/4" thick will fit door frame with no special preparation.

Add filler behind material thinner than 1/4" for proper fit.

Weight Limits: Total weight of panels (i.e., both freezer panels)—

Fresh Food = 38 lbs., Freezer = 28 lbs.

Note: Panels up to 3/4" will require special routing area around handles.

Dimensions may vary depending on depth of panel.

(Fresh Food panel shown)

Notch required at top

corner as noted.

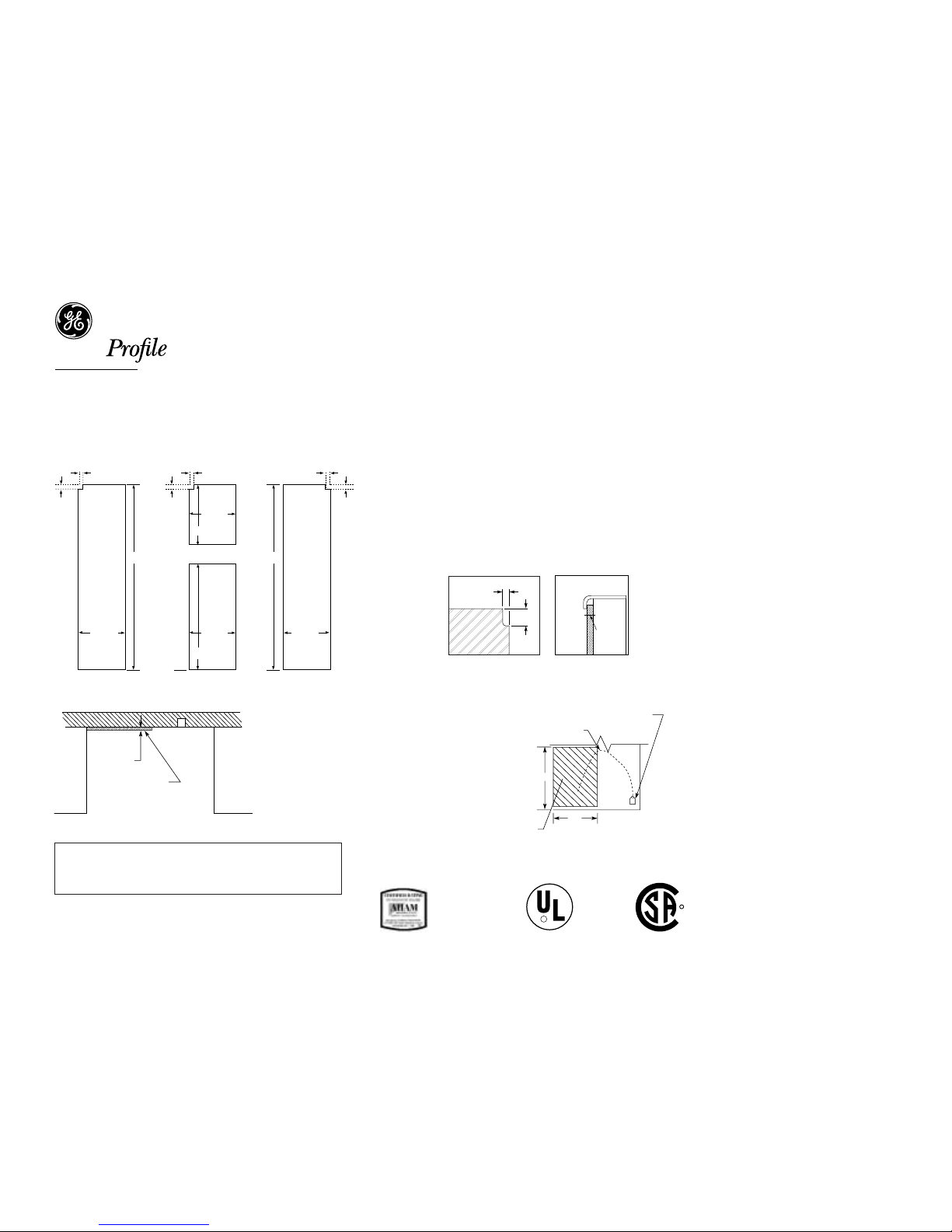

Door Panel Dimensions

IMPORTANT: Before finalizing specifications for your GE Profile CustomStyle

Refrigerator, please NOTE:

• A minimum of 36" is required for refrigerator installation

• Be sure to allow for 1/2" or 3/4" side panels in addition to the 36" minimum

Cut

out

1/8 1/8

14-15/32 14-15/32

14-15/32

33-5/8

17-7/8

19-15/32

5/16

Cut

out

Cut

out 1/8

5/16 5/16

FRONT

67-9/32 67-9/32

FRONT FRONT

Detail C

5/16"

1/8"

1/4" Max.

Panels 1/4" thick

or less

Recommended water line

location using recess

in rear wall

Recommended single loop

of 1/4" copper water line

Water hook-up

on the refrigerator

Rear Wall View

18"

24"

Allow 48" minimum water

line to enable refrigerator

to be pulled forward

Installation of Water Outlets

Alternate

water

line location

through floor

1/2"

Top View

Freezer Panel

without Dispenser

Freezer Panel

with Dispenser

Fresh Food

Panel

Specification Created 2/03

Total volume and shelf

area are calculated by the

Association of Home

Appliance Manufacturers’

standards.

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

PSI23MGP – GE Profile Arctica™22.7 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser

WATER

CRUSHED

CUBED

RESETWATERFILTER

HOLD3SECS

QUICKICE

LIGHT

DOORALARM

LOCKCONTROL

HOLD3SECS

Features and Benefits

• CustomStyle™Configuration – CustomStyle™design – Offers a built-in look without the

built-in expense.

• ClimateKeeper™Temperature Management System – Best temperature management system

you can buy!

• Upfront, Electronic Touch Temperature Controls – Extremely precise and easy to set.

•Integrated Ice™System – Frees up valuable freezer space. It tilts down, providing easy access

to bulk ice.

• In-the-Door Beverage Rack – Conveniently located to increase flexibility and free up valuable

shelf space.

• Tall LightTouch! Dispenser – Provides chilled water, cubed ice or crushed ice at the

slightest touch.

• Integrated Shelf Support System – Provides strong, yet flexible support.

•Model PSI23MGPWW – White on white

•Model PSI23MGPCC – Bisque on bisque

•Model PSI23MGPBB – Black on black

Specification Created 2/03
