PSC23SGN—GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Created 11/01
TM

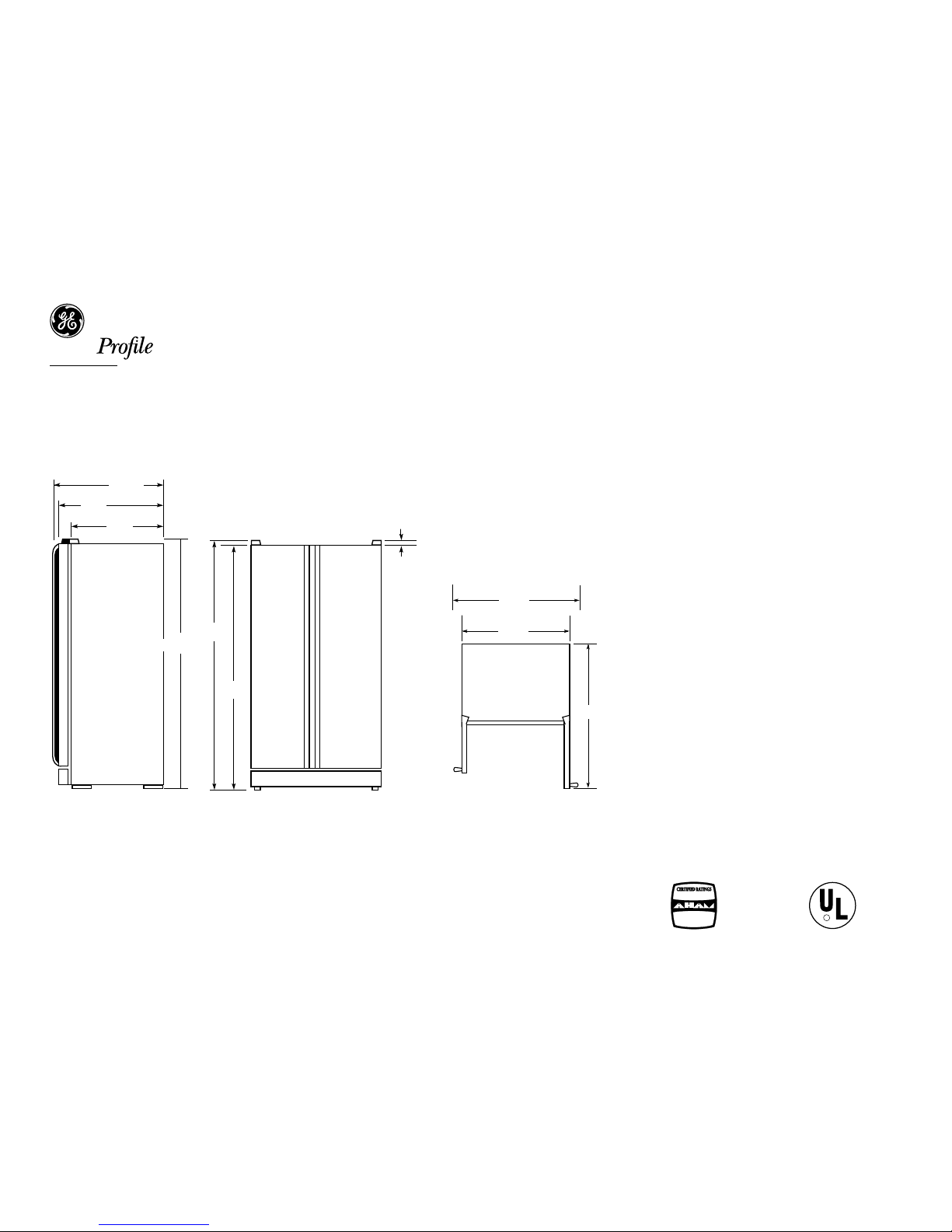

Case Dimensions (in inches/cm.)
1''
(2.54 cm.)
A
B
C
F
D
E
Side View Front View
69-1/4
68-3/4
29-3/16
26-3/4
23-7/8
69-1/4
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
I
H
G
J
Top View
35-3/4
45-9/16
38-3/16
For answers to your Monogram,
®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.
PSC23SGN—GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
Specification Created 11/01
TM
Manufacturer Certified to
ASSOCIATION OF HOME
APPLIANCE MANUFACTURERS
ANSI/AHAN HRF-1-1979
VOLUME and
SHELF AREA
R
Total volume and shelf
area are calculated by the
Association of Home
Appliance Manufacturers’
standards.
Listed by
Underwriters
Laboratories
For answers to your Monogram,
®GE Profile™or
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center®service, 800.626.2000.

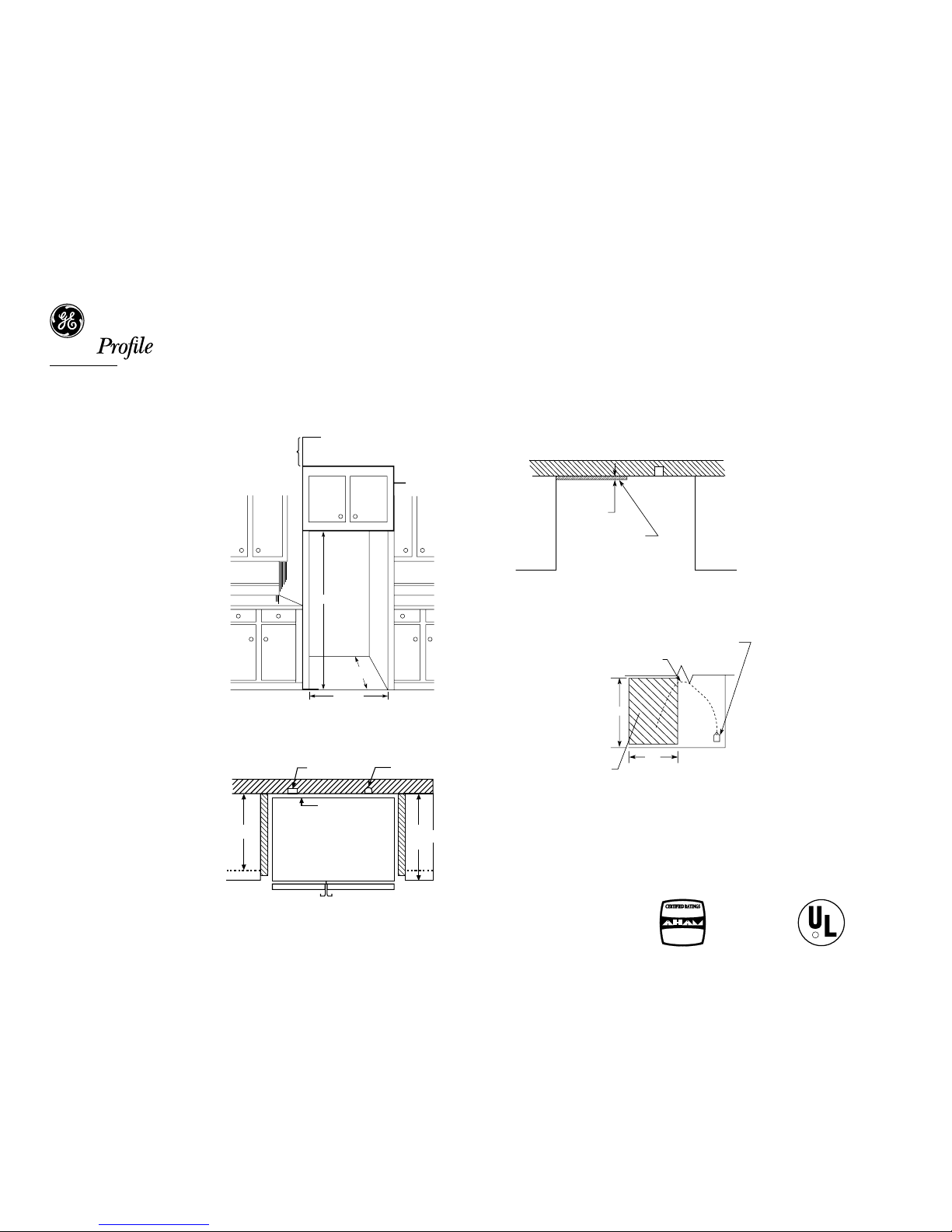

Standard, New Construction
and Replacement Installation
Rough-In Dimensions
• All wall/floor molding should
be removed prior to installation.
• Water recess on rear wall
recommended to prevent water line
damage. 48" minimum length
1/4" diameter water line tubing
recommended.
• When possible, recess both copper
water line and electrical outlet.
(See local codes)
• Front and rear leveling legs are
adjustable for the built-in look.
(See owner’s manual)
• If optional collar trim kit is to
be used or anticipated, see collar
trim installation on next page for
different rough-in dimensions.
8' Ceiling
13" to 14"
Cabinet
12"
Soffit
70-1/4"*
36-1/8"
24-1/2"
*The rough-in dimension of 70-1/4" is minimum and is measured from the
finished floor to top of opening (or the underside of the overhead cabinets).
For Models with Trim Kit: If frameless style cabinets are planned for above the
refrigerator, you may need to consider adding a maximum of 1/4" (70-1/2") to
height of opening to allow additional clearance between cabinet doors and
top of refrigerator trim when cabinet doors are in open position.
25"
Counter
Top
Electrical Water
3/4" Airspace
(1/2" Gap + 1/4"
Wall Plates)
24"
Cabinet
Installation of Water and Electrical Outlets
Alternate
water
line location
through floor
1/2"
Top View
Recommended water line
location using recess
in rear wall
Recommended single loop
of 1/4" copper water line
Water hook-up
on the refrigerator
Rear Wall View
18"
24"
Allow 48" minimum water
line to enable refrigerator
to be pulled forward
TM
Specification Created 11/01
PSC23SGN—GE Profile Arctica™22.6 Cu. Ft. CustomStyle™Side-by-Side Refrigerator with Dispenser
WATER
CRUSHED
CUBED
RESETWATER FILTER
HOLD3SECS
LIGHT
DOORALARM
LOCKCONTROL
HOLD3SECS
QUICKICE
Profile
Arctica
Features and Benefits
•22.6 cu. ft. Capacity (Fresh Food 14.4 cu ft / Freezer 8.24 cu ft)
•CustomCool™Technology
•ClimateKeeper™System
•Digital Temperature Display
•Upfront Electronic Touch Temperature Control
•TurboCool™Setting
•SmartWater™Plus Provides Cleaner, Better Tasting Water and
Ice through the LightTouch! Dispenser
•Integrated Shelf Support System
•Full-extension Slide ‘N Store™Freezer Baskets (1 Plus)
•FrostGuard™Technology
•Quick Ice™Setting
•Door Alarm
•Child Lock
•3 Wire Tilt-Out Storage Bins (2 Adjustable)
•Tri-Level Lighting
•5 ClearLook™Modular Fresh Food Door Shelves (4 Adjustable)
•QuickSpace™Shelf
•3 Adjustable Glass Fresh Food Cabinet Shelves (2 Slide-Out, Spill-Proof)
•Electronic Icemaker
•Premium Quiet Design
•Model PSC23SGNBS–Stainless steel
