GE GDSL0KCXLS Manual de usuario

TOOLS YOU WILL NEED

Thin-blade Screwdriver

Installation

Reversing the

Instructions

Door Swing

(Single Door Refrigerator Mo els only)

Questions? Call 800.GE.CARES (800.432.2737) or Visit our Website at: ge.com

In Cana a, call 1.800.561.3344 or Visit our Website at: www.geappliances.ca

1200D9512P002 31-46127 01-08 JR

IMPORTANT NOTES

When reversing the door swing:

NOTE: Door swing is not reversible on stainless steel

models.

•Read the instructions all the way through before

starting.

•Parts are included in the door hinge kit.

•andle parts carefully to avoid scratching paint.

•Set screws down by their related parts to avoid

using them in the wrong places.

•Provide a non-scratching work surface for the doors.

IMPORTANT: Once you begin, do not move the cabinet

until door-swing reversal is completed.

These instructions are for changing the hinges from the

right side to the left side—if you ever want to change

the hinges back to the right side, follow these same

instructions and reverse all references to left and right.

•

Once door swing is finalized, ensure the logo badge is

properly aligned and permanently secured to the door

by removing the adhesive cover on the back side.

NOTE: A replacement logo badge is included

in the hinge kit.

Unplug the refrigerator from its electrical outlet.

Empty all oor shelves, inclu ing the airy

compartment.

Masking Tape

Adjustable Wrench 5/16″ Socket

Ratchet/Driver

Phillips Screwdriver

Torx T-20 Driver

REMOVE THE REFRIGERATOR DOOR

Tape the door shut with masking tape.

Remove the hinge cover on top of the

refrigerator door by carefully prying it

up with a putty knife, if necessary.

Using a 5/16″socket ratchet/driver, remove

the bolts securing the top hinge to the cabinet.

Then lift the hinge straight up to free the hinge

pin from the socket in the top of the door.

Carefully remove the door thimble from inside

the socket. This will be used again when

reinstalling the door on the other side.

inge Cover

Top inge

Door Thimble

TRANSFER CENTER HINGE BRACKET

Using a 5/16″socket ratchet/driver, remove the

bolts securing the center hinge to the cabinet.

Transfer the plug button and screw hole cover in

the hinge holes on the left side to the right side.

Install the new center hinge bracket from the

kit on the left side.

Installation Instructions

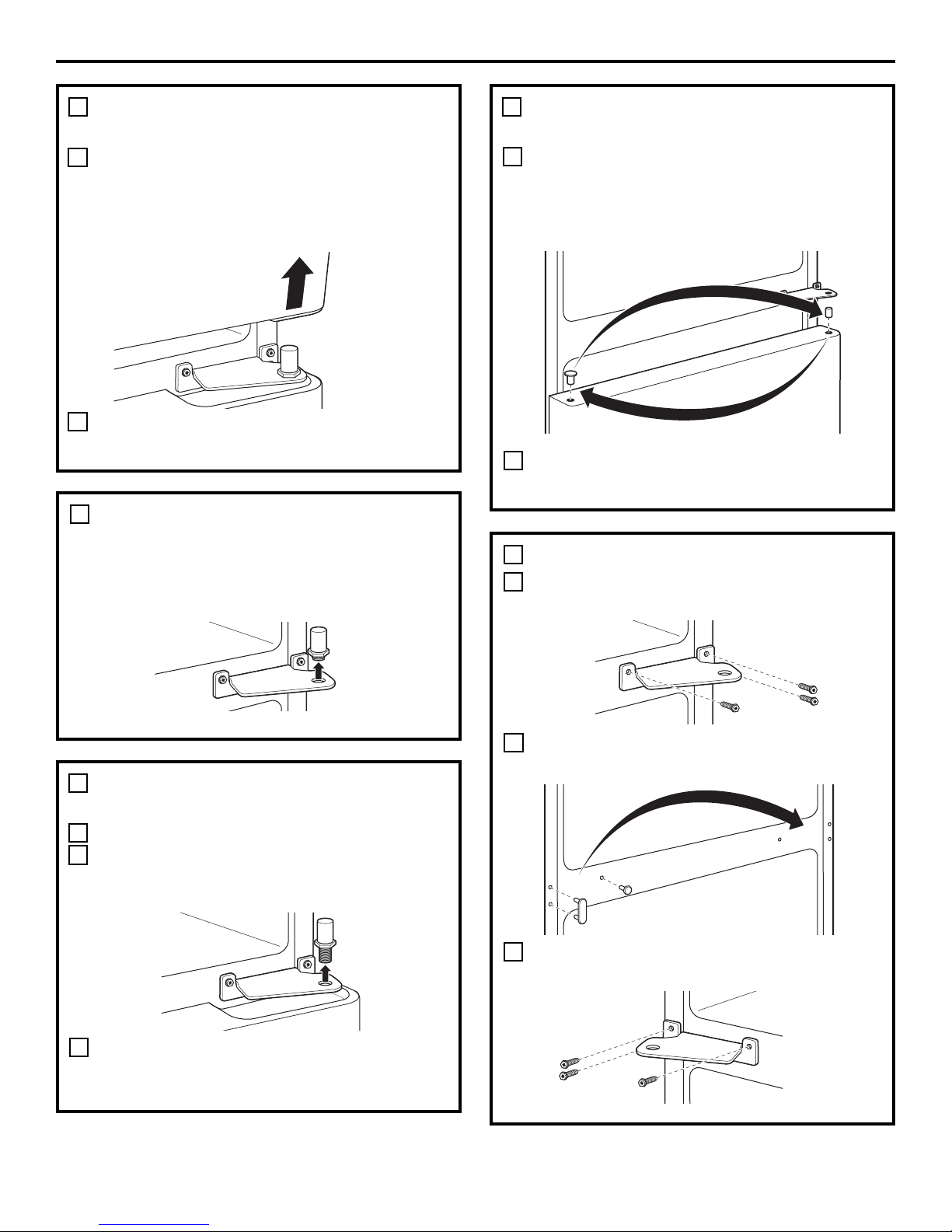

REMOVE THE REFRIGERATOR

DOOR (cont.)

Remove the tape and tilt the door away from

the cabinet. Lift the door off the center hinge

pin. Ensure that the plastic hinge pin thimble

remains on the hinge pin or inside door hinge

pin hole located in the bottom of the door.

Set the door on a non-scratching surface with

the inside up.

REMOVE CENTER HINGE

(For mo els without freezer oor)

Remove the hinge pin from the hinge bracket.

The hinge pin will be used again with the new

hinge bracket for the other side.

REMOVE THE FREEZER DOOR

(For mo els with freezer oor)

Tape the door shut with masking tape.

Remove hinge pin from hinge bracket. This will

be used again with the new hinge bracket for

the other side.

Remove the tape and tilt the door away from

the cabinet. Lift the door off the bottom hinge

pin.

REMOVE THE FREEZER DOOR

(For mo els with freezer oor) (cont.)

Remove the button plug from the left side of

the door. Remove the door thimble from the

right side of the door. Install the door thimble

into the hole on the left and the button plug

into the hole on the right.

Set the door on a non-scratching surface, with

the inside up.

INSTALL CENTER HINGE PIN

(For mo els without freezer oor)

Install the hinge pin into the new hinge bracket.

Installation Instructions

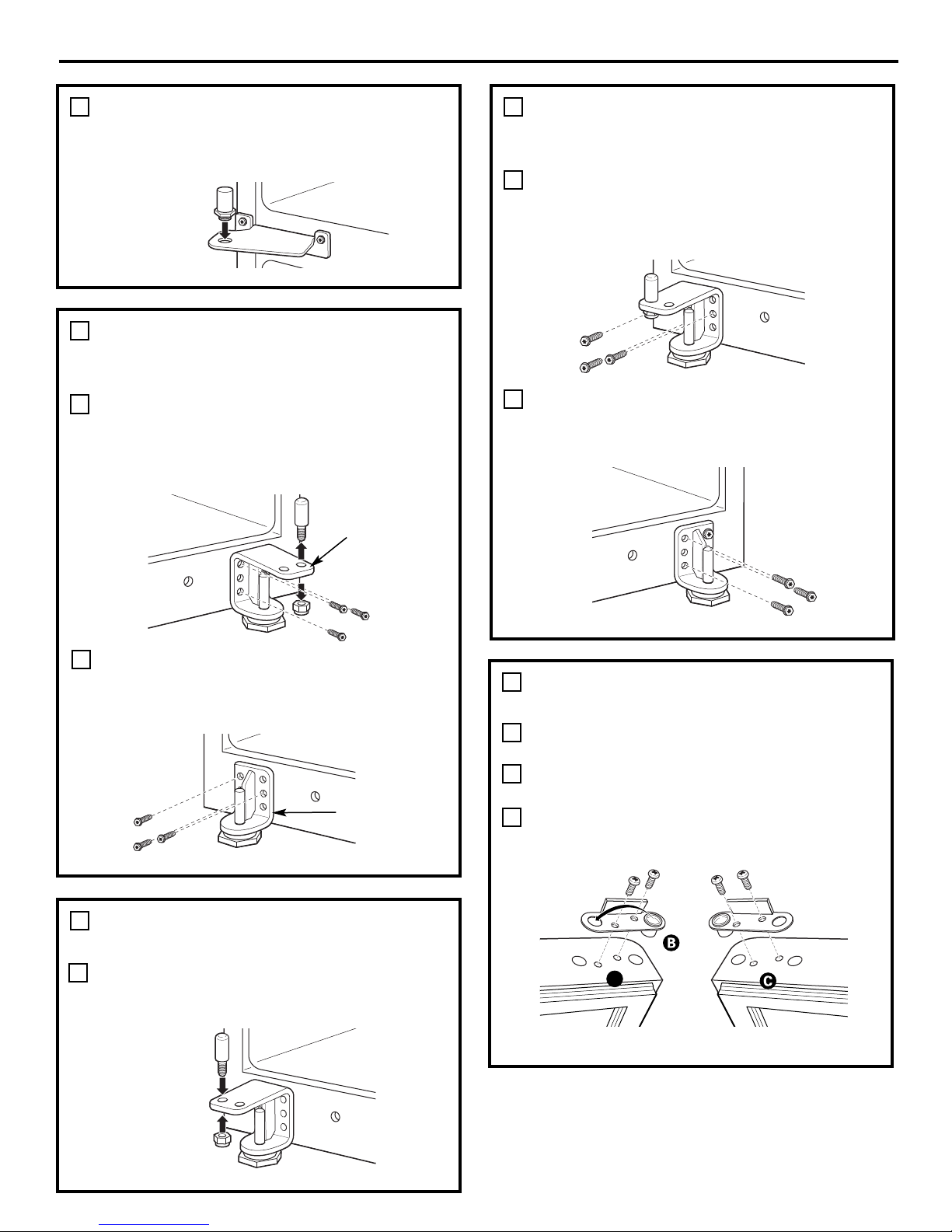

REMOVE BOTTOM HINGE AND

LEVELING LEG (For mo els with

freezer oor)

Using a 1/2″socket ratchet/driver, remove the nut

and hinge pin from the hinge bracket with leveling

leg. Using a 5/16″socket ratchet/driver, remove

the screws from the bottom hinge bracket. These

will be reinstalled on the other side.

Using a 5/16″socket ratchet/driver, remove

the screws from the leveling leg bracket on

the other side. These will be reinstalled on the

opposite side.

Bottom inge

Bracket

Leveling Leg

Bracket

INSTALL BOTTOM HINGE AND

LEVELING LEG (For mo els with

freezer oor) (cont.)

Using a 5/16″socket ratchet/driver, install the

hinge bracket with leveling leg on the left side

of the refrigerator. The pin will be toward the

outside of the refrigerator.

Using a 5/16″socket ratchet/driver, install the

leveling leg bracket on the right side of the

refrigerator.

INSTALL BOTTOM HINGE AND LEVELING

LEG (For mo els with freezer oor)

Using a 1/2″socket ratchet/driver, install the

hinge pin and nut in the opposite hole on the

hinge bracket with leveling leg.

TRANSFER REFRIGERATOR AND FREEZER

DOOR STOPS

Remove the door stop on right side of the bottom

of the door by removing the two screws.

Move the plastic hinge hole thimble to the

opposite hole.

Install the door stop on the left side, making

sure to line up the screw holes in the door stop

with the holes in the bottom of the door.

Bottom of Door (Right Side) Bottom of Door (Left Side)

REHANG REFRIGERATOR DOOR (cont.)

Insert the door thimble into the hinge hole

on top of the refrigerator door and then

insert the top hinge pin. Make sure the door

is aligned with the cabinet. Attach the hinge

to the top of the cabinet loosely with the bolts.

Make sure the gasket on the door is flush

against the cabinet and is not folded. Support

the door on the handle side and make sure the

door is straight and the gap between the doors

is even across the front. While holding the door

in place, tighten the top hinge bolts. Replace

the hinge cover.

Installation Instructions

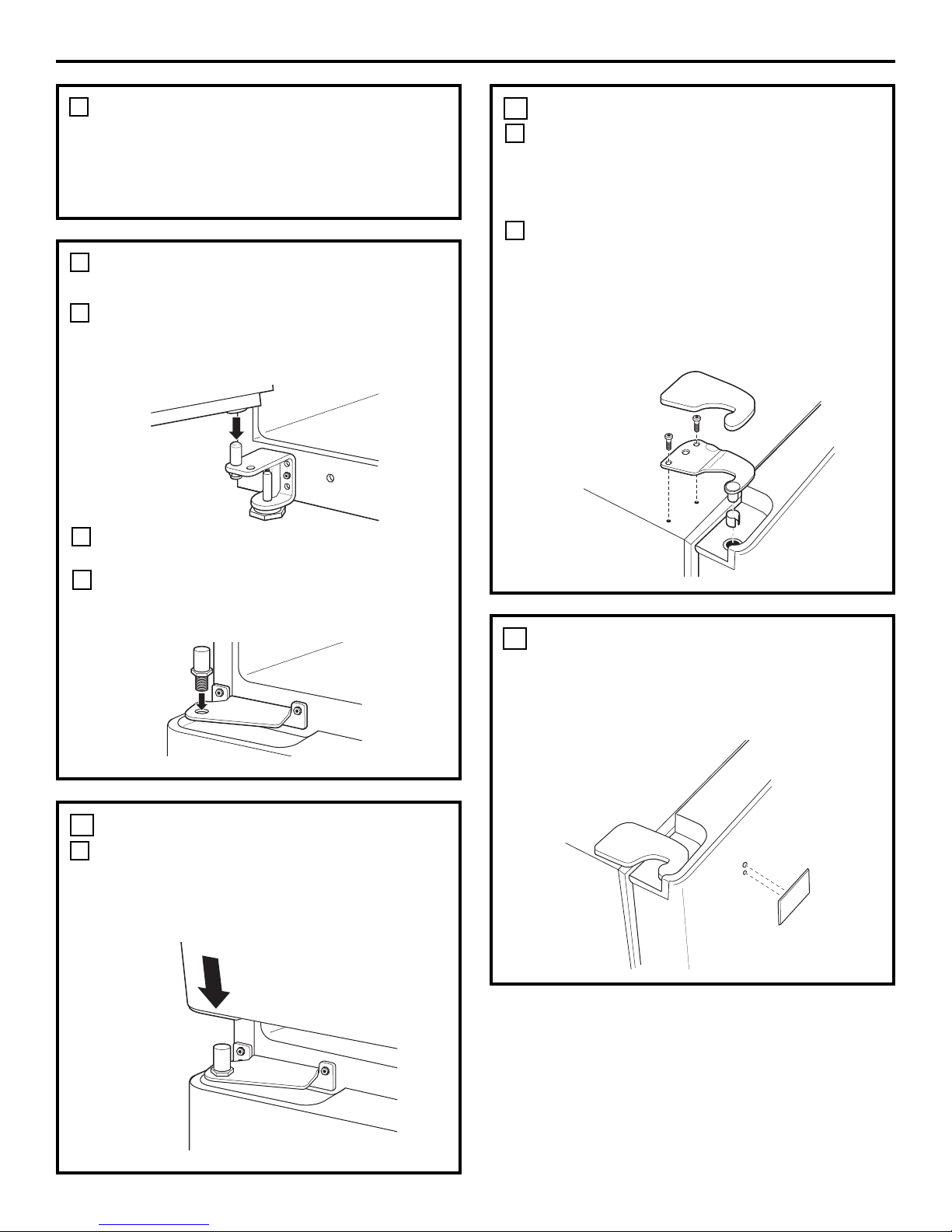

REHANG FREEZER DOOR (For mo els

with freezer oor)

Lower the freezer door onto the bottom hinge pin.

Ensure that the plastic hinge pin thimble is on the

hinge pin or inside the door hinge pin hole located

in the bottom of the door.

Straighten the door and line it up with the

center hinge bracket.

Install the center hinge pin with a 3/4″socket

ratchet/driver. Turn it until it extends through

the hinge bracket and into the freezer door.

REHANG REFRIGERATOR DOOR

Lower the refrigerator door onto the center

hinge pin. Ensure that the plastic hinge pin

thimble is on the center hinge pin or inside

door hinge pin hole located in the bottom

of the door.

INSTALL THE LOGO BADGE

Remove the adhesive backing paper and align

the pins on the back of the badge with the

holes in the door. Apply pressure to the badge

to ensure it sticks to the door.

TRANSFER REFRIGERATOR

DOOR HANDLE TO RIGHT

Refer to Remove the Fresh Food Door andle

and Attach the Fresh Food Door andle

sections for instructions.
