For answers to your Monogram,

® GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

Monogram.

™

Specification Created 7/01

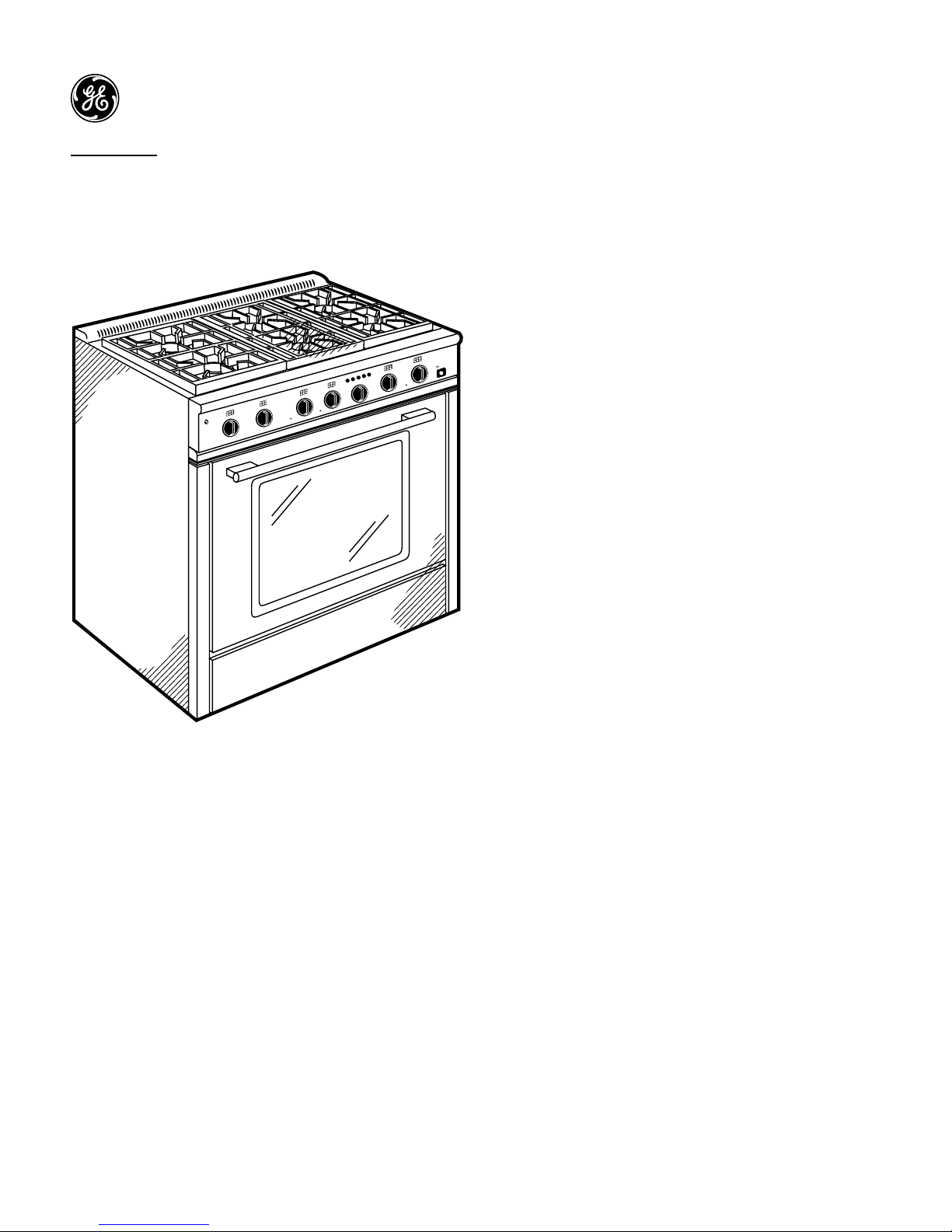

ZDP36L6DSS - GE Monogram 36" Professional Range with 6 Burners

Dimensions and Specifications (in inches)

These ranges are factory set for either natural gas or

liquid propane gas.

36" Natural Gas Model:

ZDP36N6WSS–6 gas burners

36" Liquid Propane Gas Model:

ZDP36L6WSS–6 gas burners, grill and griddle

Accessory Requirements:

All models require the installation of a backguard. A

backguard should be ordered at the same time as the

range. Both must be on site at the time of installation.

Order one backguard for 36" models:

ZX1B36WSS–1-1/2" high backguard

(required for island installations)

ZX12B36WSS–12" high backguard

ZX22B36WSS–22" high backguard with warming rack

(2 piece)

Important!

Please call for your exclusive

40-Point Inspection! 800.444.1845

Owners of Monogram™professional ranges enjoy the

additional benefit of a complimentary visit by a specially

trained technician. This includes temperature calibration

of each oven and cooktop element. This is Monogram’s

way of ensuring correct installation and precise operation

of your new professional range.

Our Preferred Service Specialists are always at

your service.

21-1/4"

12"

1-1/2"

35-1/4"-36-3/4"

28-1/4" 35-7/8"

Available Backguards

ZX22B36WSS

ZX12B36WSS

ZX1B36WSS

Listed by

Underwriters

Laboratories

For answers to your Monogram,

®GE Profile™or

GE appliance questions, visit our website at

GEAppliances.com or call

GE Answer Center®service, 800.626.2000.

Monogram.

™

Specification Created 7/01

ZDP36L6DSS - GE Monogram 36" Professional Range with 6 Burners

Dimensions and Specifications (in inches)

Advance Planning:

Refer to dimensional drawings for appropriate placement

and necessary clearances when planning

the installation.

•Cabinetry cannot be installed directly above the range.

•This range requires the installation of a vent hood,

30" to 36" above the surface.

–The vent hood must be at least 24" deep.

–The vent hood must be the same width as the range.

–The vent hood must provide at least 600 CFM and

up to 800 CFM.

–When installing a range that includes a grill, select a

blower on the high end of the CFM recommendation.

•Working areas adjacent to the range should have

18" minimum clearance between countertop and cabinet

bottom.

•Clearance between range and side wall or combustible

material must be at least 12" on each side.

If the range is installed in an island:

•Allow 12" min. clearance at the back to combustible

materials.

•Allow 36" min. above the cooking surface to

combustible materials.

•The vent hood must provide at least 600 CFM and

up to 1200 CFM.

•Installation must conform with local codes. In the

absence of local codes, the range must comply with

the National Fuel Gas Code, ANSI Z223.1-1990.

A.G.A. approved

Installation Information:

Before installing, consult installation instructions

(Pub. #49-8786) packed with product for current

dimensional data.

3/-1/4"

18" Min.

35-3/8" Max. for Counter Level

36-3/4" Max. with Range Leveling Legs Fully Extended

3/-1/2"

Gas Supply

Electrical Supply

Cooking Surface

13"

Max.

12"

36" Wide Range Hood

12" Min. to

Combustible

Material

Each Side

36" Min. to

Combustible

Material From

Cooking Surface

12"

Low Back

High

Shelf

29-1/16"

12"

3-1/4"

21-1/4"

12"

36" Min.

to Combustibles

28-1/4"

31-1/2"

45-5/8"

0" Clearance

Island Trim

1-1/2"

36" Min.

to Combustibles

0" Clearance

12" Min. to Combustibles

Without Backguard

Listed by

Underwriters

Laboratories

Monogram.

™

Specification Created 7/01

ZDP36L6DSS - GE Monogram 36" Professional Range with 6 Burners

Monogram

FRONT REAR FRONT REAR OVEN

FRONT REAR

OVEN

LIGHT

Features and Benefits

•Stainless Steel Model

•Liquid Propane Gas

•Six (15,000/500 BTU) Dual-Ring Gas Burners

•Cast-Iron, Porcelainized Burner Grates

•Stainless Steel, Slide-Out Drip Tray

•Electronic Ignition with Automatic Re-Ignition

•4.3 Cubic Foot Capacity Electric Convection Oven

•Self-Cleaning Oven

•Commercial-Style Controls

•10-Pass Bake Element and 8-Pass Broil Element

•Porcelain-Enameled Broiler Pan with

Chrome-Plated Grid

•3 Oven Racks

•Stainless Steel Door with Window

•Tubular Stainless Steel Handle

•Model ZDP36N6DSS—Natural Gas

•Model ZDP36L6DSS—Liquid Propane Gas
