Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

This device complies with Part 15 of the FCC Rules.

Operation is subject to the following two conditions: (1) This

device may not cause harmful interference, and (2) this

device must accept any interference received, including

interference that may cause undesired operation. This

Class [A] RFLD complies with the Canadian standard ICES-

003. Ce DEFR de la classe [ A ] est conforme à la NMB-003

du Canada.

Note: This equipment has been tested and found to comply

with the limits for a Class A digital device, pursuant to part

15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when

the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in

accordance with the instruction manual, may cause

harmful interference to radio communications. Operation

of this equipment in a residential area is likely to cause

harmful interference in which case the user will be required

to correct the interference at his own expense

• This luminaire is designed for outdoor lighting service, and

should not be used in areas of limited ventilation, or in high

ambient temperatures.

• Best results will be obtained if installed and maintained

according to the product’s installation instructions. Refer to

installation instructions if reinstalling after repair.

• Refer to product installation instructions and product

datasheet for specifications and installation details.

BEFORE YOU BEGIN

Read these instructions completely

and carefully. Save these instructions

for future use.

STOP

WARNING

Risk of electrical shock. Disconnect power before servicing

or installing product.

WARNING

Risk of injury or damage. Unit will fall if not installed properly.

Follow installation instructions.

CAUTION

Risk of injury. Wear safety glasses and gloves during

installation and servicing.

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

SAFETY:

Lighting maintenance and troubleshooting presents the possibility of exposure to high voltages and

should only be conducted by trained personnel. When performing any installation, inspection, or

maintenance, make sure power to fixture or equipment is turned off. If power is required for

testing, exercise caution to prevent risk of electric shock.

NOTICE:

GE disclaims any liability of injury or property damage resulting from the use of this trouble-

shooting guide.

Section 1: Light Engine(s) Out

Section 2: Day Burning

Section 3: Power Door Replacement (EASC)

Section 4: Power Door Replacement (EASA/EASB)

Table of Contents

General:

The EASA/EASB/EASC luminaires are fairly simple in construction and wiring. Major components are

the main housing, light engine (LED Board), and power door. The power door is designed to be field

replaceable. Any light engine is considered to not be failed until 10% or more of LEDs do not

operate. Typical troubleshooting details follow. EASx products may have one or two light engine

assemblies in the optical cavity and one or two drivers on the power door assembly.

Section 1: Light Engine(s) Out

1. Visually check operation of unit

2. If either the front or rear (asymmetric distributions)

or right or left (symmetric distributions) light

engine is not functioning do the following.

A. Disconnect and isolate fixture

from power source (lock out

incoming power to the pole).

B. Open power door by

loosening the captive screws.

*This is a typical representation of a right-left light engine orientation.

Orientation, LED count and optical components will vary according to light

distribution.

Left Light Engine

Right Light Engine

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 1: Light Engine(s) Out (continued)

Left Light Engine

Power Door

Captive

Screws

Captive

Screws

EASC Assembly

Power door in open position with major components identified.

Light Engine

Cables

Name plate

LED Drivers Wiring

Diagram

Terminal Board

LED Driver

input leads

Cables

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 1: Light Engine(s) Out (continued)

Once power and wiring doors are open check electrical connections in this order.

A. Make sure all incoming power leads are attached to the terminal board

B. Make sure leads from terminal board primary disconnect are seated

EASA/EASB Assembly

Power door in open position with major components identified.

*Actual shape and color of connectors may vary.

Driver

output to

light

engine

connectors

Light

Engine

Cables

Nameplate Surge

Protection

Device

Lead

connectors

to driver

input side

and surge

protection

device

LED

Drivers

Wiring

Diagram

Terminal

Board

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 1: Light Engine(s) Out (continued)

EASC Assembly View

*Actual shape and color of connectors may vary.

Incoming

leads to

fixture

Outgoing

leads to

fixture

Pull back gently

on leads. They should

not disengage

Pull back gently on leads.

They should not disengage

Primary disconnect

If all the connections check out and there is still a light engine out, there has been a driver failure.

In this case the power door must be replaced.

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 1: Light Engine(s) Out (continued)

C. Check leads from primary disconnect to drivers and surge protection device to ensure seated.

EASA/EASB Assembly View

*Actual shape and color of connectors may vary.

Pull back gently

on leads.

They should

not disengage

D. Check photo cell receptacle leads to ensure seated.

Pull back gently on leads.

They should not disengage.

Terminals have tab that

must be seated in groove

inside of receptacle.

E. Check quick connectors from drivers to light engine cables for loose leads.

Pull back

gently on

leads. They

should not

disengage.

Leads are held

in place by

locks.

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 2: Day-Burning

When the Fixture will not shut off at daybreak when using a photocell controller,

this is called a day burner.

1. Replace photocell controller with a new or known good Photocell.

A. Unit will power off when Photocell is removed.

B. Install and Test Function of new photocell by covering the window with

Electrical tape or a glove.

C. If Photocell was defective the fixture should come on now and shut off when the

covering is removed.

2. If Replacing the Photocell does not resolve the issue, check the wiring in the fixture from the

Photocell Receptacle

Pull back gently on leads.

They should not disengage.

Terminals have tab that

must be seated in groove

inside of receptacle.

Section 3: Power Door Replacement (EASC)

•Disconnect and isolate incoming power to the fixture.

•Cut and strip input leads to LED Driver at the connectors

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 3: Power Door Replacement (EASC) (continued)

•Cut and strip input leads to Light Engine disconnect at the connectors.

•Allow door to swing back and pivot and lift off of hinges

•To install new power door first verify that new power door is of the correct incoming voltage

and fixture wattage. Verify by checking name plate on right hand side of door against the

door just removed.

Hinge pivots

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 3: Power Door Replacement (EASC) (continued)

•Re-attach door in reverse order of removal.

•Match up colors of leads from new door with fixture leads and assemble with provided

quick connectors.

•Verify that all leads are in the correct place after rewiring. Check against wiring sticker

located on top of drivers.

Evolve™ LED Area Light

Scalable Fixtures (EAS)

Troubleshooting

and Repair Guide

Section 4: Power Door Replacement (EASA/EASB)

•Disconnect and isolate incoming power to the fixture.

•Separate both halves of the Primary disconnect.

•Separate both halves of the Light Engine disconnect.

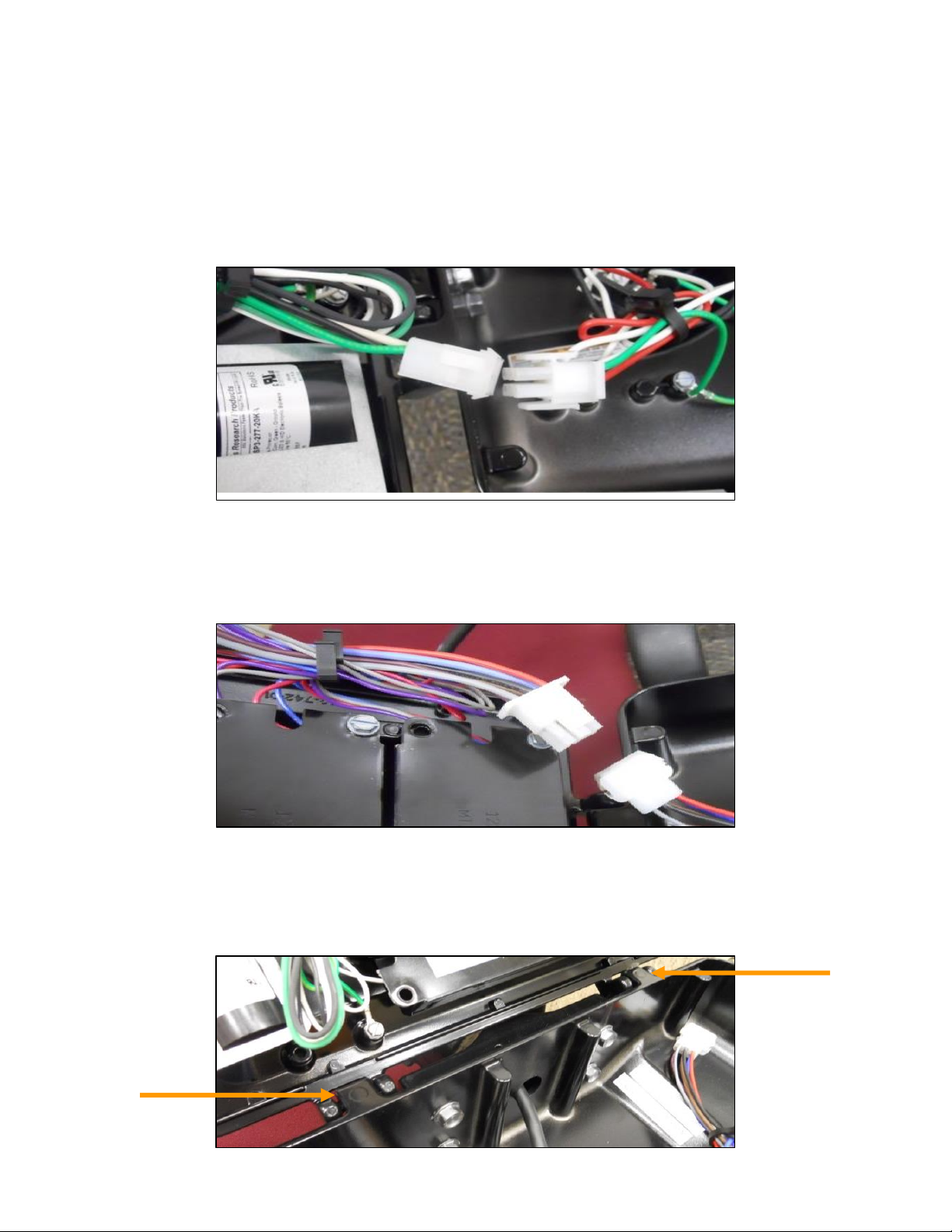

•Allow door to swing back and pivot, then lift off of hinges.

*Actual shape and color of connectors may vary.

Hinge

pivots

Hinge

pivots
