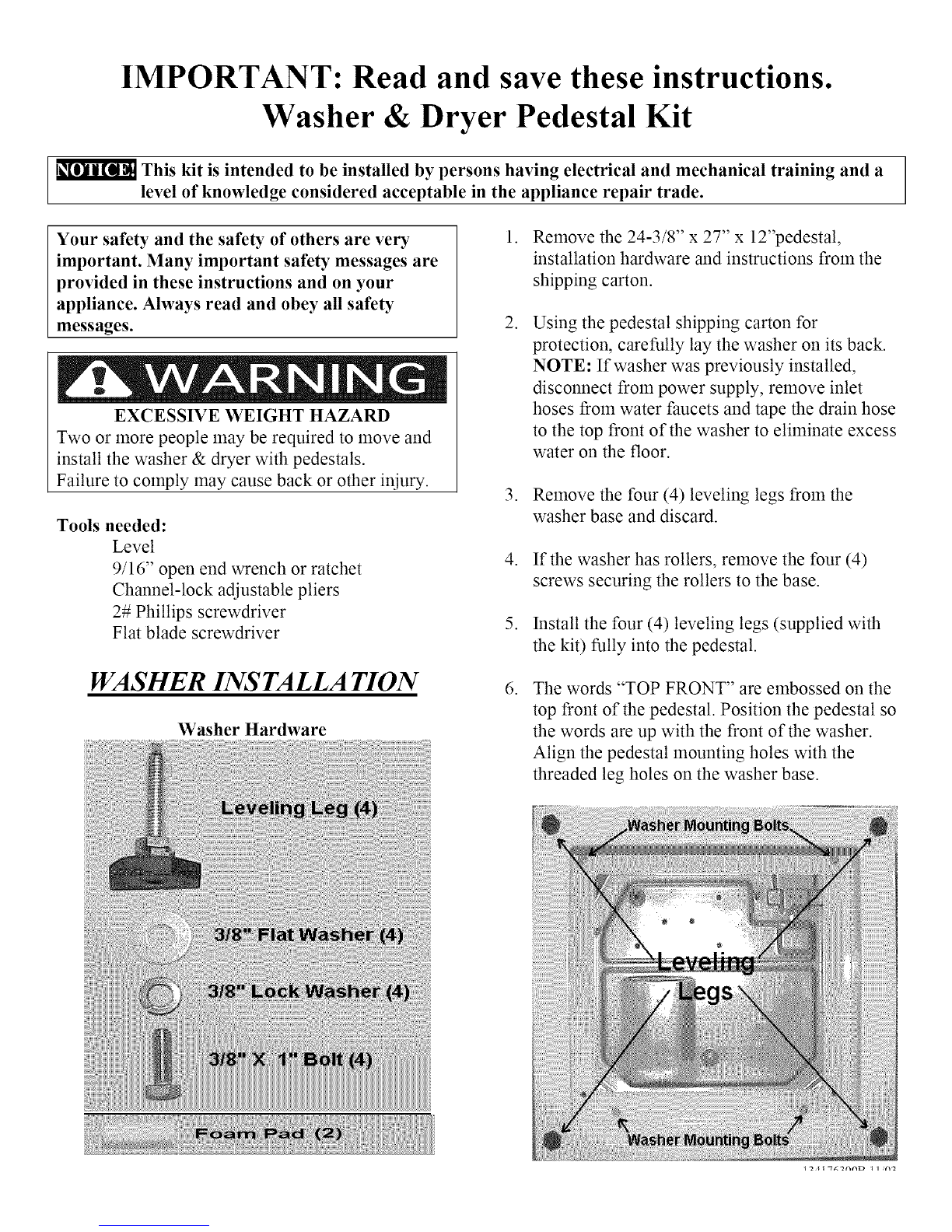

IMPORTANT: Read and save these instructions.
Washer & Dryer Pedestal Kit
This kit is intended to be installed by persons having electrical and mechanical training and a
level of knowledge considered acceptable in the appliance repair trade.
Your safety and the safety of others are very
important. Many important safety messages are
provided in these instructions and on your
appliance. Always read and obey all safety
messages.
EXCESSIVE WEIGHT HAZARD
Two or more people may be required to move and
install the washer & dryer with pedestals.
Failure to comply may cause back or other injury.
Tools needed:
Level
9/16" open end wrench or ratchet
Channel-lock adjustable pliers
2# Phillips screwdriver
Flat blade screwdriver
WASHER INSTALLATION
Washer Hardware
.
.
.
.
.
.
Remove the 24-3/8" x 27" x 12"pedestal,
installation hardware and instructions from the
shipping carton.
Using the pedestal shipping carton for
protection, carefully lay the washer on its back.
NOTE: If washer was previously installed,
disconnect from power supply, remove inlet
hoses from water faucets and tape the drain hose
to the top front of the washer to eliminate excess
water on the floor.
Remove the four (4) leveling legs from the
washer base and discard.
If the washer has rollers, remove the four (4)
screws securing the rollers to the base.
Install the four (4) leveling legs (supplied with
the kit) fully into the pedestal.
The words "TOP FRONT" are embossed on the
top front of the pedestal. Position the pedestal so
the words are up with the front of the washer.
Align the pedestal mounting holes with the
threaded leg holes on the washer base.
.Attach the pedestal to the washer using the four
(4) 3/8" X 1" bolts, 3/8" lock washers and 3/8"
flat washers. DO NOT TIGHTEN BOLTS
COMPLETELY!
8. Align the sides of the washer/dryer with the
pedestal and tighten the bolts with a 9/16"
wrench or ratchet.
9. Carefully raise the washer/pedestal assembly to
the upright position. NOTE: Because of the
increased weight caused by the addition of
the pedestal, two or more people may be
required.
NOTE: Disregard Steps 10 &11 if the washer
has an electronic console.
10. Remove the dispenser drawer by first sliding the
safety latch to the right, then pulling the drawer
out until it stops. Reach back into the left corner
of the drawer cavity, press down firmly on the
lock tab (left portion of the drawer) and pull out
the drawer.
11. Remove the paper backing from the foam pads
and apply to the areas shown below. NOTE:
The adhesive backing must be applied to the
rear surface of the drawer area. Replace the
dispenser drawer.
12. Refer to the installation instructions that came
with the washer to properly complete water,
drain and electrical connections. NOTE: Since
the pedestal will increase the washer height 12
inches, the minimum standpipe height will
increase from 24 inches to 36 inches. If
questions arise, please refer to the owner's
manual that came with the washer for contact
information.
NOTE: The washer/pedestal assembly MUST
be on a solid floor and level for proper
operation. Turn the lock nut on each leveling leg
up towards the pedestal base and snug with a
wrench. Keep the leg extension at a minimum to
prevent excessive vibration.
DR YER INS TALLA TION
cer Hardware
.
.
Remove the pedestal, installation hardware and
instructions from the shipping carton.
Using the pedestal shipping carton for
protection, carefully lay the dryer on it's back
and remove the four (4) leveling legs from the
dryer base.
.Insert the flat blade screwdriver in the slots
between the front panel & base. Pry downward
to remove the hole plugs located in the bottom
of the dryer front panel.
.Position the dryer on top of the pedestal. Slide
the back of the dryer into the rear mounting
brackets and then slide the front of the dryer
onto the pedestal and bracket. NOTE: Two or
more people may be required.
.
.
Install the four (4) leveling legs (supplied with
the kit) fully into the pedestal.
The words "TOP FRONT" are embossed on the
top front of the pedestal. Using four (4) 8-18 x
3/8" self-tapping screws (supplied with the kit),
attach the front mounting brackets to the top
front of the pedestal. Tighten securely.
.Insert the two (2) 10-16 x 1" screws (supplied
with the kit) through the holes in the dryer front
panel and install into the front mounting
brackets. Tighten securely
.Using four (4) 8-18 x 3/8" self-tapping screws
(supplied with the kit), attach the rear mounting
brackets to the rear of the pedestal. Tighten
securely.
.
10.
Reinstall the hole plugs removed in step 2.
Refer to the installation instructions that came
with the dryer to properly complete electrical
and venting connections. If questions arise,
please refer to the owner's manual that came
with the dryer for contact information.
NOTE: The dryer/pedestal assembly MUST be
on a solid floor and level for proper operation.
Turn the lock nut on each leveling leg up
towards the pedestal base and snug with a
wrench. Keep the leg extension at a minimum to
prevent excessive vibration.
WARRANTY
Full One Year Warranty on Mechanical Parts
For one year from date of purchase, when this pedestal is installed with the listed washer or dryer (see
owners manual for specific model) and operated according to the information in the Use and Care Guide,
Operating Instructions and Installation Instructions, the supplier will replace any of its mechanical parts if
they are defective in workmanship or material. Keep your bill of sale. The date of the bill establishes the
warranty period should parts be required. This written warranty gives you specific rights. You may also
have other rights which vary from state to state.
Warranty Restriction
If the pedestal is used for any other purpose than private family use or used with any product that requires
modification for installation, the warranty is null and void.
Warranty Parts
Warranty parts are available by contacting the supplier where the pedestal was purchased or refer to the Use
and Care Guide that came with the washer or dryer that is installed on the pedestal for contact inforlnation.
