GE Monogram ZIF360NX Manual
For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at ge.com or call GE Answer Center®service,
800.626.2000.
110153
Specification Created 6/08
ZIF360NX

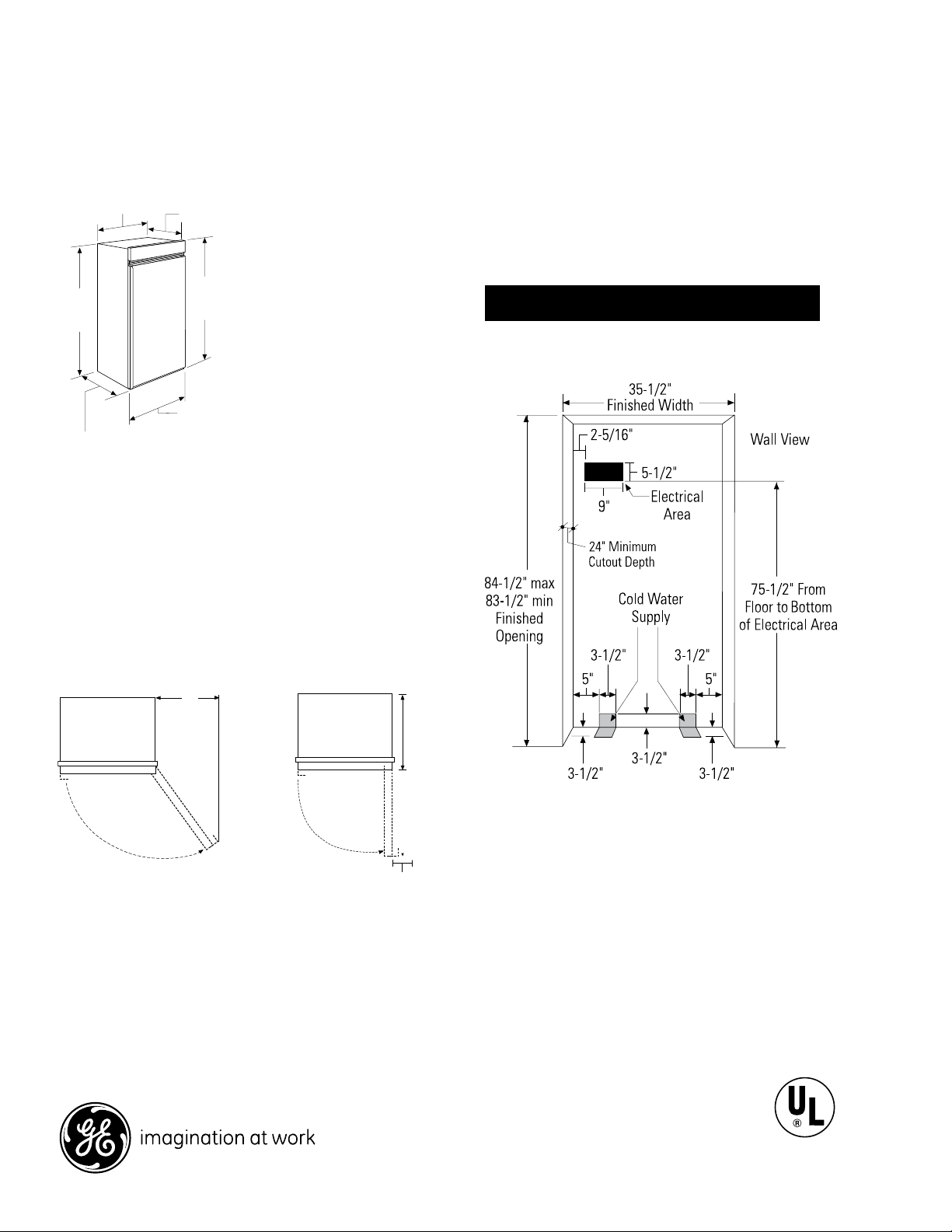

GE Monogram® 36" Built-In Custom All-Freezer
Dimensions and Installation Information
Listed by
Underwriters
Laboratories
ZIF360NXRH, Freezer
Handle on the left side, the door swings left to right.
ZIF360NXLH, Freezer
Handle on the right side, the door swings right to left.
Caution
*Shipping height. The freezer can be adjusted to fit into
a cutout 83-1/2" min. to 84-1/2" max. height. Note: the
top case trim at the front is 1/2" higher and will overlap
upper cabinetry or soffit. Use leveling legs and wheels for a
maximum 1" height adjustment.
The water and electrical supply must be located as shown.
The finished cutout width must be 35-1/2".
Note: The case trim overlaps cabinets at the top and
sides. Frameless cabinets may require filler strips to
prevent interference with cabinet door swing. The opening
width must allow for filler strips.
36" Frame to
Frame Width
*84" From
Floor to
Top Frame
35"
Case Width
*83-1/2"
at
Rear
25-3/8" Framed Models
Case Depth
Depth Including Handles:
26-7/8" Framed Models
Product Clearances
These units are equipped with a 2-position door stop. The fac-
tory set 130˚ door swing can be adjusted to 90˚ if clearance
to adjacent cabinets or walls is restricted. Order WX14X99
door stop for precise settings between 90˚and 130˚.
251Dia59
25"
Minimum
to Wall
130ϒDoor Swing
36-3/4"
23-7/8"
Behind Frame
251Dia60
4" Min.
to Wall
90ϒDoor Swing
Allow 25" minimum clearance for a full 130˚ door swing.
Allow 15" for pan removal. for a 90˚ door swing, allow 4"
minimum clearance for professional models. If the 90˚
doorstop position is used, pan access is maintained but
pan removal is restricted.
These units are top-heavy and must be secured to prevent the
possibility of tipping forward. Anti-Tip protection is required.
For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at ge.com or call GE Answer Center®service,
800.626.2000.
110153
Specification Created 6/08
ZIF360NX
GE Monogram® 36" Built-In Custom All-Freezer
Dimensions and Installation Information
Listed by
Underwriters
Laboratories

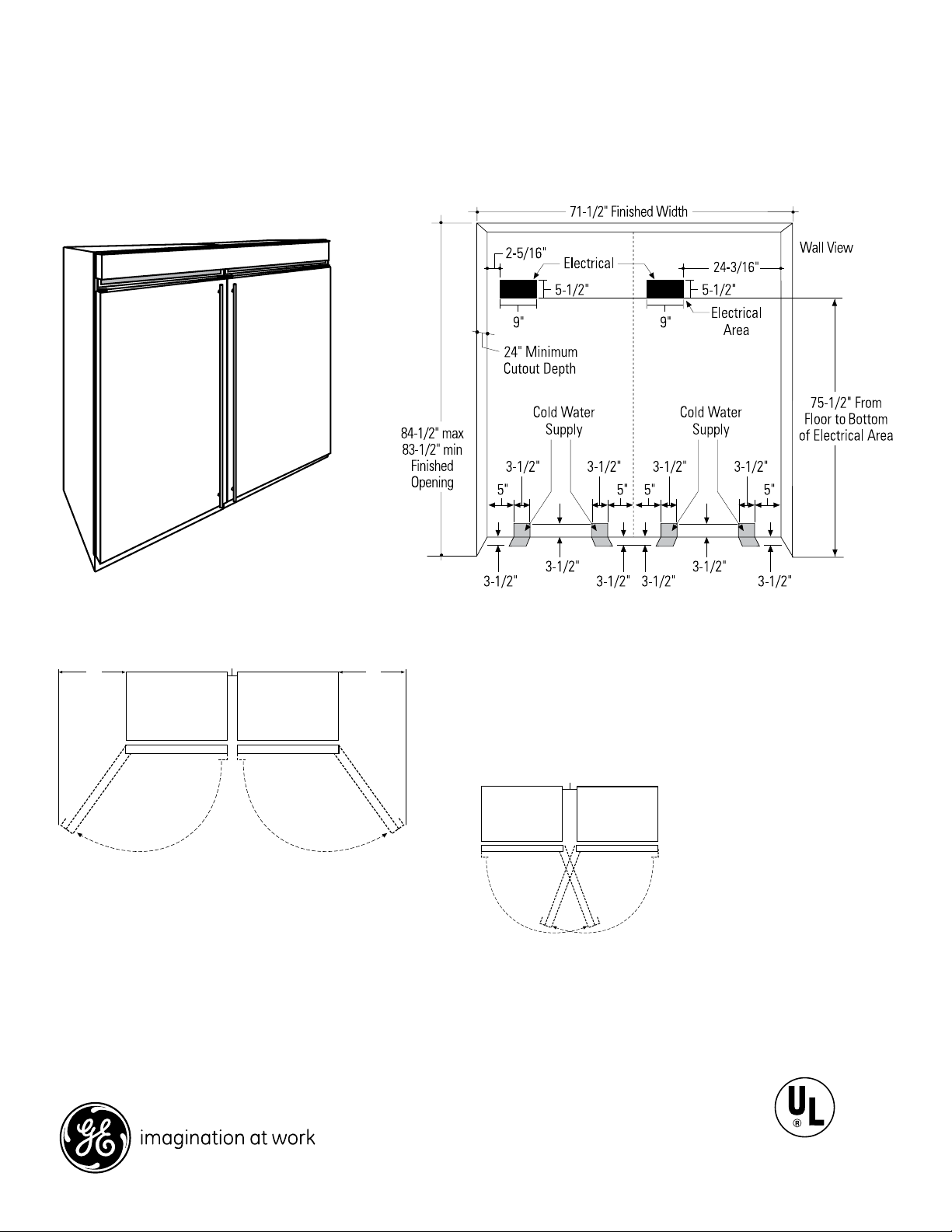

Cutout and Clearances for Multiple Product Installations
For a complete food storage center, install a Monogram
All-Refrigerator and All Freezer side-by-side. For even
more capacity, install two refrigerators or two freezers. If you are installing two units, side by side, the installation
space must be 71-1/2" wide. Additional cutout width may be
required when side panels are used. Add side panel thickness
to the finished cutout to calculate rough-in width.
• The water and electrical locations for each product must be
located as shown.
• A separate 115V, 60Hz., 15 or 20 amp power supply is
recommended for each product.
251Dia35
251Dia61
25"
Min. to
Wall
0" 25"
Min. to
Wall
130ϒDoor Swing 130ϒDoor Swing
Clearances for two products installed side-by-side with
right and left side hinges together
Allow 5" minimum between the two products to prevent
one door from striking the other. Use the WX14X99
adjustable door stop to reduce the factory set 130˚ door
swing and to allow pan removal. NOTE: A unified grille
panel kit will NOT fit this installation.
Clearances for Multiple Single Door Installations
In a side-by-side installation of a left and right door swing
product, the inside trims touch at the front, with a 1" clearance
between the units at the rear. Order ZUG2 Unified Grille Panel
Kit for one continuous grille panel using a 1/4" framed or 3/4"
overlay custom panel.
5"
For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at ge.com or call GE Answer Center®service,
800.626.2000.
110153
Specification Created 6/08
ZIF360NX
GE Monogram® 36" Built-In Custom All-Freezer
Dimensions and Installation Information
Listed by
Underwriters
Laboratories

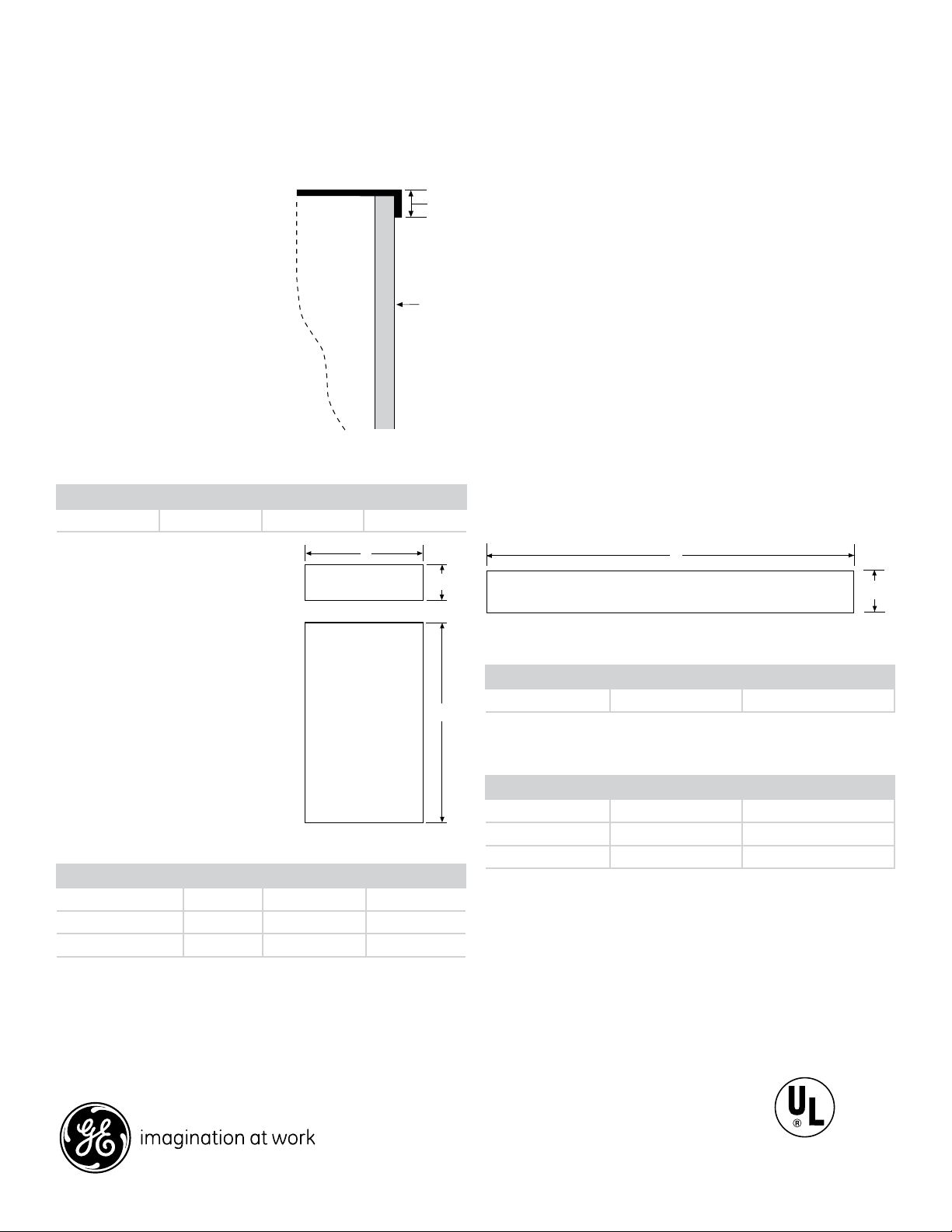

729Dia84
1/4"
Panel
Door/
Drawer
5/16"
Tr im
Reveal
All-Refrigerator,
All-Freezer 1/4" Framed
Panel
If you choose to install framed
panels, they must be cut to the
dimensions shown. The panels
will slide into the frame on the
door and grille.
If the panel is less than 1/4" thick,
it must be backed up with filler
material or foam tape to improve
the fit.
Door
Panel
zif_zir360nx_panel_dim
C
A
B
Grille Panel
IMPORTANT NOTE: Maximum weight
for the door panel is 67 pounds.
Maximum total weight for the
assembled grille panel is 11 pounds.
729Dia85
A
B
Grille Panel
1/4" Framed Panel Dimensions
A (Width) B (Grille Height) C (Door Height)
Framed Panel 33-7/8" 8-7/8" 69-5/16"
3/4" Overlay Panel Dimensions
A (Width) B (Grille Height) C (Door Height)
1/4" Backer Panel 33-7/8" 8-7/8" 69-5/16"
0.10" Spacer Panel 32-1/2" 7-5/8" 67-15/16"
3/4" Overlay Panel 34-1/8" 9" 69-9/16"
ZUG2 Grille Panel Dimensions
The ZUG2 unified grille panel kit provides for the installation of
a framed or overlay grille panel.
Panel Dimensions
A (Width) B (Grille Height)
1/4" Framed Panel 69-7/8" 8-7/8"
Panel Dimensions
A (Width) B (Grille Height)
1/4" Framed Panel 69-7/8" 8-7/8"
0.10" Spacer Panel 68-1/2" 7-5/8"
3/4" Overlay Panel 70-1/8" 9"
IMPORTANT:
Grille panel maximum total weight is 25 lbs..
For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at ge.com or call GE Answer Center®service,
800.626.2000.
110153
Specification Created 6/08
ZIF360NX
GE Monogram® 36" Built-In Custom All-Freezer
Dimensions and Installation Information
Listed by
Underwriters
Laboratories

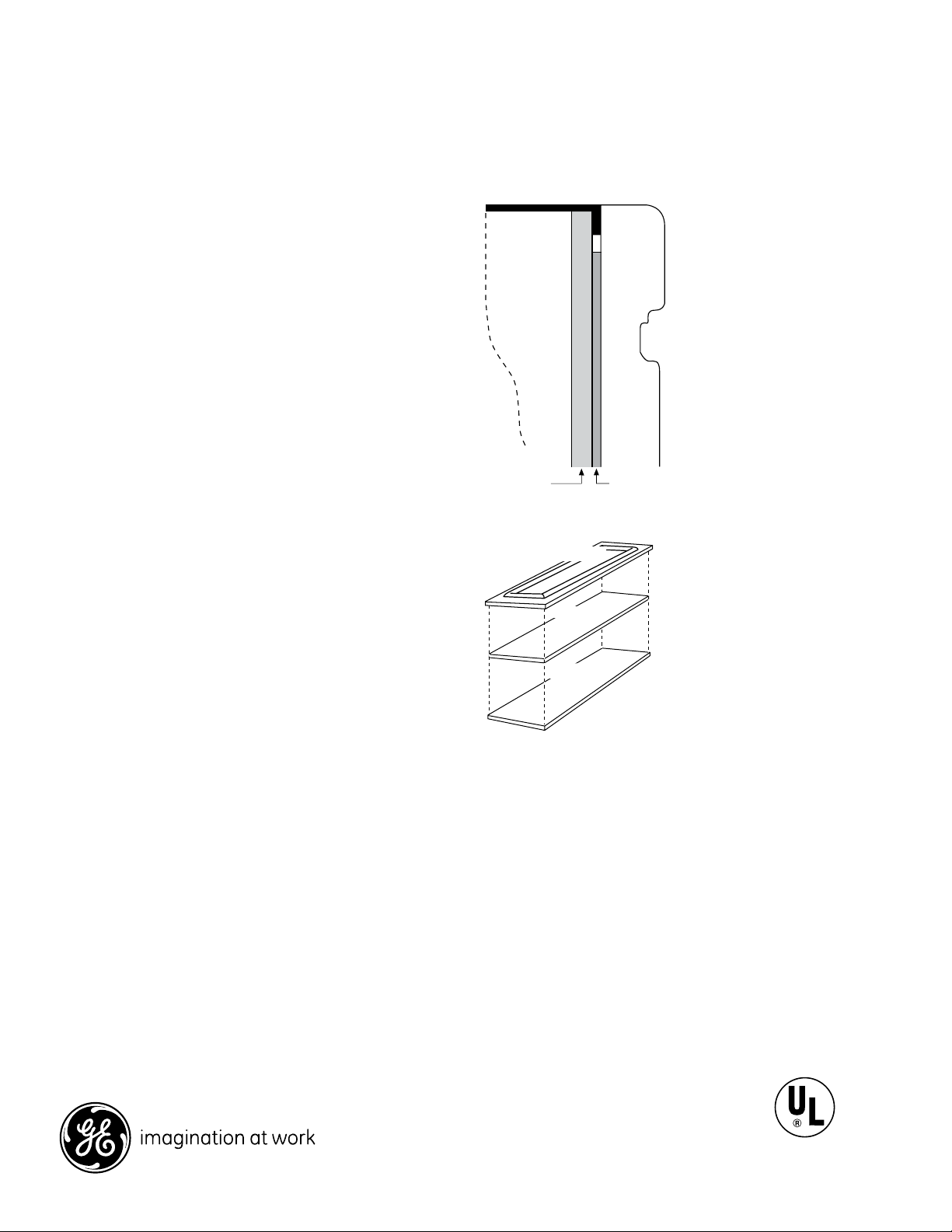

729Dia42
Overlay
Panel
1/4"
Backer
Panel
Door/
Drawer
.10"
Spacer
194Dia_65
Spacer Panel
Overlay Panel
Backer Panel
Optional Accessories
Order these accessories from your Monogram supplier.
ZKHPSS2, Professional Handle Kit
Professional stainless steel tubular handle designed to fit 3/4"
overlay panels. Note: Kit includes one Professional handle,
31" long.
ZKHSS2 Tubular Handle Kit
Monogram stainless steel tubular handle designed to fit 3/4"
overlay panels. Note: Kit includes two tubular handles, 62-3/8",
3/4" diameter.
ZUG2 Unified Grille Panel Kit
For side-by-side installation of trimmed units. This kit provides
for a unified custom grille panel to span the width of two units
using a 1/4" framed or 3/4" overlay panel.
ZPBS360, Black and ZPSS360 Stainless Steel Accessory Panel Kits
These accessory panels are cut to size and ready to install.
All-Refrigerator, All-Freezer 3/4" Overlay Panel
Overlay panels may be installed on trimmed units.
The overlay panel must be secured to a 1/4" thick backer
panel which slides into the trim. A 0.10" thick spacer panel
must be placed between the custom and backer panel.
Assemble overlay panels with glue and screws.
• Center spacer panel on the backer panel left to right and
top to bottom. Secure the panels with glue.
• Center the spacer/backer panel on the overlay panel and
secure with glue and screws. Screws must be countersunk
into the backer panel.
Note: Left-to-right offset is not always equal to top-to-bottom
offset.
For answers to your Monogram,® GE Profile™
or GE®appliance questions, visit our website
at ge.com or call GE Answer Center®service,
800.626.2000.
110153
Specification Created 6/08
ZIF360NX
GE Monogram® 36" Built-In Custom All-Freezer
ZIR360NXLH
Features and Benefits
• Custom Panel Model - Can be personalized with
cabinet-matching panels and handles
• Enhanced Temperature Management System - With
precise electronic controls and thermistors, maintains
ideal storage conditions for frozen foods
• Concealed Halogen Lighting System - Illuminates
contents without compromising space
• Concealed Ice Drawer - Provides quick and easy
access to filtered ice
• GE Water Filtration System - Provides clean, fresh-
tasting water to the freezer's icemaker
• ENERGY STAR® Qualification - As an ENERGY STAR
partner, GE has determined that Monogram all-
freezers meet the ENERGY STAR guidelines for energy
efficiency
• Adjustable Spillproof Glass Shelves, Gallon-Size Door
Bins and Pullout Baskets - Allow cutomizable storage
for foods and containers of varying sizes
• Model ZIF360NXRH – Custom Panel (right-handed
door swing)
• Model ZIF360NXLH – Custom Panel (left-handed
door swing)
