GE 24” Dryers - PCVH480EKWW Series

Robert Gauthier Technical Support 10-MAN-DR-01

Service guide 31-9194

2

IMPORTANT SAFETY NOTICE

The information in this presentation is intended for use by individuals

possessing adequate backgrounds of electrical, electronic, & mechanical

experience. Any attempt to repair a major appliance may result in

personal injury & property damage. The manufacturer or seller cannot be

responsible for the interpretation of this information, nor can it assume

any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before servicing this product.

If electrical power is required for diagnosis or test purposes, disconnect

the power immediately after performing the necessary checks.

RECONNECT ALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to complete

a path to ground are removed for service, they must be returned to their

original position & properly fastened.

Alphabetical table of contents

Belt Removal 28-29 Mini Manual Location 5

Belt Switch 35 Motor Removal 39

Blower Wheel Removal 37 Motor Testing 40

Control Lock Out 7Nomenclature Location 4

Control Panel Disassembly 16 to 21 Outlet Thermostat and Thermistor 38

Control Panel Selections 6PCB Component Locations 45

Damp Alert 8PCB Heater Testing 47

Door Switch 13 PCB Motor Testing 46

Drum Lamp 14-15 PCB Wiring 44

Drum Removal 30 Rear Drum Bearing Components 32-33

Filter Inlet Assembly 26-27 Rear Drum Bearing Shaft 31

Front Drum Support Removal 23 to 25 Rear Drum Gasket Components 34

Front Panel Removal 22 Schematic 53

Heater Assembly 42 Service Test Mode 48 to 52

Heater Location 41 Stacked Installation 9-10-11

Idler Assembly 36 Thermistor &Thermostats Values 43

Lint Screen 12

3

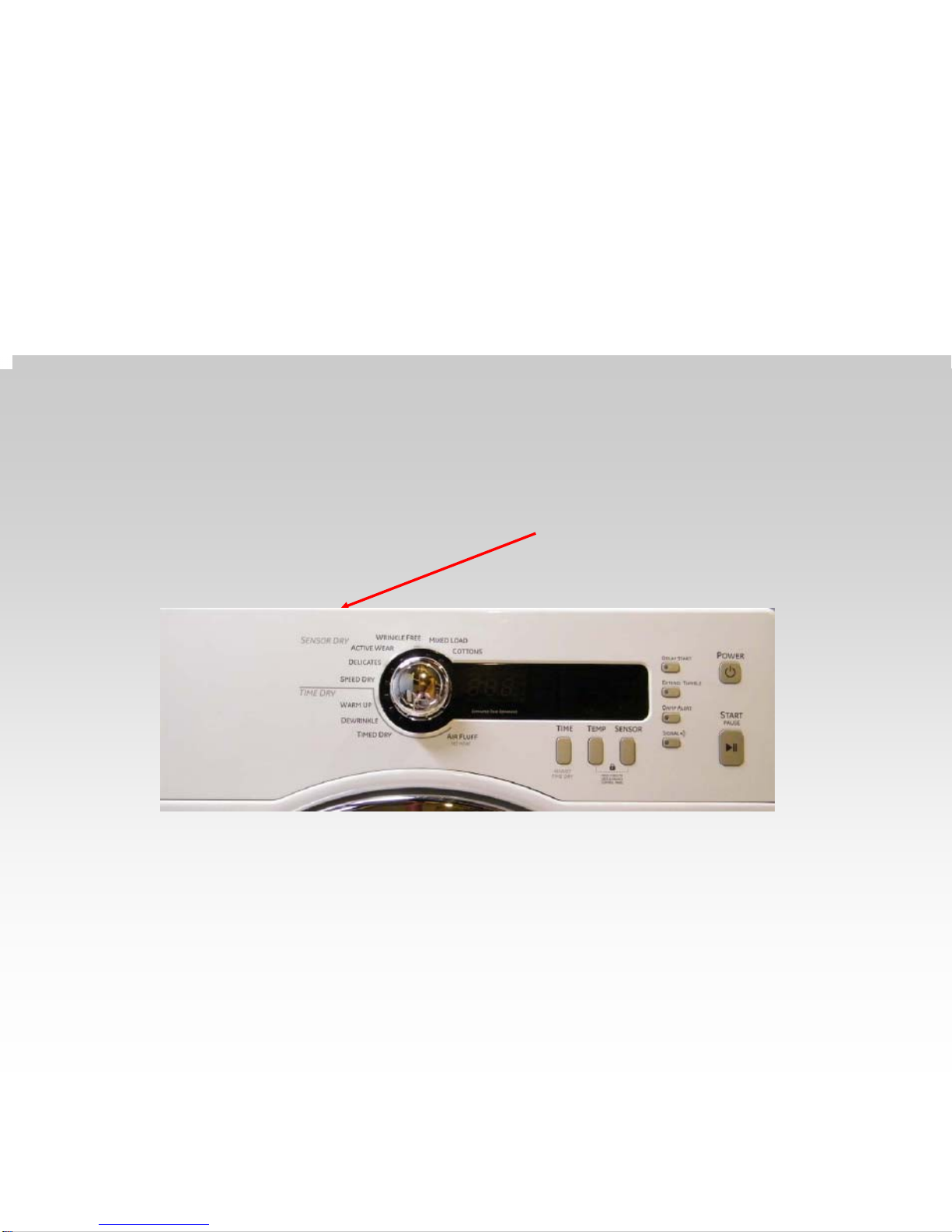

Nomenclature Location

Model and Serial Number

4

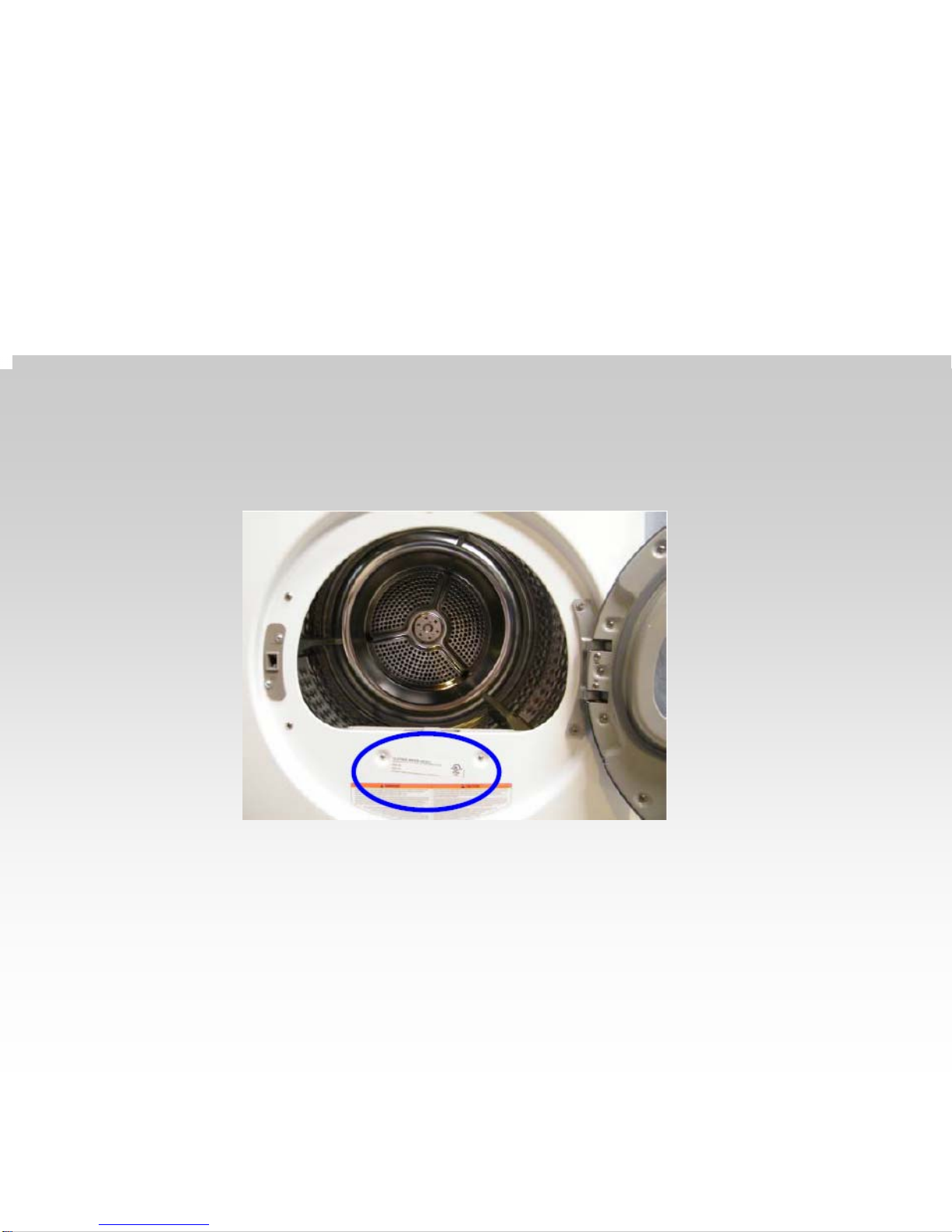

Mini Manual Location

Mini Manual

The mini manual is located behind the control panel

5

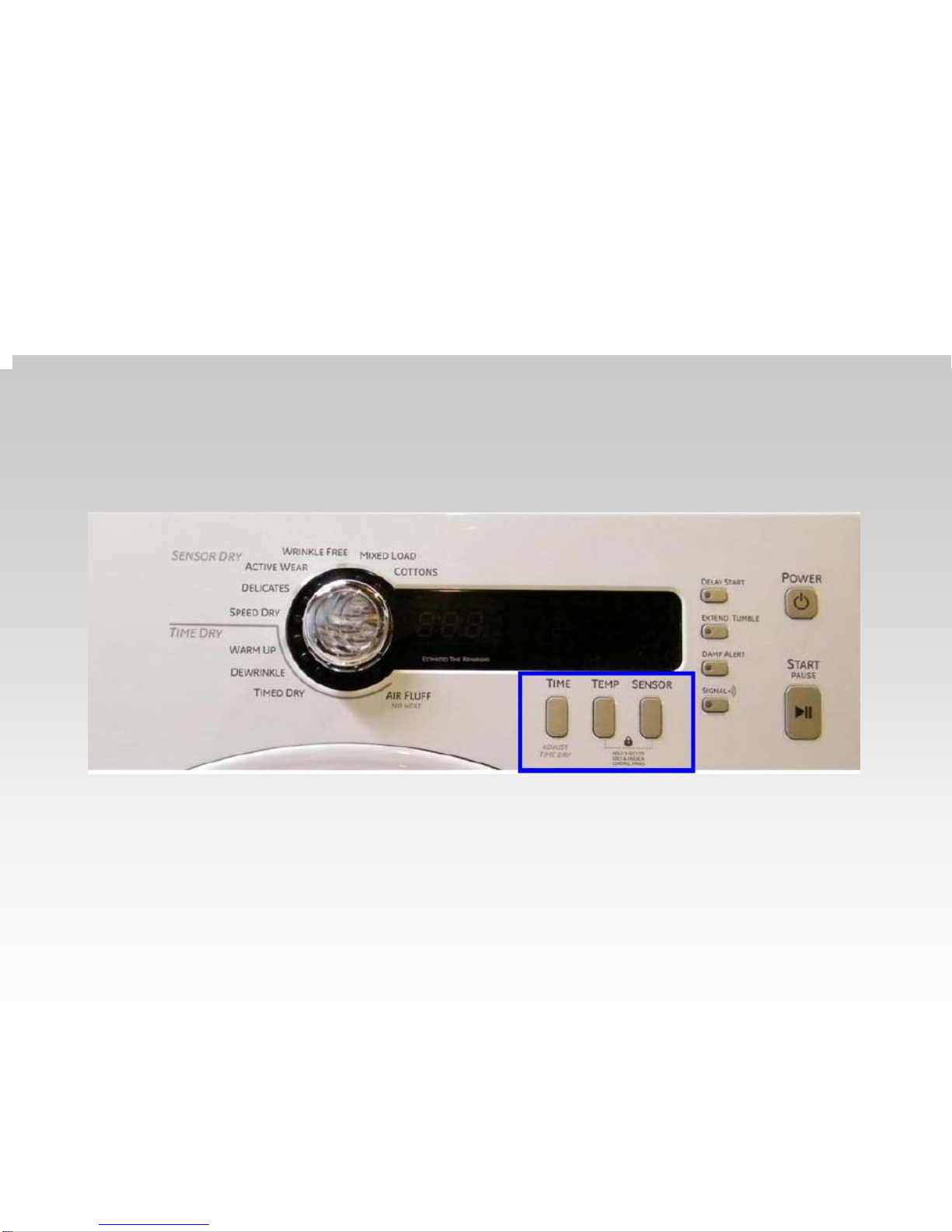

Control Panel Selections

• Time - adjusts the “Time Dry” cycles.

• Sensor - adjusts the dryness level for “Sensor Cycles”.

• Temp - adjusts the temperature setting for all non delicate heat cycles.

6

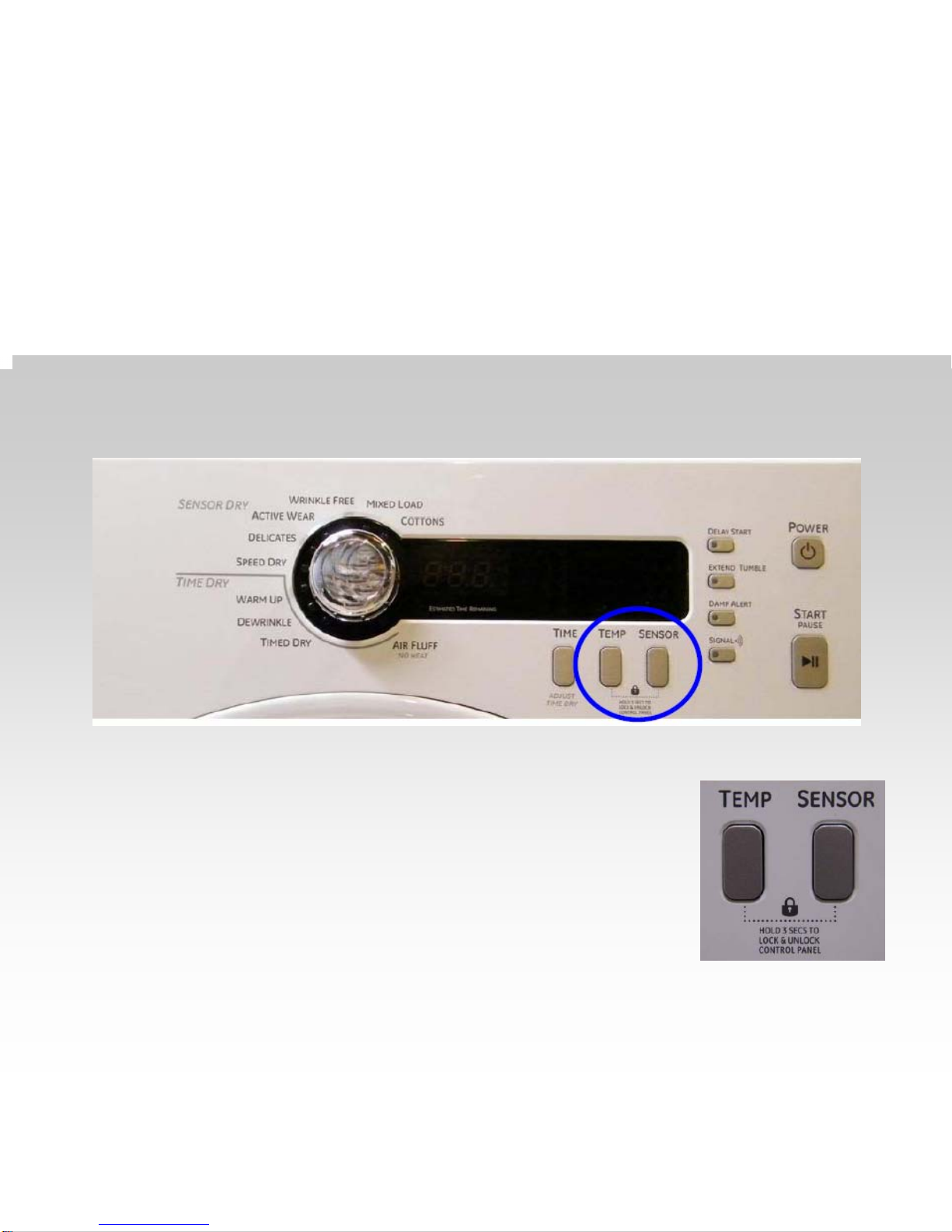

Control Lock Out

Press “Power Pad” then hold the “TEMP” and “SENSOR”

pads for 3 seconds. The control can be locked out with or

without a cycle selected.

Note: If the control is locked out and a cycle is running the

power pad will still function. When the power pad is pressed

the control will turn off. Press the power pad again and the

control will be in the lock out mode. To re-start the cycle the

control will need to be unlocked.

7

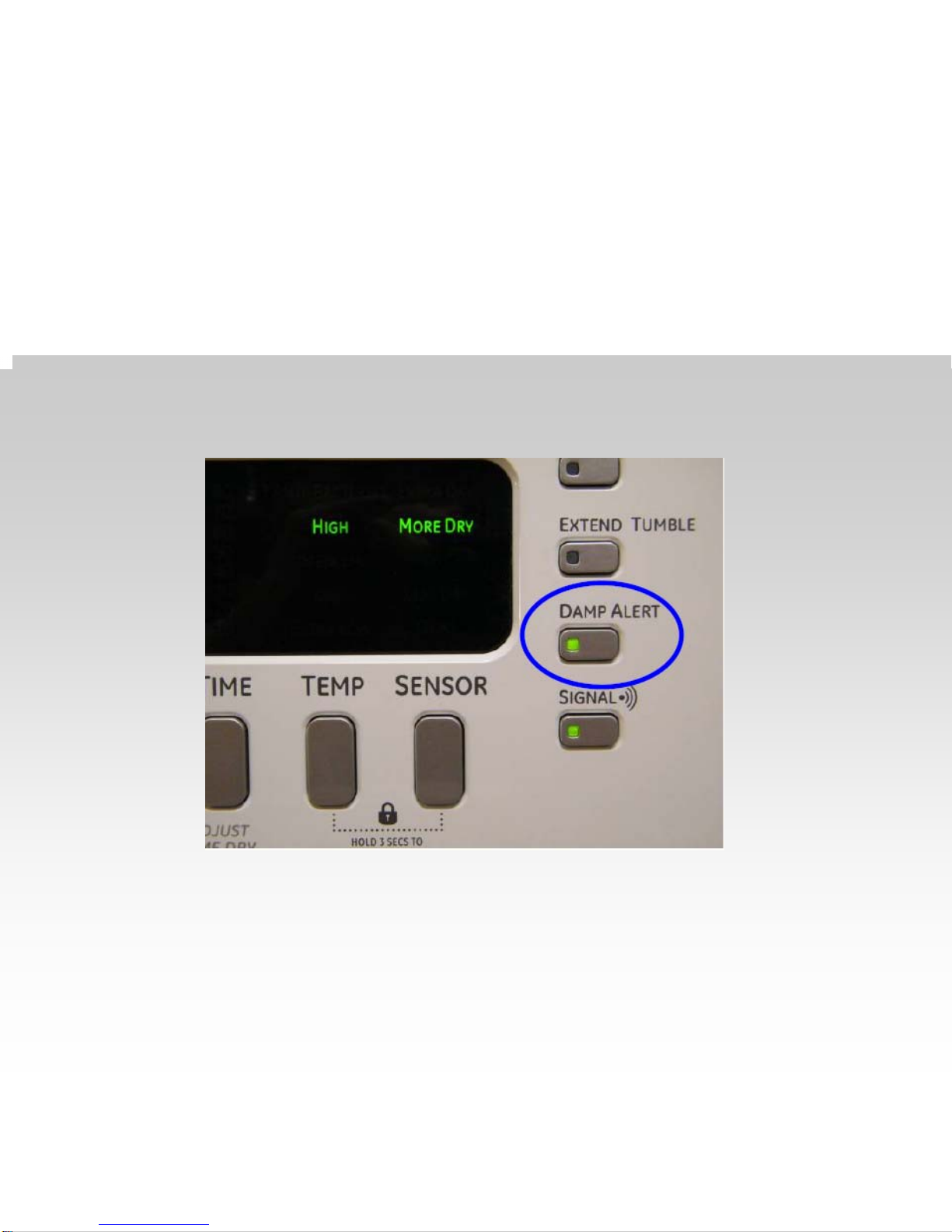

Damp Alert

• This option causes the dryer to beep when the clothes have dried to a damp level.

• The dry cycle will continue running.

• «Damp Alert» can only be selected for “dry, more dry and extra dry” sensor dry selections.

8

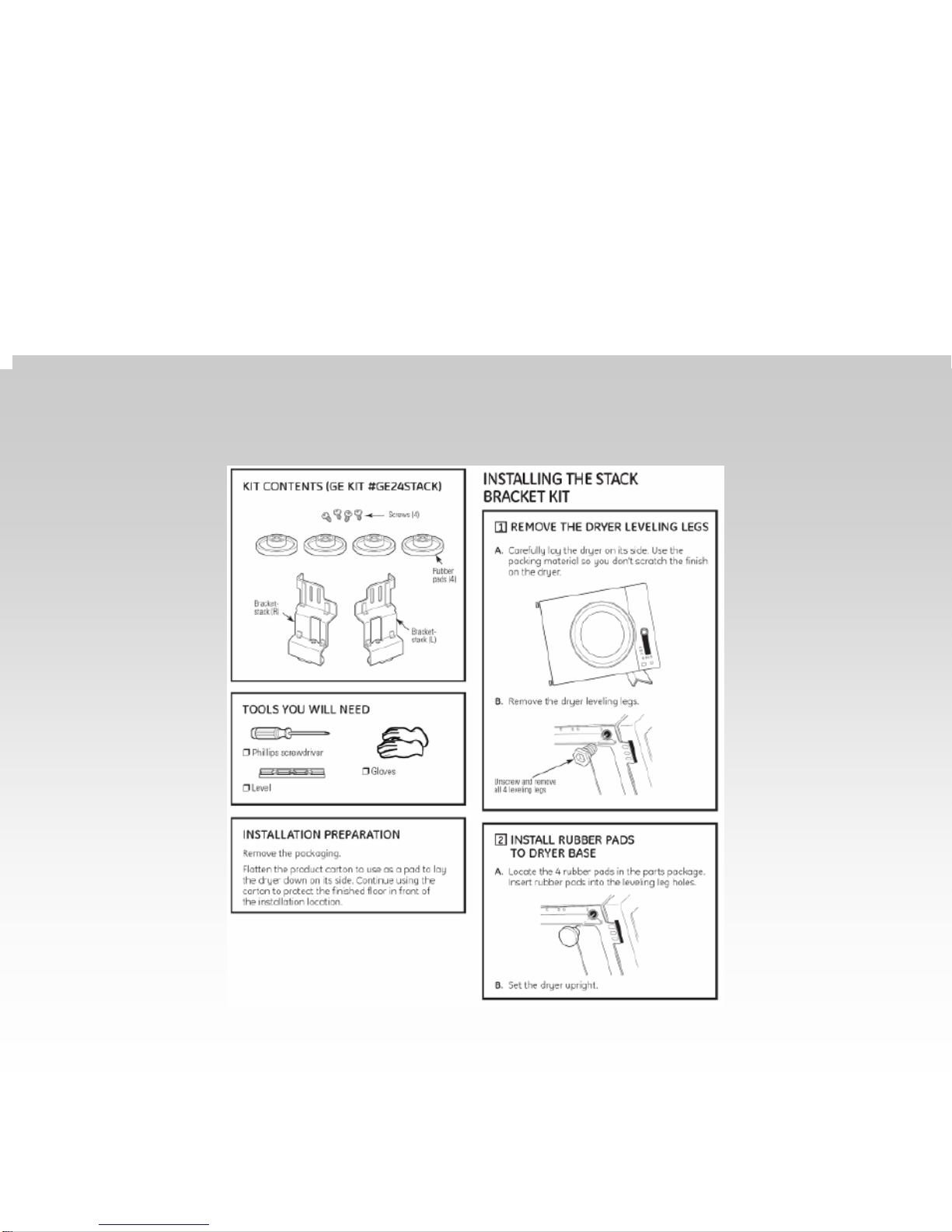

STACKED INSTALLATION

• The dryer can be stacked on the washer as an installation option.

• The optional stacking kit required is GE kit # GE24STACK.

• The shipping weight of dryer is 100lbs.

Tools Required:

Phillips screwdriver

Open end or adjustable wrench

Pliers

Level

9

Stacked Installation

10
