GE HA Dryer Upgrade – GFDS350 Series

GE® 7.5 cu. ft. stainless steel capacity dryer with Steam Options

Models:

GFDS350ELWW

GFDS350GLWW

GFDS355ELMV

GFDS355GLMV

GFDS355ELMS

GFDS355GLMS

Service Guide

31-9209

GWS2011

GE HA Dryer Upgrade – GFDN240 Series

GE® 7.0 cu. ft. stainless steel capacity dryer

Models:

GFDN240ELWW

GFDN240GLWW

GFDN245ELMS

GFDN245GLMS

GFDN245ELMV

GFDN245GLMV

NOTE: 240 series is the same as

the 350 series but without steam &

a slightly smaller drum.

Copyright 2011 3

IMPORTANT SAFETY NOTICE

The information in this presentation is intended for use by individuals

possessing adequate backgrounds of electrical, electronic, & mechanical

experience. Any attempt to repair a major appliance may result in

personal injury & property damage. The manufacturer or seller cannot be

responsible for the interpretation of this information, nor can it assume

any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before servicing this

product.

If electrical power is required for diagnosis or test purposes, disconnect

the power immediately after performing the necessary checks.

RECONNECT ALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used

to complete

a path to ground are removed for service, they must be returned to their

original position & properly fastened.

Copyright 2011 4

GE Factory Service Employees are required to use safety glasses with

side shields, safety gloves & steel toe shoes for all repairs.

Dyneema® Cut

Resistant Glove

Dyneema® Cut

Resistant Glove

Safety Glasses must be

ANSI Z87.1-2003 compliant

Safety Glasses must be

ANSI Z87.1-2003 compliant

Prescription Safety Glasses

Prescription Safety Glasses

Plano Type Safety Glasses

Plano Type Safety Glasses

Steel Toe Work

Boot

Steel Toe Work

Boot

Electrically Rated Glove

and Dyneema® Cut

Resistant Glove Keeper

Electrically Rated Glove

and Dyneema® Cut

Resistant Glove Keeper

Brazing Glasses

Brazing Glasses

Copyright 2011 5

Warranty

Copyright 2011 6

Model / Serial

The full model / serial tag is located on the front panel inside

the

door opening.

There is also a barcode sticker that displays the model & serial

and

is located on the left, front of the top panel.

Copyright 2011 7

Mini-Manual

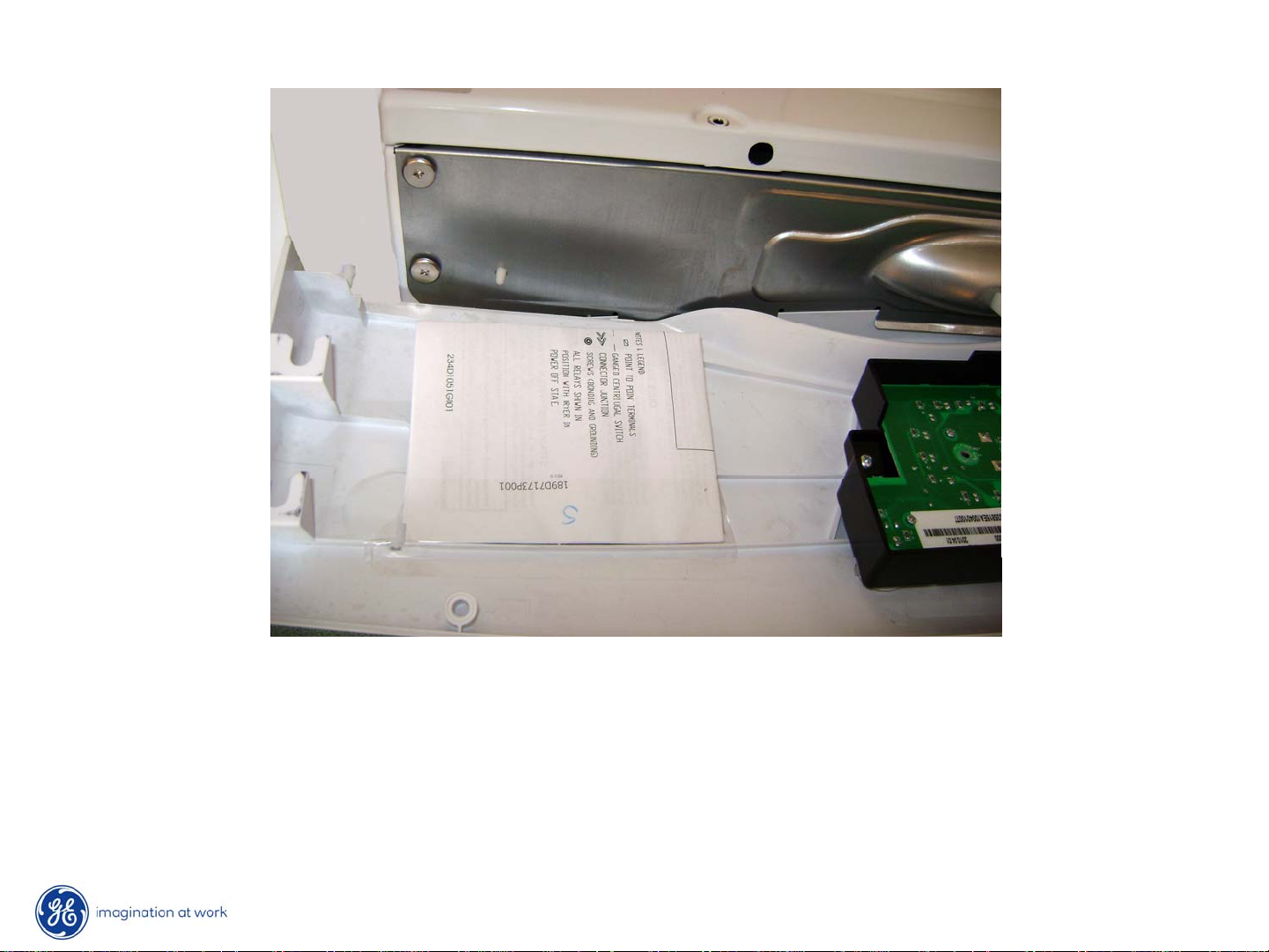

Mini-Manual is located inside control housing.

Copyright 2011 8

Nomenclature

Copyright 2011 9

Installation

These Laundry products can be installed

in several different configurations:

Undercounter

Side-by-Side.

Pedistal

Stacked

Dryer can be stacked on the washer.

Kit for stacking dryer over washer is not

included with the washer.

Order GEFLSTACK.

Machines can be stacked on a

pedestal. These can be ordered separately.

SPSD157JMV – Vermillion

SPSD157JMS - Silver

SPSD157JWW - White Adobe Acrobat

Document

Stacking Instructions.

Open in “Normal View”.

Copyright 2011 10

Installation – Water Line

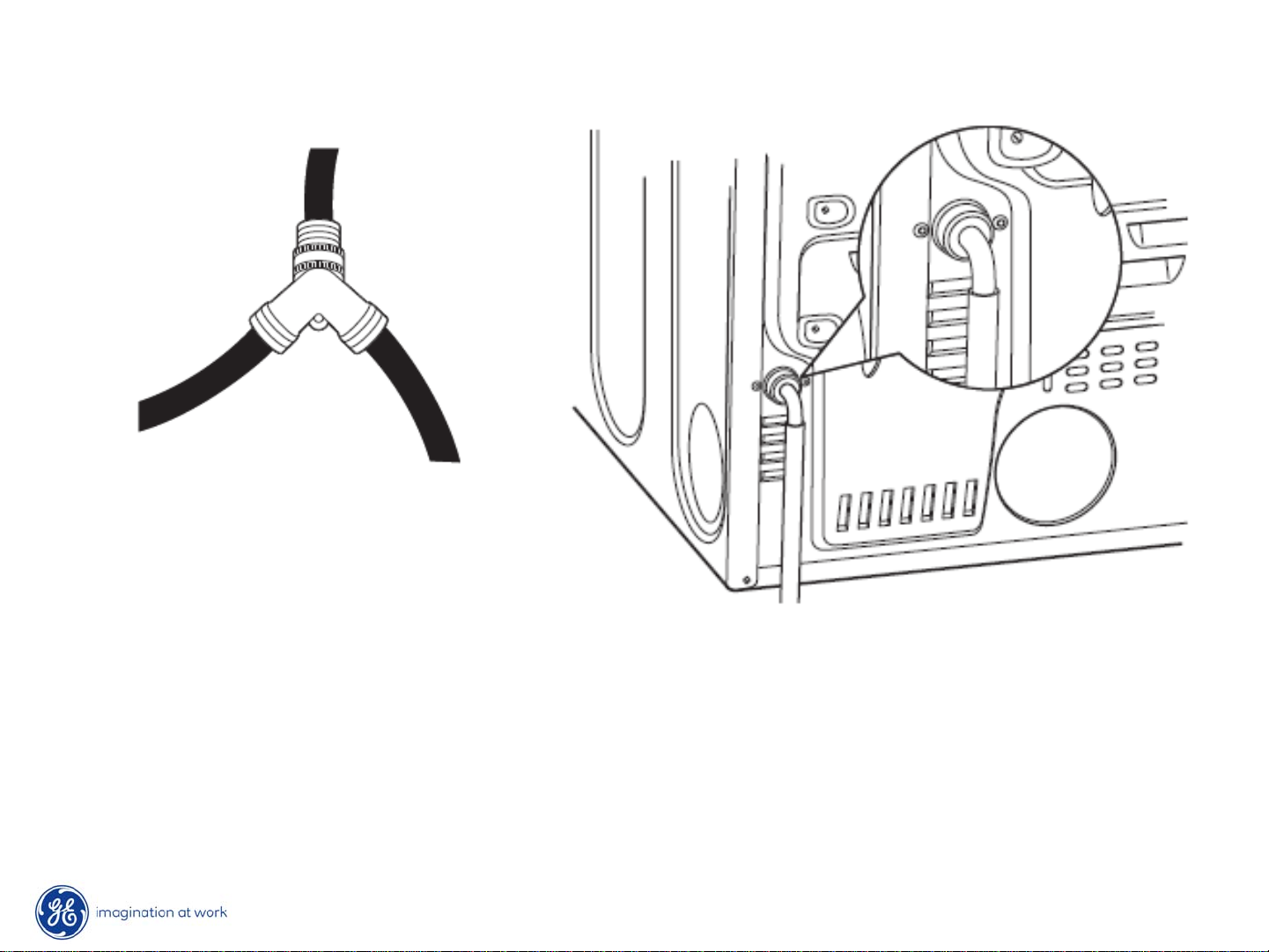

To produce steam, the dryer must connect to the cold water supply. Since the

washer must also connect to the cold water, a “Y”

connector is inserted to

allow both inlet hoses to make that connection at the same time.

NOTE: Use the new inlet hoses & “Y”

connector provided; never use old

hoses. (Hose kit -

Long & short hoses, washers & “Y”

connector -

WE25M53)
