GE GFDS250EF Manual de usuario

Marcone 2014 MSA

Training

GE Mission 1

Front Load Dryer

1

GE Front Load Dryer

MODELS

GFDS250EF/GF GFDS255EF/GF

GFDS260EF/GF GFDS265EF/GF

GFDS360EF/GF GFDS365EF/GF

GHDS370EF/GF GHDS375EF/GF

GFDR480EF/GF GFDR485EF/GF

Note:

“0” models are White

“5” models are either Metallic Carbon

or Ruby Red

(GFDR480GF)

2

Warranty

3

Nomenclature

GFDR480GFWW

G - Brand: G = GE P = Profile

F - Configuration: F = Frontload

D - Product: D = Dryer

R - Key Feature: S = Standard R = Riser

480 - Options Package

E - Heater Type: E = Electric G = Gas

F - Model Year Designator

WW - Color: WW = White MC = Metallic Carbon

RR = Ruby Red

4

Features (480 Series)

GFDR480EF/GF GFDR485EF/GF

• 8 0 DOE

• Chrome Door

• Chrome Knob with Rubber Grip

• Chrome UI Trim

• Steam

• 12 Cycles

• 5 Dryness Levels

• eDry

• eMonitor

• Detangle

• Interior LED Light

• Dryer Rack

• Integrated Riser

• DSM (RJ45) Capable

Available in White, Metallic Carbon & Ruby Red

Weight 183 lbs Height: 47" Width: 28" Depth: 34-3/8"

5

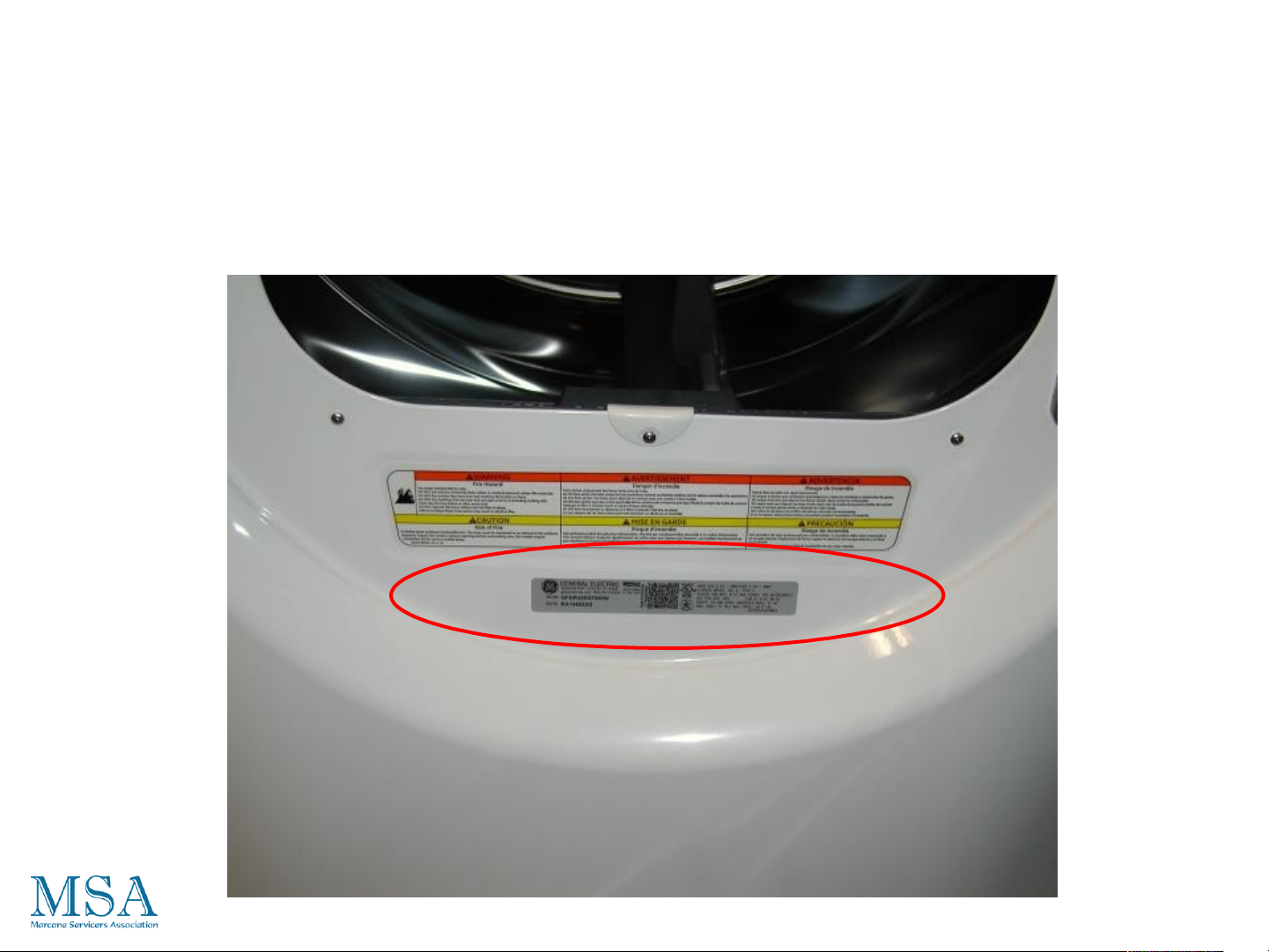

Model / Serial Plate Location

The model / serial number plate is located behind the door, just under

the drum opening

6

Mini Manual (Tech Sheet) Location

The mini-manual is taped to the backside of the control panel along with

the UI/IMC board

Control escutcheon has to be removed to access

7

RJ45 Connector Location

The RJ45 connector is located

on the top rear of the machine

In some areas, this will allow

consumers to connect to their

local energy grid via DSM

(demand side management)

DSM is used to better control

energy usage throughout the

home

8

Rear view of dryer

Feature Definitions Steam

Steam - A mist of room temperature water sprayed into the drum

Steam is used on the "Steam Dewrinkle" and the "Steam Refresh" cycles

9

Steam Dewrinkle - Used for loads left in the dryer for an extended period of time

Steam Re resh - For slightly wrinkled dry garments Significantly reduces wrinkles

on up to 5 garments After the Steam Refresh Cycle, the unit will beep and display

“0:00 ” If the unit is not turned off or if the door is not opened, the dryer will

continue to tumble for 30 minutes At the end of 30 minutes, it will display “0:00”

and the cycle will be complete

Feature Definitions eDry

•eDry - Reduces the total energy consumption by adjusting certain heat

settings

•eDry is selected by pressing the eDry Button

Machine settings when eDry is selected:

Dry Temp = Low

Extended Tumble = eDry is Disabled

Sanitize = eDry is Disabled

10
