GE GFDN100EL Manual

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Specification Revised 1/10 360463

Listed by

Underwriters

Laboratories

Dimensions and Installation Information (in inches)

Exhaust Options: 4-way via rear, right, left and bottom.

Circuit Requirements: An individual, properly grounded

branch circuit, protected by a 30-amp circuit breaker or

a time-delay fuse, is required.

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information, see

installation instructions packed with your dryer.

27 1-5/8

41-1/2

31-1/8

5-1/2

3-3/4

Electric Dryer Rating

240V 5600W, 24A, 60Hz

208V 4400W, 22A, 60Hz

GFDN100EL

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer

Above illustration intended for dimensional reference only.

Refer to photography for actual product appearance.

For answers to your Monogram,® GE Profile™or

GE®appliance questions, visit our website at

geappliances.com or call GE Answer Center®

service, 800.626.2000.

Special Installation Requirements:

Stacked Installation:

•Brackets for stacking dryer over washer are not included with the dryer.

GEFLSTACK or part no. WE25X10018.

Alcove or Closet Installation:

•Ifyourdryerisapprovedforinstallationinanalcoveorcloset,itwillbe

stated on a label on the dryer back.

•ThedryerMUSTbeexhaustedtotheoutside.

•Minimumclearancesbetweendryercabinetandadjacentwallsorother

surfaces are: 0" either side, 3" front and rear.

•Minimumverticalspacefromfloortooverheadcabinets,ceilings,etc.is52".

•Closetdoorsmustbelouveredorotherwiseventilatedandmustcontaina

minimumof60sq.in.ofopenareaequallydistributed.Ifthisclosetcontains

both a washer and a dryer, doors must contain a minimum of 120 sq. in. of

open area equally distributed.

•Nootherfuel-burningapplianceshallbeinstalledinthesameclosetwith

a gas dryer.

Bathroom or Bedroom Installation:

•ThedryerMUSTbeexhaustedtotheoutdoors.

•Theinstallationmustconformwiththelocalcodes,orintheabsenceof

localcodes,withtheNationalElectricCodeandNationalFuelGasCode,ANSIZ223

for gas dryers.

Minimum Clearance other than Alcove or Closet Installations:

•Minimumclearancestocombustiblesurfaces0"bothsides,3"rear.

For more information on venting kits and accessories,

please call 1-800-GE-CARES.

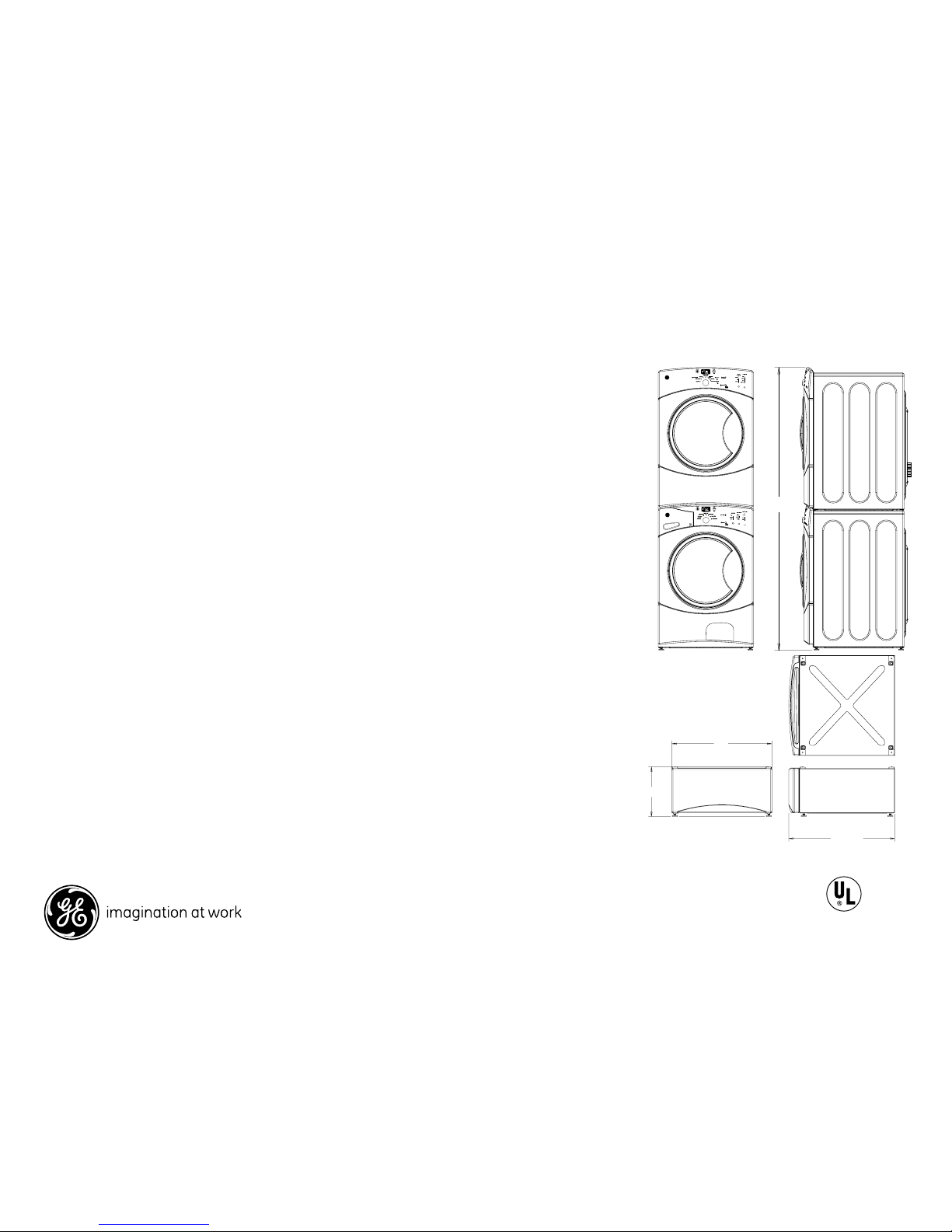

Stacked Dimensions (in inches)

80-1/8

28-3/4

Pedestal Dimensions (in inches)

SBSD137HWW - white

This optional 13" pedestal raises

the door opening and height of

the washer or dryer. Feet on 13"

pedestalallowittoadjustto

13-3/8" height.

Listed by

Underwriters

Laboratories

Specification Revised 1/10 360463

GFDN100EL

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer

Above illustrations intended for dimensional reference only.

Refer to photography for actual product appearance.

Best performance

Domestic

dryer models

Maximum length of 4"

dia. rigid metal duct

Number

90°

turns

Exhaust hood type

opening

2-1/2"

opening

7.0, 6.0 and 5.8 cu. ft.

capacity models

all electric dryers

90 ft.

60 ft.

45 ft.

35 ft.

25 ft.

60 ft.

45 ft.

35 ft.

25 ft.

15 ft.

2-1/2

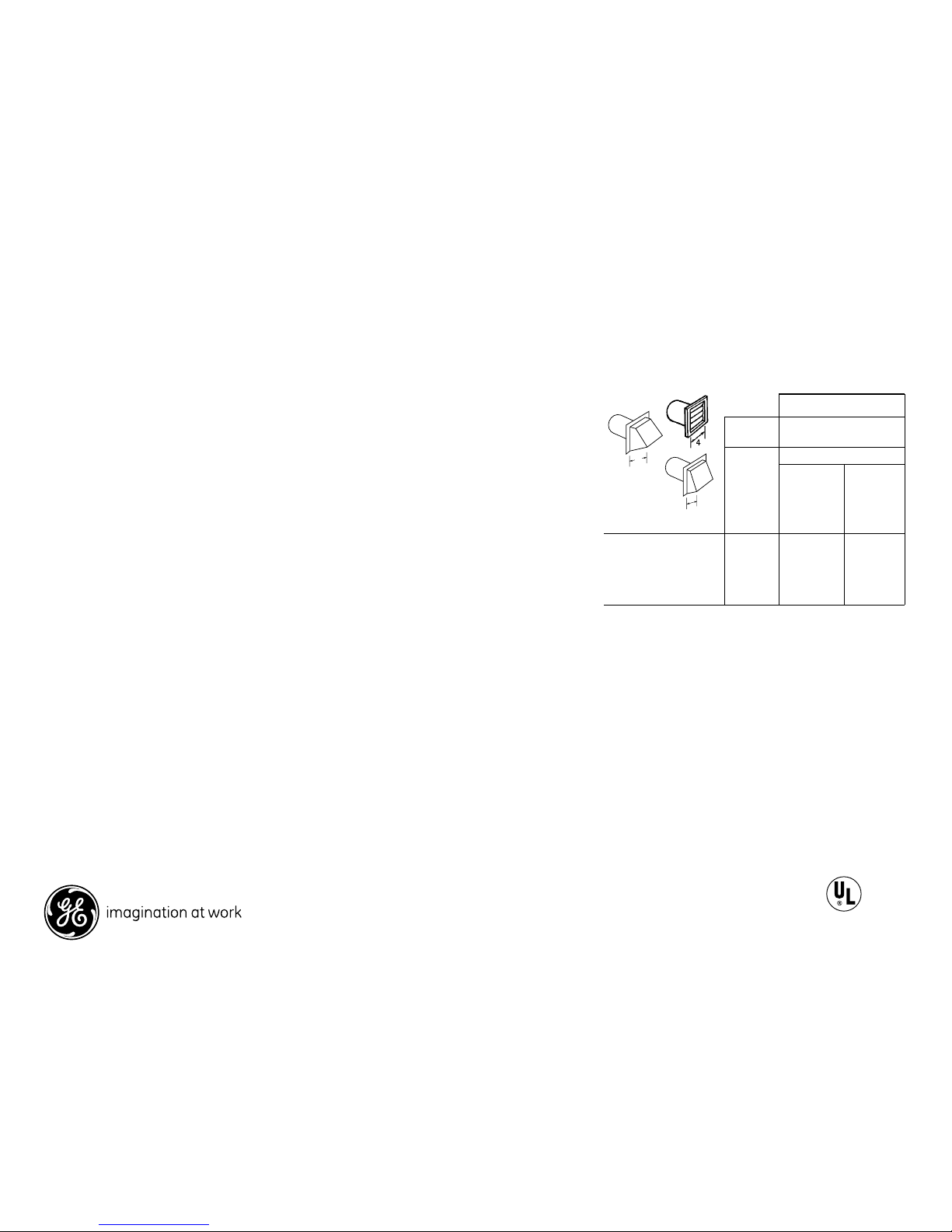

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter

allrigidmetalexhaustduct.Ifrigidmetalductcannotbeused,thenUL-listedflexible

metal(semi-rigid)ductingcanbeused(KitWX08X10077).Inspecialinstallations,itmay

benecessarytoconnectthedryertothehouseventusingaflexiblemetal(foil-type)duct.

AUL-listedflexiblemetal(foil-type)ductmaybeusedONLYininstallationswhererigid

metalorflexiblemetal(semi-rigid)ductingcannotbeusedANDwherea4”diametercan

be maintained throughout the entire length of the transition duct. Please see installation

instructionpackedwithyourdryerforcompleteinstructionswhenusingflexiblemetal(foil

type) ducting.

Exhaust Length Calculation:

1. Determinethenumberof90°turnsneededforyourinstallation.Ifyouexhausttothe

side or bottom of dryer, add one turn.

2. Themaximumlengthof4’rigid(aluminumorgalvanized)ductwhichcanbetoleratedis

shown in the table.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should be

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Dryers mustbeexhaustedtotheoutside.

Caution: Forpersonalsafetydonotterminateexhaustintoachimney,underanyenclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire

hazardormoisturecouldcausedamage.Neverterminatetheexhaustintoacommonduct

orplenumwithakitchenexhaust,sincethecombinationoflintandgreasecouldcreatea

fire hazard.

Exhaustductsshouldbeterminatedinadamperedwallcaptopreventbackdrafts,bird

nesting, etc. The wall cap must also be located at least 12" above the ground or any other

obstruction with the opening pointed down.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

Listed by

Underwriters

Laboratories

Specification Revised 1/10 360463

GFDN100EL

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer

Above illustration intended for dimensional reference only.

Refer to photography for actual product appearance.

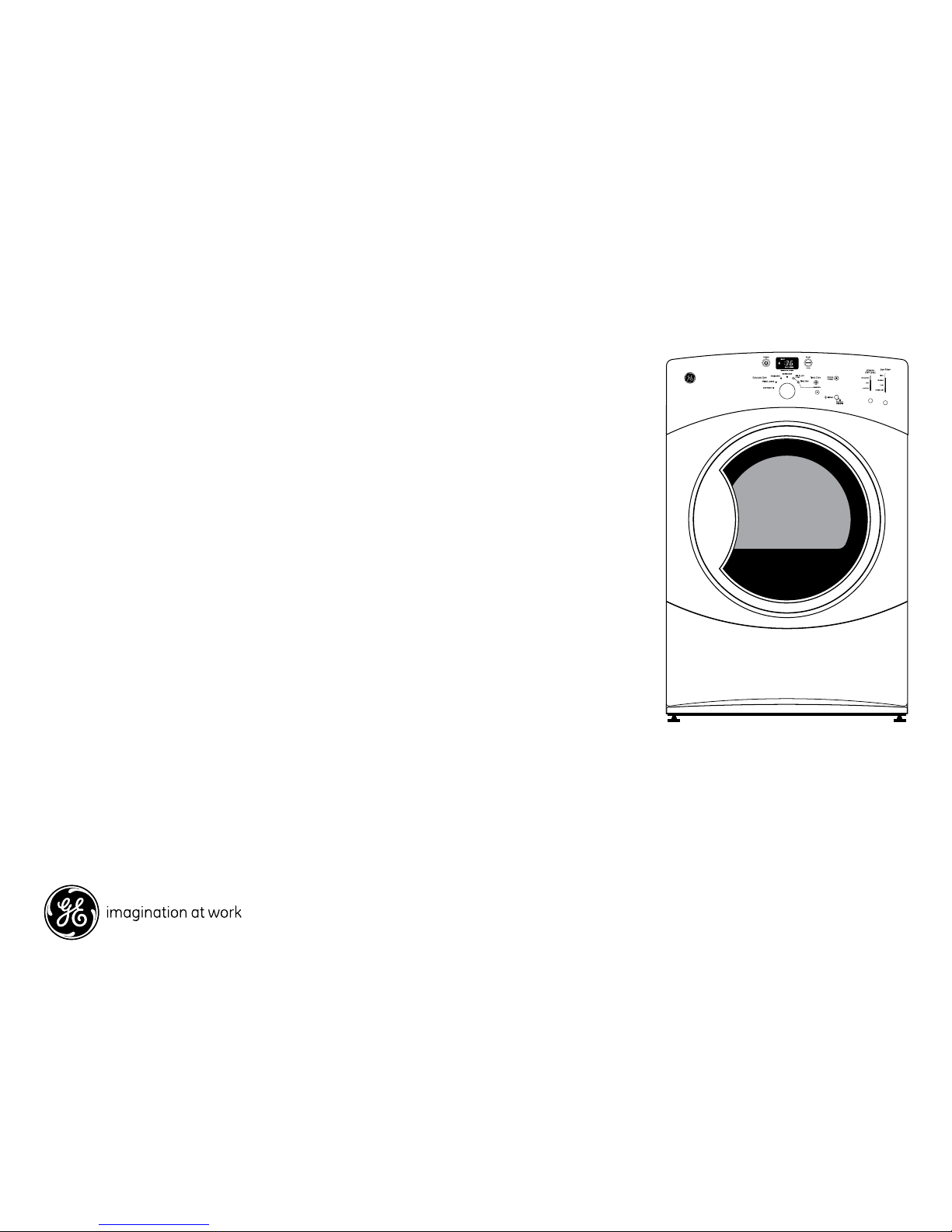

Features and Benefits

•7.0Cu.Ft.SuperCapacity-Increasedcapacityisdesignedtomakeeasy

work of comforters and towels

•SensorDryPlus™- Continually monitors moisture levels to help clothes look

better longer

•FourHeatSelections-Providetherighttemperaturefortherightdrying

results

•10DryCycles-Tencyclesgiveyoucontroloverdryingperformance

•RotaryElectronicControlswithCycleCountdownDisplayandLED

Indicators-Thesecontrolsaredesignedtosimplifycycleselectionand

provide accurate cycle times

•InteriorDryerLight-Letsyouseeeverythinginsideforeasyloadingand

unloading

•Quiet-By-Design™- Engineered for quiet operation

•End-of-CycleSignal-Alertsyouwhencycleisdone,soclothescanbe

removed before wrinkles set in

•DuraDrum™- Provides long-lasting dependability and durability

•DelicateCyclewithExtra-LowHeatSetting-Cyclehelpsprotectdelicate

fabrics from wear and tear as well as heat damage

•SpeedDry-Quicklydriesitemsandsmallloadsforfamiliesonthego

• ModelGFDN100ELWW–Whiteonwhite

Specification Revised 1/10 360463

GFDN100EL

GE®7.0 Cu. Ft. Super Capacity Frontload Electric Dryer
