BEFORE YOU BEGIN

Read these instructions completely and carefully.

•IMPORTANT – Save these instructions for local

electrical inspector’s use.

•IMPORTANT – Observe all governing codes and

ordinances.

•Install the clothes dryer according to the manufacturer’s

instructions and local codes.

•Note to Installer – Be sure to leave these instructions

with the Consumer.

•Note to Consumer – Keep these instructions for future

reference.

•Clothes dryer installation must be performed by a

qualified installer.

•This dryer must be exhausted to the outdoors.

•Before the old dryer is removed from service or

discarded, remove the dryer door.

•Service information and the wiring diagram are located

in the control console.

•Do not allow children on or in the appliance. Close

supervision of children is necessary when the appliance

is used near children.

•Proper installation is the responsibility of the installer.

•Product failure due to improper installation is not

covered under the Warranty.

•Install the dryer where the temperature is above 50°F

for satisfactory operation of the dryer control system.

• Remove and discard existing plastic or metal foil duct

and replace with UL-listed duct.

Questions? Call GE Appliances at 800.GE.CARES (800.432.2737) or visit our Web site at: GEAppliances.com

- Fire Hazard

WARNING

•Clothes dryer installation must be performed by a

qualified installer.

•Install the clothes dryer according to these

instructions and local codes.

•DO NOT install a clothes dryer with flexible plastic

venting materials. If flexible metal (semi-rigid or

foil-type) duct is installed, it must be UL-listed and

installed in accordance with the instructions found

in “Connecting the Dryer to House Vent” later in

this manual. Flexible venting materials are known

to collapse, be easily crushed and trap lint. These

conditions will obstruct dryer airflow and increase

the risk of fire.

•DO NOT install or store this appliance in any

location where it could be exposed to water or

weather.

•To reduce the risk of severe injury or death, follow

all installation instructions.

•Save these instructions. (Installers: Be sure to leave

these instructions with the customer.)

Installation Dryers

Instructions 04

31-16769-3 08-16 GEA

234D2274P004

Printed in Mexico

IN THE COMMONWEALTH OF

MASSACHUSETTS, THE FOLLOWING

INSTALLATION INSTRUCTIONS APPLY:

•Installation must be performed by a qualified

or licensed contractor, plumber, or gasfitter

qualified or licensed by the State.

•If using a ball valve, it shall be a T-handle type.

•A flexible gas connector, when used, must not

exceed 3 feet.

FOR GAS DRYERS ONLY

4.4”

(11.2 cm)

5.4”

(13.7 cm)

Installation Instructions

Tilt the dryer sideways and remove the foam

shipping pads by pulling at the sides and breaking

them away from the dryer legs. Be sure to remove all

of the foam pieces around the legs.

Remove the bag containing the literature.

UNPACKING YOUR DRYER

POWER CORDS:

GE Appliances strongly recommends the use of factory

specified parts. Select the power cord to fit your installation

requirements.

ROUGH-IN

DIMENSIONS

Side View

Front View

NOTE:

Dryer height can be adjusted to match washer height

With Pedestal: 52.1” (132.33 cm)

Stacked: 84” (213.36 cm)

33” (83.8 cm)

39.3”

(99.8cm)

27”

(68.6 cm)

39.3”

(99.8 cm)

GE Appliances strongly recommends the use of factory

specified parts. These hoses are manufactured and tested to

meet GE Appliances specifications.

GE Appliances strongly recommends the use of new water supply

hoses. Hoses degrade over time and need to be replaced every 5

years to reduce the risk of hose failures and water damage.

Parts and Accessories

Order on-line at GEApplianceParts.com, 24 hours a day or

by phone at 800.626.2002 during normal business hours.

STEAM WATER HOSES (for steam dryer models only):

Part Number Type Length Amperage

WX9X2 3-Prong 4 Feet 30

WX9X3 3-Prong 5 Feet 30

WX9X4 3-Prong 6 Feet 30

WX9X18 4-Prong 4 Feet 30

WX9X19 4-Prong 5 Feet 30

WX9X20 4-Prong 6 Feet 30

ACCESSORIES:

Order on-line at GEApplianceParts.com, 24 hours a day or

by phone at 800.626.2002 during normal business hours.

Part Number Accessory

SBSD137HWW

27” width White Pedestal

SBSC137HDG

27” width Diamond Gray Pedestal

GEFLSTACK Stacking Kit for Dryer over Washer

PM08X10085

Flexible Metal Dryer Transition Duct

WE01X20677

Clothes Dryer Shoe Rack

Part Number Accessory

WE25X20060

Complete Kit (hoses, Y-adapter, washers) or

WE49X25794

Kit (Short hose, Y-adapter, washers) and

WE1M847 Long Hose

OR SEPARATELY

WE1M847 Long Hose and

WE1M848 Short Hose

Installation Instructions

MOBILE OR MANUFACTURED HOME

INSTALLATION

•Installation MUST conform to the

MANUFACTURED HOME CONSTRUCTION AND

SAFETY STANDARD, TITLE 24, PART 32–80 or

Standard CAN/CSA-Z240 MH, or, when such

standard is not applicable, with AMERICAN

NATIONAL STANDARD FOR MOBILE HOME,

ANSI/NFPA NO. 501B.

•The dryer MUST be vented to the outdoors.

•The exhaust vent MUST be securely fastened to

a non-combustible portion of the mobile home.

•The vent MUST NOT be terminated beneath a

mobile or manufactured home.

•The vent duct material MUST BE METAL.

•KIT 14-D346-33 MUST be used to attach the dryer

securely to the structure.

•The vent MUST NOT be connected to any other

duct, vent or chimney.

•DO NOT use sheet metal screws or other

fastening devices which extend into the interior

of the exhaust vent.

•Provide an opening with a free area of at least

25 square inches for introduction of outside air

into the dryer room.

•See the sections for electrical connection

information.

REQUIREMENTS FOR ALCOVE OR

CLOSET INSTALLATION

- Explosion Hazard

WARNING

Keep flammable materials and vapors, such as gasoline,

away from dryer.

Place dryer at least 18” (46 cm) above the floor for a

garage installation.

Failure to do so can result in death, explosion, or fire.

•The dryer MUST be vented to the outdoors. See

the EXHAUSTING THE DRYER section.

•Minimum clearance between dryer cabinet and

adjacent walls or other surfaces is:

0” either side

1” front

1” rear

1” top

•Consideration must be given to provide adequate

clearance for installation and service.

•Closet doors must be louvered or otherwise

ventilated and have at least 60 square inches of

open area. If the closet contains both a washer

and a dryer, doors must contain a minimum of

120 square inches of open area.

NOTE: WHEN THE EXHAUST DUCT IS LOCATED IN

THE REAR OF THE DRYER, THE CONFIGURATION OF

THE DUCTING MAY REQUIRE GREATER THAN 1” OF

REAR CLEARANCE.

Gas Dryers Only:

•No other fuel burning appliance shall be installed

in the same closet as a gas dryer.

•The dryer must be disconnected from the gas

supply piping during pressure testing at pressures

greater than ½ psi (3.5 kPa).

•A 1/8 inch NPT minimum plugged tapping,

accessible for test gauge connection, must be

installed immediately upstream of the gas supply

connection to the dryer.

MINIMUM CLEARANCE OTHER THAN

ALCOVE OR CLOSET INSTALLATION

Minimum clearance to combustible surfaces and

for air opening are:

0” both sides; 1” rear; 1” top

Consideration must be given to provide adequate

clearance for installation and service.

Installation Instructions

CONNECTING INLET HOSES (for steam dryer models only)

CONNECTING INLET HOSES (cont.)

7. Using pliers, tighten all the couplings with an

additional two–thirds turn.

NOTE: Do not overtighten. Damage to the couplings

may result.

8. Turn the water faucet on.

9. Check for leaks around the ‘’Y’’ connector, faucet

and hose couplings.

WATER SUPPLY REQUIREMENTS

Hot and cold water faucets MUST be installed

within 42 in. (107 cm) of your washer’s water

inlet. The faucets MUST be 3/4 in. (1.9 cm) garden

hose-type so inlet hoses can be connected. Water

pressure MUST be between 10 and 120 pounds

per square inch. Your water department can

advise you of your water pressure.

NOTE: A water softener is recommended to reduce

buildup of scale inside the steam generator if the

home water supply is very hard.

To produce steam, the dryer must connect to

the cold water supply. Since the washer must

also connect to the cold water, a “Y” connector

is inserted to allow both inlet hoses to make that

connection at the same time.

NOTE: Use new inlet hoses; never use old hoses.

1. Turn the cold water faucet off. Remove the

washer inlet hose from the washer fill valve

connector (cold).

2. Ensure the rubber flat washer is in place and

attach one female coupling of the short hose

provided onto the washer fill valve connector.

Tighten by hand until firmly seated.

3. Attach one male end of the “Y” connector to the

other female coupling of the short hose. Ensure

the rubber flat washer is in place. Tighten by

hand until firmly seated.

4. Insert the filter screen in the coupling of the

washer’s inlet hose. If a rubber flat washer is

already in place remove it before installing the

filter screen. Attach this coupling to one male end

of the ‘’Y’’ connector. Tighten by hand until firmly

seated.

5. Ensure the rubber flat washer is in place and

attach a 4 ft. to 6 ft. long water inlet hose (may

need to be purchased separately) to one male

end of the ‘’Y’’ connector. Tighten by hand until

firmly seated.

6. Ensure the rubber flat washer is in place and

attach the other end of the dryer’s long inlet

hose to the fill valve connector at the bottom of

the dryer back panel. Tighten by hand until firmly

seated.

CONNECTING INLET HOSES

Installation Instructions

CONNECTING A GAS DRYER (skip for electric dryers)

•

Before beginning the installation, turn off

the circuit breaker(s) or remove the dryer’s circuit

fuse(s) at the electrical box. Be sure the dryer cord

is unplugged from the wall.

•

Turn the dryer’s gas shut-off valve in the supply

line to the OFF position.

•

Disconnect and discard old flexible gas connector

and ducting material.

Shut-off

Valve

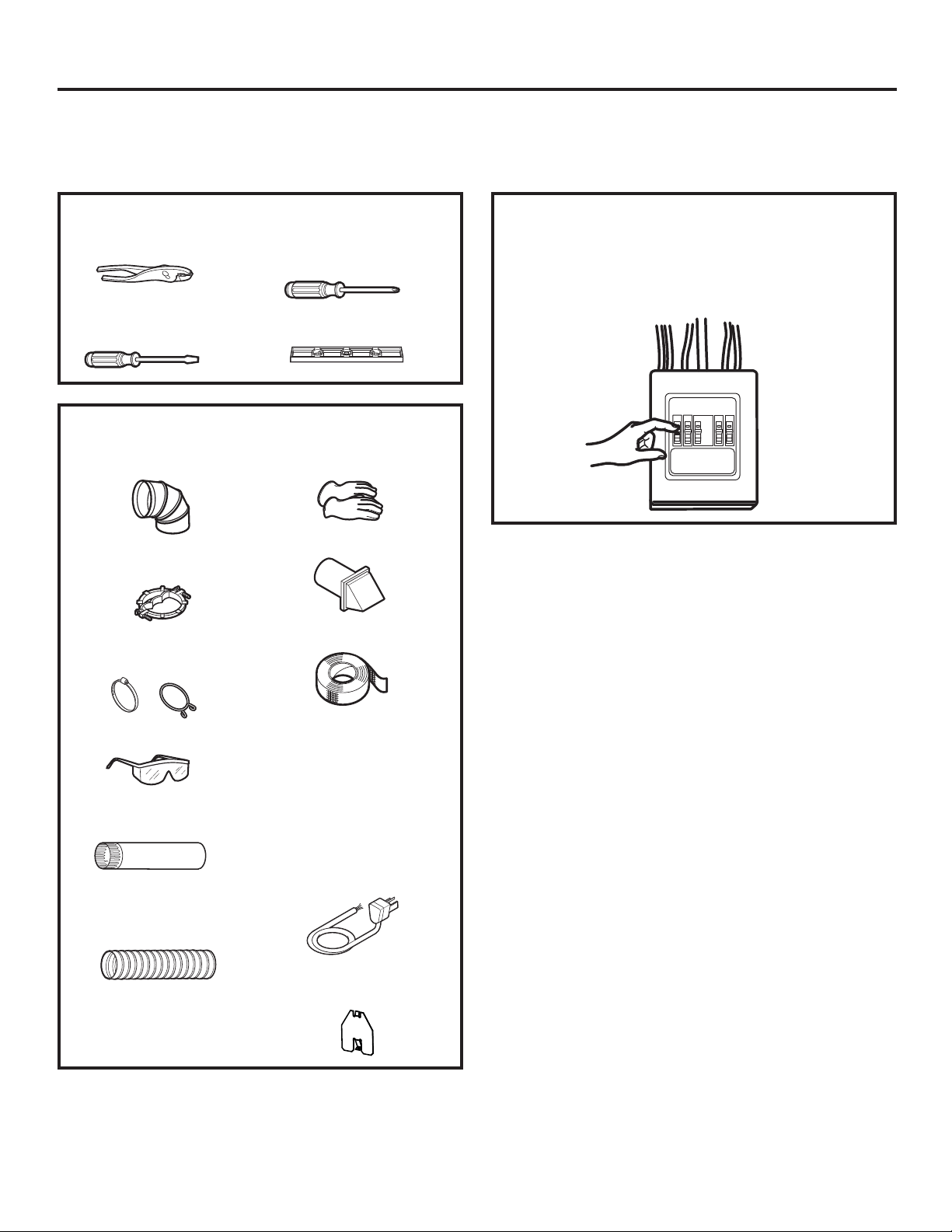

TOOLS YOU WILL NEED

MATERIALS YOU WILL NEED

10” Adjustable

wrenches (2)

8” Pipe wrench

Flat-blade

screwdriver

Level

Slip-joint pliers

4” dia. metal elbow

Pipe compound or

PTFE tape

Flexible gas line

connector

Duct clamps (2) or

Spring clamps (2)

Safety glasses

4” dia. metal duct

(recommended)

4” Cover Plate (Kit

WE49X22606)

4” dia., UL-listed

flexible metal duct

(if needed)

Gloves

Soap solution for

leak detection

Exhaust hood

Duct tape

Gas pipe adapters (2),

elbow and pipe plug

CONNECTING A GAS DRYER (cont.)

Installation Instructions

DRYER GAS SUPPLY CONNECTION

GAS SUPPLY

•A 1/8” National Pipe Taper thread plugged

tapping, accessible for test gauge connection,

must be installed immediately upstream of the

gas supply connection to the dryer. Contact

your local gas utility should you have questions

on the installation of the plugged tapping.

•Supply line is to be 1/2” rigid pipe and equipped

with an accessible shutoff within 6 feet of, and

in the same room with, the dryer.

•Use pipe thread compound appropriate for

natural or LP gas or use PTFE tape.

•Connect flexible metal connector to dryer and

gas supply.

ADJUSTING FOR ELEVATION

•Gas clothes dryers input ratings are based on

sea level operation and need not be adjusted

for operation at or below 2000 ft. elevation. For

operation at elevations above 2000 ft., input

ratings should be reduced at a rate of 4 percent

for each 1000 ft. above sea level.

•Installation must conform to local codes and

ordinances or, in their absence, the NATIONAL

FUEL GAS CODE, ANSI Z223.

• You must use with this dryer a flexible metal

connector (listed connector ANSI Z21.24/CSA 6.10).

The length of the connect shall not exceed 3 ft.

2-5/8" 3/8" NPT MALE THREAD GAS SUPPLY

NOTE: Add to vertical dimension

the distance between cabinet

bottom to ﬂoor.

GAS REQUIREMENTS

- Explosion Hazard

WARNING

• Use a new CSA International approved flexible

gas supply line. Never reuse old flexible

connectors.

• Install an individual manual shut-off valve

within 6ft. of the dryer in accordance with the

National Fuel Gas Code, ANSI Z223.1/NFPA 54.

• Securely tighten all gas connections.

• If connected to LP gas, have a qualified person

make sure gas pressure DOES NOT exceed 13”

water column.

• Examples of a qualified person include: licensed

heating personnel, authorized gas company

personnel, and authorized service personnel.

• Failure to do so can result in death, explosion,

or fire.

•The installation must conform with local codes,

or in the absence of local codes, with the

National Fuel Gas Code, ANSI Z223.1/NFPA 54,

or the Natural Gas and Propane Installation

Code, CSA B149.1.

- Fire Hazard

WARNING

FOR USE WITH NATURAL GAS ONLY

Dryer as produced by manufacturer is to be used only

with a natural gas supply. A manufacturer-supplied

conversion kit is required to convert this dryer for

propane gas supply. Use propane gas conversion

kit WE25X217. Conversion must be made by properly

trained and qualified personnel in accordance with

local codes and ordinances.

Install a 1/8” NPT plugged tapping to the dryer

gas line shut-off valve for checking gas inlet

pressure.

Install a flare union adapter to the plugged

tapping.

NOTE: Apply pipe compound or PTFE tape

to the threads of the adapter and plugged

tapping.

Installation Instructions

Attach the flexible metal gas line connector to

the adapter.

Tighten the flexible gas line connection, using

two adjustable wrenches.

Tighten all connections, using two adjustable

wrenches. Do not overtighten.

CONNECTING THE DRYER TO THE GAS

SUPPLY (cont.)

Open the gas shut-off valve.

Apply pipe compound

or PTFE tape to all

male threads.

Shut-Off

Valve

Plugged

Tapping

CONNECTING THE DRYER TO THE GAS

SUPPLY

Install a female 3/8” NPT elbow at the end of the

dryer gas inlet.

Install a 3/8” flare union adapter to the female

elbow.

IMPORTANT: Use a pipe wrench to securely hold

on to the end of the dryer gas inlet to prevent

twisting the inlet.

NOTE: Apply pipe compound or PTFE tape to the

threads of the adapter and dryer gas inlet.

Apply pipe compound to the

adapter and dryer gas inlet.

Tighten the flexible

gas line using two

adjustable wrenches.

Elbow

Adapter

Items not supplied

Adapter

1/8” NPT

Pipe Plug for

Checking Gas

Inlet Pressure

Shut-Off Valve

Pipe size at

least 1/2”

3/8” NPT

New Metal

Flexible Gas

Line Connector

Installation Instructions

CONNECTING A GAS DRYER (cont.)

TEST FOR LEAKS

Never use an open flame to test for gas leaks.

Check all connections for leaks with soapy solution

or equivalent.

Apply a soap solution. The leak test solution must

not contain ammonia, which could cause damage

to the brass fittings.

If leaks are found, close the valve, retighten the

joint and repeat the soap test.

ELECTRICAL CONNECTION

INFORMATION FOR GAS DRYERS (cont.)

ELECTRICAL CONNECTION

INFORMATION FOR GAS DRYERS

- Electrical Shock Hazard

WARNING

Plug into a grounded 3 prong outlet.

DO NOT remove ground prong.

DO NOT use an adapter.

DO NOT use an extension cord.

Failure to do so can result in death, fire or electrical

shock.

•Circuit – Individual properly polarized and grounded

15 or 20 amp circuit breaker or time-delay fuse.

•Power Supply – 2-wire plus ground, 120 Volt,

single phase, 60 Hz, alternating current.

•Outlet Receptacle –

Properly grounded

3-prong receptacle to

be located so the power

cord is accessible when

the dryer is in an installed

position. If a 2-prong

receptacle is present, it

is the owner’s responsibility to have a licensed

electrician replace it with a properly grounded

3-prong grounding type receptacle.

Ensure proper

ground exists

before use.

GROUNDING INSTRUCTIONS

This dryer must be grounded. In the event of a

malfunction or breakdown, grounding will reduce

the risk of electric shock by providing a path of

least resistance for electric current. This dryer uses

a cord having an equipment-grounding conductor

and a grounding plug. The plug must be plugged

into an appropriate outlet that is properly installed

and grounded in accordance with all local codes

and ordinances.

WARNING Improper connection of the

equipment-grounding conductor

can result in a risk of electric shock. Check with a

qualified electrician, or service representative or

personnel, if you are in doubt as to whether the

appliance is properly grounded. DO NOT modify the

plug on the power supply cord. If it will not fit the

outlet, have a proper outlet installed by a qualified

electrician.

SAVE THESE INSTRUCTIONS

•Dryer must be electrically grounded in

accordance with local codes and ordinances,

or in the absence of local codes, with the latest

edition of the NATIONAL ELECTRICAL CODE,

ANSI/NFPA NO. 70 or CANADIAN ELECTRICAL

CODE, CSA C22.1. Check with a licensed

electrician if you are not sure that the dryer is

properly grounded.

•If required by local codes, an external 18 gauge

or larger copper ground wire (not provided)

may be added. Attach to dryer cabinet with a

#8-18 x ½” sheet metal screw (available at any

hardware store) to rear of dryer as illustrated.

Open Gas

Valve

Ground

Screw

Installation Instructions

CONNECTING AN ELECTRIC DRYER

(Skip for gas dryers and if your dryer already has a power cord attached)

Before making the electrical connection, turn off

the circuit breaker(s) or remove the dryer’s circuit

fuse(s) at the electrical box. Be sure the dryer cord

is unplugged from the wall. NEVER LEAVE THE

ACCESS COVER OFF THE TERMINAL BLOCK.

MATERIALS YOU WILL NEED

4” dia. metal elbow

3/4” Strain relief

(UL recognized)

4” Duct clamps (2) or

4” spring clamps (2)

Safety glasses

4” dia. metal duct

(recommended)

4” Cover plate (Kit

WE49X22606)

Gloves

Exhaust hood

Duct tape

TOOLS YOU WILL NEED

Slip-joint pliers

Flat-blade

screwdriver

Phillips

screwdriver

Level

4” dia., UL-listed

flexible metal duct (if

needed)

Dryer power cord kit

(not provided with

dryer)

UL rated 120/240V,

30A with 3 or 4 prongs.

Identify the plug type

as per the house

receptacle before

purchasing line cord.

CONNECTING AN ELECTRIC DRYER (cont.)

Installation Instructions

ELECTRICAL CONNECTION

INFORMATION FOR ELECTRIC DRYERS

- Fire Hazard

WARNING

Use a new UL-listed 240V 30 amp dryer power supply

cord with closed ring terminals or spade terminals with

upturned ends.

Use a UL-listed strain relief.

Disconnect power before making electrical

connections.

Connect neutral wire (white or center wire) to center

terminal.

Ground wire (green or bare wire) must be connected to

green ground connector.

Connect remaining two supply wires to remaining two

terminals.

Securely tighten all electrical connections.

Replace the terminal block cover.

Failure to do so can result in death, fire or electrical

shock.

For electrical connections using a

power cord:

ELECTRICAL CONNECTION

INFORMATION FOR ELECTRIC DRYERS

For direct wire connections:

- Fire Hazard

WARNING

Use 10 gauge copper wire.

Use a UL-listed strain relief.

Disconnect power before making electrical

connections.

Connect neutral wire (white or center wire) to center

terminal.

Ground wire (green or bare wire) must be connected to

green ground connector.

Connect remaining two supply wires to remaining two

terminals.

Securely tighten all electrical connections.

Replace the terminal block cover.

Failure to do so can result in death, fire or electrical

shock.

GROUNDING INSTRUCTIONS

For a grounded, cord-connected dryer: This dryer

must be grounded. In the event of a malfunction

or breakdown, grounding will reduce the risk

of electric shock by providing a path of least

resistance for electric current. This dryer uses a

cord having an equipment-grounding conductor

and a grounding plug. The plug must be plugged

into an appropriate outlet that is properly installed

and grounded in accordance with all local codes

and ordinances.

WARNING

Improper connection of the

equipment-grounding conductor

can result in a risk of electric shock. Check with a

qualified electrician, or service representative or

personnel, if you are in doubt as to whether the

appliance is properly grounded. DO NOT modify the

plug on the power supply cord. If it will not fit the

outlet, have a proper outlet installed by a qualified

electrician.

SAVE THESE INSTRUCTIONS

GROUNDING INSTRUCTIONS

For a permanently connected dryer: This

dryer must be connected to a grounded metal,

permanent wiring system, or an equipment-

grounding conductor must be run with the circuit

conductors and connected to the equipment-

grounding terminal on the appliance.

WARNING

Improper connection of the

equipment-grounding conductor

can result in a risk of electric shock. Check with a

qualified electrician, or service representative or

personnel, if you are in doubt as to whether the

appliance is properly grounded.

SAVE THESE INSTRUCTIONS

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Secadora de GE

GE CleanSpeak GTD81ESSJWS Manual de usuario

GE Profile Harmony DPGT750ECPL Instrucciones de funcionamiento

GE GFD65 Instrucciones originales

GE DLSR483GG4WW Manual de usuario

GE DSKS333E Instrucciones de funcionamiento

GE GFDS175 Manual de usuario

GE DPGT750ECPL - Profile Harmony 7.3 cu. Ft. Electric... Manual de usuario

GE PCKS443EBWW Instrucciones de montaje

GE 234D1157P002 Manual de usuario

GE GTDS825GDMC Manual de usuario

GE Profile Dryers Manual de usuario

GE Profile DPVH880GJ Manual

GE GTDS850EDWS Manual de usuario

GE DuraDrum GTDL200GMWW Manual de usuario

GE Profile DPSB513 Manual de usuario

GE Spacemaker DSXH43EVWW Manual

GE DBLR333 Manual de usuario

GE DDE9500M Manual de usuario

GE Profile PTD60EBPRDG Manual de usuario

GE DDE7108V Manual de usuario

GE DWXR483EBWW Manual

GE Hotpoint HTDX100GM8WW Manual de usuario

GE DCCB330GDKC Manual

GE DuraDrum GTDX100GM Manual

Manuales populares de Secadora de otras marcas

Bosch

Bosch WTA79200GB Manual de usuario

Amana

Amana W10233410A Manual de usuario

Miele

Miele TWH 780 WP Manual de usuario

Asko

Asko T760 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manual de usuario

Bosch

Bosch Logixx 10 WTB76556GB Hoja de especificaciones

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Manual de instrucciones

Electrolux

Electrolux EW2H328R2 Manual de usuario

Beko

Beko DS8433RX1M Manual de usuario

Dawlance

Dawlance Spinner DS 6000 C Manual de usuario

Electrolux

Electrolux TP5080TW Manual de usuario

AEG

AEG TR838P4OB Manual de usuario

Indesit

Indesit IDV 75 Manual de usuario

Infiniton

Infiniton SD-DG85C Manual de usuario

BOMANN

BOMANN WT 5019 Manual de usuario

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manual de usuario

Asko

Asko T793C Manual de usuario

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manual de usuario
