GE DSXH43EFWW Manual

DSXH43EFWW

GE® Extra-Large 5.7 Cu. Ft. Capacity Frontload Electric Dryer

Dimensions and Installation Information (in inches)

Exhaust Options: Electric—4-way via rear, right, left

and bottom.

Circuit Requirements: Electric—An individual,

properly-grounded branch circuit, protected by a 30-

amp circuit breaker or a time-delay fuse, is required.

Electric Dryer Rating:

120/240V, 3-wire, 5600W, 24A

120/208V, 3-wire, 4400W, 22A

Note: Dryer wall outlet must be located within 36”

of service cord entry and accessible when dryer is

mounted in position.

Installation Information: For complete information,

see installation instructions packed with your dryer.

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

Specification Created 9/05 360426

SIDE VIEW

25-3/4

47-1/2

4-3/4

Optional

Vent Knockout

Door Open

90°

4-3/8

3/4

REAR VIEW

26-7/8

3-3/4

Under

Counter

34-5/8"

3/16"

Gas Pipe Connection

Electric

Connection

2-9/16

13-9/16

27" Min.

70-5/8

Note:

Closet Installation Requires Additional

Minimum Clearances:

A Minimum of 120 Square Inches of Opening,

Equally Divided at the Top and Bottom of

the Closet Door is Required.

Top of Dryer to Ceiling 15"

Back of Dryer to Wall 4"

Front of Dryer/Washer 1"

to Closet Door

27"

Min. 34-5/8"

Min.

Custom Sized

Countertop Required

54" Min.

SIDE VIEW

25-3/4

47-1/2

4-3/4

Optional

Vent Knockout

Door Open

90°

4-3/8

3/4

REAR VIEW

26-7/8

3-3/4

Under

Counter

34-5/8"

3/16"

Gas Pipe Connection

Electric

Connection

2-9/16

13-9/16

27" Min.

70-5/8

Note:

Closet Installation Requires Additional

Minimum Clearances:

A Minimum of 120 Square Inches of Opening,

Equally Divided at the Top and Bottom of

the Closet Door is Required.

Top of Dryer to Ceiling 15"

Back of Dryer to Wall 4"

Front of Dryer/Washer 1"

to Closet Door

27"

Min. 34-5/8"

Min.

Custom Sized

Countertop Required

54" Min.

Listed by

Underwriters

Laboratories

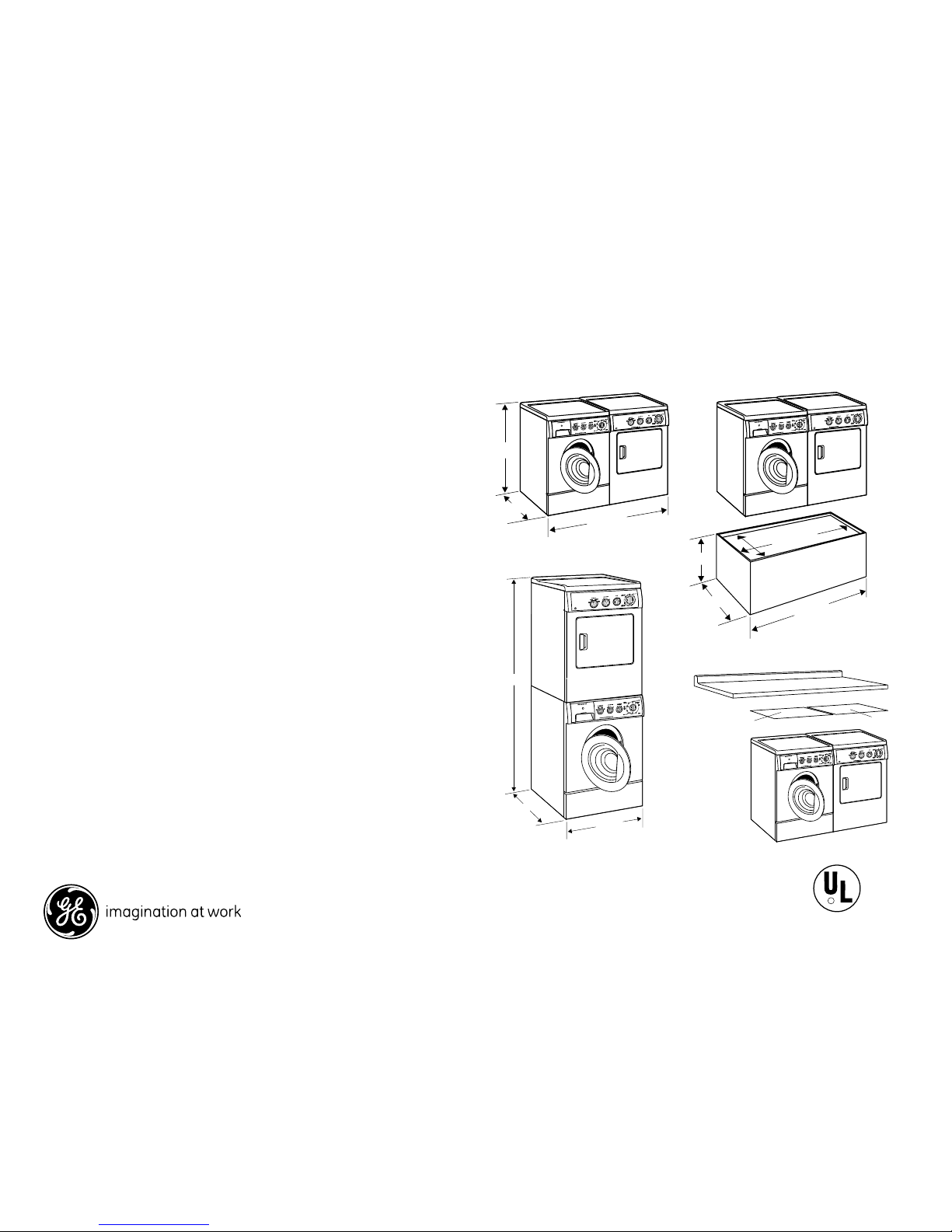

Dimensions and Installation Information (in inches)

Special Installation Requirements

Undercounter Installation

Accessory mounting kits are required for undercounter installation. To order,

call 1-800-848-7722.

Stacked Installation: Brackets for stacking dryer over washer are included with

the washer.

Alcove or Closet Installation:If your dryer is approved for installation in an

alcove or closet, it will be stated on a label on the dryer back. The dryer MUST

be exhausted to the outdoors. Minimum clearances between dryer cabinet and

adjacent walls or other surfaces are: 0" either side, 3" front and rear Minimum

vertical space from floor to overhead cabinets, ceilings, etc. is 52". Closet doors

must be louvered or otherwise ventilated and must contain a minimum of 60

sq. in. of open area equally distributed. If this closet contains both a washer

and a dryer, doors must contain a minimum of 120 sq. in. of open area equally

distributed. The closet should be vented to the outdoors to prevent gas pocketing

in case of a gas leak in the supply line. No other fuel-burning appliance shall be

installed in the same closet with the dryer.

Bathroom or Bedroom Installation: The dryer must be exhausted to the

outdoors. The installation must conform with the local codes, or in the absence

of local codes, with the National Fuel Gas Code, ANSI Z223.

Minimum Clearances other than Alcove or Closet Installations:

Minimum clearances to combustible surfaces: 0" both sides, 3" rear

511LF1

36"

25-3/4"

53-1/2"

511LF2

Washer

Top Sheet

Dryer

Top Sheet

Countertop

511LF3

14''

29'' 56''-60''

Lip on All Sides

3/4" High x 3/4" Wide

Max.

511LF4

70-5/8"

25-3/4"

26-3/4"

Free-Standing Installation Raised/ Built-in Installation

Stacked Installation

Undercounter Installation

Specification Created 9/05 360426

Listed by

Underwriters

Laboratories

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

DSXH43EFWW

GE® Extra-Large 5.7 Cu. Ft. Capacity Frontload Electric Dryer

Best Performance

Maximum Length

of 4" Dia.

Rigid Metal Duct

Maximum Length

of 4" Dia.

Flexible Metal Duct

Number

90°

Turns

Exhaust Hood Type Exhaust Hood Type

4" Opening

2-1/2"

Opening

4" Opening

2-1/2"

Opening

Front Loading

Dryers

60 ft.

52 ft.

44 ft.

32 ft.

28 ft.

48 ft.

40 ft.

32 ft.

24 ft.

16 ft.

30 ft.

22 ft.

14 ft.

18 ft.

14 ft.

10 ft.

2-1/2

GE Dryer Vent

Dryer Exhausting Information – Metal Duct Only

For complete information, see installation instructions packed with your dryer.

Ducting Materials: For best performance, this dryer should be vented with 4” diameter all rigid

metal exhaust duct. If “all rigid metal” duct cannot be used, then “flexible all metal” venting can

be used, but it will reduce the maximum recommended duct length.

Exhaust Length Calculation:

1. Determine the number of 90° turns needed for your installation. If you exhaust to the

side or bottom of dryer, add one turn.

2. The maximum length of 4’ rigid (aluminum or galvanized) duct which can be tolerated is

shown in the table. The maximum length for flexible ducts are less than for rigid duct.

A turn of 45° or less may be ignored. Two 45° turns within the duct length should be

treated as a 90° elbow.

A turn over 45° should be treated as a 90° elbow.

Exhausting the dryer to the outside is strongly recommended to prevent large amounts of

moisture and lint from being blown into the room. Gas dryers or any dryer located in a closet

must be exhausted to the outside.

Caution: For personal safety do not terminate exhaust into a chimney, under any enclosed

house floor (crawl space), or into an attic, since the accumulated lint could create a fire hazard

or moisture could cause damage. Never terminate the exhaust into a common duct or plenum

with a kitchen exhaust, since the combination of lint and grease could create a fire hazard.

Exhaust ducts should be terminated in a dampered wall cap to prevent back drafts, bird

nesting, etc. The wall cap must also be located at least 12" above the ground or any other

obstruction with the opening pointed Down.

Other terminations, such as louvered wall boxes, are acceptable provided they are equivalent

to a 4" opening dampered wall cap.

For more information on venting kits and accessories, please call 1-800-GE-CARES.

360426

For answers to your Monogram,® GE Profile™ or

GE® appliance questions, visit our website at

ge.com or call GE Answer Center® service,

800.626.2000.

DSXH43EFWW

GE® Extra-Large 5.7 Cu. Ft. Capacity Frontload Electric Dryer

Specification Created 9/05

Listed by

Underwriters

Laboratories

Specification Created 9/05 360426

Features and Benefits

• Extra-Large (5.7 cu. ft.) Capacity

• Tumble Drying

• 4 Temperature Options: Regular/Cottons, Medium/Permanent Press,

Low/Delicates and Air Fluff/No Heat (Cool Down)

• 1 Time Dry Cycle

• 2 Auto Dry Cycles: Cottons and Easy Care

• Adjustable End-of-Cycle Signal

• Quick Clean Lint Screen

• Drying Rack

• Spill-Saver Top

• Interior Dryer Light

• Dura Finish Top and Drum

• Leveling Legs

• Heavy Duty Suspension System

• 4 Exhaust Option

• Reverse-A-Door

• 100% Front Serviceable

• Model DSXH43EFWW - White on white (Electric)
