GE DCVH480 Manual de usuario

MK 11/12/2009

GE 24” DCVH480 Series Dryer

DCVH480EK0WW

DCVH485EK0MS

Service guide 31-9194

All manuals and user guides at all-guides.com

all-guides.com

Copyright 2009

IMPORTANT SAFETY NOTICE

The information in this presentation is intended for use by individuals

possessing adequate backgrounds of electrical, electronic, & mechanical

experience. Any attempt to repair a major appliance may result in

personal injury & property damage. The manufacturer or seller cannot be

responsible for the interpretation of this information, nor can it assume

any liability in connection with its use.

WARNING

To avoid personal injury, disconnect power before servicing this product.

If electrical power is required for diagnosis or test purposes, disconnect

the power immediately after performing the necessary checks.

RECONNECT ALL GROUNDING DEVICES

If grounding wires, screws, straps, clips, nuts, or washers used to complete

a path to ground are removed for service, they must be returned to their

original position & properly fastened.

All manuals and user guides at all-guides.com

Copyright 2009

GE Factory Service Employees are required to use safety glasses with side

shields, cut resistant (Dyneema®) gloves & steel toe shoes for all repairs.

Dyneema® Cut

Resistant Glove

Safety Glasses must be compliant with

ANSI Z87.1-2003

Prescription Safety Glasses

Plano Safety Glasses

Steel Toe Shoes

All manuals and user guides at all-guides.com

Copyright 2009

Warranty

All manuals and user guides at all-guides.com

Copyright 2009

Model and Serial Number

Nomenclature Location

All manuals and user guides at all-guides.com

Copyright 2009

Mini Manual Location

Mini Manual located behind control panel

Mini Manual

All manuals and user guides at all-guides.com

all-guides.com

Copyright 2009

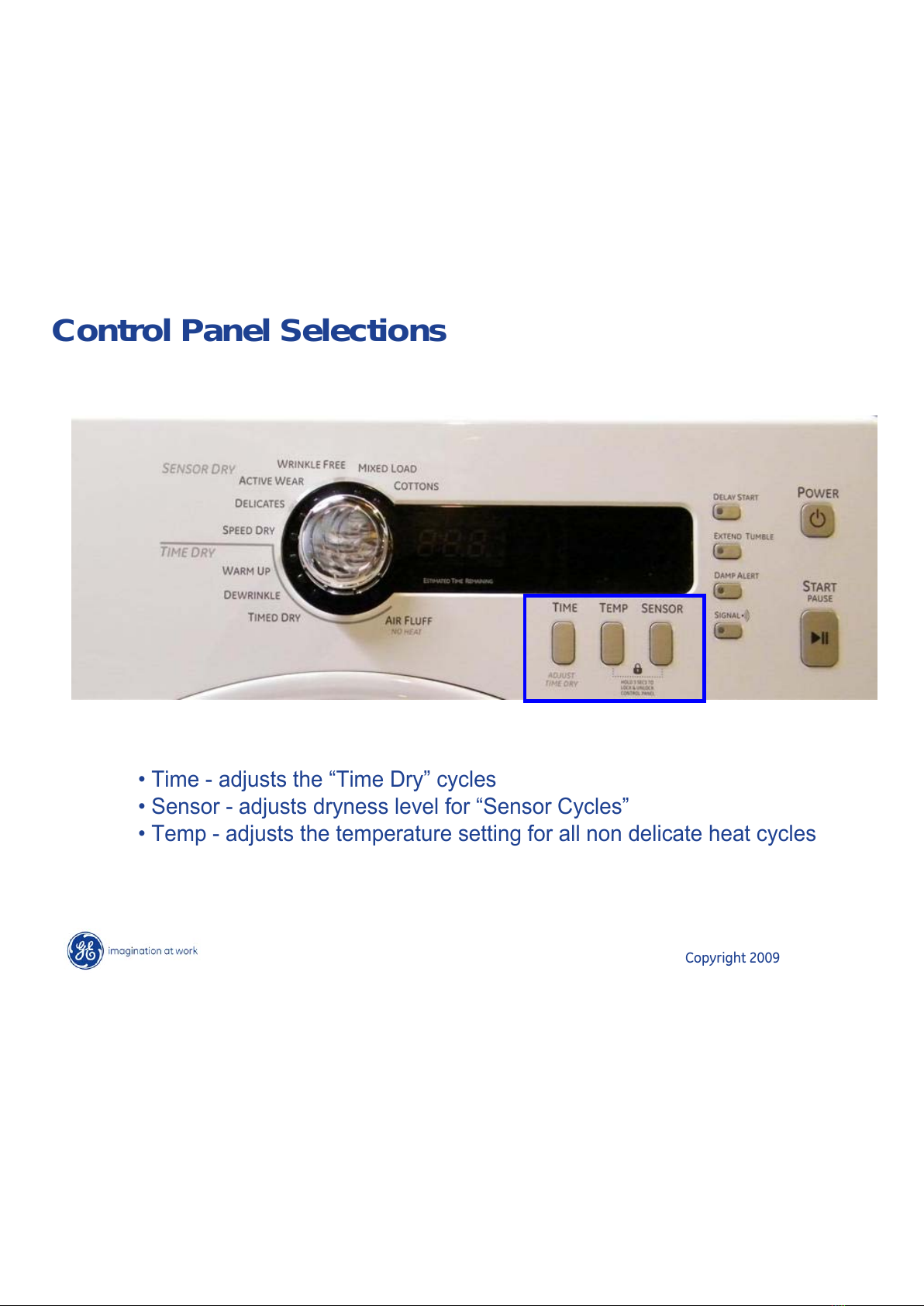

Control Panel Selections

• Time - adjusts the “Time Dry” cycles

• Sensor - adjusts dryness level for “Sensor Cycles”

• Temp - adjusts the temperature setting for all non delicate heat cycles

All manuals and user guides at all-guides.com

Copyright 2009

Control Lock Out

Press “Power Pad” then hold the “TEMP and SENSOR”

pads for 3 seconds. The control can be locked out with or

without a cycle selected.

Note: If the control is locked out and a cycle is running the

power pad will still function. When the power pad is pressed

the control will turn off. Press power pad again the control

will be in the lock out mode. To re-start the cycle the control

will need to be unlocked.

All manuals and user guides at all-guides.com

Copyright 2009

Damp Alert

• This option causes the dryer to beep when clothes have dried to a damp level.

• The dry cycle will continue running

• Damp Alert can only be selected for “dry, more dry and extra dry” sensor dry selections

All manuals and user guides at all-guides.com

Copyright 2009

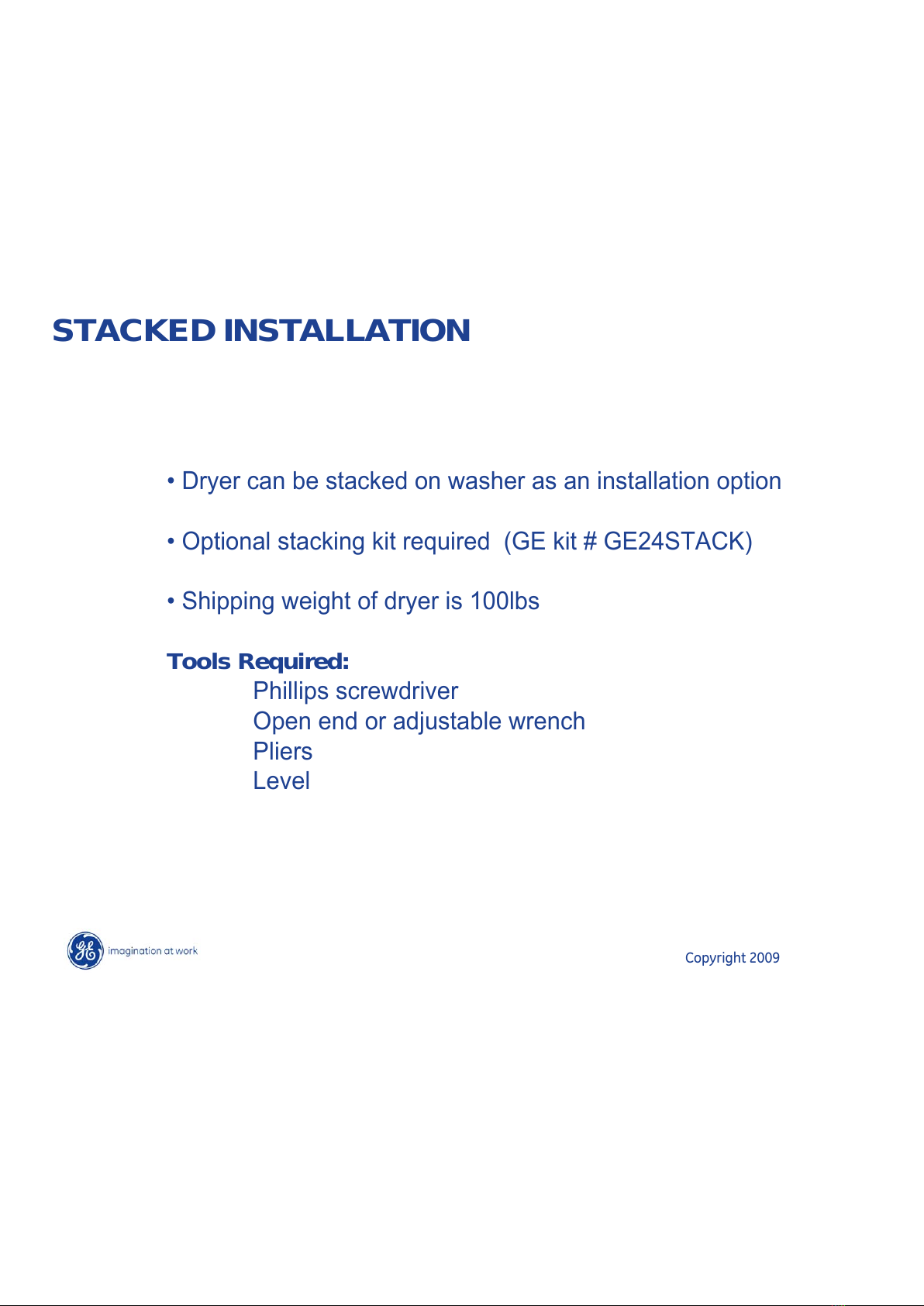

STACKED INSTALLATION

• Dryer can be stacked on washer as an installation option

• Optional stacking kit required (GE kit # GE24STACK)

• Shipping weight of dryer is 100lbs

Tools Required:

Phillips screwdriver

Open end or adjustable wrench

Pliers

Level

All manuals and user guides at all-guides.com
