Specification Created 2/00

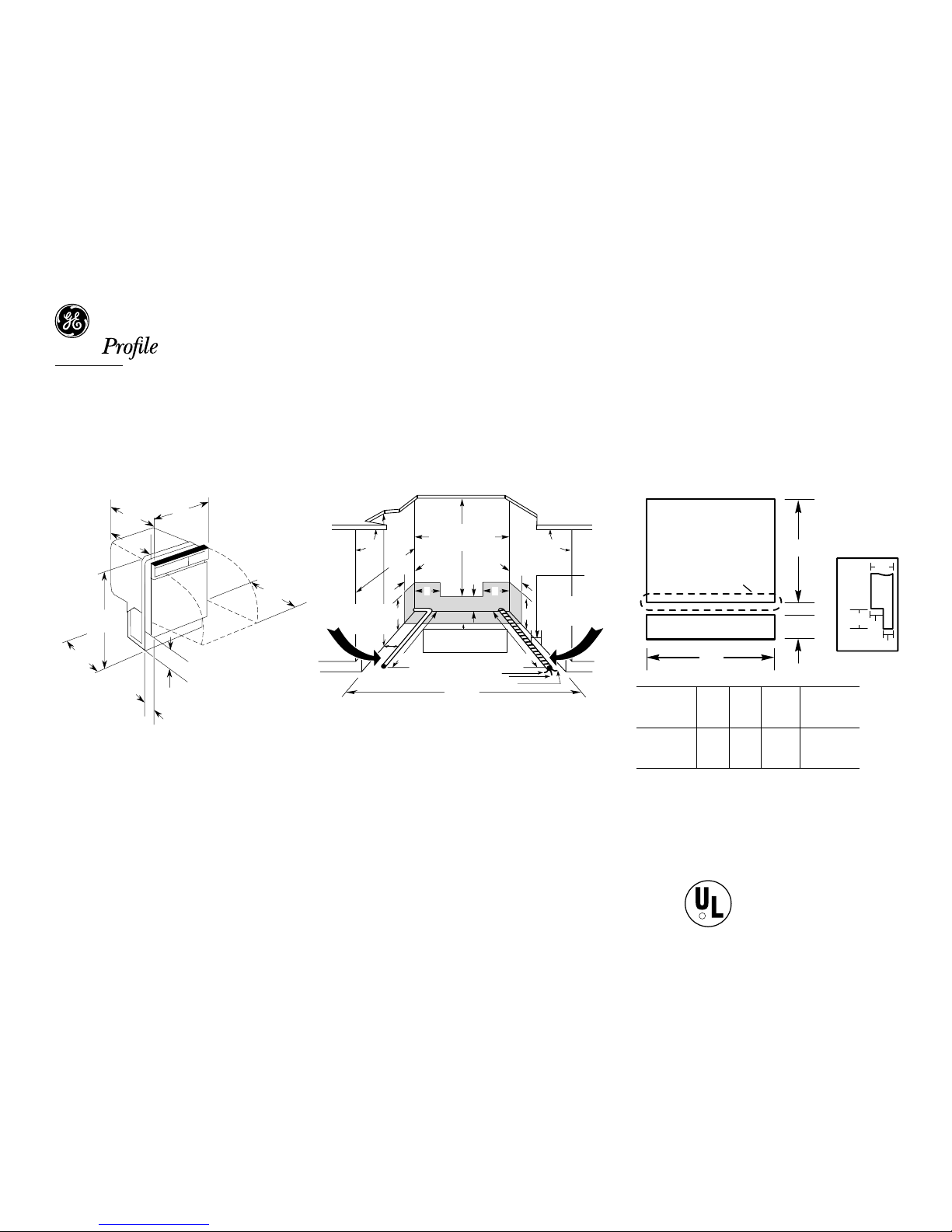

GSD5360FSS - GE Profile™Triton™Built-In Dishwasher

Dimensions (in inches) Wood Insert Cut-Out

Dimensions (in inches)

Installation Information

(in inches)

Note: Dishwasher must not be installed more than 10 feet from

sink for proper drainage. All plumbing and electrical work must

be in accordance with local codes.

Note: If a flush look is needed, a 25" base cabinet needs to

be used.

Listed by

Underwriters

Laboratories

This wall area

must be free of

pipes or wires

Countertop

Hot

water

line on

left

2Plumbing and electrical

service must enter

inside shaded area

24" From wall

24" MIN.

90°

19" MIN. from wall

24"

MIN.

34-1/2±1/4"

Underside

of countertop

to floor

90°

Electrical

wiring on

right

Electrical

wiring is

3" from

cabinet

White (neutral)

Black (line)

Ground

24-3/4*

21-1/2*

3-1/4 4 (Adjustable)

34" MIN.

adj. to 35*

*Add 1/4" for

rear insulation

24-3/4

23-3/8*

Models/Kit A B C Thickness

GE Profile

Performance™and

GE Profile™

models/GPF425 19-3/4" 23-9/16" 3-11/16" 1/4"

GE Profile

Performance™and

GE Profile™4-1/4" to

models/GPF475 19-7/8" 23-5/8"* 3-11/16"** 3/4"

*Note: Bottom of panel must be notched 1-1/2"x1/2" to clear

across panel

**Adjustment required to match adjacent cabinets fronts due to

leveling leg adjustment, 4" nominal.

For answers to your Monogram,

GE Profile Performance Series,™

GE Profile™or GE appliance questions, call

GE Answer Center®service, 800.626.2000.

Access insert

Detail D

Door insert A

Panel Thickness

Front

Panel

1-1/2 1/2

1/4

3/4

Specification Created 2/00

GSD5360FSS - GE Profile™Triton™Built-In Dishwasher

TriCleanWashSystem-QuietPowerIII

Triton

RINSE

ONLY

POTS

&PANS

Features and Benefits

• TriClean™Wash System Provides Six Levels of Wash

• 100% Triple Water Filtration

• Dual Pumps

• Piranha™Anti-Jamming Hard Food Disposer

• 5 Cycle Selections: Pots&Pans, Normal Wash, Light Wash,China/Crystal

and Rinse Only

• 34 Options: Start/Reset, Hi-Temp Rinse, Hi-Temp Wash, Heated Dry On/Off,

Lock Pad and 2/4/8-Hr Delay Start

• Super Upper Rack

• Super Lower Rack with 2 Rows of Fold Down Tines

• SmartShelf

• Super Capacity Silverware Basket with Two Cell Covers

• Rinse Aid Dispenser with Indicator

• QuietPower™III Sound Insulation Package

• GE Profile™QuietMotor and Active Vent

• Electronic Controls with 11 Touchpads and "Clean" Light Indicator

• Model GSD5350DCC - Bisque

• Model GSD5330DWW - White on white

• Model GSD5320DBB - Black on black

• Model GSD5310DAA - Almond on almond

• Model GSD5360FSS - Stainless steel
