GE Monogram ZEK737BWBB Guía del usuario

Revised 7/97

Monogram.

™

Listed by

Underwriters

Laboratories

ZEK737BWBB—Single Convection Oven

Dimensions and Specifications (in inches)

Cutout Dimensions:

H 27-1/2" min. (699 mm)

W 25" min. (635 mm)

D 23-5/8" (600 mm)

cabinet depth required from front frame to inside rear

cabinet wall.

Monogram built-in double ovens require a separate,

properly grounded 3-wire 120/208 or 120/240 volt,

60 Hz power supply, protected by a time delay fuse or

circuit breaker. Ovens are supplied with a flexible

power cable, which must be attached to a junction

box. The cable length for convection type ovens is 54".

Double ovens are rated 6.8 KW at 240 volt, and

5.1 KW at 208 volt.

Single ovens are rated 3.4 KW at 240 volt, and 2.6 KW

at 208 volt.

Installation Information:

Before installing, consult installation instructions,

Pub. No. 49-8804, packed with the product for current

dimensional data and for alternate installation

options.

26-13/16"

(681 mm)

28-9/16"

(725 mm)

25" min.

(635 mm)

27" 

(686 mm)

32-1/2"*

(826 mm) 24-7/16"

(621 mm)

10"

Locate electrical outlet within 10" of left side of

opening 34" above cutout floor or 5" below cutout floor.

* recommended

27-1/2"

(699 mm)

min.

23-1/2"

(597 mm)

23-5/8"

(1600 mm)

For answers to your GE Monogram,™GE Profile,™

GE, Hotpoint and RCA appliance questions, call

GE Answer Center®service, 800.626.2000.

Revised 7/97

Monogram.

™

ZEK737BWBB—Single Convection Oven

Monogram



START

CLEAR

OFF

COOK

TIME

KITCHEN

TIMER



DELAY

START

CLOCK

SELF

CLEAN OVEN

LIGHT

PROBE

BROIL

OVEN TIMECONTROLS

ROAST

234567890

BAKE

CONVECTION CONVECTION

Features and Benefits

•Black on black Model

• Convection Self-Cleaning Oven

• Independent Cook/Clean Electronic Controls

with Convection Conversion

• Electronic Clock and Minute Timer

• Convection Bake and Convection Roast

• Delay Bake Option with Warm Mode

• Automatic Meat Thermometer

• Porcelain-Enameled Broiler Pan With

Chrome-Plated Grid

• Roasting Rack

• Interior Oven Light

• 3 Removable Racks and 4 Rack Positions

• Frameless Glass Oven Door with Window

• 27” Oven Cabinet Width Required

• Flush Appearance Installation

• Model ZEK737WWWW—White on white

• Model ZEK737BWBB—Black on black

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Horno de convección de GE

GE Profile JVM1790 Manual de usuario

GE Monogram ZET737 Manual de usuario

GE Monogram ZET1P Manual de usuario

GE MFL38211602 Manual de usuario

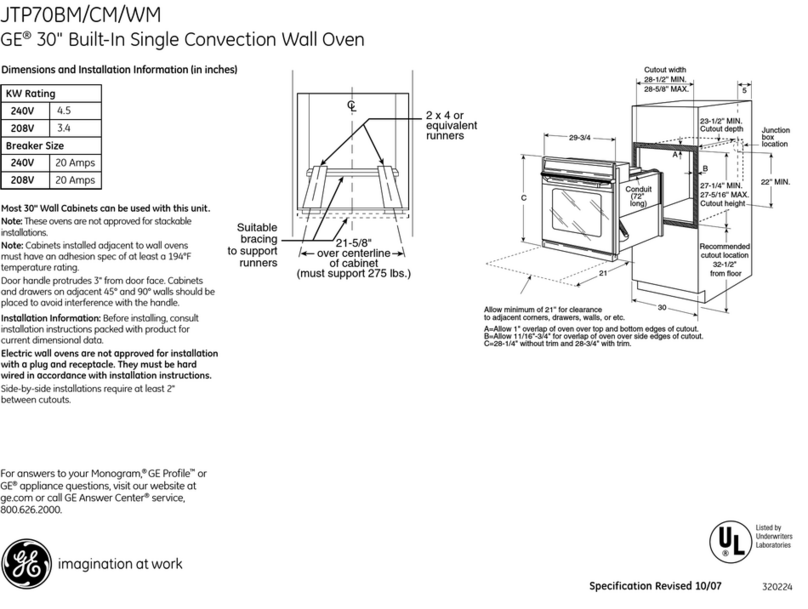

GE JTP70BM Manual
