GE SD200SA Manual de usuario

Model SD200SA

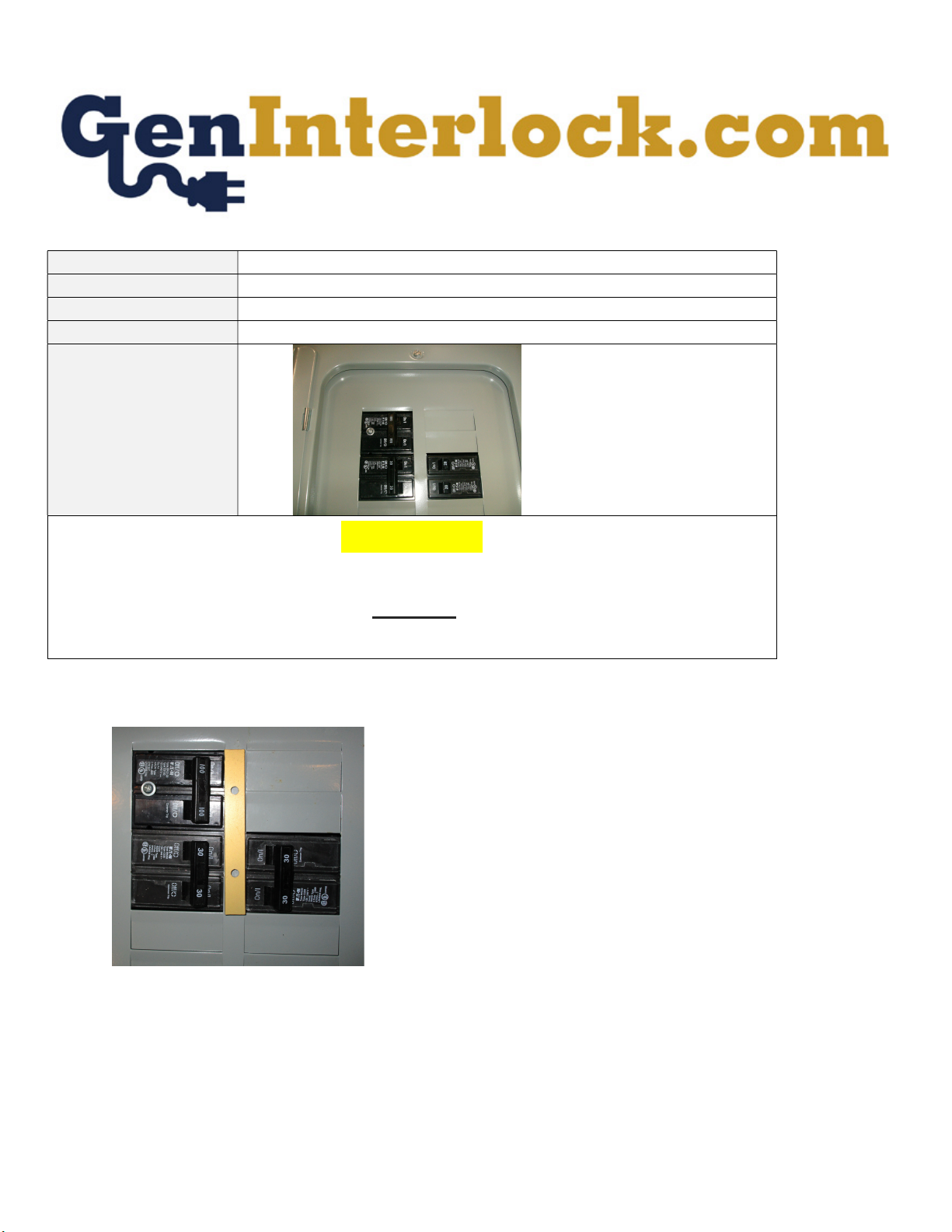

Description Generator Interlock Kit on BR 100 amp panel

Main Breaker 200 Amp Horizontal throw 4 Handle Main Breaker

Generator Breaker Below Main

WARNING

Only qualified personnel should be working on the panel box

An amateur should NEVER open the panel box

Please follow all rules and regulations of the National Electric Code

Step 1: Disassemble the interlock. Place the bottom plate (holes only) at edge of main breaker and this will line up with the bottom

edge of the generator breaker and mark holes as in picture below.

Step 2: Turn off the main breaker and remove the panel cover.

Step 3: Drill holes as marked on panel cover with supplied 3/16 drill bit and remove all burs from drilling cover.

Step 4: Insert screws from rear of cover, install bottom plate, and install top plate (slotted) install thread lock to screws and install

retaining nuts. Ensure proper movement.

Step 5: Install 2 pole Generator breaker below main breaker and place Generator Warning Sticker on Generator breaker.

Step 6: Combine the zip ties to make a loop and install zip ties around top set of breakers in panel as shown in picture below. Pull on

ends to make tight around breakers. Trim zip ties as needed and install Warning label next to release tab on zip tie at

generator breaker.

Step 7: Re-Install panel cover, Verify proper operation of interlock. Main breaker ON, generator breaker OFF and generator breaker

CAN NOT be turned on. Generator breaker ON, main breaker OFF and main breaker CAN NOT be turned on.

Main On Generator On

Place Generator start-up procedure label on panel box, Place CAUTION label on panel box and electric meter pan.

The MAIN and the GENERATOR breakers should NEVER be able to be turned on at the same time. If panel cover is removed the

Generator breaker is NEVER to be turned on. If for any reason the interlock does not function properly, DO NOT USE and contact us

immediately at sales@GenInterlock.com for support and instructions.

Thank You for your support,

GenInterlock Team

DISCLAIMER: GenInterlock.com is NOT responsible for misuse or improper

installation. All electrical equipment should be installed and maintained by

qualified personnel. Any consequences arising from improper use is the

responsibility of the user.

GenInterlock.com

[email protected]

732-339-4191
