GE WR72X10313 Guía de configuración

WR72X10313 KIT I

Install Instructions

Kit Contents

2 Large BM FZ Slides

2 Small BM FZ Slides & Supports

1 Upper FZ Basket

Slide Spacers

Screws

Install Instruction

Install Guide

5/32 Drill Bit

Door Alignment Kit WR49×10112

Step I

Step 2

Remove all items from the Freezer Baskets.

Remove Freezer Door

Step 3 Remove current Slides and Backer Plates.

Step4

for the Use supplied Backer Plate to mark new drill

new Upper Slide Support see picture A. holes

Picture A

Hark new drill holes for the Upper

Slide Support with a marker.

Line the three bottom holes with

cI Jrr_nf _cr_w hnl_

Notice the direction of the notched

Backer Plate.

Step 5 Follow Step 4 for opposite side.

Step6 Drill holes for new Upper Slide Supports with

supplied drill bit. (It is very important to use the

supplied drill bit)

Step 7 After holes have

mention Backer been

Plate drilled reinstall above

(repeat for opposite side).

Use the supplied double-sided

tape to hold the Backer Plate in

place. Do not use the supplied

screws. These screws will be used

for installing the new slides.

Step8 Install new Lower (large) Freezer Slide, see

picture B(repeat for opposite side).

Picture B

Remember to use the provided guide

to align the new slide, see picture C.

Picture C

Step 9 Install new upper Freezer

(repeat for opposite side). Slide, see picture D

Step lOInstall

oppos Upper Freezer Slide Inserts (repeet for

ite side).

Step 11 Instell the Customer's door. For proper door

elignment use the provided Door Alignment Kit.

(WR49×10112)

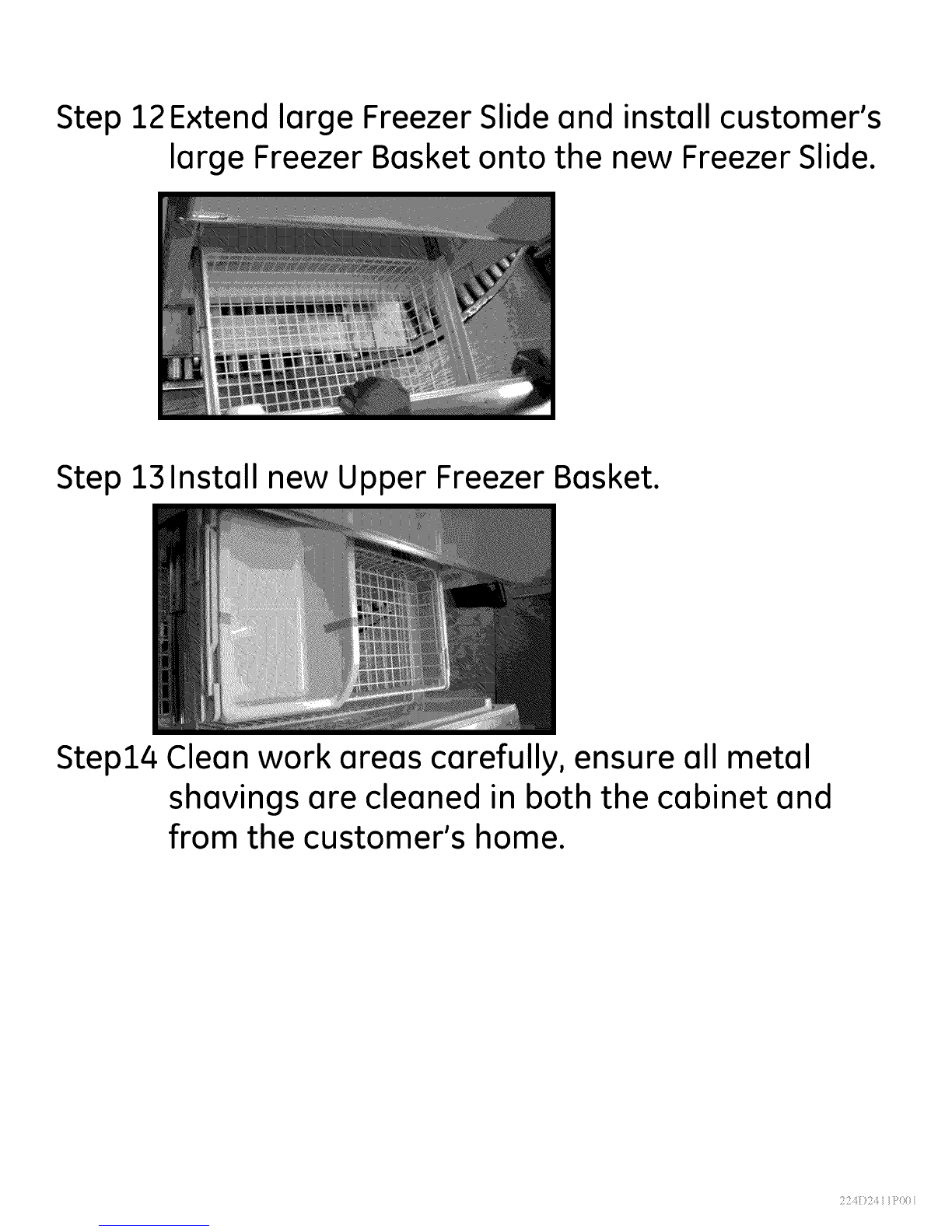

Step 12 Extend large Freezer Slide and install customer's

large Freezer Basket onto the new Freezer Slide.

Step 13 Install new Upper Freezer Basket.

Step14 Clean work areas carefully, ensure all metal

shavings are cleaned in both the cabinet and

from the customer's home.

::_2_I:!::!_Ii iPOOI
