USER MANUAL
GRV43SKT
gatordriverassist.com
For more information
on the Gator range
go to our website
Monitor, Monitor power cable, Number plate mount wireless camera,
USB to DC camera charging cable, Number plate mount adaptor,
Dash mount, Suction mount, Vent mount & Mounting screws
2
Introduction
Product features & specifications
Monitor
• 4.3” High-resolution LCD Screen
• Resolution 480 x 272 Pixels
• Parking guide lines
• 12-30V Compatible
• 3.5M Monitor power cable
• Power cable fuse: 3A
• Operation Current: <150mA
• Dimensions 90(H) x 125(W) x 44mm(L)
Camera
• Pixels 640 x 480
• Lens angle H135° / V90° /D165°
• IP-67 Dust and water protection
• Solar Charging Power: 0.8 W
• 1/3” CMOS Sensor
• Image quality Max 30 FPS
• Solar Energy Conversion Rate: 23%
• Battery Capacity: 2100 mAh
Transmitter
• Frequency: 2400 - 2485.5 MHz
• Transmission distance: 17.5 meters max.
• Working Temperature: 14"- 140"F (-10·- 60"C)
• Working Voltage: 12-30V
Thank you for purchasing the Gator GRV43SKT 4.3” wireless
solar powered reverse camera kit. Please ensure that you have
read the product manual and instructions in full, prior to
installation and use. Failure to do so may result in product
failure/damage or incorrect operation and therefore impact the
product performance.
3
Introduction..................................................................2
Product features & specifications..........................................2
Table of contents..................................................................3
Inclusions.............................................................................4
Charging the Camera's built-in battery.................................5
Monitor Installation...............................................................6
Installing the camera...........................................................8
Adjusting the camera angle..................................................9
Operating your device.........................................................9
Menu options and settings................................................10
Troubleshooting guide.......................................................13
Safety information & warnings...........................................14
Technical assistance..........................................................15
Table of contents
4
Inclusions
Monitor
Adapter Plate
Camera
Monitor
Suction Mount
Monitor
Vent Mount
Monitor
Adhesive Mount
Charging Cable
Monitor Power Cable
5
Charging the Camera's built-in battery
1. Connect the supplied DC cord to the charging port of the
camera by removing the end plate cover on the camera.
Carefully slide up away from the camera plate.
2. Plug the cable USB port into any standard USB charging
adapter (Not included) with an output rating more than 1000mA
3. A red light indicator near the camera cover will illuminate while
charging.
4. Charge time takes 4 to 5 hours. Once fully charged the
indicator light will turn off.
Under normal use, the camera maintains a charge with exposure
to sunlight. A battery status indicator is provided on the monitor
when the camera is in use. If you're storing your vehicle in a
garage (or not exposing the camera to sunlight on a regular
basis) you may need to recharge it via the DC port.
NOTE:
* Prior to installation the camera must be fully charged.
USB port
End plate
DC port
Indicator light

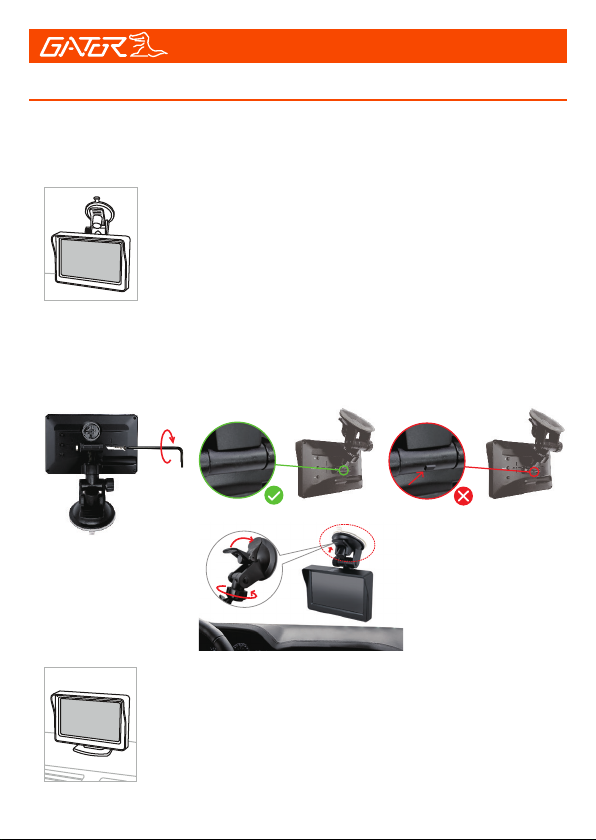

1. There are three ways you can mount the monitor, either
suction, vent or the adhesive mount.
With the suction mount the monitor can be mounted
to the windscreen or dash and be easily removed.
Attach the suction mount to the back of the monitor
using the supplied screwdriver and threaded screw.
Pay attention to orientation see pictures below.
With the suction lever in the released position,
press the suction cup against the windshield. Press the suction
lever toward the suction cup to lock the mount. To adjust the
angle of monitor, loosen the collar on the ball joint, re-tighten in
the desired position.
The adhesive mount can be used to permanently fix
the monitor to the dash. Attach the adhesive mount
to the back of the monitor using the supplied
screwdriver and threaded screw. For good
adhesion thoroughly clean the dash or windscreen
before mounting.
6
Monitor Installation
Screw Align
Rotate and Lock
7
Monitor Installation
For the vent mount, screw the socket adapter to the
back of the monitor with the supplied screwdriver
and small screw. Then secure the ball end of vent
mount to the socket and tighten the retaining nut.
Lift the clamp up and down to secure or release the
vent clip on the vent.
2. Connect the monitor power cable to the monitor and plug the
socket end into your 12-30V accessory input.
Vent Screw
Align
Connect
Rotate to tighten Lock & release
Ball Nut Vent Mount
8
Installing the camera
1. Identify the number plate size you have. This will determine if
you need to use the adapter plate.
2. If you need to use the adapter plate this slides inside the back
of the camera base plate
3. Mount your number plate to the camera plate using your
existing screws, by screwing into existing mounting holes on your
vehicle. Alternatively use the extra screws provided.
Slimline
Numberplate
Mount
Light illuminates
when active
Standard Size
Numberplate Adaptor
Wireless Solar
Powered Rear Camera
9
Adjusting the camera angle
1. When you want to adjust the camera angle, firstly make sure
the monitor is powered, by pressing the "Touch For Rearview"
button to enter working status.
2. Please note when rotating the camera, hold the license base
plate with one hand, hold the camera outer frame with the other
hand, then move up or down to adjust the angle.
Operating your device
1. Switch your 12-volt DC power port on with your ignition, the
monitor will start work accordingly, the video signal will be sent
from camera and will be displayed on the monitor.
The image is set to time out after 45 seconds (default). However
if you wish to shut the image off manually, just touch the 'Touch
for Rearview" Button on the monitor again anytime to stop at
once.
2. If you want to see the rearview image when driving your car ,
just touch the 'Touch For Rearview" Button on the top of
monitor.
3. When the vehicle is shut off, power is removed from the
monitor and the monitor will shut off automatically, and the
camera will stop working.
4. When the camera is active the light to the right on the camera
will illuminate
10
Menu options and settings
1. The middle button [MENU/OK]:
Short Press to enter monitor menu settings.
Long Press (press and hold for 3 seconds) to confirm the chosen
item in the menu setting interface.
2. The Up button [ADD]:
Short Press to change/add parameter value in the menu setting
interface.
3. The Down button [DEC]:
Short Press to change/decrease parameter value in the menu
setting interface.
( )
( )
