Gateway 960 Manual de usuario

www.gateway.com

Contents

Identifying parts in the accessory kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rackmount handle kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Rackmount rail kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Safety-related rackmount installation instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Converting your server to a rackmount server . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Removing the front cover, top and side panels, and feet . . . . . . . . . . . . . . . . . 5

Removing and rotating the drives, drive bay adapters, and EMI shield . . . . . . 9

Rotating and installing the front cover drive faceplate . . . . . . . . . . . . . . . . . . . 12

Installing the rackmount handles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installing the front cover and top panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Installing your server into a rackmount cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Installing the inner rails . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Attaching the rail assemblies to the rackmount cabinet brackets . . . . . . . . . . 16

Installing the rackmount cabinet brackets and the rail assemblies . . . . . . . . . 18

Mounting the server into the rackmount cabinet . . . . . . . . . . . . . . . . . . . . . . . 21

Securing the server in the cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Getting help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Server Companion CD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Gateway Web site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Installing Your Gateway

Server into a

Rackmount Cabinet

This guide provides the information you need to install

your Gateway 960 or Gateway 980 server into a rackmount

cabinet. Read this guide to learn how to:

■Convert a Gateway server into a

rackmount-configured server. See “Converting your

server to a rackmount server” on page 4.

■Install a Gateway rackmount server into a rackmount

server cabinet. See “Installing your server into a

rackmount cabinet” on page 14.

Installing Your Gateway Server into a Rackmount Cabinet

www.gateway.com

Identifyingpartsintheaccessorykit

There are two accessory kits for the Gateway 960 or Gateway 980 servers:

■Rackmount handle kit. Install the rackmount handle kit if you are

converting your server to a rackmount server.

■Rackmount rail kit. Install the rackmount rail kit on Gateway 960 or

Gateway 980 servers.

Rackmount handle kit

Rackmount rail kit

8 hex screws

#6-32 × 0.25"

2 rackmount

handles

Inner rail Middle rail Outer rail

2 rackmount cabinet

bracket sets

(4 brackets)

2 rail assemblies

10 screws for

the inner rails

10 screws and hex

head nuts for the rail

assemblies and

rackmount brackets

Safety-related rackmount installation instructions

www.gateway.com

Safety-related rackmount

installation instructions

When your Gateway server is installed in a closed or multi-unit rackmount

cabinet, make sure that you consider the following items:

■Ambient temperature

The ambient temperature inside the rackmount cabinet may be greater

than the ambient temperature in the room. Make sure that rackmount

cabinet is ventilated so your Gateway server operates within its specified

maximum operating temperature range. For information about the

maximum operating temperature, see the “Environmental specifications”

section of your user’s guide. The user’s guide is on the Server Companion CD

(SCCD) that shipped with your server.

■Stability

Make sure that your Gateway server is stable in the rackmount cabinet and

mounted according to the rackmount instructions in this installation

guide.

■Input supply

Check the power rating label on the back of your server to make sure that

the power supply circuits are adequate for the server power requirements.

Overloading the power supply circuits may affect the over-current

protection and supply wiring.

■Grounding

Make sure that your rackmount servers are grounded correctly. Pay

particular attention to correctly grounding the power supply connections

on power strips installed inside the rackmount cabinet.

■Disconnect device

The plug on the power cord is the power disconnect device for your

rackmount server. For safety purposes, make sure that the power outlet is

installed near the rackmount cabinet for easy access.

Installing Your Gateway Server into a Rackmount Cabinet

www.gateway.com

Converting your server to a

rackmount server

You can convert your Gateway 960 or Gateway 980 server to a rackmount

server. Before converting your server, make sure that the server is on a stable

work surface, such as a strong table or counter.

Although your server configuration may vary from the server configuration

shown in the following instructions, the general installation process will be

similar. To convert your server to a rackmount server, you need to complete

the following tasks in sequence:

1Remove the front cover, side and top panels, and feet.

2Remove and rotate the drives, drive bay adapters, and EMI shield 90

degrees.

3Rotate and install the front cover drive faceplates.

4Install the rackmount handles.

5Install the front cover and top panel.

If your server came from Gateway pre-configured for rack installation, go to

“Installing your server into a rackmount cabinet” on page 14.

Warning To avoid injury or damage to the server, we recommend

that two people lift the server.

Converting your server to a rackmount server

www.gateway.com

Removing the front cover, top and side panels,

and feet

Tools you need to complete this task:

To remove the front cover:

1Turn off your server, then disconnect the power cord and all other cables

connected to the server.

2Unlock the hot-swappable RAID bay cover door, press the cover release latch

on each side of the front cover, then pull the cover away from the case.

Phillips screwdriver

Needle-nose pliers

Cover

release

latch

Lock

Cover

release

latch

Installing Your Gateway Server into a Rackmount Cabinet

www.gateway.com

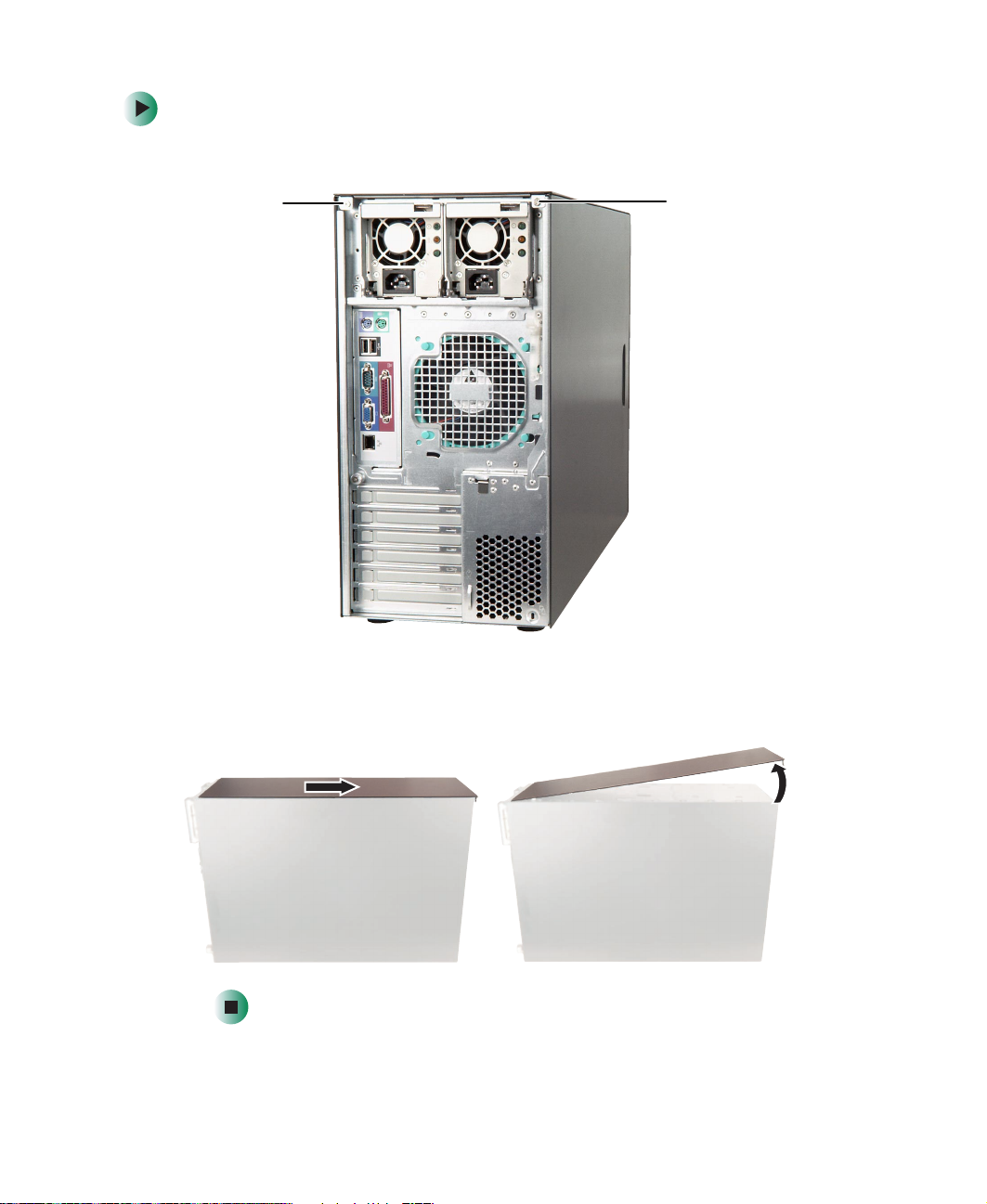

To remove the top panel:

1Remove the two top panel screws on the back of the case.

2Slide the top panel toward the back of the case, then lift the panel up and

away from the case.

Top

panel

screw

Top

panel

screw
