Gateway 205 ProjectorGateway 205 Projector
user'sguideuser'sguide
Setup Connecting
www.gateway.com
i
Contents
Using the Gateway 205 Projector. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Projector front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Projector back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Projector top . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Projector bottom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Cables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Remote control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Remote front . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Remote back . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Setting up the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Connecting components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting to your computer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Connecting to a DVD player or VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Connecting to a satellite dish . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Operating the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Starting the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
OSD options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Shutting down the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Maintaining the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Changing the lamp module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Cleaning the projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Common problems and solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
LED status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
On-screen status messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Display size chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Timing chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . 39
ii
1
Using the
Gateway 205
Projector
Read this guide to find out how to:
■Use the projector safely
■Use the remote control
■Set up and connect the projector
■Start and turn off the projector
■Use the On-screen display (OSD) menus
■Replace the lamp module
■Troubleshoot typical hardware problems
2
Using the Gateway 205 Projector
www.gateway.com
Features
The Gateway 205 is a high-resolution projector with:
■Compact, lightweight design
■Full-function remote including laser pointer and mouse controls
■16 million-color display capability
■Ultra-high brightness projection lamp
■High-quality manual zoom lens
■On-screen display (OSD) menus for easy adjustment
■One-button AUTO adjust for best display image
■Easy Keystone correction for distorted images
■Component video compatibility
Before using your projector please read the following safety instructions:
For a complete list of safety precautions, see “Important safety information”
on page 39.
Warning Do not cover the lens while the lamp is on.
Warning To project your eyes, do not look into the projector’s light
source.
Warning Make sure that you provide adequate ventilation for the
projector. Do not block the ventilation holes in the case.
Warning To prevent electrical shock, never open the projector case.
3
Projector front
www.gateway.com
Projector front
Item Icon Description
Infrared remote sensor Picks up the signal from the remote control.
Projection lens Projects the image on the screen.
Adjustor-foot release button Press to release the adjustor-foot. For more
information, see “Setting up the projector” on
page 16.
Projection
lens
Adjustor-foot
release button
Infrared
remote
sensor
4
Using the Gateway 205 Projector
www.gateway.com

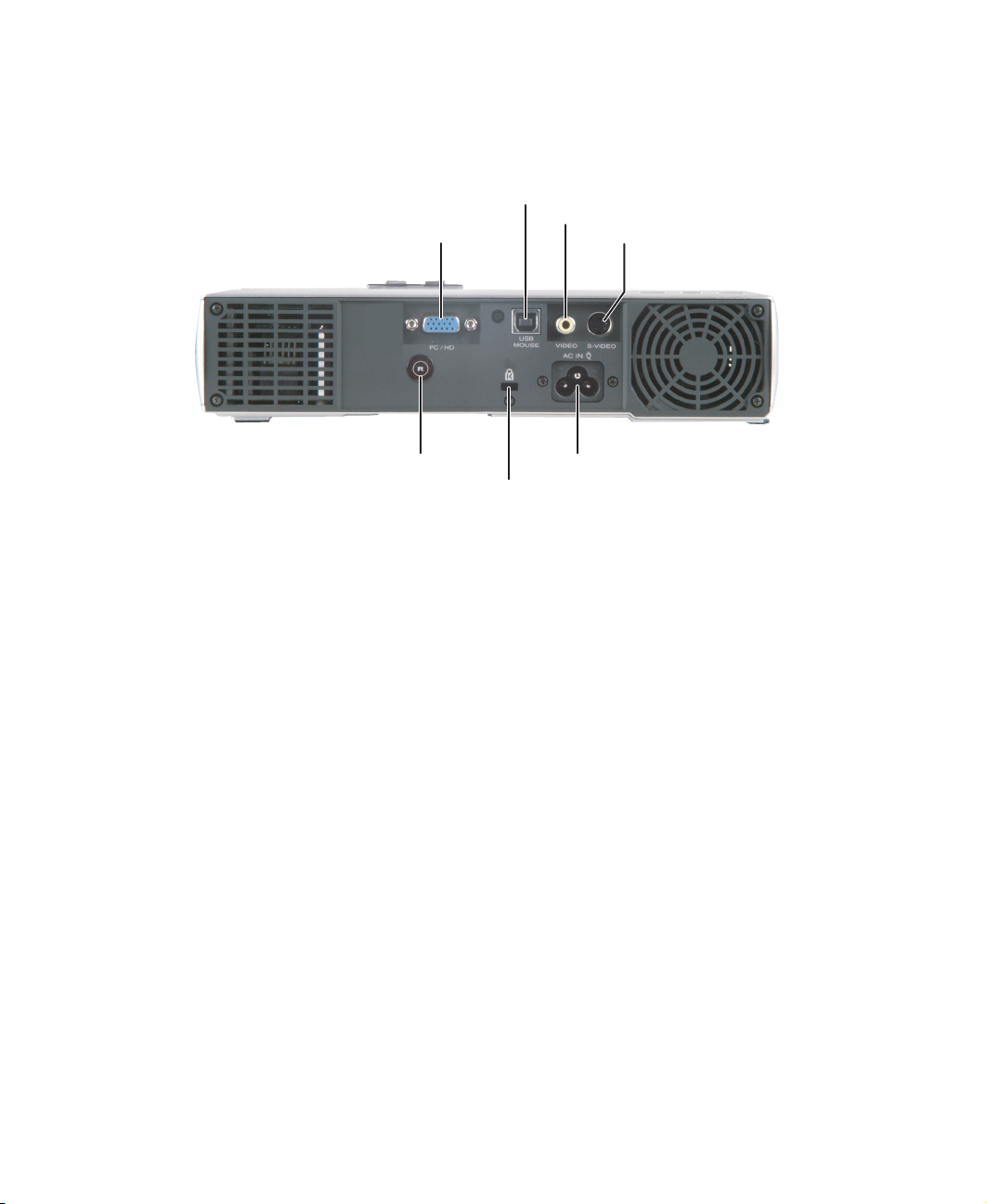

Projector back
AC Power connector
Kensington lock
Infrared remote sensor
USB port
PC/HD port S-Video port
Video port
5
Projector back
www.gateway.com
Item Icon Description
PC/HD port PC: Plug the video cable from your computer into
this port. See “Connecting to your computer” on
page 17.
HD: Plug a component video cable into this port. For
more information, see “Connecting to a satellite
dish” on page 21.
USB port Plug the USB cable into this port so you can use
the remote control as a mouse.
Video port Plug the video connector from a composite video
cable into this port. For more information, see “To
connect the projector to a DVD player or VCR using
composite video:” on page 19.
S-Video port Plug an S-Video cable into this port. For more
information, see “To connect the projector to a DVD
player or VCR using S-Video:” on page 20.
Infrared remote sensor Picks up the signal from the remote control.
Kensington™ lock slot Connect a Kensington cable lock to this slot to
secure the projector to an object.
AC power connector Plug an AC power cable into this connector.
6
Using the Gateway 205 Projector
www.gateway.com
Projector top
POWER button SOURCE button
AUTO button BLANK button
Power indicator Lamp indicator
Lens adjustment wheels
