USER GUIDE

Gateway VX760/VX765 Monitor

Using Your VX760/VX765 Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Setting up the monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Adjusting settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

On-screen display menu options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Video modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Maintaining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Safety, Regulatory, and Legal Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Contents

Contents www.gateway.com

Using Your VX760/VX765 Monitor

• Setting up the monitor

• Adjusting settings

• Maintaining

• Troubleshooting

• Specifications

Using Your VX760/VX765 Monitor www.gateway.com

Settingupthemonitor

Read all instructions before using the monitor and save them for later use.

Follow all warnings and instructions marked on the product.

To set up the monitor:

■Attach the base

■Connect the video and power cables

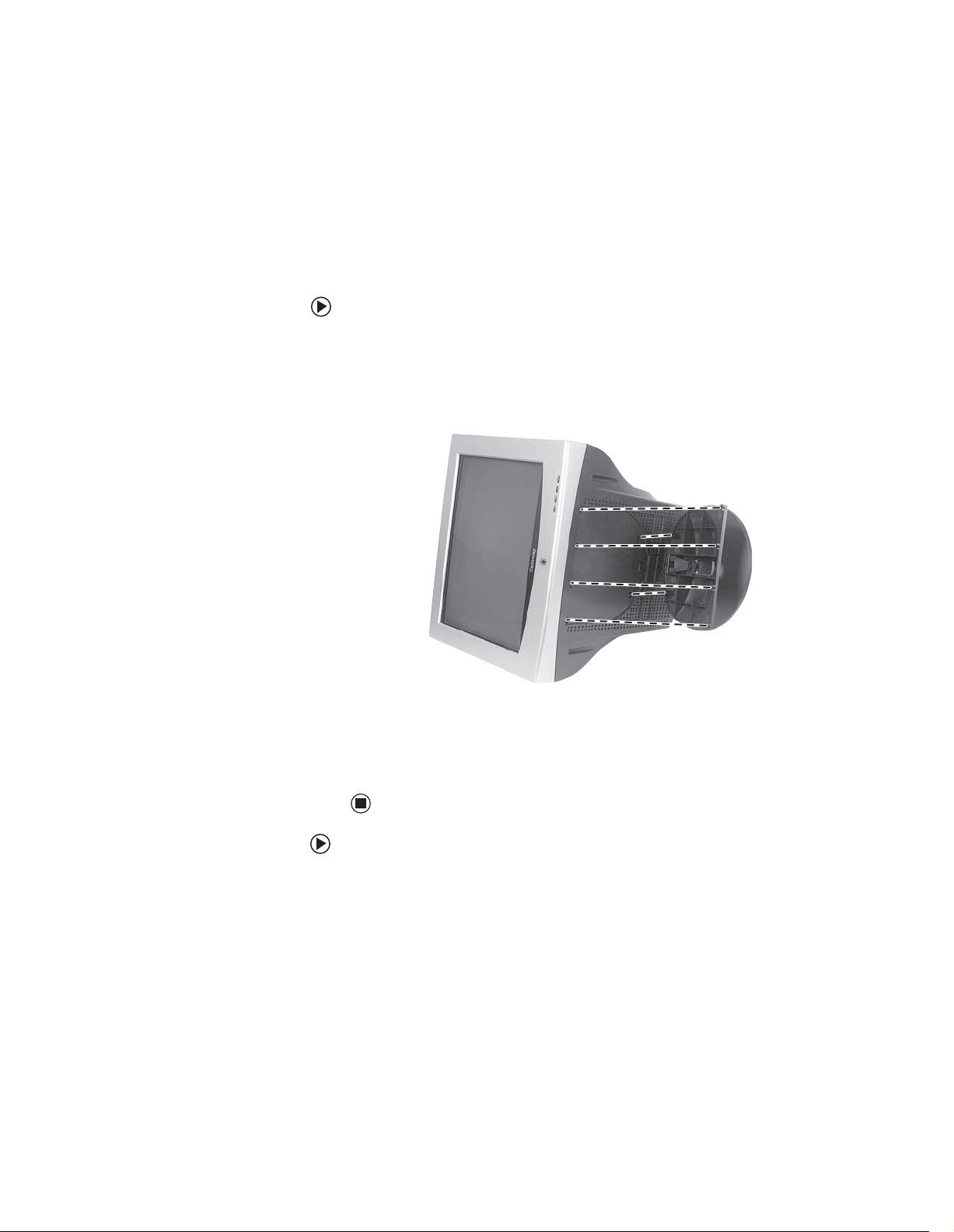

To attach the base:

1Carefully set the monitor on its side.

2Hold the base with the tab facing the back of the monitor and align the

hooks on the base with the corresponding slots on the bottom of the

monitor.

3Slide the base toward the front of the monitor so all hooks are securely in

place. A retaining latch built into the base clicks into place when the base

is correctly attached.

4Carefully set the monitor upright and place it on a sturdy, level surface.

To connect the video and power cables:

1Position the monitor and your computer so you can easily get at the back

panel of each. Make sure that all power cables can reach a correctly

grounded electrical outlet.

2Connect the video cable to the matching (blue) video port on the back of

your computer.

3Tighten the screws on the video cable connector to keep it from coming

loose. Tightening the screws also prevents radio and TV interference.

Setting up the monitor

www.gateway.com

Caution

The openings in the monitor cabinet are

for ventilation. Do not block or cover

these openings. Do not insert anything

into these openings. If you put the

monitor in a bookcase or some other

enclosed space, make sure to leave at

least six inches (15 cm) around it for

ventilation.

4Connect the power cable that came with the monitor to the AC power

connector on the back of the monitor. Only use the power cable that came

with the monitor.

5Plug the other end of the power cable into a correctly grounded electrical

outlet.

To turn on the monitor:

1Press the power button on the front of the monitor.

2Turn on your computer.

AC power

connector

Power button MENU button

Contrast/ button

Brightness/ button

EXIT button

Using Your VX760/VX765 Monitor www.gateway.com

Adjustingsettings

Power button. Turns the monitor on and off.

Power indicator. Turns blue when the monitor is operating normally, then

flashes when the monitor is in energy saving mode.

MENU button. Enters the on-screen display (OSD) menu or selects an OSD

menu option.

Brightness/ button. OSD inactive: Adjusts the brightness.

OSD active: Navigates to and adjusts the OSD menu options.

Contrast/ button. OSD inactive: Adjusts the contrast.

OSD active: Navigates to and adjusts the selected OSD menu option.

Exit. Exits the OSD menu or sub-menu.

To adjust monitor settings:

1Press the MENU button. The OSD menu opens.

2Press the or buttons to highlight an OSD menu option, then press

the MENU button to select the option.

3Press the or buttons to adjust an OSD menu option.

4Press the EXIT button to save changes. Press the or buttons to

highlight a different OSD menu option.

- OR-

If you have finished making all adjustments, press the EXIT button twice

to save your settings and exit the OSD.

Adjusting settings

www.gateway.com

On-screendisplaymenuoptions

Icon Description

CONTRAST. Adjusts the level of white between the lightest and darkest portions of an

image.

BRIGHTNESS. Adjusts the amount of light in the darkest portion of the picture.

H. POSITION. Controls the horizontal position of the display image.

H. SIZE. Controls the horizontal size of the display image.

V. POSITION. Controls the vertical position of the display image.

V. SIZE. Controls the vertical size of the display image.

ROTATION. Rotates the display image.

PINCUSHION. Curves the sides of the display image inward or outward.

TRAPEZOID. Increases or decreases the trapezoid distortion of the display image.

PARALLELOGRAM. Slants the display image to the left or right.

PIN BALANCE. Curves the display image to the left or right.

ADVANCED SELECT. Opens a submenu that contains menu options to adjust the top

and bottom corners of the display and horizontal and vertical moire.

COLOR. Adjusts color balance. Select from two preset factory options (9300°K and

6500°K) or USER. USER lets you adjust the red, green, and blue colors separately.

OSD ADJUSTMENT. Opens a submenu that contains menu options that let you change

the position of the OSD menu on the screen and the length of time the OSD menu is

visible.

RESET. Resets the monitor settings to the factory default settings.

LANGUAGE. Changes the display language for the OSD.

EXIT. Displays current settings and exits the OSD menu.

DEGAUSS. Demagnetizes the screen.

OSD

EXIT

Using Your VX760/VX765 Monitor www.gateway.com

Videomodes

The monitor supports several video modes from 720 × 400 to 1280 × 1024. The

recommended video mode is 800 × 600 @ 85 Hz. Factory preset video modes

include:

HF- Horizontal frequency (KHz)

VF- Vertical frequency (Hz)

Maintaining

To keep the monitor in optimal working order:

■Do not block the ventilation holes.

■Do not expose the monitor to rain or use near water.

■Keep the monitor away from radiators or heat vents.

■Keep the monitor out of direct sunlight.

■Keep the monitor away from any equipment that generates a magnetic

field.

Use a screen saver to avoid permanent image burn-in. For more information

about screen savers, see the documentation that came with your computer.

Cleaning

Warning

When the monitor is turned off, a small

amount of electrical current still flows

through the monitor. To avoid electrical

shock, always unplug all power cables

and modem cables from the wall outlets

before cleaning the system.

Clean the monitor using a soft cloth lightly moistened with water. Wipe the

cabinet, glass panel, and controls.

Do not use any type of abrasive pad or glass cleaner. You will permanently

scratch the glass panel.

Mode Resolution HF VF

1720 × 400 31.47 70

2 640 × 480 31.47 60

3640 × 480 43.27 85

4 800 × 600 46.87 75

5800 × 600 37.88 60

6 800 × 600 53.67 85

7800 × 600 63.90 100

8 1024 × 768 48.36 60

91024 × 768 60.02 75

10 1024 × 768 68.67 85

11 1280 × 1024 60.30 75
