Contents

Using Your FPD1530 Monitor.......................................1

Connectingthemonitor ...............................................2

Startingthemonitor ..................................................5

Adjustingmonitorsettings .............................................6

Externalcontrols .................................................6

OSDoptions ....................................................7

Softwarecontrols ...............................................10

Videomodes ...................................................14

Powermanagement ................................................15

ENERGYSTAR ................................................15

Energydeclaration ..............................................15

Maintenance ......................................................16

Troubleshooting ....................................................17

Nopower......................................................17

Nopicture .....................................................17

Displaycolorsarewrong .........................................18

Picturehasshadowsor“ghosts” ...................................18

Colorisnotuniform .............................................18

Imageisnotsizedorcenteredproperly..............................18

Specifications......................................................19

Safety, Regulatory, and Legal Information .........................21

www.gateway.com

Using Your

FPD 1530

Monitor

TheFPD 1530 monitor is a high-resolutioncolor LCD with:

■1024 ×768 maximum resolution

■Over 16 million colors

■Excellent contrast and legibility

■Space-saving and lightweight design

■Reduced power usage

Using YourFPD1530Monitor

www.gateway.com

Connecting the monitor

To connect the monitor:

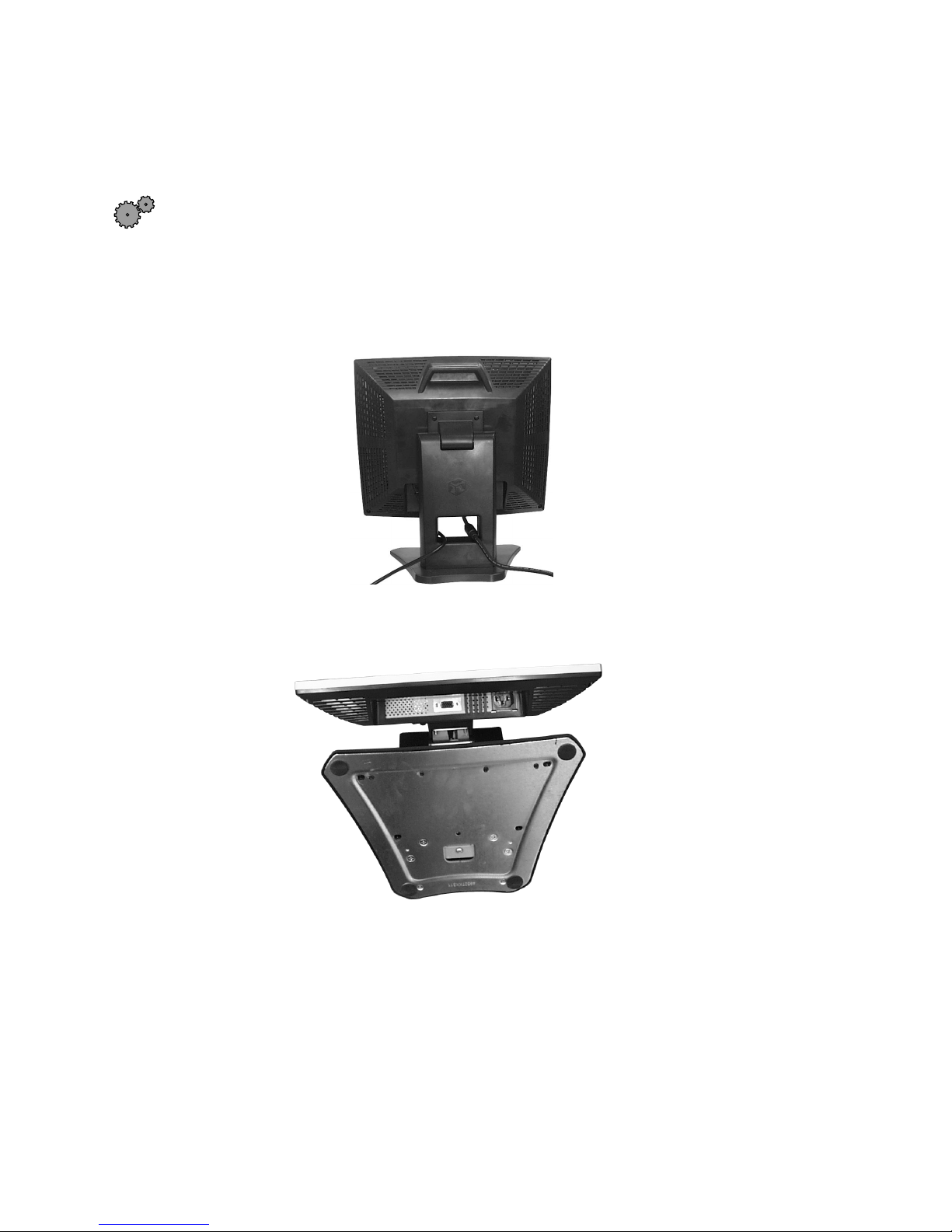

1Position the computer and the monitor so you can easily reach the back

panel of each.

2Set the monitor upright, then feed thepower cableand theattached video

cable through the hole in the stand.

3Lay the monitor on its back.

Connecting the monitor

www.gateway.com

4Connect the power cord to the power connector on the underside of the

monitor.

5Return the monitor to its upright position.

6Make sure your computer is turned off, then connect the end of the

attached video cable to the matching video port on the back of your

computer.

Using YourFPD1530Monitor

www.gateway.com

7Plug the other end of the power cord into a properly grounded electrical

outlet.

Starting the monitor

www.gateway.com

Starting the monitor

To start the monitor:

1Press the power button on the monitor. The LED on the button turns on.

2Turn on the computer.

3After the computer is running, the LED on the monitor power button

should be green. Allow about 10 seconds for the display image to appear.

If the power LED is not green or you do not see a display image, check

the connections. For more troubleshooting information, see

“Troubleshooting” on page 17.

4Adjust the tilt of the monitor for the best viewing angle.

5Adjust the controls to get the best picture. After you see the Windows

desktop, press the AUTO/SET button to automatically adjust your display

image to the ideal settings. Adjust other monitor settings by using the

on-screen display (OSD). For more information, see “Adjusting monitor

settings” on page 6.

Important When adjusting your monitor settings,always press the

AUTO/SET button before entering the OSD. This will

automatically adjust your display image to the ideal

settings for the current screen resolution.

The bestscreenresolution is1024 ×768.

Power button

and LED

Using YourFPD1530Monitor

www.gateway.com

Adjusting monitor settings

You can adjust your display image by using external controls (located on the

monitor itself) and software controls (accessible in Windows). For more

information about software controls, see “Software controls” on page 10.

External controls

This monitor features an on-screen display (OSD) that lets you adjust and save

contrast, brightness, and other settings for the monitor. The monitor saves

changes you make to the settings, even if you turn off the monitor.

■OSD. Press to view the OSD. Press again to exit.

■Arrows.

OSD active: Press to select or adjust OSD options.

OSD inactive: Press and to adjust the contrast. Press and to

adjust the brightness.

■Auto/Set.

OSD active: Press to enter a selection in the OSD.

OSD inactive: Press the AUTO/SET button to automatically optimize your

monitor’s position, clock, and phase.

Menu selection arrows

OSD button AUTO/SET button
