gascraft G1013-NZ Manual de usuario
Portable Gas BBQ
With Trolley
Model No. G1013-NZ
FOR OUTDOOR USE ONLY- OPERATES ON NZ LPG
Retain these instructions for future use.
IMPORTANT: DO NOT LEAVE THIS BBQ UNATTENDED WHEN LIT AND IN USE
GENERAL INFORMATION
Gas Installation Code
This BBQ is to be used with NZ LPG only (9kg LPG cylinder) or
with propane (1lb disposable propane canister).
Failure to comply with these instructions could result
in a fire or explosion which could cause serious bodily
injury, death or property damage.
Accessible parts may be very hot.
Keep young children away.
Any modifications of this barbecue may be dangerous.
Do not move this barbecue during use.
Turn off gas supply at the cylinder after use.
Read instructions before using the barbecue.
Parts sealed by the manufacturer or their agent must
not be manipulated by the user. This barbecue is only
to be used and stored outdoors.
Clearances
Minimum Clearance from combustible materials must be: Rear
- 600mm, Sides - 600mm, Overhead - 600mm.
Hose & Regulator Safety
The regulator (Part 06) supplied with the barbecue is suitable
for LPG only.
Connecting regulator (Part 06) and hose (Part 07) which is
supplied with the barbecue is suitable for LPG only.
A gas regulator adjusted to have an outlet pressure of 2.75kPa
is supplied for connection to the gas cylinder. The pressure
regulator and hose assembly supplied with the barbecue must
be used. Replacement pressure regulators and hose
assemblies must be those specified by the barbecue
manufacturer.
Never operate this barbecue without a regulator
When connecting the hose assembly to the gas cylinder take
care to avoid unnecessary twisting or kinking of the flexible
hose.
After the assembly has been secured, turn on the gas and
check for leaks by brushing a soap and water solution over all
connections.
Do not test for gas leaks with an open flame
If you are unable to correct the leak by tightening the
connections, turn off the gas and contact the supplier
immediately.
Always ensure the barbecue is kept away from flammable
materials and the gas cylinder clear of any heat source. When
changing over from an empty gas cylinder to a full one make
sure this procedure is carried out outdoors in a well-ventilated,
flame free atmosphere.
If this information is not followed exactly a fire causing
death or serious injury may occur. Do not store a spare
gas cylinder under or near this barbecue. Never fill the
cylinder beyond 85% full. This barbecue is only to be
used and stored outdoors.
Specifications
Barbecue specifications can be found on the data label affixed
the underside of the side shelf.
If you smell gas
1. Shut off gas to the barbecue at its source, if
possible.
2. Extinguish any open flame.
3. Open hood.
4. If odour continues immediately call your gas
supplier or fire department.
Gas Cylinder Use & Safety
This is a low-pressure barbecue and must be only used with
the hose assembly and regulator supplied. Your barbecue is
designed for use with 1lb. disposable propane cylinder or 9kg
LPG cylinders.
Do not connect your barbecue to a gas cylinder
exceeding this capacity.
Never connect an unregulated gas cylinder to your
barbecue.
The cylinder should be filled by a reputable gas supplier and
visually inspected and re-qualified at each filling.
Always keep cylinder in an upright position. Always close the
cylinder valve when the barbecue is not in use.
Do not subject the cylinder to excessive heat.
Never Store your Gas Cylinder Indoors.
If you store your barbecue indoors, ALWAYS disconnect the
cylinder first and store it safely outside. Cylinders must be
stored outdoors in a well-ventilated area out of reach of
children, and must not be stored in a building, garage or any
other enclosed area.
GENERAL INFORMATION
Location of your Barbecue
DO NOT use your barbecue in garages, porches, sheds,
breezeways, or other enclosed areas. Your barbecue is to be
used OUTDOORS. The barbecue is not intended to be
installed in or on recreational vehicles and/or boats and should
not be placed under any surface that will burn. Do not obstruct
the flow of combustion and ventilation air around the barbecue
housing.
For your safety:
Do not store or use petrol or other flammable
liquids in the vicinity of this or any other
appliance.
Do not store empty or full spare gas cylinders
under or near this or any other appliance.
Keep the gas hose away from hot surfaces and
protect from dripping grease. Avoid unnecessary
twisting of hose. Visually inspect the hose prior
to each use for cracks, excessive wear or other
damage. Replace the hose if necessary.
Never test for gas leaks with a lit match or open
flame. Never light barbecue with hood closed or
before checking to ensure the burner tubes are
fully seated over gas valve orifices.
Never lean over cooking surface when lighting.
Never alter or modify the regulator or gas supply
assembly.
This barbecue must not be used indoors.
Do not leave this BBQ unattended when lit and
in use.
Read carefully before assembling and operating your
barbecue.
Ensure the barbecue is set up on a level and stable
surface.
Do not move the barbecue while in use or when hot.
Remove the grease box before moving.
Check Barbecue for any Damage
Contact your supplier for assistance regarding replacement of
any damaged or missing parts. Do not operate a barbecue that
appears damaged. Barbecues for use with gas cylinders are
labelled ‘LPG’. Check labelling at the gas connection on your
barbecue.
Protect Children
Keep children away from barbecue during use and until
barbecue has cooled after you have finished. Do not allow
children to operate barbecue.
Always ensure that no sporting or physical activities are carried
out in close proximity to the barbecue during use and while still
hot.
TECHNICAL INFORMATION
Model No G1013-NZ
Gas Consumption MJ/h 15.12MJ/h
Injector Size 1.0mm
Gas Type:NZ LPG (I
3B/P
30mba
r)
Gas Pressure 2.75kPa
Min/Max Pressure 2.0-3.5kPa
Max Test Pressure 14kPa
GASCRAFT PORTABLE GAS BBQ WITH TROLLEY
1008 CQ 2875
FOR OUTDOOR USE ONLY
FOR CORRECT OPERATION REFER TO INSTRUCTIONS PROVIDED
Marketed by :
The Warehouse Limited
PO Box 34-470 , Takapuna,
Auckland , New Zealand
Made in China
28
27
26
25
23
07
22
21
M
20
19
18
17
16 15
14
13
12
11
10
09
08
06
05
04
03
02
01
24
NM8 Nut 4
28 Axle
27 Wheel
26 Wheel Axle
25 Leg
1
2
1
1
1
2
1
1
2
2
1
1
1
2
1
1
1
1
2
1
1
1
1
1
1
1
1
NO. Description Figure
FigureDescription
NO.
Thermometer
22
01
18
1
Hood Hinge
- Right
Burner
19
Hood
Flame Tamer
20
Hood Handle
21
Cooking grill
23
Firebowl Hinge
- Right
AM6X15 Screw
BM6 Nut
CM6X10 Screw
D
Fire bowl
M4X10 Screw
E
Side Shelf
M4 Nut
FM5X35 Screw
Ignitor
M5 Nut
L
K
Right Leg
Assembly
M5X10 Screw
M
Grease Box
Clip
Left Leg
Assembly
8
21
17
2
2
4
8
6
2
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
Firebowl Hinge
- Left
Hood Hinge
- Left
G
2
Hinge Axle
Hose assembly
Regulator
Clip
Support Tube of
Side Shelf
Fire bowl
Support Plate A
Fire bowl
Support Plate B
Cooking Plate
24
Bracket
Q'TY Q'TY
C
C
C
C
B
B
B
B
C
B
STEP 2
B
B
B
B
A
A
A
A
B
A

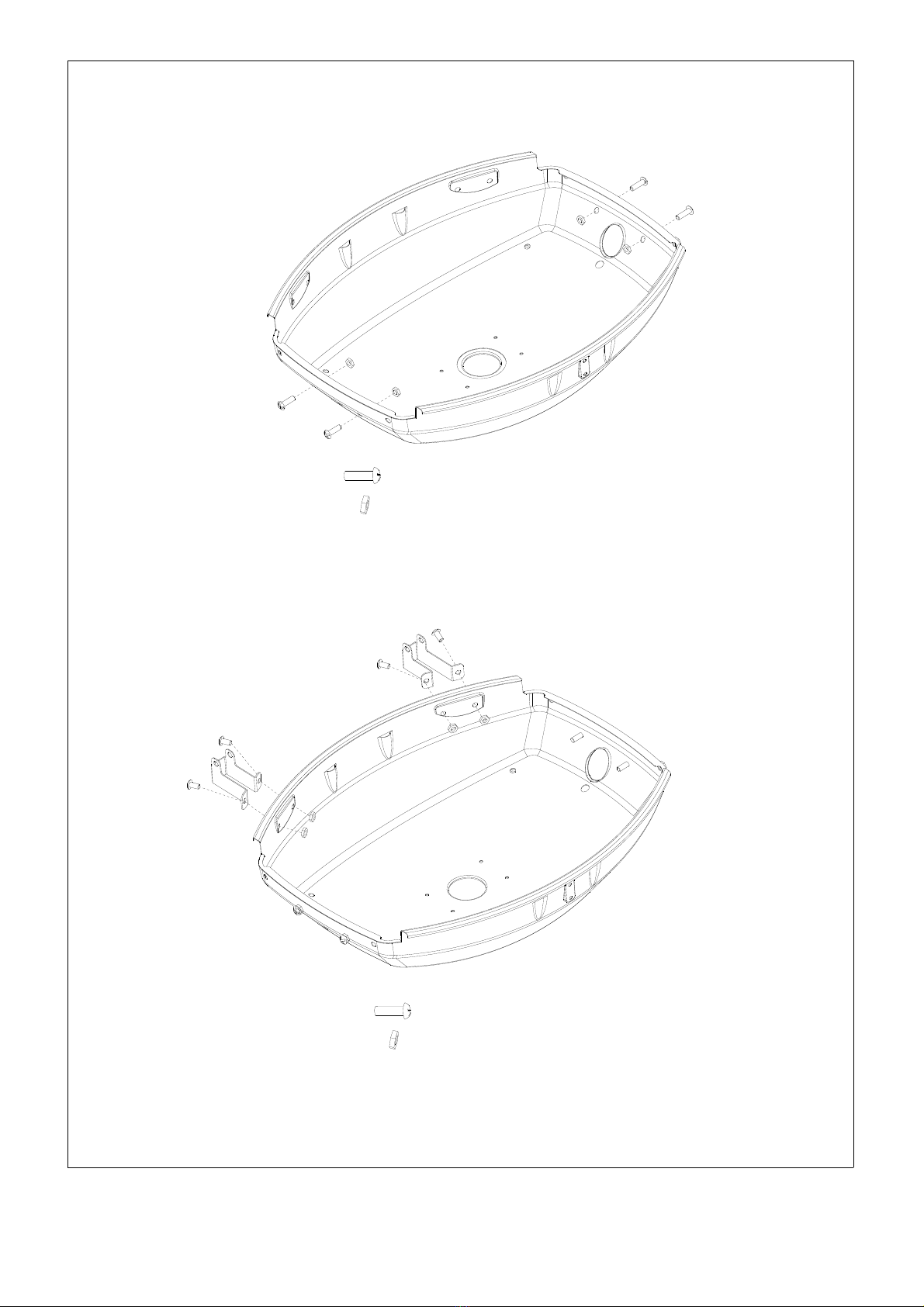

STEP 1
4Pcs
M6 Nut
4Pcs
M6X10 Screw 4Pcs
M6 Nut 4Pcs
M6X15 Screw
M4 Nut
E
E
D
D
E
D
STEP 3
STEP 4
M4X10 Screw
2Pcs
2Pcs
C
C
C
C
C
B
B
B
B
B
B
B
BC
C
C
C
B
B
C
B
C
STEP 6
STEP 5
M6X10 Screw 8Pcs
M6 Nut 8Pcs
1Pcs
M6 Nut
1Pcs
M6X10 Screw
A
A
G
G
G
G
F
F
F
F
G
F
STEP 8
STEP 7
M6X15 Screw 4Pcs
M5X35 Screw 4Pcs
M5 Nut 4Pcs
A
A
A
G
G
G
G
L
L
L
L
G
L
STEP 10
STEP 9
4Pcs
M5 Nut
4Pcs
M5X10 Screw
